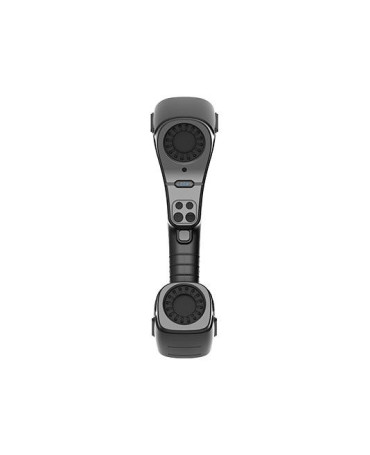

Scantech KSCAN20 3D Scanner

In Stock
A versatile composite 3D scanner
  • Limitless measuring area
  • Two scanning modes: red and blue
  • Integrated photogrammetry function
  • High level of detail and efficiency
When purchasing with us you get:
  • Favorable PO Terms
  • 1 Year Warranty
  • Local U.S. Support
  • FREE training
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This 3D scanner comes with:
  • Essential parts required to operate the scanner
  • USB 3.0 cable
  • User-friendly interface
  • ScanViewer software
Shipped from China. Lead time is 2-3 weeks.

KSCAN20 is a metrology-grade professional 3D scanner produced by the Chinese Scantech. It is a Class 2M, eye-safe composite laser 3D scanner. It effectively combines a photogrammetry system with a dual-laser light source (standard red and hyperfine blue). The photogrammetry function makes for wider scan volume and volumetric accuracy. The dual-scan mode provides both high-efficiency fast 3D scanning and high-precision data capturing. Portable and efficient, KSCAN20 can be used in a variety of industries for a broad range of applications. Indeed, it features a virtually limitless measuring area.

The scanner is engineered with 7 red laser crosses with an extra laser line and 5 blue parallel laser lines. The overall accuracy goes up to 20 microns while the edge accuracy reaches 30 microns. The device automatically detects tiny deformations accurately reported via the bundled ScanViewer software. It features an optional intelligent edge function. It can be combined with a portable CMM for greater accuracy and flexibility.

KSCAN20 is capable of scanning small-to-large objects with deep holes and difficult-to-scan areas always providing realistic results. Keep reading our complete review.

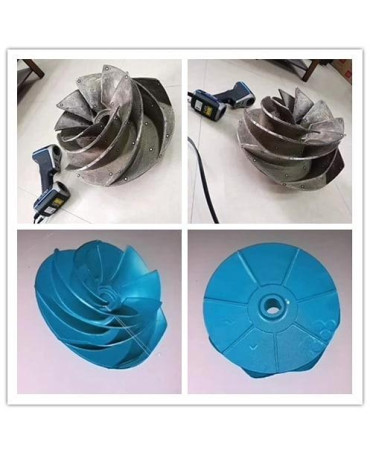

No matter the structure, KSCAN20 is capable of capturing all types of surfaces with extreme precision. Just look at this helix-shaped metal part.

Credit: @3dscantech / Instagram

Here is another great example of its amazing precision.

Credit: @3dscantech / Instagram



Specifications:

  • Scan accuracy
  • Scan volume
  • Scanner controls
  • What’s in the box
  • Look and feel
  • Price



Scan accuracy

The KSCAN20 is a professional laser 3D scanner equipped with both red laser and blue laser scan technology. Depending on the scan mode and part size, you might benefit from a different level of volumetric accuracy. Specifically, when scanning in red mode, the volumetric accuracy is 0.02 mm+0.035 mm/m. In blue mode, it goes down to 0.01 mm+0.035 mm/m. When using an optional reference bar, the volumetric accuracy is 0.025 mm/m.

The red mode provides a measurement resolution of 0.05mm, the blue mode gives the scan a finer resolution of 0.01mm. The single point repeatability is 30 microns. Unlike normal 3D scanners, KSCAN20 benefits from a 1-meter-length tolerance of 0.05mm and a 5-meter-length tolerance of 0.113mm. It is really fast. It can perform 650,000 measurements per second.



Scan volume

The KSCAN20 portable 3D scanner features an unlimited scan volume. By moving the device, you can scan both a coin and an airplane in rapid times. The single scan range measures 550 x 600mm. The stand-off distance goes from 200 mm to 420 mm. The scanner depth of field reaches up to 550mm.



Scanner controls

This user-friendly scanner can be operated via the fitted control buttons. Also, it can be easily paired with a computer via the integrated USB 3.0 port.

The scanner features an indicator light, which keeps you always updated about the scanner status. It provides real-time visualization of the 3D scan.

Credit: @3dscantech / Instagram

The scanner supports multiple output formats (STL, OBJ, PLY, IGS, STP, WRL, XYX, DAE, FBX, MA, ASC, etc.). It works with ScanViewer, a free 3D scanning software. The program includes a variety of inspection and scanning functions, such as Color map, Distance, and GD&T. It also features a professional pipe inspection function for direct exporting of YBC/LRA data.



What’s in the box

  • KSCAN20 3D Scanner
  • ScanViewer software
  • USB 3.0 cable

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

KSCAN20 is available in a black and gray design. Its stylish look makes it ideal for reverse engineering, quality inspection, product design, and other professional applications.



Price

To learn the current price of the scanner, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
