Anycubic Kobra Max 3D Printer

In Stock
Large-scale FDM 3D printer with auto bed leveling
  • Huge build volume
  • Automatic bed leveling
  • Filament run-out sensor
  • Silent printing
When purchasing with us you get:
  • FREE Delivery
  • Limited 1 Year Warranty
  • 24/5 Customer Support
  • Up to 20% Filament Discount
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This 3D printer comes with:
  • All printer parts required for assembly
  • Tool kit
  • Card-reader with microSD card
  • All the necessary cables
Price: $625.00
The estimated lead time is 5-10 business days.

The Anycubic Kobra Max is a high-performance FDM 3D printer with a massive build volume of 400 x 400 x 450 mm. Actually, it’s one of the biggest FDM 3D printers in its price range. Apart from that, the Kobra Max boasts a decent set of functions that ensure smooth operation and impressive printing results. The printer comes semi-assembled with a detailed instruction, so the assembly process does not take long.

The machine features the proprietary Anycubic LeviQ auto bed leveling system with a strain gauge which uses the nozzle to probe the build plate at 25 points, and creates a leveling map. You do not have to manually level the bed, but you can adjust the Z-axis height in the menu, if needed. The system efficiently calibrates the bed, compensating for any unevenness, which is extremely important for large-scale prints to ensure proper first layer adhesion. The build plate made of carborundum glass heats up to 90 °C and provides even heat distribution, strong adhesion, and easy print removal.

Other useful features of the Anycubic Kobra Max are filament runout detection and print resume function. Thanks to the silent stepper motors, the machine is rather quiet with the operating noise level not exceeding 60 dB.

a rainbow colour model printed on the Anycubic Kobra Max 3D printer

Credit: @anthony_molina323 / Instagram

a green model printed on the Anycubic Kobra Max 3D printer

Credit: @mskarts / Instagram



Print quality

a white model printed on the Anycubic Kobra Max 3D printer

Credit: @therealsamprentice / Instagram

The Anycubic Kobra Max can print layers at the minimum height of 50 microns. If you build really large models, it makes sense to increase the layer thickness to save time. One more useful tip for printing big is to switch to a larger size nozzle than the standard 0.4 mm. The reinforced aluminum frame, the bowden extruder setup, and the Z-axis powered by two motors and two lead screws, and supported by a pair of rods, reduce wobbling and make for consistent precise results even at high printing speed.

a yellow model printed on the Anycubic Kobra Max 3D printer

Credit: @anthony_molina323 / Instagram

The Kobra Max is equipped with a bowden type dual-geared extruder and a Volcano style hotend with two cooling fans and a 0.4 mm nozzle, heating up to 260 °C, which allows printing with the most popular consumer-grade filaments. Despite its bowden extruder, the printer shows good results printing with flexible materials, like TPU. The maximum print speed can reach 180 mm/s and the average speed recommended by the manufacturer is 80 mm/s.

a blue model printed on the Anycubic Kobra Max 3D printer

Credit: @anthony_molina323 / Instagram



Materials

Thanks to the nozzle temperature of 260 °C, the Anycubic Kobra Max prints with a variety of consumer plastic filaments, including PLA, TPU, PETG, and ABS. The carborundum glass build plate heats up to 90 °C and ensures strong first layer adhesion.

a different colour filaments on the Anycubic Kobra Max 3D printer

The printer is an open system which means you can utilize third-party 1.75 mm filaments.



Build volume

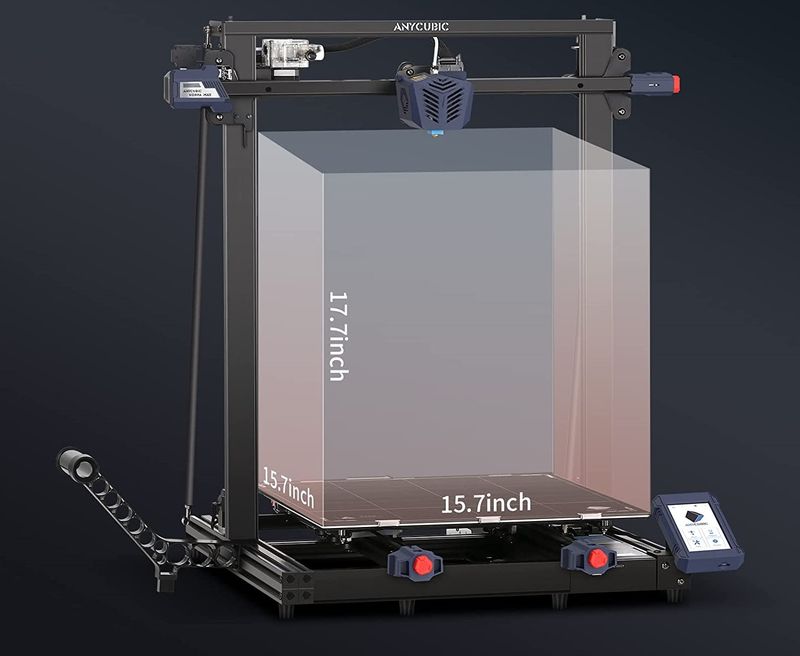

a build volume on the Anycubic Kobra Max 3D printer

The Kobra Max features an open design and an enormous build volume of 400 x 400 x 450 mm allowing you to realize the most ambitious printing projects regardless of size. You can also print batches of smaller size models in one go.



Printer controls and software

The device is operated via a full-color 4.3" LCD touchscreen with a simple, user-friendly interface. There are USB and microSD card slots on the front panel. The power socket and switch are on the bottom right panel.

a printer controls on the Anycubic Kobra Max 3D printer

The printer comes with the Ultimaker Cura software for both Windows and macOS. Other popular slicers, like Repetier-Host or Simplify3D, are also supported, so you can prepare the model in the slicer you are used to working with. The ready-to-print G-Code file can be uploaded to the printer from a microSD card (recommended by the manufacturer) or directly from the PC via a USB connection.

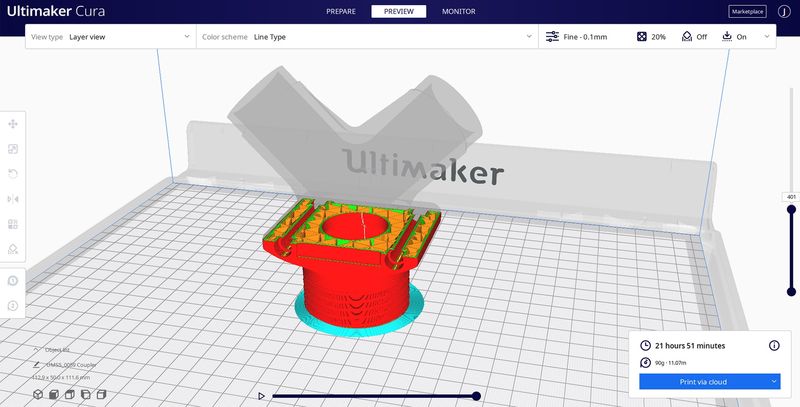

a Ultimaker Cura software on the Anycubic Kobra Max 3D printer



What’s in the box

Anycubic Kobra Max 3D printer kit

Credit: lesimprimantes3d.fr

  • Anycubic Kobra Max 3D printer assembly parts
  • 6 bed clamps
  • Filament sample
  • Spare nozzle
  • Toolkit
  • Screws and nuts
  • Lubricating oil
  • Power cord
  • USB cable
  • USB card-reader with microSD card
  • User manual

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

The Anycubic Kobra Max 3D printer is available in black. Its open stylish design makes it ideal for any office or workshop.

Anycubic Kobra Max 3D printer

The machine dimensions are 28.3 x 28.1 x 26.2 in (720 x 715 x 665 mm). It weighs approximately 35.3 lb (16 kg).



Price

To learn the current price of the Anycubic Kobra Max, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
