The Anycubic Photon Mono X 6K is a high-resolution version of the company’s desktop LCD-based resin 3D printer Photon Mono X. The machine is aimed at improved quality, better detailing of the printed models, and accelerated speed of production.
To achieve these purposes, the printer is equipped with an advanced 6K parallel matrix light source with more uniform light exposure and greatly increased power density. The Photon Mono X 6K comes with a premium 9.25" monochrome screen with increased print area and accuracy of the objects produced. The 6K resolution, impressive printing speed, and ease of use place the printer far above its rivals in terms of efficiency.
Among other smart features, the machine offers a dedicated and replaceable anti-scratch film for the screen, light power regulation function that extends the lifespan of the device, and highly intuitive software with a number of handy tools. The open material system allows using a wide range of consumables with different properties to get the desired outcomes.
Due to its ability to produce highly detailed models in an intelligent, convenient, and cost-effective way, the Anycubic Photon Mono X 6K satisfies the demands of both professionals and hobbyists and serves as a great tool for various creative spheres, including modeling, prototyping, low volume production, etc.
The Anycubic Photon Mono X 6K model can print layers with heights ranging from 10 to 150 microns. Due to the adjustable light power (from 30% to 100%), the printer offers improved print quality and extended lifespan of the screen.
The machine is equipped with an industry-leading 6K monochrome LCD screen with 5760 x 3600 px resolution with a total number of over 20 million pixels, which is 125% higher than Photon Mono X adding to the overall level of detailing. With a 350:1 contrast ratio, which is superior to traditional 200:1, the printer provides your 3D models with extremely sharp and clear edges and corners. It will definitely satisfy the user’s demands for efficiency and vivid detail of the printed objects.
In addition, the premium screen of the Photon Mono X 6K features 6% light transmittance, which is 200% higher than the Anycubic Photon Mono X. It enables ≥90% light uniformity, ≤44395 lux power density to each layer, and impressively quick forming process making the device great for fast printing sessions with the maximum speed achieving 80 mm/h. For example, the machine can print a typical 120 mm model in just 1.5 hours in contrast to 3 hours of its rivals.
Credit: @olissar / Instagram
The Anycubic Photon Mono X 6K 3D printer boasts universal material compatibility. Due to the light power regulation mechanism, the machine supports not only ordinary 405 nm UV resins, but also special resins.
The device can reliably print with standard, clear, tough, flexible, water-washable, and other types of consumables, ensuring outstanding size accuracy, surface quality, and low deformation rate, which is particularly important for making high-quality, precise miniatures.

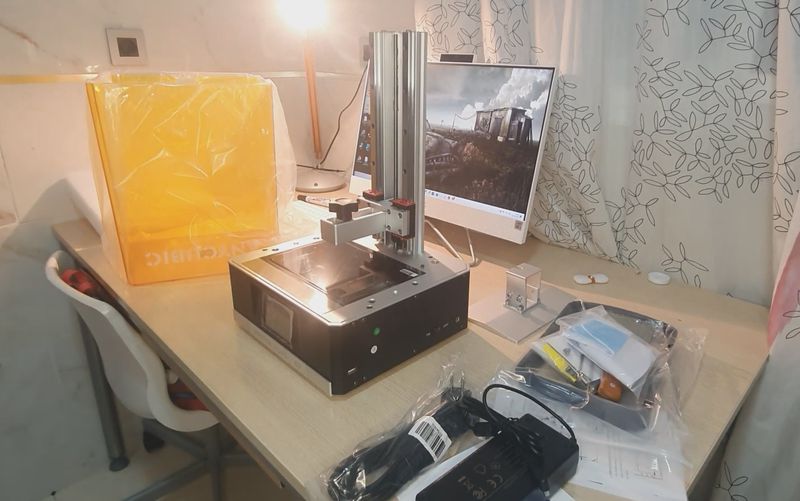

Credit: @dipiopio / Instagram
The Anycubic Photon Mono X 6K offers a capacious build area of 9.7 x 7.8 x 4.8 inches (245 x 197 x 122 mm) with 5.9 L total volume leaving more space and freedom compared to traditional devices. The printer lets you produce a wide variety of smooth prints without the need of splitting them.
The Anycubic Photon Mono X 6K 3D printer features a 3.5" color TFT touchscreen with a clear menu structure and user-friendly interface. The device supports USB, LAN, and Wi-Fi connectivity.
The machine is powered by the free and regularly updated Photon Workshop software, an open-source code 3D slicer developed by Anycubic. The program is intuitive and extremely easy to use. It works with 3D models in STL and OBJ formats saved as the proprietary PWS / .photon files read by all Anycubic Photon printers. The slicer is available for Windows and macOS.
Credit: ArtsFactory 3D / YouTube
For some items, package content may change. In case of any questions, please get in touch.
The Anycubic Photon Mono X 6K features a black base with a transparent yellow cover. Its stylish look makes it ideal for both professional and personal applications.
The printer dimensions are 18.7 x 11.4 x 10.6 in (475 x 290 x 270 mm). It weighs 24.3 lb (11 kg).
To learn the current price of the Anycubic Photon Mono X 6K 3D printer, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
