BLT-S800 3D Printer

In Stock
Potent AM machine for exacting industries
  • Up to 10 powerful 500W lasers
  • Full-format stable printing
  • Accuracy balanced with efficiency
  • Smart software features
When purchasing with us you get:
  • FREE Delivery
  • 1 Year Warranty
  • 24/7 Customer Support
  • FREE Training
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This 3D printer comes with:
  • BLT-SF400C powder sieving machine
  • BLT-VC35 vacuum material machine
  • BLT-QFJ600A purifier
  • BLT-PC300A powder supply system
Order now and we’ll ship it in 24 hours or less

The BLT-S800 is a metal additive manufacturing machine designed for reliable full-scale production of top-quality parts. It is available in three versions differing in terms of laser quantity: six, eight, or ten beams, which is more than in any other BLT AM machine. Additionally, the printer boasts an unprecedented build speed of 150 cm³/h.

The S800 model supports a wide range of metal powders fitting the most demanding industries, for example, aerospace, medicine, and more. Along with a large-format build volume, the BLT-S800 offers outstanding accuracy and print quality due to a highly precise optical system capable of scanning with the speed of up to 7 m/s. Furthermore, the machine is engineered with a robust structure and manifold useful features, such as a self-diagnosis functionality, powdering quality control module, self-adapting powder bed correction, real-time convenient monitoring, variable speed recoating, oxygen content control, working state maintenance in case of power outages, and multiple protection mechanisms for production safety.

As for the software options, the S800 model is powered by intelligent BLT programs that provide full process traceability and real-time monitoring in combination with a user-friendly interface. The additional settings include progressive 3D reconstruction features, 3rd party interconnection for the BLT-MCS module, and a complementary product line managing system — BLT-MES. It adds accessible equipment and energy monitoring functions along with parts circulation, intelligent ordering, warehouse management, and statistical reports. Plus, the supply includes several auxiliary devices aimed at a simplified and improved printing experience.

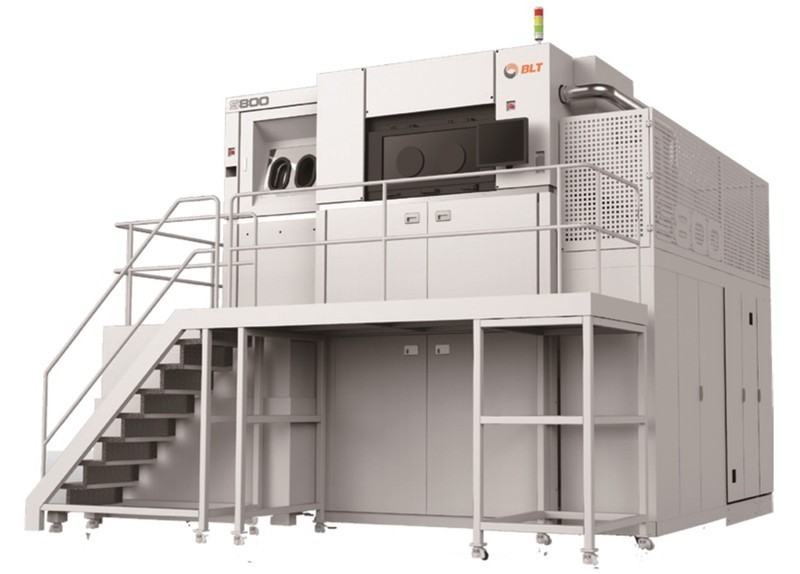

BLT-S800 3D printer

The mentioned characteristics determine the outstanding effectiveness of the BLT-S800 as a solution for large-scale production in various spheres, namely aerospace, aviation, automotive, medical, engineering, molding, etc.



Print quality

The BLT-S800 AM machine can sinter layers with a minimum thickness of 20 microns, which lets you produce solid metal parts with smooth exterior surfaces. It is equipped with six, eight, or ten powerful 500W lasers making for high forming quality and a precise F-theta lens ensuring increased accuracy and detail of your final printouts.

a print quality on the BLT-S800 3D printer

The machine is built from durable high-end components, which allow for stable and reliable sintering. Due to the intelligent powder supply system, the printing efficiency as well as powder-saving are significantly improved even when dealing with complex large-scale projects.



Materials

a materials on the BLT-S800 3D printer

Like other BLT AM machines, the S800 model applies high-quality metal powders that possess consistent and predictable properties. The printer supports Titanium Alloy, Aluminum, High-temperature Alloy, Stainless Steel, High-strength Steel, and Tool Steel, which completely meet the requirements of aviation, aerospace, electronics, engineering, medical, and other major industrial spheres.



Build volume

a build volume on the BLT-S800 3D printer

The BLT-S800 3D printing machine is equipped with a capacious industrial-scale chamber of 31.5 x 31.5 x 23.6 inches (800 x 800 x 600 mm) to satisfy massive production needs. Such a build volume lets you print large-size parts as well as whole batches of small-to-medium items in one session, which results in rapid and efficient manufacture.



Printer controls

The BLT-S800 AM machine can be operated via a mounted control unit with a clear and user-friendly interface.

a printer controls on the BLT-S800 3D printer

The printer comes supplied with the company’s in-house software solution comprising Magics, BLT-BP, and BLT-MCS modules. The listed programs enable smooth build preparation and comprehensive unit control, while also providing numerous handy features, such as smart powder supply system and height check on parts. In addition, the monitoring functions offered by the BLT-MCS program encompass manual control, autonomous printing, quality inspection, and convenient operation log as well as automatic stitching and grafting procedures.



Look and feel

BLT-S800 3D printer

The BLT-S800 3D printer is available in a gray-and-white color scheme. Its stylish look will decorate any factory, workshop, or lab.

The machine dimensions are 224.4 x 197 x 173.2 in (5700 x 5000 x 4400 mm). It weighs approximately 53572.3 lb (24300 kg).



Price

To learn the current price of the BLT-S800 3D machine, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
