Delta WASP 3MT 3D Printer

Discontinued
A giant, all-in-one 3D printer
  • Massive build volume: Ø1000 x 900 mm
  • Self-calibration system
  • Print recovery system
  • Three arms stabilization
When purchasing with us you get:
  • FREE Delivery
  • 1 Year Warranty
  • Local U.S. Support
  • Up to 20% Filament Discount
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This 3D printer comes with:
  • Essential parts required to operate the printer
  • User manual and SD card
  • Glass surface and reel support
  • Power supply
Shipped from Italy. Lead time is 6-9 weeks.

The Delta WASP 3MT is a large-volume, FDM professional 3D printer. Due to its big dimensions, it travels disassembled. A WASP certified technician will assemble it in your workspace. The printer is produced in metal with strong steel cord belts. It boasts a massive cylindrical print area of Ø1000 x 900 mm. It is equipped with an aluminum bed coated in tempered glass. The structure is entirely made of aluminum, steel and metal sheet to provide maximum rigidity and stability. It also features a three arms stabilization mechanism. The movements are controlled by low-friction guides that run on anodized aluminum. It features stepper motors and a power outage safety system based on a mechanical support tool that counterbalances the extruder weight in case of falling. And of course, it features different recovery systems to prevent printing failures due to power outages, a necessary feature for printing such bigger parts.

The Delta WASP 3MT is one of the WASP’s all-in-one solutions. Indeed it supports multiple extruder heads and a CNC milling tool-head. The tool exchange rapid system lets you replace the tools in the most comfortable way.

 Indeed it supports multiple extruder heads and a CNC milling tool-head. The tool exchange rapid system lets you replace the tools in the most comfortable way.

It’s successfully used in prototyping and manufacturing. It is ideal for designers and manufacturers. For example, it was used to print several self-produced, furnishing elements, including chairs, tables, and many others. Continue reading to find out more.

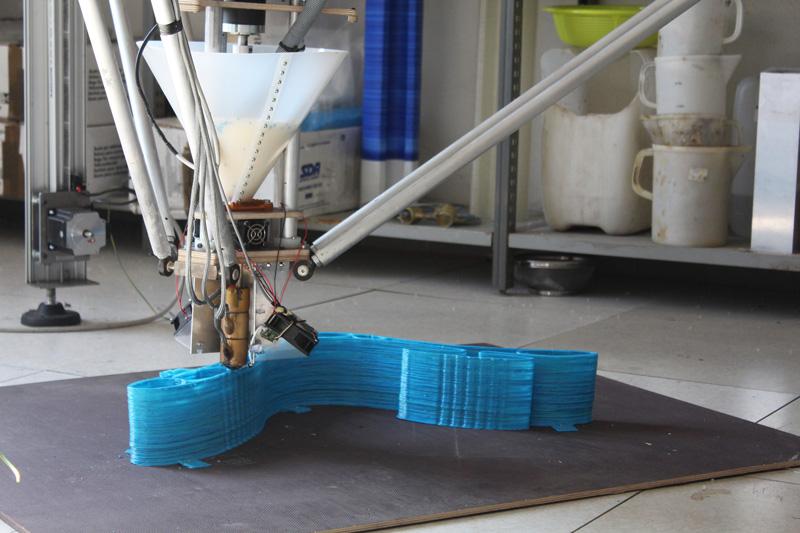

This intricate table base has been printed in one go. It is strong and robust, ensuring extreme functionality.

This intricate table base has been printed in one go. It is strong and robust, ensuring extreme functionality.

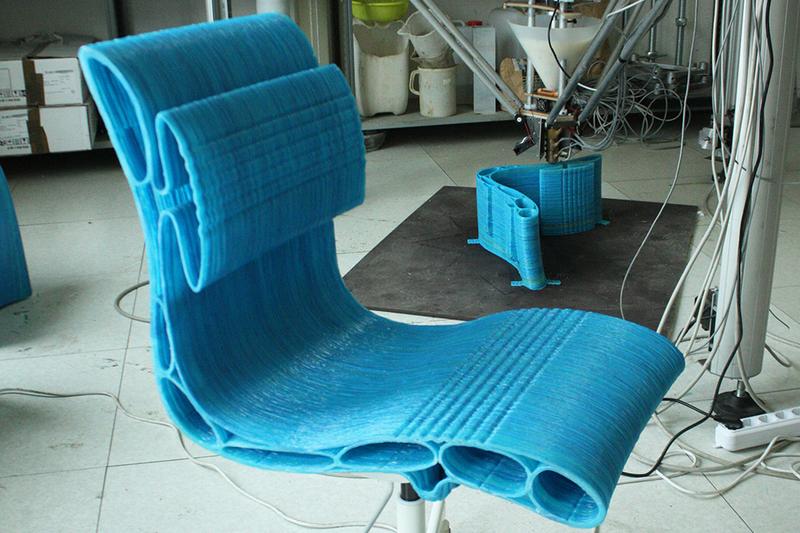

One user was even able to print the chair pictured below. The capability of printing technical material allows for the production of sturdy, durable products.

One user was even able to print the chair pictured below. The capability of printing technical material allows for the production of sturdy, durable products.



Specifications:

  • Print quality
  • Materials
  • Build volume
  • Printer controls
  • What’s in the box
  • Look and feel
  • Price



Print quality

The Delta WASP 3MT is an FDM 3D printer that can print layers at 100 microns. Considering the overall print sizes, its surface finish is more than enough for prototyping and manufacturing. The various tool-head lets you self-produce a variety of objects using a range of technical materials. For example, the Pellet extruder is optimized for printing very big parts with raw polymeric materials such as pellets. It is ideal for ecological production. The LDM WASP extruder prints with dense-fluid materials, while the WASP Spitfire Red allows for high-quality, fast prints. The save and resume function provided by the resurrection system reduces the risk of printing failures in case of blackouts. A free Z-system calculates the height of the nozzle and restarts there. You can even stop the printer to interact with the part.

the printing of the chair in the delta wasp 3mt

The printer has configurable tools such as 4 nozzles of 2, 4, 6, 8 mm in diameter for the LDM WASP EXTRUDER XL, 3.0 mm nozzle for the PELLET EXTRUDER and 0.4 mm, 0.7 mm, 1.2 nozzles for the RED SPITFIRE EXTRUDER.

The printer has configurable tools such as 4 nozzles

This is a delta-type 3D printer with high print speed. Since there is minimal vibration of the print bed thanks to the three arms stabilization, the print quality is high.



Materials

Delta WASP 3MT prints with PLA, PETG, ABS, TPU, ABS+PC, PP, and other materials.

The extruder comes with fans for printing with PLA-type materials. By cooling the model down, it reduces warping, stringing and, generally, makes for higher quality prints.

The extruder comes with fans for printing with PLA-type materials

The Delta WASP 3MT features an open material system, providing you with a wide choice of materials.



Build volume

three Delta WASP 3MT 3d printers

The cylindrical build area is Ø39.4 x 35.4 inches (Ø1000 x 900 mm). It lets your produce massive parts at a time, like the massive head pictured below.

The cylindrical build area is Ø39.4 x 35.4 inches (Ø1000 x 900 mm). It lets your produce massive parts at a time, like the massive head pictured below.



Printer controls

The printer is controlled via a built-in LCD interface.

Printing your files is really easy. Store them onto an SD card and then insert it into the dedicated port to start printing.

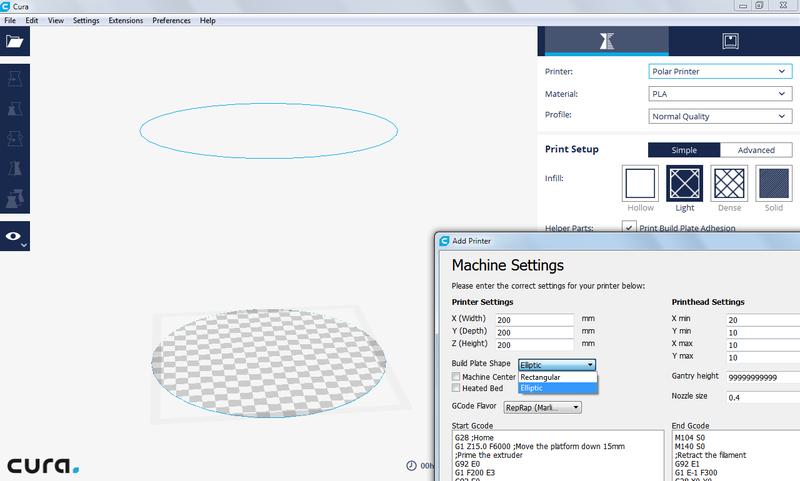

The printer is compatible with all slicing software. It works with the main 3D file formats and runs well on both Windows, Mac, and Linux.

The printer is compatible with all slicing software. It works with the main 3D file formats and runs well on both Windows, Mac, and Linux.



What’s in the box

Delta WASP 3MT 3D printer

  • Delta WASP 3MT
  • User manual
  • SD card
  • Power cable with schuko plug
  • Glass surface
  • Reel support
  • Glue stick
  • According to the extruder selected you will receive:
  • WASP PELLET EXTRUSION SYSTEM: 3 bins of 7,5 kg of PLA in pellet
  • WASP SPITFIRE EXTRUSION SYSTEM: 2 spools of 1kg (PET-G)

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

Delta WASP 3MT 3D printer

Delta WASP 3MT is available in all-metal gray. Its stylish look makes it ideal for professional use, industrial design, and self-production.

The printer dimensions are 84.6 x 92.5 x 120.1 inches (2150 x 2350 x 3050 mm). It weighs 375 lb (170 kg). The spool holder is mounted on the inside.



Price

The price of the Delta WASP 3MT is $0.00, which is reasonable considering its functionality, versatility, and giant build volume.
