ELEGOO Saturn 8K 3D Printer

In Stock
8K budget-friendly mid-sized 3D printer
  • Powerful matrix UV light source
  • 10" monochrome LCD screen
  • Highly stable structure
  • Impressive print speed
When purchasing with us you get:
  • FREE Delivery
  • 1 Year Warranty
  • Local U.S. Support
  • FREE training
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This 3D printer comes with:
  • Essential parts required for operation
  • All the necessary tools
  • Integrated air purifier
  • USB drive
The estimated lead time is 5-10 business days.

The ELEGOO Saturn 8K is a professional high-resolution MSLA resin 3D printer for making sharp models with fine detailing and tight tolerances. Being an upgraded version of the original Saturn 4K, the device boasts a number of high-grade features, including a powerful matrix light source, rock-solid build, and ultra-high resolution allowing the users to recreate the finest details even in the smallest products.

The Saturn 8K is designed for consistent print quality, stable performance, and impressive speed. To meet the demands of modern makers, the printer is equipped with an 8K mono LCD screen with enhanced light transmittance enabling a record cure time of only 1–3 seconds per layer. Also, with a large build volume, one is able to produce small-to-large models as a whole or in batches.

ELEGOO Saturn 8K

Among other smart solutions, the machine offers a number of quality-of-life features, among which are: an effective air purifier with a built-in active carbon filter that actively absorbs the resin pungent fumes creating an odor-free environment, durable movement mechanisms for precise and stable printing, double heat-conducting copper tubes for improved ventilation and heat dissipation, and compatibility with the popular Chitubox slicer. The open material system allows using a wide range of consumables with different properties to get the desired outcomes.

a grey model printed on the ELEGOO Saturn 8K

Due to its ability to produce top-quality, highly detailed models in an intelligent, convenient, and cost-effective way, the ELEGOO Saturn 8K is a great device for personal and professional applications in various creative spheres, including modeling, prototyping, low volume production, and more.



Print quality

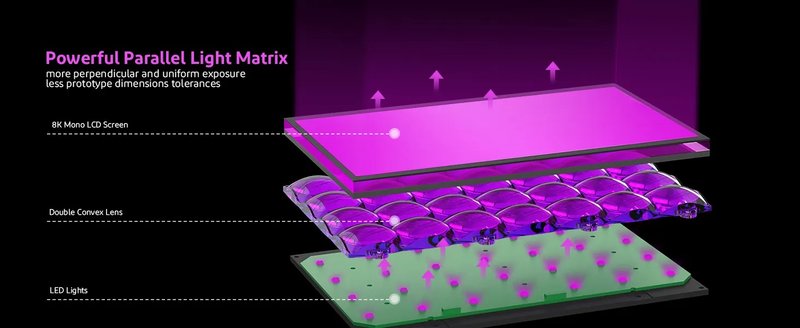

The ELEGOO Saturn 8K model can print layers with heights ranging from 10 to 200 microns due to the printer’s potent matrix UV light source incorporating 28 LEDs with a unique double convex lens delivering a powerful light contrast while greatly reducing light scattering. Thus, the light is vertically projected on the LCD screen at a smaller angle of 5 degrees, which makes for improved printing accuracy and reduced tolerances for prototype print dimensions.

a print quality on the ELEGOO Saturn 8K

The machine is also equipped with an industry-leading 10" 8K monochrome LCD screen with 7680 x 4320 px resolution and an ultra-fine XY resolution of 28.5 microns that allows printing remarkably detailed 3D models. Thanks to the scratch-resistant tempered glass with 9H hardness, the printer boasts better light transmittance and reliable screen protection.

a gey model printed on the ELEGOO Saturn 8K

The Saturn 8K comes with a dual linear guideway and non-slip hexagon socket leveling screws for ultra-steady and precise motion. Due to the sandblasted surface build plate, the printer provides better adhesion, while PFA release liner ensures easier model removal and less release tension. As for the integrated air filtration system, it will definitely make the working environment more comfortable.

Taking into account the above mentioned features, one can expect premium-level quality of the printed items at a generally affordable price. For example, check out this intricate demon statue.

a black model printed on the ELEGOO Saturn 8K



Materials

The ELEGOO Saturn 8K features universal material compatibility. The machine can consistently print with a wide range of 405 nm UV resins ensuring outstanding dimension accuracy, surface quality, and low deformation rate, which is particularly great for complex and highly detailed models, just like the ones in the photo below.

a materials on the ELEGOO Saturn 8K



Build volume

a build volume on the ELEGOO Saturn 8K

The ELEGOO Saturn 8K offers a large build area of 8.62 x 4.84 x 8.27 inches (219 x 123 x 210 mm) that lets you produce a single large model or a wide variety of small-to-medium sized prints in batches without the need of splitting them, which makes for time-saving and increased productivity.



Printer controls

The ELEGOO Saturn 8K 3D printer features a 3.5" color touchscreen with a clear menu structure and user-friendly interface. Data input is performed through the USB port located on the back side of the device.

a printer controls on the ELEGOO Saturn 8K

Credit: Uncle Jessy / YouTube

The machine is powered by the professional full-featured Chitubox slicing software for SLA, DLP, and LCD devices. It is regularly updated and provides all the necessary tools for easy 3D model editing in just four clicks. The program is versatile, potent, and at the same time highly intuitive to use. Among its functions are rotation, scaling, mirroring, repairing, hollowing, cloning, and hole digging as well as effective slicing with a preview feature, multi-model processing, and support adding with shaping, calibrating thickness and density.

a software on the ELEGOO Saturn 8K

The slicer supports multiple 3D file formats, such as STL, OBJ, CBDDLP, SLC, WOW, FHD, CWS, SVGX, LGS, CFG, and much more. The program in its Basic (free) and Pro versions is available for Windows, macOS, and Linux.



What’s in the box

ELEGOO Saturn 8K kit

  • ELEGOO Saturn 8K 3D printer
  • Build platform
  • Resin tank
  • UV cover
  • Power adapter
  • Power cable
  • Mini Air Purifier (active carbon filter)
  • Plier
  • Scraper (x2)
  • Pair of gloves
  • Mask (x2)
  • Funnels
  • Screws and wrenches
  • USB drive
  • Leveling paper
  • User manual

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

ELEGOO Saturn 8K

The ELEGOO Saturn 8K 3D printer features a black base with a transparent red cover. Its stylish and minimalistic look makes it ideal for both professional and personal applications.

The printer dimensions are 11.02 x 9.45 x 18.21 in (280 x 240 x 462.5 mm). It weighs 24.25 lbs (11 kg).



Price

To learn the current price of the ELEGOO Saturn 8K 3D printer, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
