The Phrozen Shuffle Lite is a high-resolution LCD-based 3D printer. It is a powerful yet cost-effective device ideal for beginners. Sold at a competitive price, it is the entry-level offering of the Phrozen Shuffle series. Designed with the user in mind, it is extremely easy-to-use and user-friendly. In case of any need, the professional customer service along with the growing user community will always have you covered.
Like all the Shuffle devices, the Phrozen Shuffle Lite features a sturdy structure composed of CNC-machined aluminum parts. The solid design makes for stable yet reliable printing performances. The quality hardware grants a lifetime of over 600 hours. The device is equipped with the proprietary ParaLED 2.0 Lite Matrix Optical Engine with 405nm UV-LED and a custom 5.5-inch high-resolution LCD screen (2K). The full-plate-coverage parallel exposure provided by the self-developed optical engine makes for uniform exposure and sharp prints. Thanks to the included Wi-Fi module, you can remotely control and monitor your print jobs.
The high-definition achievable makes the Phrozen Shuffle Lite one of the best entry-level LCD 3D printers commercially available. It also makes it perfect for a variety of industries applications, such as digital dentistry and jewelry design. Keep reading our review.

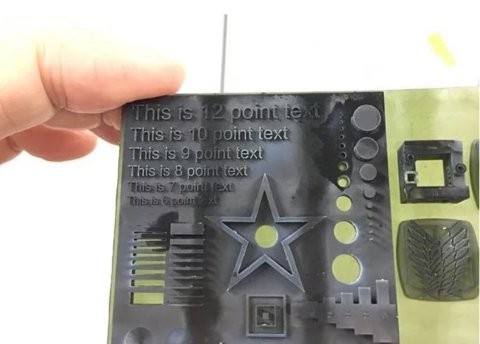

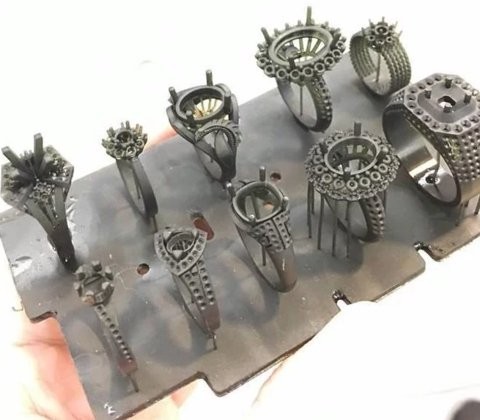

Here are some examples of the level of detail and print quality achievable by the Phrozen Shuffle Lite 2K.
Credit: @tiger3d_print / Instagram
The Phrozen Shuffle Lite is a professional LCD 3D printer capable of printing at an XY resolution of 47 microns and a Z resolution of 10 microns. It reaches a print speed of 40mm/hr. The Z-axis features a rapid single linear rail with lead screw, which results in a faster and more stable Z-axis movement with zero wobbling. The quality mechanics also make for a 50% speed-up improvement of the platform shifting.

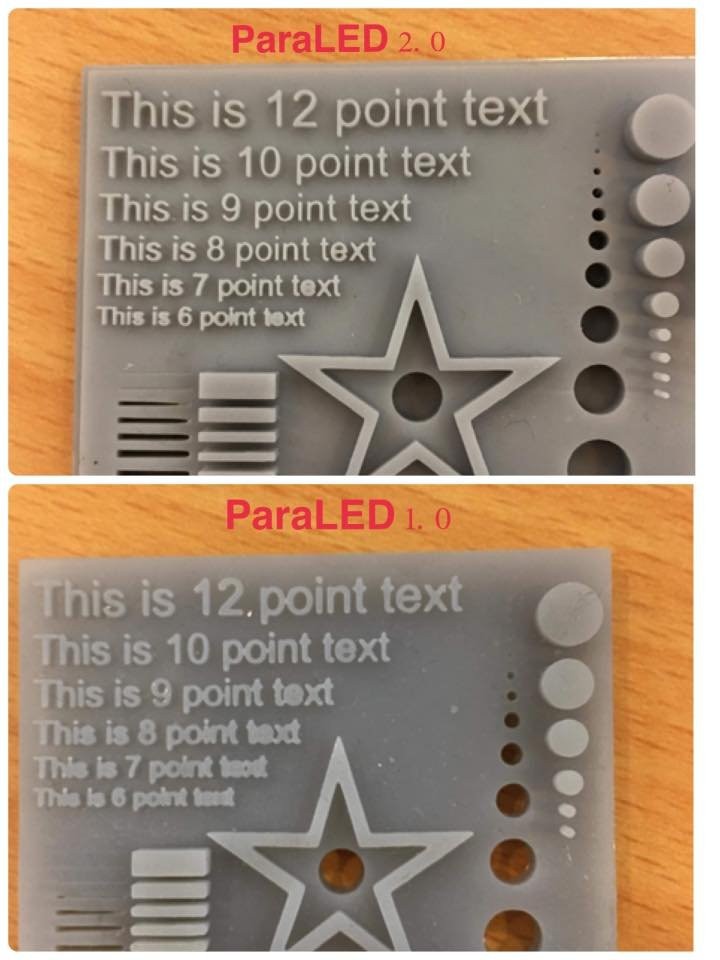

The own-brand ParaLED 2.0 is composed of an array of concave LEDs. It emits a beam of light as parallel as possible to the LCD matrix granting a uniform coverage of the entire build platform. It helps in delivering high-definition results.
The Phrozen Shuffle Lite 2K features an open material system, which makes it compatible with 3rd-party 405nm liquid resins. This means you can print with a broad range of commercially-available resins.
The device employs a 2-fan cooling system to properly cool down the model when printing.
The Phrozen Shuffle Lite has a build area of 4.7 x 2.7 x 6.7 inches (120 x 68 x 170 mm). It lets you print small-to-medium high-resolution parts with ease.

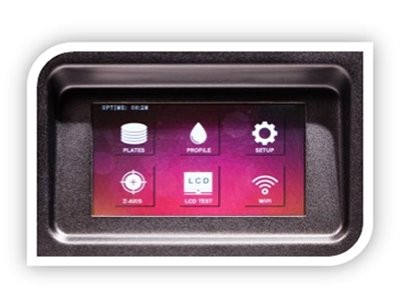

The printer can be controlled via the integrated 5-inch IPS Touch Panel. It supports one-click control for easier operation.
You can easily share your printing files and monitor your prints over Wi-Fi. The printer also includes Ethernet and USB connectivity.
The Phrozen Shuffle Lite comes integrated with the Phrozen OS and supports the official PZSlice software. The user-friendly printer software lets you easily manage all the printing settings. The slicer works with ZIP, SLC, and STL file formats.
For some items, package content may change. In case of any questions, please get in touch.
The Phrozen Shuffle Lite is composed of a black base unit and an orange cover made of plastic. Its stylish look makes it ideal for digital dentistry, jewelry design, and prototyping.
The printer dimensions are 11 x 11 x 14.7 inches (280 x 280 x 370 mm). It weighs 18.7 lb (8.5 kg).
The price of the Phrozen Shuffle Lite is $499.00, which is reasonable considering its functionality and high-definition.
Phrozen offers a one-year warranty for all our products except consumables and components, which include paraLED, LCD screen, FEP film and the building platform. All LCD screens for the Sonic Mini, Sonic Mini 4K, and Sonic 4K are sold with a 3-month warranty.
