EinScan Pro Plus is a Structured Light, professional 3D scanner. It is the upgraded version of the standard EinScan-Pro. It features a new HD capture mode, a larger scan area, and a rapid acquisition module for faster operation. Like its precursor, it is light and transportable weighing only 0.83 kg. The various scanning configurations - Handheld HD, Handheld Rapid Scan, and Fixed Mode (automatic or free) - provide optimal speed/resolution ratio for various applications and environments.
The EinScan-Pro+ is equipped with 100 data capture lines instead of the original 7 included in the EinScan Pro. Also, the scan speed has been increased to 550,000 points/second. The Rapid Scan mode includes an additional option, the Rapid Registration, which allows recognizing and aligning reference points automatically. These advanced features speed up the 3D scanning of large objects and facilitate the acquisition of items with less surface geometry.
The EinScan-Pro+ comes with the latest version of the proprietary EinScan software, which offers an improved user experience, one-click operation, and a streamlined sharing process. Also, it supports either the EinScan Industrial and Color Pack as well as the additional HD Prime module not supported by the previous model. Read more in our complete review.

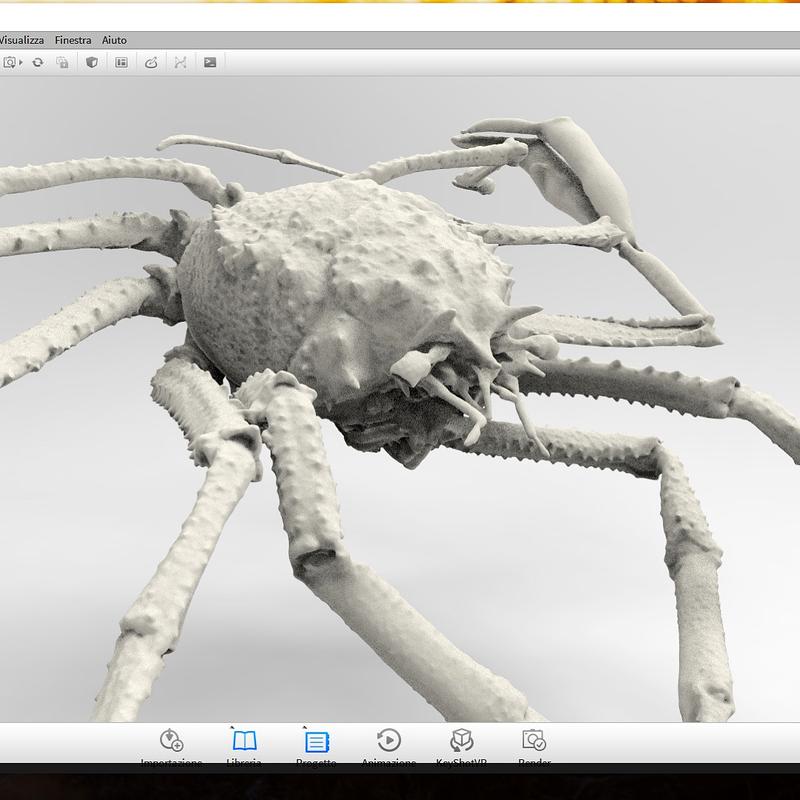

One designer used it to scan a Paromola Cuvieri crab. Look at the accuracy of this render. It is amazing.
Credit: @david.massaroni / instagram
Still, this reproduction of a clay sculptured bust shows hairlike details.
Credit: @3dhub.gr / instagram
EinScan-Pro+ is a handheld 3D scanner. It can scan with an accuracy of up to 0.05 mm under the Fixed Scan mode. Depending on your project requirements, you might choose the scanning method that best suits your speed and accuracy needs. The improved Handheld HD Scan mode speed is increased by 30%. The Rapid Registration module allows easily scanning large-size, flat items or products with few geometrical characteristics. It ensures fast speed, great accuracy, and smooth experience. Based on LED lighting, EinScan-Pro+ is recommended for indoor use.
EinScan HD Prime Pack is a useful upgrade that enables makers-free scanning of object surfaces with enough geometries.
The single scan area of 300 x 170 mm lets you capture large-size items with high-speed and good quality. You can even scan an entire motorcycle.
Credit: @3dindonesia.co.id / instagram
Plug the scanner into your computer using the dedicated USB aviation cable and start creating unique projects.
The user-friendly, proprietary software, EinScan, allows for one-click, easy operation offering a wide range of alignment options. It delivers professional scan results and outputs compatible with most of the popular CAD and 3D printing software. It offers some thoughtful features aimed at streamlining the overall scanning experience. It is able to capture capillary textures ensuring good quality scans. It lets you share your 3D data on Sketchfab in a click.
Credit: @everyonecanmake / instagram
For some items, package content may change. In case of any questions, please get in touch.
EinScan-Pro+ is available in a champagne gold scheme with black trimmings. Its stylish look makes it ideal for 3D modeling, rapid prototyping, testing, and custom 3D printing.
The scanner dimensions are 9.8 x 6.1 x 1.9 inches ( 248 X 156 X 48 mm). It weighs 1.8 lb ( 0.83 kg).
The price of the EinScan-Pro+ is $5,229.00, which is reasonable considering its functionality, higher accuracy, and versatility.
