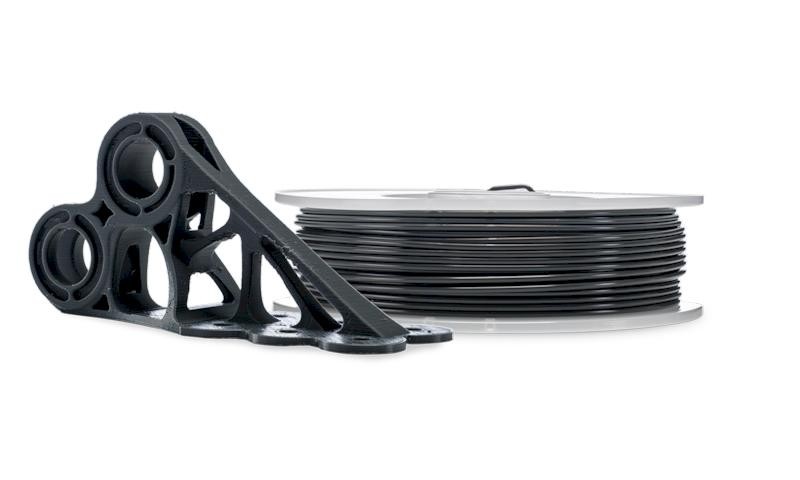

Ultimaker CPE is a tough, impact-resistant filament that features high dimensional stability and good chemical resistance. It is an amorphous material that needs to be printed on a heated build plate. When printed in a fully-enclosed print chamber, it provides optimum print results with great interlayer adhesion. It features a low level of UFP and VOC emissions.
It works well on all Ultimaker 3D printers. It is suitable for dual-extrusion printing along with support materials such as Ultimaker Breakaway and PVA. Ultimaker dark grey CPE filament can be used for a variety of applications, including rapid manufacturing, functional prototyping, and end-use small-scale production. It is ideal for the manufacturing of complex parts that require high mechanical and chemical resistance.
Ultimaker dark grey CPE technical data
Filament density: 1.27 g/cm3
Melt mass-flow rate: 13.2 g/10 min (240 °C, 2.16 kg)
Tensile stress at yield: 41.1 MPa
Tensile stress at break: 37.7 MPa
Elongation at yield: 4.7%
Elongation at break: 5.1%
Flexural Strength: 79.5 MPa
Flexural Modulus: 1,990 MPa
IZOD Impact Strength: 4.0 kJ/m2 (at 23 °C)
Hardness: 72 (Shore D) Durometer
Filament diameter: 2.85mm
Dimensional Accuracy: ± 0.05 mm
Spool weight: 750g
Color name: Dark grey
Color attribute: Solid
The Ultimaker dark grey CPE filament is supplied in 750g NFC tagged spools. The NFC chip identifies the material and provides pre-configured material profiles for quick printing. It also tracks material usage displaying the amount of filament left directly on the printer.
