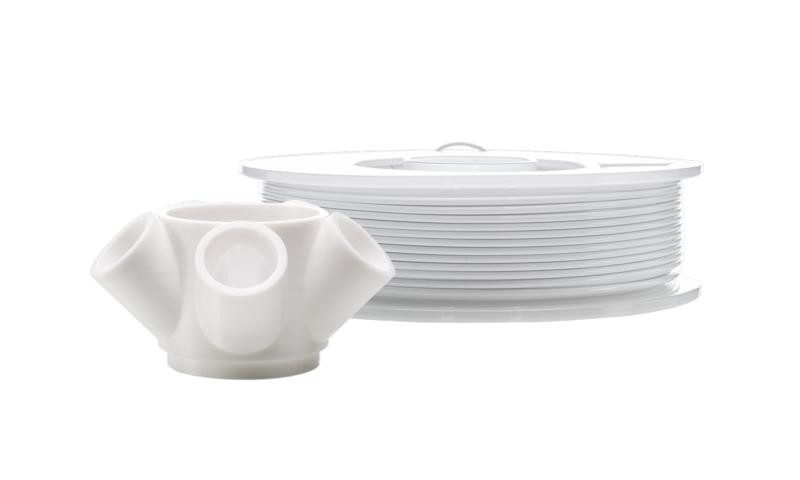

Ultimaker white CPE+ is an enhanced version of the own-brand CPE. Unlike its counterpart, it features higher chemical and temperature resistance. It preserves its mechanical properties up to 100°C. Tough and reliable, it is capable of producing dimensionally stable parts with a good finish and durability.
Ultimaker white CPE+ lets you create intricate geometries with the aid of support structures made with Ultimaker Breakaway. It is ideal for the manufacturing of complex mechanical parts with minute details and clean surfaces. If you have an Ultimaker S5, 3 or 3 Extended, you can benefit from the NFC tagged CPE+ spools that will automatically set the optimized material profile for printing.
Ultimaker CPE+ is available with a diameter of 2.85mm. It can be used with any compatible FDM 3D printer equipped with a heated build plate. An additional enclosure grants optimum printing results delivering smooth surfaces free from warping or shrinkage issues.
Ultimaker white CPE+ technical data
Filament density: 1.18 g/cm3
Melt mass-flow rate: 8.5 g/10 min (260 °C, 1.2 kg)
Tensile stress at yield: 35.2 MPa
Tensile stress at break: 33 MPa
Elongation at yield: 6%
Elongation at break: 6.6%
Flexural Strength: 65 MPa
Flexural Modulus: 1,555 MPa
IZOD Impact Strength: 6.2 kJ/m2 (at 23 °C)
Hardness: 75 (Shore D) Durometer
Filament diameter: 2.85mm
Dimensional Accuracy: ± 0.10 mm
Spool weight: 700g
Color name: White
Color attribute: Solid
The Ultimaker white CPE+ filament is supplied in 700g NFC tagged spools. The NFC chip identifies the material and provides pre-configured material profiles for quick printing. It also tracks material usage displaying the amount of filament left directly on the printer.
