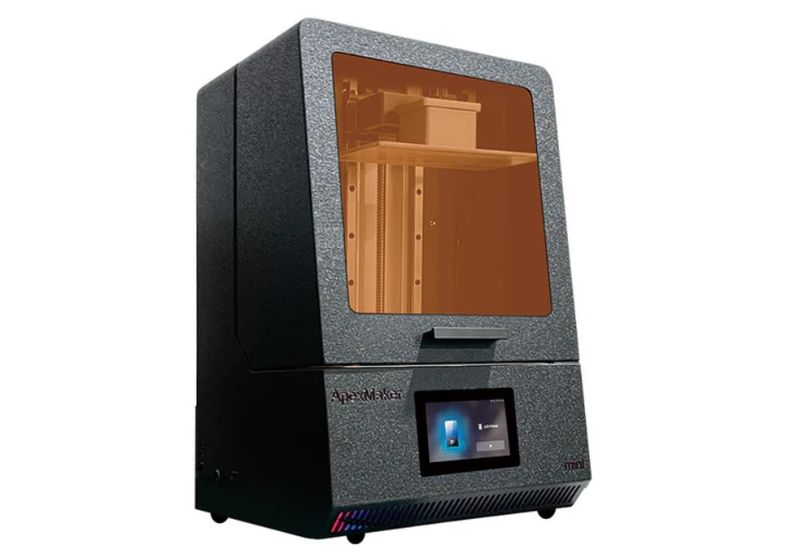

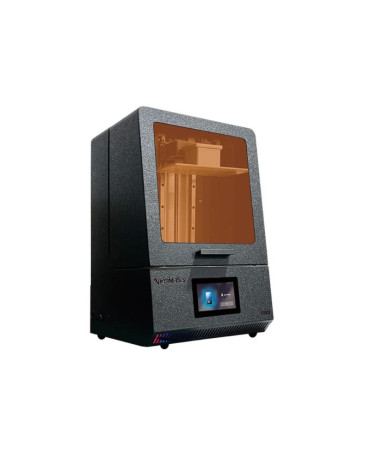

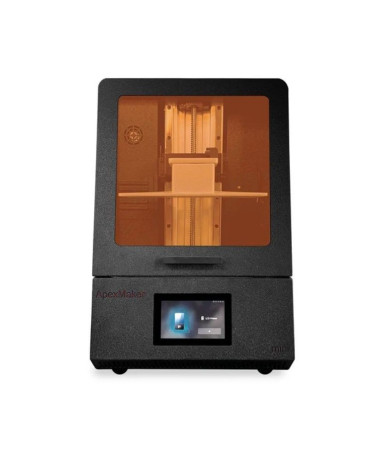

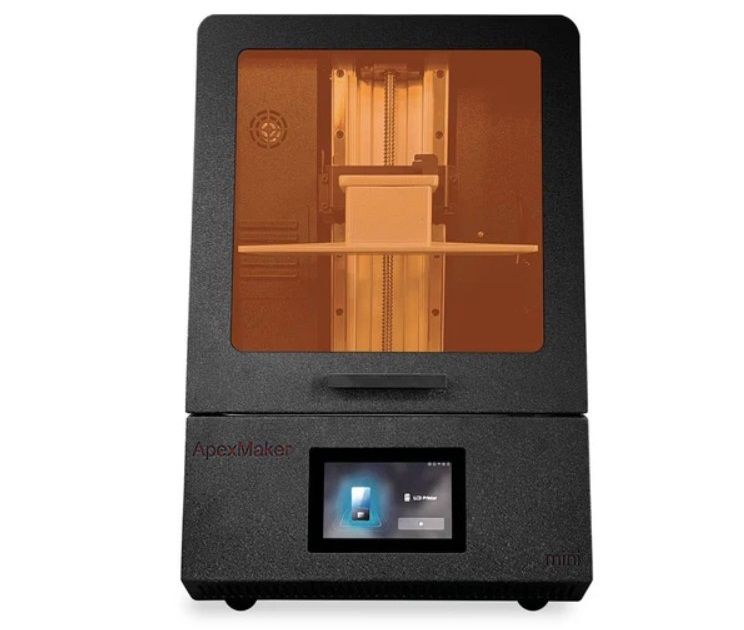

ApexMaker X1 MINI 10.1 inch 14K MSLA 3D Printer

The ApexMaker X1 MINI is a desktop resin 3D printer representing the next generation of compact resin 3D printing technology, combining industrial-grade precision with user-friendly operation. This high-resolution 3D printing machine features a 10.1 inch 14K mono LCD screen with 13,320 x 5,120 resolution, delivering exceptional detail quality with 16.8 µm pixel precision. The X1 MINI 3D printer is designed for professionals, hobbyists, and makers who demand superior print quality in applications ranging from tabletop gaming miniatures to dental models and precision prototypes. For a currently available 8K resin 3D printer from the series, check out the ApexMaker X1 3D printer model.

The X1 MINI model integrates 3 key technical systems: automatic resin feeding reducing manual intervention by continuously monitoring resin levels, temperature-controlled resin tank heating maintaining optimal curing temperatures up to 60 °C, and closed-loop motor control providing real-time positional feedback with correction capabilities. The 223.78 x 126.98 x 210 mm printing volume accommodates multiple medium-scale projects simultaneously. With maximum printing speeds up to 200 mm/h and compatibility with major slicing software including Chitubox and Lychee Slicer, the X1 MINI streamlines the entire printing workflow from design to finished product. The integrated air purification system and 7" touchscreen interface demonstrate the printer’s focus on user experience and professional operation.

The ApexMaker X1 MINI targets 3 primary application areas. Dental laboratories utilize the printer for crown and bridge models, orthodontic appliances, and surgical guides, according to research from Ackuretta demonstrating cost reduction and precision improvements in chairside applications (2024). Tabletop gaming communities employ resin printers like the X1 MINI for producing detailed miniatures with intricate features, with the global tabletop gaming market projected to reach significant growth driven by 3D printing adoption (ELEGOO, 2023). Precision prototyping applications include functional components, design validation models, and manufacturing prototypes, with tolerances achievable down to ±0.05 mm according to University of Basel research. Whether you are a player with rich printing experience or a beginner trying, you can quickly and easily get started using the X1 MINI.

Specifications:

• Print quality
• Materials
• Build volume
• Printer controls and software
• Look and feel
• Price

Print quality

The X1 MINI employs a 10.1 inch UV curable LCD screen with a resolution of 13,320 x 5,120 pixels, yielding a fixed 16.8 µm pixel size, significantly finer than most competing printers in its class. This ultra-high resolution enables the reproduction of intricate details, fine textures, and smooth surface finishes that rival industrial-grade equipment.

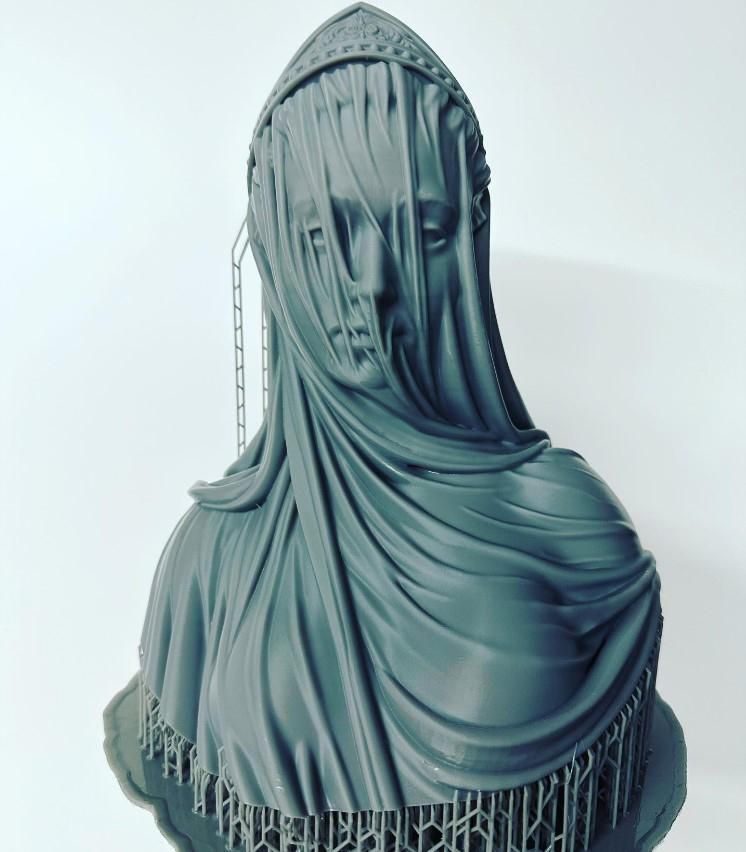

Credit: @morgensternprinting / Instagram

A closed-loop stepper system drives a dual-rail Z-axis and ensures precise layer positioning and consistent print quality across the entire build volume. Layer heights can be adjusted from 0.01 to 0.3 mm, allowing users to balance speed and detail based on specific project requirements. The 405nm light source provides optimal curing characteristics for a wide range of UV-sensitive resins, while the high LCD transmittance up to 92% ensures efficient light utilization and faster curing times.

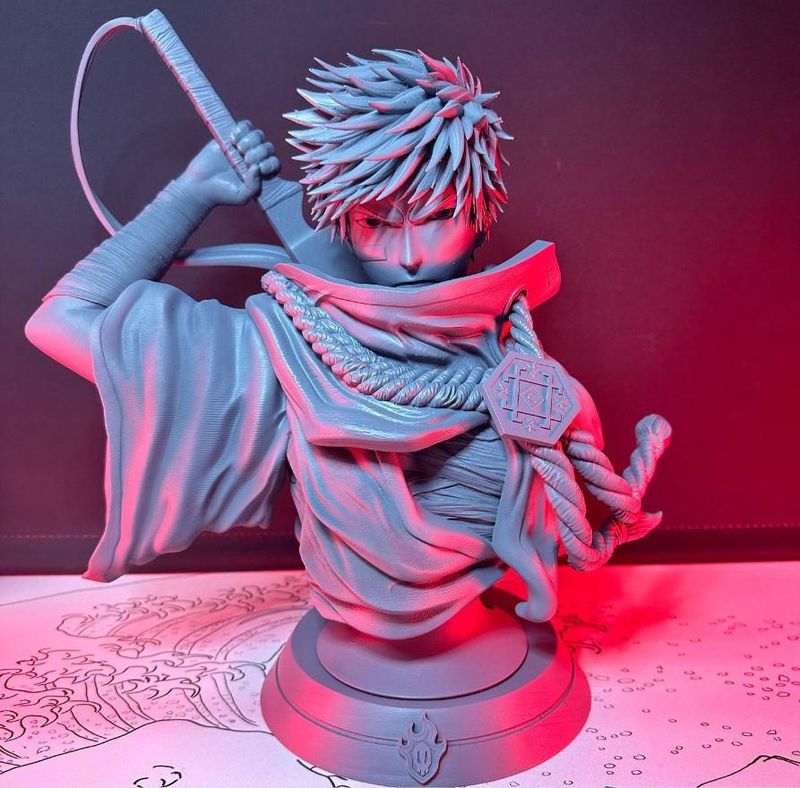

Credit: @morgensternprinting / Instagram

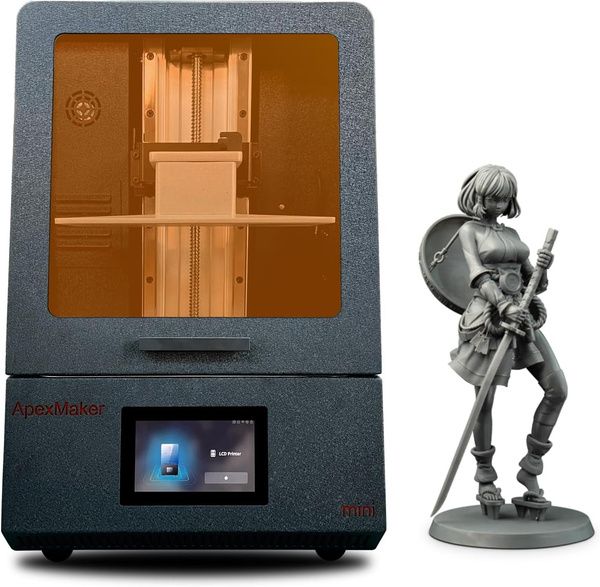

Real-world testing demonstrates the X1 MINI’s capability to produce highly detailed 3D printed miniatures, mechanical parts, and artistic models with exceptional surface quality. The printer’s anti-aliasing capabilities and optimized exposure settings minimize layer lines and improve overall surface smoothness, making it particularly suitable for applications requiring fine detail resolution. A factory pre-calibrated build platform of the X1 MINI eliminates manual leveling procedures and reduces setup time by 75% compared to manual calibration methods.

Materials

The X1 MINI model supports a comprehensive range of UV-curable 405nm resins, offering flexibility for diverse printing applications. The printer’s open material system allows users to work with various resin types, from standard photopolymer resins to specialized engineering materials, dental resins, and flexible formulations.

Automated resin feeding eliminates manual intervention through sensor-controlled level monitoring and operates on equal pressure principles to prevent print interruption. Temperature-controlled heating maintains optimal viscosity within the 40–60 °C range through high thermal conductivity aluminum construction, reducing resin viscosity by 15–25% for improved flow characteristics and reducing separation forces during layer peeling, according to P. Haimilahti from Aalto University during the "Resin Heat Management Systems Research" (2022).

Build volume

The ApexMaker X1 MINI utilizes a 223.78 x 126.98 x 210 mm (8.8" x 5.0" x 8.3") build chamber delivering 5.95 liters of printing capacity. According to C. Smith from AmeraLabs during the "Batch Production Optimization Study", resin printers with 5–6 liter print volumes accommodate 15–20 standard 28mm miniatures per print cycle. For dental applications, the workspace supports 12–15 crown models printed simultaneously with 0.5mm spacing between models, according to Dr. Y. Kim from Seoul National University during the "Digital Dentistry Volume Requirements Research".

Printer controls and software

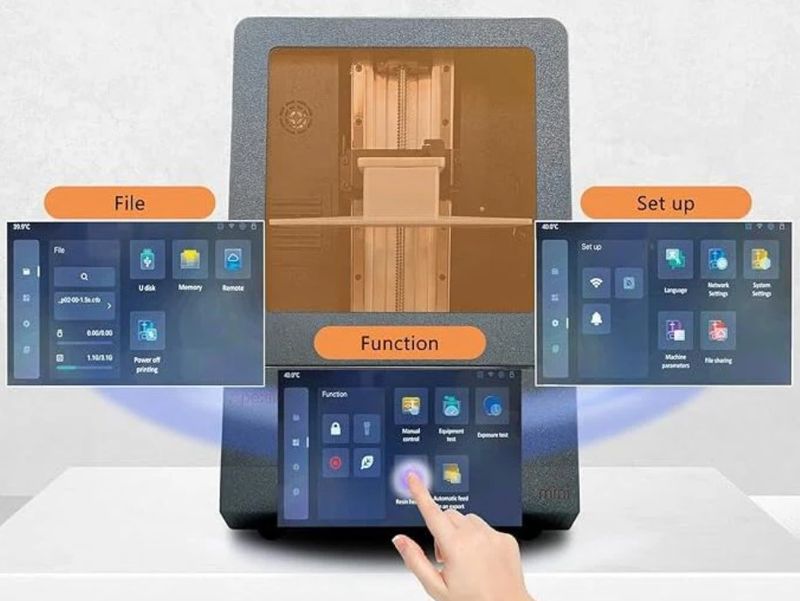

The ApexMaker MINI employs a 7" capacitive touchscreen with 1280 x 800 resolution delivering precise touch response within 3–5 ms. Status information displays through integrated RGB LED systems positioned beneath the touchscreen interface. The 3-color LED array indicates operational states including power status, print progress, and error conditions through coded color patterns. The LED feedback system operates continuously without operator intervention, providing immediate visual confirmation of printer status.

The X1 MINI 3D printer integrates 2 connectivity protocols for file transfer and remote monitoring. Wi-Fi connectivity operates on 2.4GHz IEEE 802.11 b/g/n standards with WPA2 security encryption. Network connectivity enables wireless file transfer at 30 MB/s average speeds and supports MQTT protocol over SSL port 443 for secure communication. USB 2.0 interface delivers theoretical transfer speeds up to 480 Mbps with practical file transfer rates of 30–35 MB/s for standard G-code files.

Remote monitoring capabilities utilize dedicated SDCP 3.0 wireless protocol allowing print status monitoring, print control functions, and file management through mobile applications. The wireless system supports automatic printer discovery on local networks and enables users to pause, resume, or cancel print jobs remotely without physical access to the printer interface.

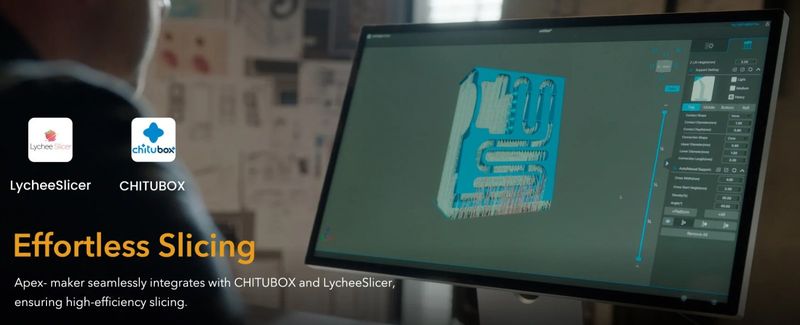

The X1 MINI 3D printer is compatible with most slicing software optimized for resin 3D printing workflows. Chitubox Pro requires 16GB RAM minimum with Intel Core i5 processors and supports advanced features including multi-parameter slicing and automated support generation. Lychee Slicer supports 750+ printer models and provides automated model preparation through Magic Menu functionality reducing setup time by 40% according to developers at Mango 3D during the "Workflow Optimization Research". File format support encompasses 3 standard 3D printing formats including STL stereolithography files, OBJ Wavefront objects, and SLC sliced layer data. STL format represents models using triangular mesh tessellation and maintains universal compatibility across CAD programs.

Power loss recovery operates through automatic state saving to SD card storage, enabling print continuation after power interruption with typical resume accuracy within ±0.1mm layer positioning.

Look and feel

The ApexMaker X1 MINI employs a 539 x 350 x 349 mm aluminum chassis with precision-machined components providing dimensional stability and structural integrity. The 28 kg mass distributes load evenly across the desktop footprint, reducing vibration amplitude during printing cycles. The black anodized aluminum construction with injection-molded ABS-PC housing components delivers IP40 protection against dust ingress while maintaining operational temperature ranges between 10–40 °C.

The integrated air purification system employs a 2-stage filtration approach with HEPA H13 filter media achieving 99.95% particle removal efficiency for 300nm particles and activated carbon adsorption for VOC elimination. The system processes air through replaceable carbon filters with 600-hour service life under standard printing conditions. LED interior lighting delivers 1200 lumens output through diffused white LEDs mounted within the flip-up enclosure cover, while the transparent polycarbonate viewing window with orange filtering maintains UV protection during 405nm light exposure.

Price of ApexMaker X1 MINI

To learn the current price of the Apex-Maker MINI MSLA 3D printer, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
