Bondtech BMG Mini Geared Extruder

In Stock
High-performance extruder for smooth material feeding
  • Proven dual-drive technology
  • Maximum filament grip
  • Precise and durable structure
  • Lightweight and compact
When purchasing with us you get:
  • FREE Delivery
  • 1 Year Warranty
  • Local U.S. Support
  • Up to 20% Filament Discount
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This extruder comes with:
  • SLS-printed nylon housing
  • Bondtech motor gear
  • BMG POM gear
  • Tension thumbscrew, spring and washer
Price $80.00
The estimated lead time is 5-10 business days.

The Bondtech BMG extruder is a powerful filament feeder designed for smooth and consistent 3D printing. It features the manufacturer’s celebrated dual-drive technology that provides increased performance thanks to CNC-machined hardened steel drive gears for maximum filament grip and efficient processing of abrasive materials. Due to its flexible design, the BMG can reliably operate in both Bowden and Direct Drive setups.

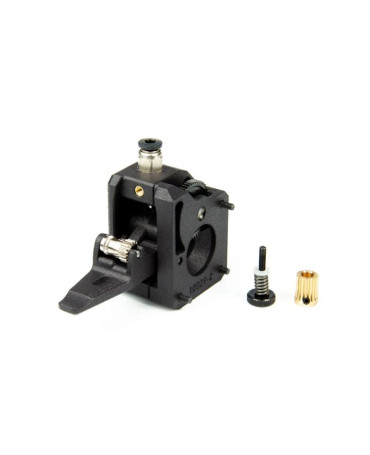

A general view on the Bondtech BMG extruder.

Being a lightweight, easy to use, and highly adaptable extrusion system, the Bondtech BMG boasts a gearing ratio of 3:1 making it a compact powerhouse for a wide scope of applications. It is equally great for high-resolution prints with small nozzles and high-flow projects with bigger ones providing remarkable pushing power and fast retractions.

Apart from the standard variant, the BMG extruder comes in two other versions, namely BMG-M and BMG-X2-M, which are optimized for the Slice Engineering . Also, there is a Prusa i3 MK3S upgrade kit available. The desired options can be selected in the Add-ons and Extras menu. To find out more about them, check out the sections below.

Due to innovative design, enhanced performance, and high integration capabilities, the Bondtech BMG extruder will become a game-changing 3D printing tool for hobbyist makers, corporate professionals, and full-blown manufacturers.



Specifications:

  • Highlights
  • Versions and accessories
  • What’s in the box
  • Look and feel
  • Price



Highlights

Top-notch performance

The Bondtech BMG extruder utilizes an internal gearing ratio of 3:1 in combination with precise nickel-coated hardened steel drive gears to achieve increased filament grip and responsive retractions. Regardless of nozzle size and application, the user gets streamlined material loading and unloading.

Brand technology

Bondtech’s unique dual-drive technology ensures uninterrupted filament flow without risk of grinding or slipping in even the most demanding conditions, with no damage to the thread.

To reduce the chance of filament misfeed at increased back-pressure, the filament path is fully guided throughout the extruder body, maintaining tight tolerances to the drive gears. The same goes for dealing with highly flexible filaments.

Strong PA12 housing

To make the BMG extruder as durable and reliable as possible, Bondtech uses the housing parts that are professionally printed with nylon for maximum strength, precision, and higher temperature resistance.

Multi-material compatibility

The BMG extruder effectively works with all types of materials, from slippery nylons and soft TPU/TPE filaments to highly rigid and brittle carbon-filled materials. The device supports only 1.75 mm filament, but it has been successfully tested for filaments ranging from 1.5 mm up to 2.0 mm in diameter, providing high reliability regardless of the material used.

Adjustable tension

Thanks to the precise thumbscrew tensioner, it is possible to fine-tune the pressure exerted by the drive gears onto the filament according to the user’s preferences. Thus, one can optimize it for any type of the material used.

Quick-release mechanism

With the BMG extruder, material changes can be performed in no time due to the quick-release lever. To load filament, simply keep the lever activated and insert the new material.

Flexible design

Although the BMG extruder is delivered without a motor and mounts, it fits any Nema17 stepper motor with a standard 5 mm shaft. The device can be used in both direct drive and bowden setups, which provides the flexibility to choose what works best for your application. In addition, the BMG features an integrated hotend retention method compatible with the and others using a standard groove mount. This allows mounting a hotend in a simple, secure, and wobble-free way, by means of just two bolts.



Versions and accessories

BMG-M

The BMG-M version of the Bondtech extruder.

Like the original, the Bondtech BMG-M extruder combines high performance and resolution with low weight. It offers all the mentioned benefits of the standard version, including Bondtech’s proven dual-drive technology for efficient material feeding.

The main difference is that the BMG-M extruder is optimized for the Mosquito and Mosquito Magnum hotends from Slice Engineering. With an integrated torque lock system, this version provides a strong interface and easy nozzle change.

BMG-X2-M

The BMG-X2-M version of the Bondtech extruder.

The Bondtech BMG-X2-M extruder is a dual version of the BMG-M that is dedicated to be used with the Slice Engineering Mosquito, Mosquito Magnum, and Mosquito Magnum+ hotends. It has a C-C distance of 15 mm. The included high-power Nema17 pancake motors provide high torque while keeping the device light and compact. As for ALU mounts, hotends, heaters, thermistors, and their cables, these parts are not included in the package.

To use this version, you may also need:

  • Slice Engineering / hotend
  • Boron nitride paste
  • Thermistor
  • 50W heater cartridge
  • Nozzle
  • Fan
  • 1.5 Nm nozzle torque wrench

Accessories

The list of available accessories for the Bondtech BMG extruder includes an upgrade kit for Prusa i3 MK3S with an optimized design to use the Slice Engineering Mosquito and Mosquito Magnum hotends as well as the required X-Carriage to successfully integrate the device into the Prusa i3 MK2.5S, MK3S, and MK3S+ models.

This kit contains all the necessary parts to get the advantages of the Bondtech BMG extruder, such as high precision and resolution, optimized geometry for heatsink cooling, and robust SLS-printed nylon housing for reliable performance.

Please note that the product does not include Bondtech drive gears since they are already included with the Prusa printers.

This upgrade kit requires the following items:

  • Slice Engineering / hotend
  • Boron nitride paste
  • SLS X-Carriage kit (can be 3D-printed)

Optional items:

  • 12V 50W heater cartridge (for the MK2.5S version) / 24V 50W heater cartridge (for the MK3S version)
  • Slice Engineering (for abrasive materials)
  • 1.5 Nm nozzle torque wrench



What’s in the box

The Bondtech BMG extruder is supplied with:

  • Bondtech BMG extruder body
  • Bondtech motor gear
  • BMG POM gear
  • Tension thumbscrew with spring and washer

Please note that the extruder is sold without a motor. Also, the package does not include the bowden adapter.

The BMG-M version comes with:

  • BMG-M assembly with drive gears and push-fit
  • Thumbscrew assembly
  • Brass motor gear with set screw

The SLS X-Carriage Kit for Prusa i3 MK3S includes:

  • SLS X-Carriage front
  • SLS X-Carriage rear
  • 5x M3x10 screws
  • 5x M3 square nut
  • 1x M3 nut

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

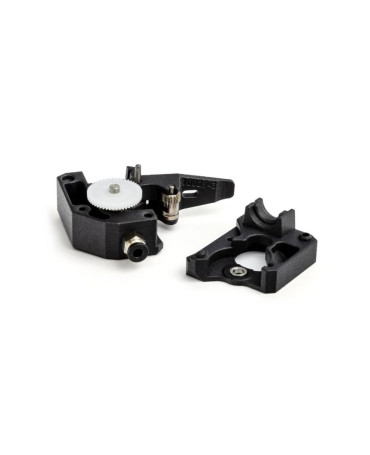

A dissassembled BMG extruder by Bondtech.

The Bondtech BMG extruder is fairly compact and lightweight. It will fit a wide range of FFF 3D printers.

The outer dimensions of the device are 2.83 x 1.65 x 1.3 in (73 x 42 x 33 mm). It weighs only 2.65 ounces (75 g).



Price

The price for the Bondtech BMG extruder is $80.00, which is reasonable considering its printing capabilities and high performance.
