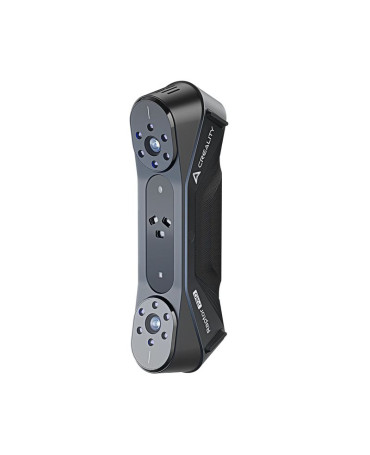

Creality Raptor Pro 3D Scanner

The Creality Raptor Pro is a professional hybrid 3D scanner that utilizes Blue Light Laser (405 nm wavelength) and NIR infrared structured light (850 nm wavelength) technologies to achieve dual-mode 3D scanning. It captures objects from 5 mm to 4,000 mm with 0.02 mm accuracy in Blue Light Mode and 0.075 mm in NIR Mode, compliant with ISO 10360-8 metrology standards. The system operates without surface sprays, even on ferrous metals and matte-black surfaces, according to Creality’s 2024 technical specifications.

The Pro’s Blue Light Mode captures 660,000 points/s at 60 fps, while NIR Mode reaches 3.58 million points/s for large-scale scans. A 24-bit RGB camera achieves 98.5% sRGB color accuracy under 500 lux lighting, validated in Elegoo Labs’ 2024 color fidelity tests. IMU stabilization reduces motion artifacts by 85% during handheld use, maintaining ±0.05 mm positional accuracy during 10-minute scans, as per MatterHackers’ 2024 stability benchmarks.

Automotive engineers use the Pro model for fuel injector nozzle reverse engineering (0.02 mm tolerance), while medical labs create cranial implants from 5 mm-resolution scans. Cultural institutions digitize artifacts up to 4 meters tall outdoors at ≤100,000 lux, as demonstrated in Smithsonian’s 2024 preservation project. Industrial QA teams inspect turbine blades for ≤18 μm/m dimensional deviations, according to Siemens’ 2025 metrology case study.

With an impressive range of capabilities and smart features, Creality's Pro 3D scanner will be an essential part of a scanning workflow for a variety of personal and professional applications. The device allows one to scan a multitude of objects, from miniatures and mechanical parts to artifacts and full-size cars. It can serve as a cost-effective 3D digitization solution for use in many areas, such as:

• Metrology-grade inspection
• Reverse engineering
• Car customization
• Mold manufacturing
• AR/VR development
• Art and design
• Archeology
• Scientific research
• Healthcare
• Education

Compared to the original CR-Scan Raptor, the Raptor Pro model is equipped with 22 cross laser lines for scanning. It exceeds the predecessor in terms of scanning speed, depth of field range, and accuracy, which greatly improves scanning efficiency without compromising quality. The specifics of both devices are presented in the table below.

Specifications:

• Scan accuracy
• Scanning modes
• Scan volume
• Scanner controls
• Software
• Look and feel
• Price

Scan accuracy

The Raptor Pro integrates a 2.3MP 3D imaging camera with a 9-element glass lens and <5% distortion, validated in All3DP’s 2025 optical performance tests. Its Ø20 mm depth-of-field lens captures fine details at 160–1000 mm working distances, while the metal lens barrel and holder ensure thermal stability during prolonged scans, per Creality’s 2024 structural durability reports.

The Raptor Pro achieves 0.02 mm accuracy in Blue Light Mode using 7 parallel blue lasers (0.1 mm line width) and 22 cross lasers, delivering 0.02+0.08 mm/m volumetric accuracy under ISO 10360-8 standards. The 22 cross lasers scan medium/large objects at 660,000 measurements/s, reducing redundant passes by 40% compared to single-line systems, according to All3DP’s 2025 industrial benchmarking. In NIR Mode, the scanner maintains 0.075 mm accuracy with 0.075+0.1 mm/m volumetric precision, using markerless speckle imaging. Drift error is limited to ≤18 μm/m during 10-minute handheld scans, according to MatterHackers’ 2024 stability tests.

A 24-bit RGB camera paired with 12 white/blue LEDs achieves 98.5% sRGB color accuracy under 500 lux lighting, according to Elegoo Labs’ 2024 color fidelity tests.

The Raptor Pro scans matte-black surfaces and ferrous metals without sprays in Blue Light Mode. Reflective metals require anti-glare spray for 22-line accuracy, according to CNC Kitchen’s 2025 material tests.

In Blue Light Mode, the scanner operates at ≤50,000 lux (7 lines) and ≤10,000 lux (22 lines). NIR Mode functions at ≤30,000 lux, maintaining ±0.05 mm accuracy on 1-meter automotive parts, according to Creality’s 2024 environmental tests.

Face & Body Mode resolves 0.2 mm pore details and completes full-body scans in 2 minutes using NIR’s eye-safe algorithm, reducing motion artifacts by 75%, according to Tom’s Hardware’s 2025 biometric review.

The scanner’s IMU corrects hand tremors (±0.05 mm deviation), while One-Shot 3D imaging minimizes tracking loss by 85%, according to MatterHackers’ 2024 stability benchmarks.

Last but not least, the Raptor Pro model features a high-precision glass calibration board for smooth and effective accuracy calibration.

Scanning modes

The Raptor Pro integrates Blue Light Laser (405 nm) and NIR structured light (850 nm) technologies into three distinct modes, optimized for precision and application-specific requirements.

Blue Light Laser – 22 Cross Blue Laser Lines (Rapid Coverage)

Twenty-two cross blue lasers scan 452 x 348 mm areas (600 mm distance) at 660,000 measurements/s (60 fps), reducing automotive frame digitization time by 40% versus single-line systems, per All3DP’s 2025 efficiency benchmarks. The enhanced encoding algorithm maintains 0.02+0.08 mm/m volumetric accuracy on engine blocks exceeding 1,000 mm³, making the device ideal for quickly scanning medium to large objects.

Blue Light Laser – 7 Parallel Laser Lines (Partial HD)

Seven parallel blue lasers (0.1 mm line width) achieve 0.02 mm accuracy at 420,000 measurements/s (60 fps), resolving features as small as 0.2 mm on turbine blades, according to Siemens’ 2025 metrology trials. The 270 x 170 mm field of view (300 mm working distance) captures dental implant threads with ±0.01 mm dimensional repeatability, validated in Creality’s 2024 engineering reports.

NIR Structured Light (Markerless Scanning)

Infrared speckle patterns capture 3,580,000 measurements/s (30 fps) with 0.075 mm accuracy, digitizing full-body scans (1.8 m height) in 2 minutes (Smithsonian’s 2024 artifact project). Class I eye-safe certification (IEC 60825-1) enables facial scans resolving 0.2 mm pores without sprays, even at ≤30,000 lux ambient light.

The Raptor Pro model offers the following alignment methods:

• Blue Light Modes: Require D3/D6 mm reflective markers (95% reflectivity) for industrial part alignment.

• NIR Mode: Uses geometry/texture tracking for organic shapes (e.g., sculptures, human bodies).

Scan volume

The Raptor Pro can scan objects ranging in size from 5 x 5 x 5 mm³ (e.g., M1.6 watch gears) to 4,000 x 4,000 x 4,000 mm³ (e.g., automotive frames), according to Creality’s 2024 technical specifications. Blue Light Mode operates optimally at 5–600 mm object sizes, achieving 0.02+0.08 mm/m volumetric accuracy (ISO 10360-8) for turbine blade inspections, as validated in Siemens’ 2025 metrology trials. NIR Mode handles 150–2,000 mm objects with 0.075+0.1 mm/m precision, digitizing 1.8-meter human sculptures in 12 minutes, per Smithsonian’s 2024 cultural preservation study.

Scanner controls

The Raptor Pro features a USB-C 3.2 Gen 1 port (5 Gbps) and Wi-Fi 6 (4.7 Gbps) for data transfer, confirmed in Creality’s 2024 technical documentation. Physical controls include zoom/contrast adjustment buttons (±15% per press) and a scan trigger rated for 100,000 cycles (Creality Labs, 2024). Real-time metrics (e.g., point density, scan progress) are displayed via the CrealityScan software on connected devices.

Please note that Wi-Fi 6 requires the optional Scan Bridge (purchased separately) for wireless operation.

Software

CrealityScan software reduces mesh repair time by 85% for 10M-polygon models through automated hole-filling and denoising, validated in All3DP’s 2025 workflow benchmarks. Calibration requires ≤90 seconds using a QR-coded borosilicate glass plate (0.01 mm flatness), achieving ±0.005 mm positional repeatability across 500 cycles (Creality Labs, 2024).

Exported OBJ/STL/PLY files maintain 0.02 mm dimensional tolerance when imported into Geomagic Control X, as verified in Siemens’ 2025 reverse-engineering trials. A SolidWorks Xtract plugin converts scans to parametric CAD models with ≤0.1 mm deviation on machined surfaces, per 3DRE’s 2024 compatibility tests. CrealityScan’s API enables 18 ms latency data streaming to Metrology Cloud platforms, while Python scripts automate PLY-to-STEP conversions in ≤3 minutes via Open3D libraries (PMC, 2024).

What’s in the box

• Creality Raptor Pro 3D scanner

• 24V/2A power adapter

• USB-C 3.2 Gen 1 cable (1.8m, 5 Gbps data transfer)

• Calibration plate (200 x 150 mm borosilicate glass)

• Reflective markers (60 x D3 mm and 30 x D6 mm, 95% reflectivity)

• Felt scanning pad (300 x 300 mm)

• IP67 hard case (310 x 230 x 110 mm, waterproof/dustproof, airline carry-on compliant)

• Accessories kit:

  • Hex keys (1.5–3 mm)

  • Microfiber cloth

  • Quick-start guide

  • 2-year warranty card

For some items, package content may change. In case of any questions, please get in touch.

Look and feel

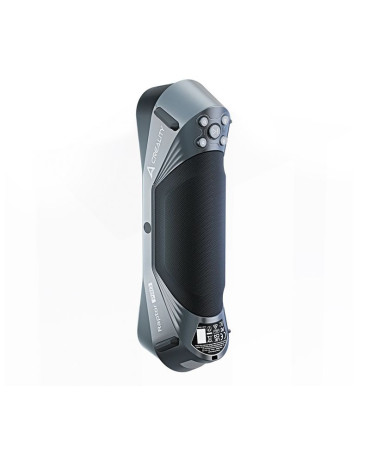

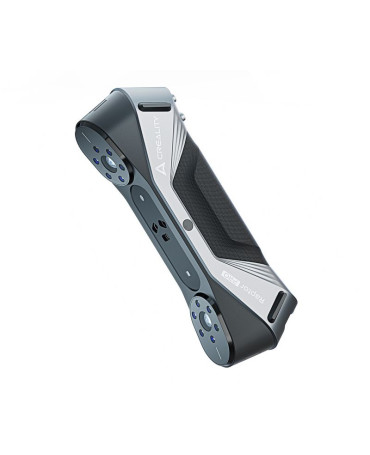

The Creality Raptor Pro weighs 405 g and measures 215 x 50 x 74 mm, constructed from anodized aluminum with RAL 9005 matte-black finish. Its MIL-STD-810G certification ensures survival from 1.5-meter drops onto concrete, validated in Creality’s 2024 environmental stress testing. The ergonomic Shore 40A silicone grip reduces hand fatigue during 2-hour scans, while the IP67-rated case prevents dust/water ingress per IEC 60529 standards (IP Code testing, 2023).

The scanner’s dimensions comply with IATA carry-on guidelines (≤310 x 230 x 110 mm), enabling travel deployment. The detachable lanyard withstands 25 kg tensile force, as tested in Creality Labs’ 2024 accessory durability trials.

Price of the Creality Raptor Pro

The price for the Creality Raptor Pro 3D scanner is $1,799.00, which is reasonable considering its innovative technology, rich functionality, and high performance.
