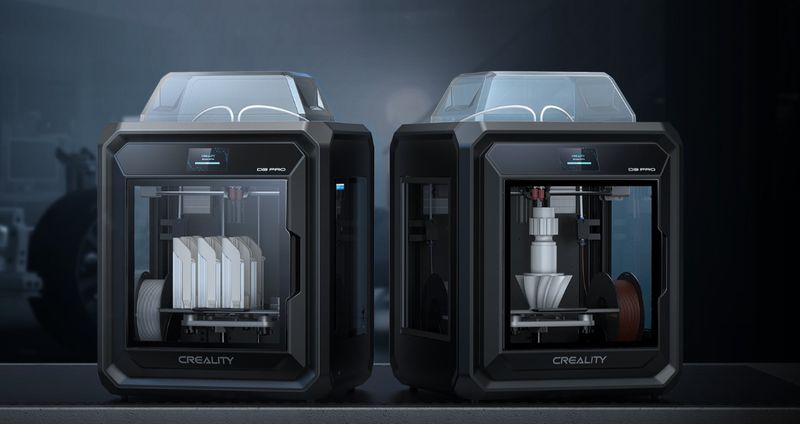

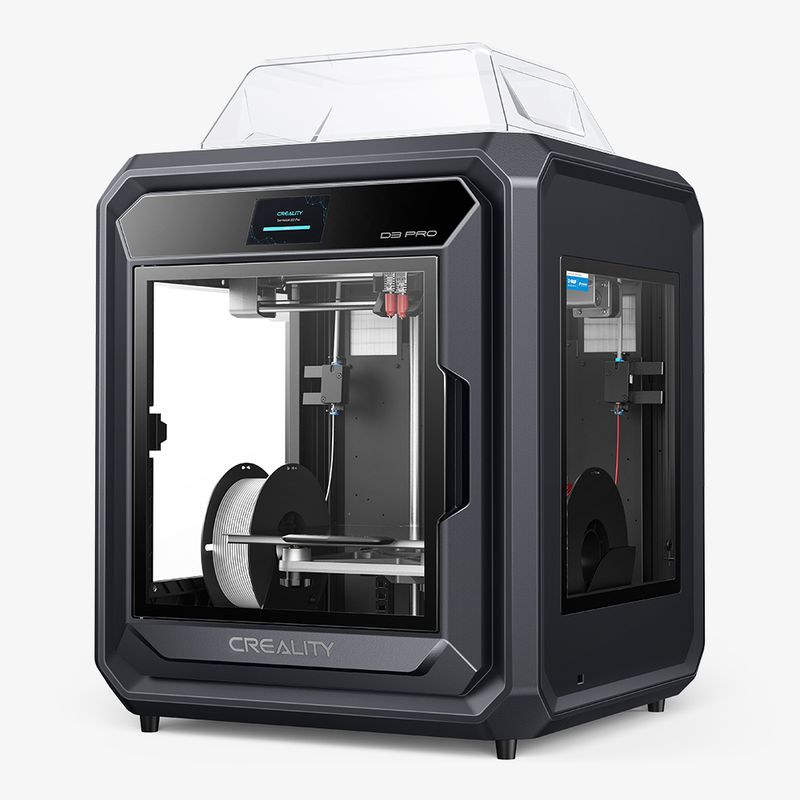

Creality Sermoon D3 Pro 3D Printer

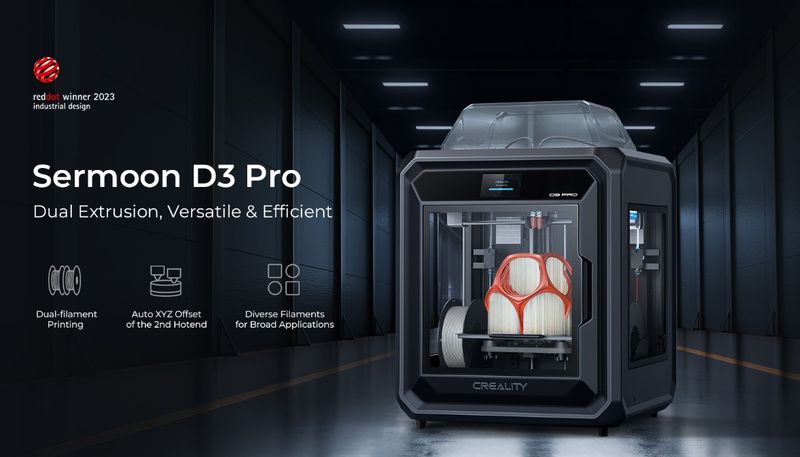

The Creality Sermoon D3 Pro is an advanced version of the Creality Sermoon D3 FDM 3D printer dedicated to industrial designers and manufacturers. As distinct from the original model, the Sermoon D3 Pro provides enhanced heating capabilities, dual extrusion system with 32 mm³/s flow enabling impressive print speed, smart auto leveling, and compatibility with a higher range of filaments.

Just like its predecessor, the device boasts durable structure, capacious build volume, high accuracy and reliability of the printing process, unprecedented build speed, easy post-processing, convenient software functions, and overall cost-effective production. All these features lead to boosted R&D efficiency as well as reduced manufacturing cycle and expenses.

To meet the requirements of modern industries, the Sermoon D3 Pro is equipped with sturdy parts that ensure stable and highly accurate printing. A precise movement system coupled with a direct drive dual-gear extruder with instant switch of hotends make for fast and steady operation even at high temperatures. With the printer’s enhanced heating abilities, users can work with a number of demanding engineering materials to make their projects more diverse.

Among other smart solutions, the machine offers some thoughtful quality-of-life features, among which are: a filament runout sensor, power loss recovery function, long-term automated leveling, pause while opening the chamber, integrated camera, built-in HEPA air purifier, directional air duct for quick model cooling, and more. As for software, the Sermoon D3 Pro supports proprietary Creality Slicer and Creality Cloud.

Due to its ability to produce high-quality final products directly, the Creality Sermoon D3 Pro is ideal for prototyping, jigs and fixtures making, design verification and modification, education, research, and other professional applications in various industrial spheres. In particular, it can be efficiently used by small and micro companies for small-batch orders or for mass production of peculiarly shaped parts and products.

Specifications:

• Print quality
• Materials
• Build volume
• Printer controls and software
• What’s in the box
• Look and feel
• Price

Print quality

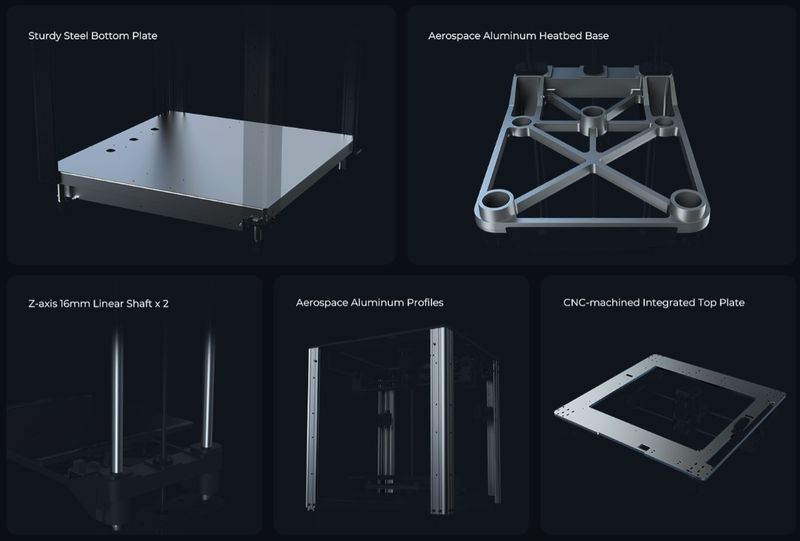

The Creality Sermoon D3 Pro can print layers with heights ranging from 100 to 350 microns. It inherits the sturdy frame of the original model consisting of thick metal plates and four vertical aerospace aluminum profiles providing increased stability. Due to high-quality stainless steel linear shafts, the machine is able to withstand the inertia force of the moving printhead, which makes for failure-free steady printing for up to 8000 hours.

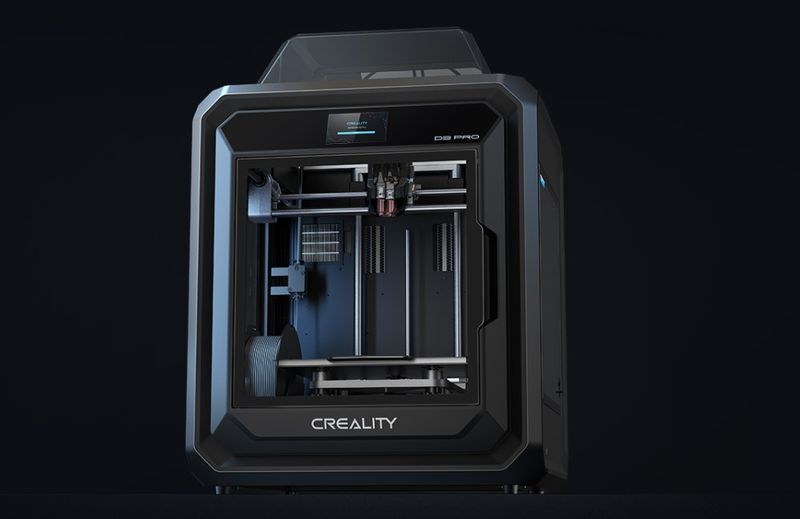

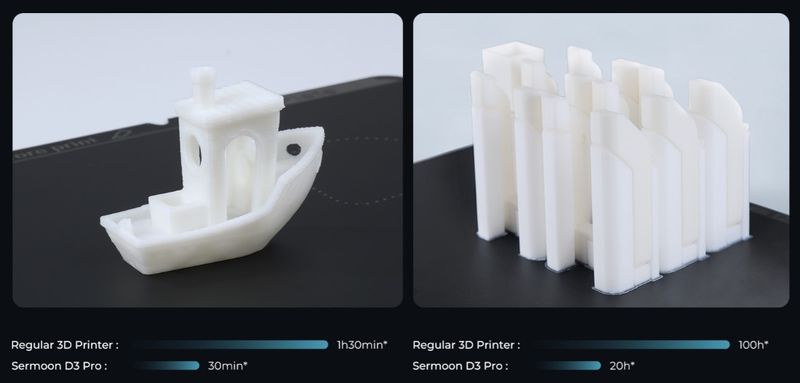

The Sermoon D3 Pro is equipped with an advanced stepper motor driver chip that enables 1/256 microstepping and smooth printing at up to 5x speed. With 0.01 mm precision, the CNC-machined X/Y axis gantry system is made for a seamless fit. To further reduce mechanical errors and boost accuracy, Creality uses powerful high-torque motors and durable timing belts and pulleys.

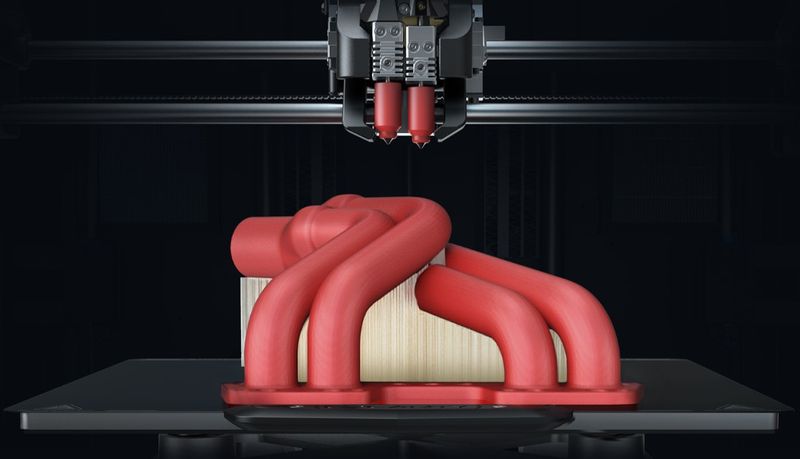

The direct drive dual-gear extruder of the Sermoon D3 Pro features two quickly heating hotends and delivers strong extrusion and retraction force. The printhead of the Pro model is lighter than ever and is capable of 32 mm³/s high flow and consistent printing at 300 °C. To ensure maximum print quality and time-effectiveness, the single-side nozzle lifting system has undergone rigorous tests to be reliable and precise with instant switching and automatic XYZ offset of the second hotend.

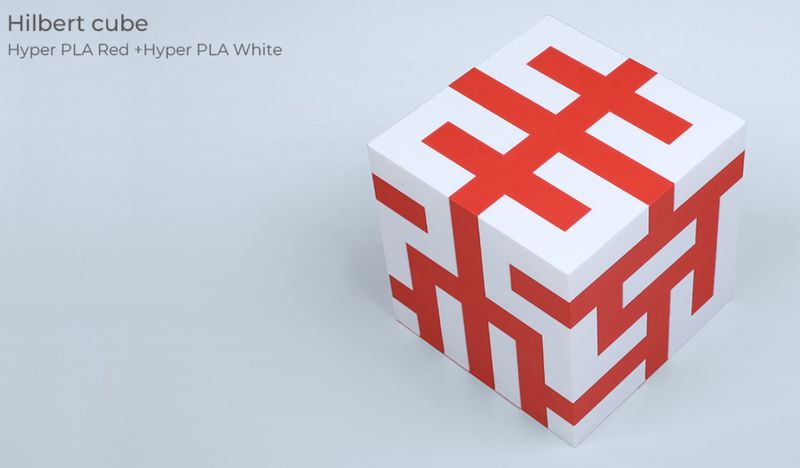

Another advantage of dual extrusion is the capability to print dual-color and dual-material objects as well as use water-soluble and easy-to-remove supports.

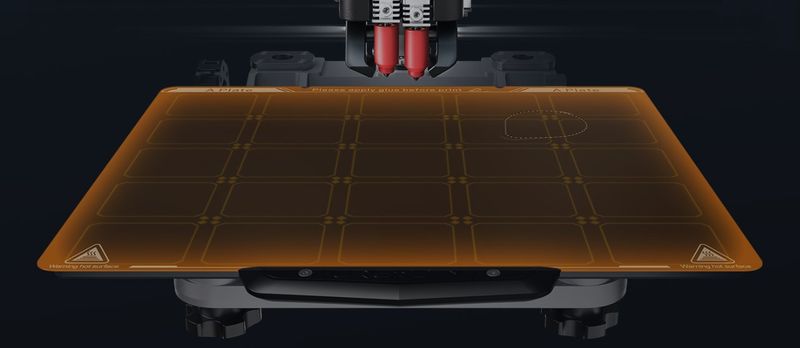

The printer provides effective long-term auto-leveling due to a strain sensor in the printhead that probes the build surface at multiple points and levels it automatically and precisely.

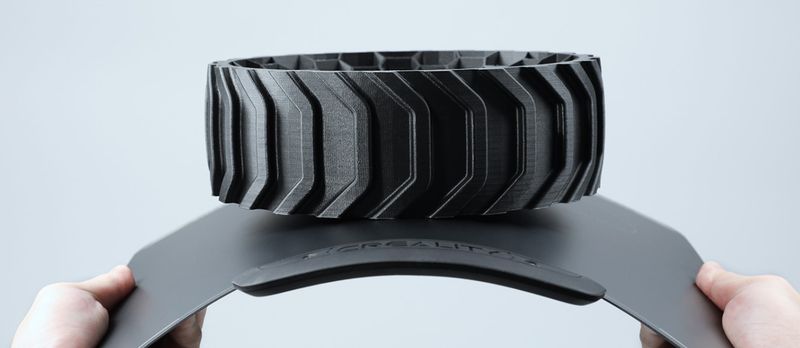

The Sermoon D3 Pro model comes with a flexible build plate featuring a sticky and heat-resistant surface to match various kinds of filaments and make the model bottom fine and smooth. Plus, it is bendable, which makes for effortless print removal.

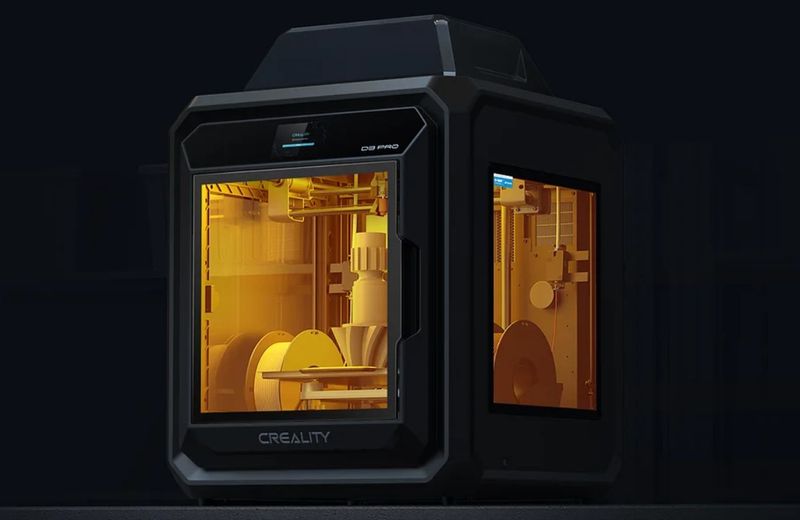

Finally, the fully enclosed and heat-retaining structure of the Sermoon D3 Pro in combination with its adjustable heated bed (up to 120 °C) provides even heating, which results in less cracking and edge curling issues as well as higher strength of 3D-printed parts.

Materials

The Creality Sermoon D3 Pro features impressive material compatibility. Due to its advanced thermostatic chamber with an active heater (up to 60 °C), the machine can consistently print with a wide array of filaments (up to 29 kinds), from regular to durable and wear-resistant ones. This design ensures high dimensional accuracy, surface quality, and strong layer adhesion by reducing internal stress and deformation.

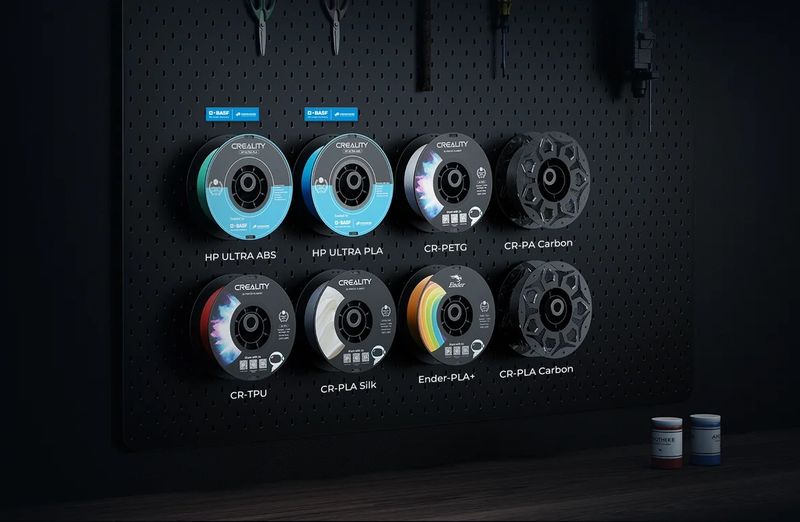

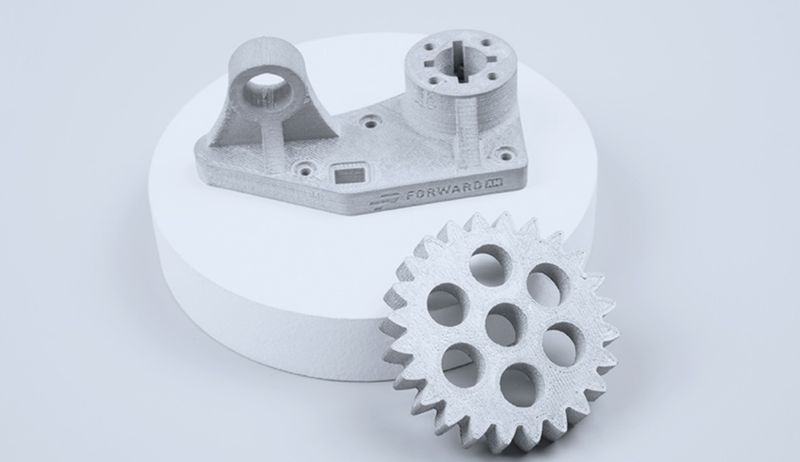

Being an industrial-grade 3D printer, the Sermoon D3 Pro successfully works with both conventional and demanding materials, including PLA, PETG, PET, TPU, PVA, BVOH, HIPS, PA, ABS, ASA, PC, PLA-CF, PA-CF, PET-CF, metals, and more. This variability allows the user to choose the most appropriate material for any specific purpose.

Build volume

The Creality Sermoon D3 Pro offers a capacious build area of 11.4 x 8.7 x 11.8 inches (290 x 220 x 300 mm) that lets you produce a single large model or a wide variety of small-to-medium sized prints in batches without the need of splitting them, which makes for time-saving and increased productivity.

Printer controls and software

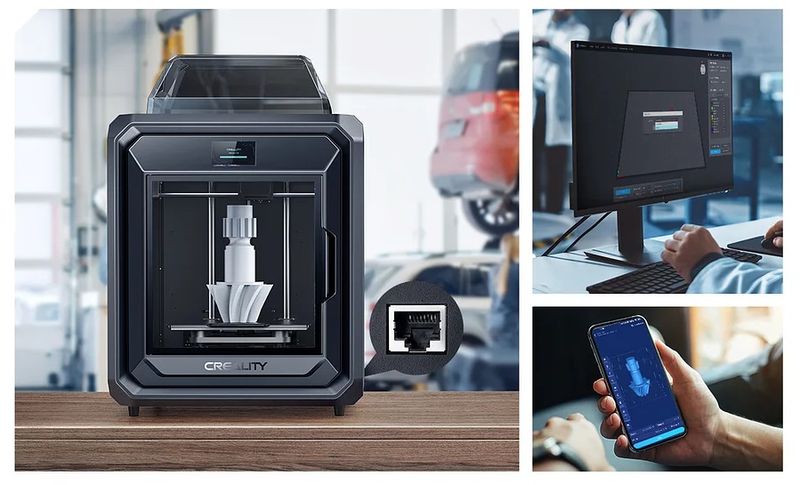

The Creality Sermoon D3 Pro 3D printer features a 4.3" color touchscreen with a clear menu structure and user-friendly interface. Data input is performed through the USB port, Ethernet port, or Wi-Fi.

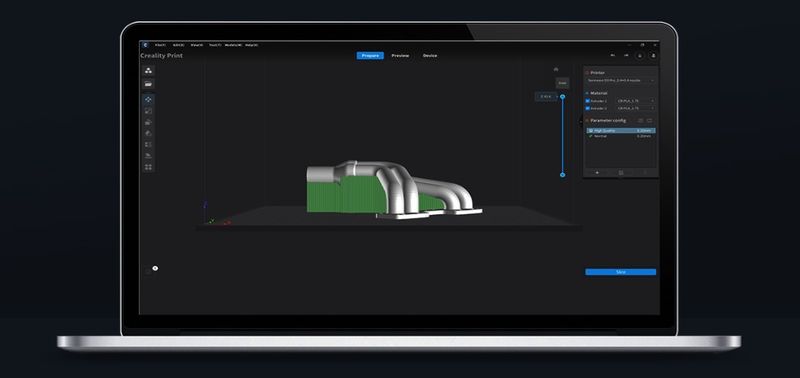

Users can print their models from a PC or phone with Creality Print software or Creality Cloud App. The company’s proprietary programs feature advanced practicality and ease of use. They work with STL, OBJ, and AMF file formats and cover all the essential aspects of the printing process, such as searching, uploading, importing, editing models, setting printing and slicing parameters, and more. From one-click model slicing and auto-leveling to model preview and remote control, Creality Print (with direct access to Creality Cloud) ensures a smooth and user-friendly 3D printing experience.

Furthermore, Creality Print offers well-tuned quality presets for dual extrusion, covering the majority of use scenarios with the Pro model.

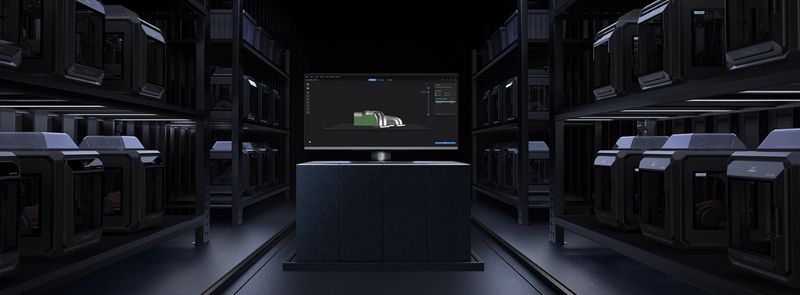

Thanks to the built-in HD camera as well as integrated software functionality, one can monitor the printing process in real time or enjoy the time-lapse filming function. With the multiple Sermoon D3 Pro printers connected to a shared network, models can be batch-printed through Creality Print. It is also possible to divide a large model into several parts and print them simultaneously with more machines.

What’s in the box

• Creality Sermoon D3 Pro 3D printer
• Power cable
• Clear top cover
• Flexible build plate
• Material rack + screws (x2)
• Spool holder + nut
• Toolbox
• Blade
• Brush
• Cutting plier
• Socket spanner
• Extruder cleaner
• Wrench and screwdriver
• Teflon tube
• 0.6mm hardened steel nozzle heat block
• Lubricating grease
• Glue stick
• Filament
• USB flash disk
• Quick guide

For some items, package content may change. In case of any questions, please get in touch.

Look and feel

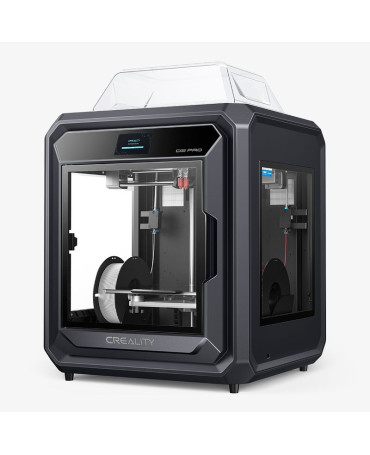

The Creality Sermoon D3 Pro 3D printer is available in black. Its stylish look makes it ideal for a number of professional applications.

The printer dimensions are 21.8 x 22.8 x 25.8 in (553 x 578 x 656 mm). It weighs 94.8 lbs (43 kg). The spool is mounted inside the machine’s build chamber.

Price

The price for the Creality Sermoon D3 Pro 3D printer is $2,799.00, which is reasonable considering its functionality and high performance.
