The Creatbot DX and DX Plus (DX+) are large-bed FDM desktop 3D printers. They feature a rock-solid construction entirely made of steel. They ship already assembled. Both devices employ a triple-extrusion module composed of all-metal hotends, adjustable-height-nozzles, and precise feeders. Their hardware and software configuration is ideal for multi-material 3D printing with a broad range of filaments.
The sturdy structure makes them stable, accurate and reliable. Also, it strongly increases their durability. Creatbot DX series features quality components, a glass-ceramic platform, and a multilingual intuitive interface. It provides smart recovery features, namely the power-off recovery system and the filament run-out detection, for an easier 3D printing experience.

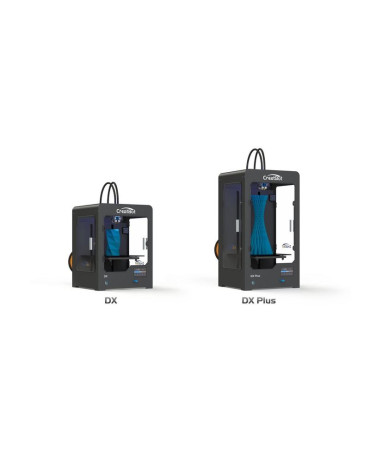

The two printers mainly differ in their build volume. The Creatbot DX has a print area of 300 x 250 x 300mm, while the Creatbot DX Plus of 300 x 250 x 520mm. Depending on your printing requirements, you might choose the printing dimensions that best suit your needs. Keep reading our complete review.

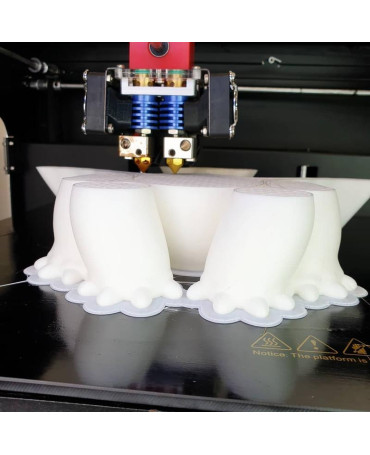

One user 3D printed the below-pictured part. Printed at 0.1mm layer height, it turned out really good and dimensionally accurate.
Credit: @toocsab / Instagram
Some students 3D printed this Eiffel’s tower model. As you can see, the Creatbot DX 3D printer did a good job.
Credit: @center_additive_manufacturing / Instagram
The Creatbot DX and DX Plus are large-scale FDM desktop 3D printers. Characterized by high precision, they can print at a layer height of 50 microns, delivering smooth surfaces and accurate details. The metal chassis improves their stability making for higher resolution prints. The print head travels at up to 200 mm/s. The precise filament feeder makes the filament flow smoothly and evenly.
Both Creatbot DX and DX Plus can be equipped with up to three nozzles. They come stock with 0.4mm nozzles but are also compatible with 0.3, 0.5, 0.6, 0.8 and 1.0 mm nozzles. This means you can choose the diameter that best suits your speed and quality needs. The nozzle height can be adjusted.
Credit: @center_additive_manufacturing / Instagram
The print head runs on linear guide rails. This makes printing reliable, fast and precise.
Credit: @center_additive_manufacturing / Instagram
Creatbot DX series 3D printers can print with PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, and other materials.
Credit: @toocsab / Instagram
The printers come with triple extruders with all-metal durable hotends, which heat up to 350°C. Thus, they are compatible with a variety of standard yet performance filaments.
Creatbot DX series 3D printers employ a micro-crystal print bed for great thermal efficiency. The heatable bed is capable of turning itself off after printing a certain number of layers.
Credit: @3dprimade / Instagram
Both DX and DX+ print with 3.0 mm filaments. They are also compatible with 1.75mm consumables. Their open material system lets you print with all types of filament commercially available.
The Creatbot DX has a build area of 11.8 x 9.8 x 11.8 inches (300 x 250 x 300 mm). The Creatbot DX+ features a higher print volume of 11.8 x 9.8 x 20.5 inches (300 x 250 x 520 mm). Their large format allows printing big parts in one piece without splitting the original model.
Credit: @center_additive_manufacturing / Instagram
Creatbot DX series 3D printers have a fitted 4-3-inch touch screen. Simple-to-operate and user-friendly, it includes some useful shortcut keys for quick operation. Also, there are multiple languages available.
Credit: @3dprimade/ Instagram
3D models can be printed from a USB-connected computer or via a U Disk.
The Creatbot DX series includes the proprietary CreatWare 3D slicing software. It also supports the most common Simplify 3D, Cura, and Slic3r programs. It works with STL, OBJ, and AMF file formats. The own-brand software is compatible with Windows (7, 8, 10) and Mac OS.
Credit: @3dprimade/ Instagram
For some items, package content may change. In case of any questions, please get in touch.
Creatbot DX and DX+ are available in black.
The DX version measures 16.5 x 15 x 22.4 inches (420 x 380 x 570 mm) and weighs 55 lb (25 kg). The DX Plus measures 16.5 x 15 x 31.1 inches (420 x 380 x 790 mm). It weighs 88 lb (30 kg). The spool holders are mounted on the back of the printers.
The price of the Creatbot DX is $1799, while the price of the Creatbot DX Plus is $2399. Their cost is reasonable considering their functionality and versatility.
The up-to-date user manuals and the warranty policy can be found at http://creatbot3d.com/
