DOBOT Magician Robotic Arm

In Stock
An all-in-1 STEAM education robot
  • Sturdy and lightweight
  • Easy to control and user-friendly
  • Multifunctional and easily programmable
  • Cost-effective and accurate
When purchasing with us you get:
  • FREE Delivery
  • Full 1 Year Warranty
  • 24/5 Customer Support
  • FREE training
This robotic arm comes with:
  • Pen and pen holder
  • Pneumatic gripper and suction cup
  • Laser engraver with Kraft papers Swift Universal Holder
  • Print head with PLA filament
Price: $999.00
Order now and we’ll ship it in 24 hours or less

DOBOT Magician is a kid-friendly, multifunctional desktop robotic arm able to grab, write, engrave, solder and 3D print. Targeted to both children and adults, the DOBOT Magician is user-friendly and safe. Still, it is affordable and compact, fitting almost any desks. It dramatically improves teaching efficiency providing an immediate yet pleasant learning experience to anyone. The great hard- and software interplay along with the overall excellent performance earned it the CES 2018 Innovation Award and iF DESIGN AWARD 2018.

DOBOT Magician is engineered with a visualized programming interface, which includes a drag-and-drop feature for easy coding. This means it can be easily deployed from an application to another by anyone in no time. It shows a rugged design made of anodized aluminum alloy and ABS engineering plastic, which makes it durable and lightweight. It can be equipped with several end-tools, being able to perform multiple tasks, namely 3D printing, laser engraving, drawing, pick&place, and more. IT features seven different controlling methods for more convenient use.

DOBOT Magician is available in both basic and advanced educational versions. Used by Tsinghua University, Shandong University, and the University of Technology Sydney as well as by industrial companies like Volkswagen and Alibaba, this intelligent learning robotic arm might be a great addition to your workflow. Continue reading for a thorough review.

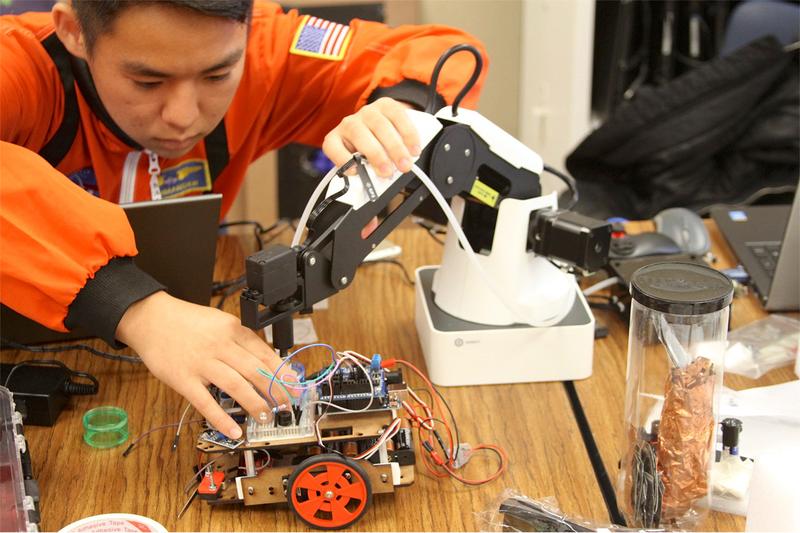

As part of the “Occupy Mars Learning Adventures STEAM++ Program”, some students from the Long Beach Unified School District's CAMS have chosen the DOBOT robot to produce parts for other robots.

Cazenovia High School uses the DOBOT Magician robots to teach 18-year-old students advanced robotics, automation techniques, and programming. Thanks to their robustness and ease of use, the robots are perfect for classrooms.



Specifications:

  • Processing quality
  • Applications
  • Working range
  • Robot controls
  • What’s in the box
  • Look and feel
  • Price



Processing quality

DOBOT Magician is a cost-effective 4-axis desktop robotic arm. The positioning repeatability of up to 0.2 mm is a remarkable feature for the price. The arm is engineered with an accurate stepper motor with a gear reducer for smoother operation. It can lift objects weighing up to 500 g. With 250 g of workload, the rotation servo joint can reach a maximum speed of 480°C, all other joints feature a maximum speed of 320°/s.

DOBOT magician supports secondary development through more than 20 programming languages and 13 programmable I/O ports, allowing for a variety of improvements and applications.



Applications

The DOBOT Magician supports a variety of end-use tools. According to the task, you can simply replace the tool, teach the arm how to move and start working. Indeed, it can easily turn into a 3D printer, a laser engraver, a gripper, a drawer, and more.



Pick and place

The gripper module works in a range of 27.5mm. It features a pneumatic drive type with a force of 8N. The suction cup has a diameter of 20mm and a pressure of -35 Kpa.

The arm is capable of picking and placing products of up to 500g with high precision.



3D printing

Able to print with PLA-type materials, the DOBOT Magician creates custom models with a resolution of up to 0.1 mm.

These Pokèmons are a great example. We gotta catch ‘em all!

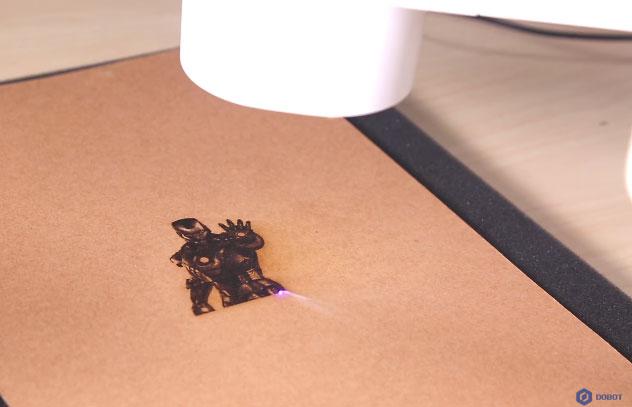

Laser engraving

The DOBOT Magician includes a 405nm blue laser with a power consumption of 500mw. It includes 5 Kraft liner papers to start engraving right out the box. It is capable of producing accurate results with an acceptable amount of details.

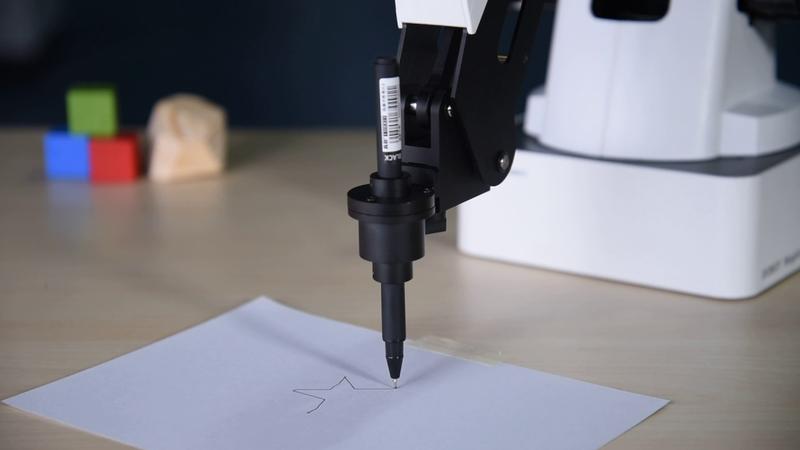

Writing and drawing

The pen holder supports up to 10mm in diameter. It is capable of writing and drawing anything you want, providing high design flexibility.



Working range

The arm has a maximum reach of 320 mm, which allows performing a variety of different tasks. The axis movement varies from joint to joint. The base rotates within a range of -90° to + 90°, the rear arm rotates from 0° to +85°, the forearm from -10° to +95°, while the rotation servo form +90° to -90°.

As a 3D printer, it features a print volume of 150 x 150 x 150 mm.



Robot controls

The DOBOT Magician provides 7 controlling modes. Suitable for both newbies and experts, it features easy-to-use controls (drag & drop interface) as well as more advanced ones (serial port SDK and motion control interface). You can operate the arm via PC, mobile APP, Voice, Leap Motion, Gesture, Vision and Mind Control EEG. This means you can control it by Programming, APP, Bluetooth, WiFi, Mouse, and more. It uses C/C and Processing as primary languages.

The machine includes some programmable and extensible I/O Interfaces, including UART, Reset, Stop, 12V, 5V and two I/O.

The robotic arm works with several applications, including DobotStudio, Repetier Host, GrblController3.6, and DobotBlockly (Visual Programming editor). It also supports a couple of Software Develop Kits, namely communication Protocol, and Dobot Program Library.



What’s in the box

  • DOBOT Magician robot arm
  • pen
  • pen holder
  • Pneumatic gripper
  • Suction cup (joint 4)
  • Air pump controller
  • Extruder
  • Hot end
  • Glass/aluminum plate
  • Masking tape
  • 100g of PLA filament
  • 5 Kraft liner papers
  • User manual
  • Pamphlets
  • Calibration Paper
  • USB cable
  • Power adapter

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

DOBOT Magician is available in a black and white color combo. Its stylish look makes it ideal for home and educational use. Indeed, it is available in two different versions: basic and educational.

The robot base dimensions are 6.2 x 6.2 inches (158 × 158 mm). Its packing sizes are 13 x 12.8 x 16.1 inches (330 x 325 x 410 mm). It weighs 15.9 lb (7.2 kg).



Price

The price of the DOBOT Magician is $999.00, which is reasonable considering its multi-functionalities.
