DWS UV Curing Unit S2

The DWS UV Curing Unit S2 is a professional curing device recommended for SLA 3D printers by the Italian manufacturer DWS. The S2 curing machine is engineered with a powerful UV light source ensuring the unit’s reliable performance in terms of heat and light distribution. Due to its high precision and intensity, the printed objects can be cured in just a few minutes with full automation of the process.

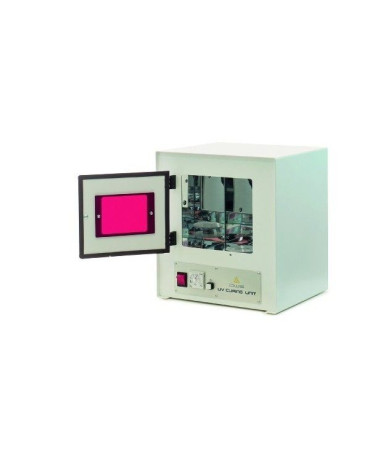

Apart from the S2 model (left), the DWS lineup includes the M and XL curing units differing in terms of dimensions and curing volume.

The DWS UV Curing Unit S2 offers the smallest curing volume suitable for the polymerization of single models. It is equipped with a timer enabling the user to set an exact time of the curing process (up to 30 min). At the same time, the machine boasts ease of use, intuitive controls, and compact dimensions. In addition, it offers thoughtful safety features, such as a smart door lock mechanism as well as forced inner ventilation for the user’s safety and convenience.

The DWS UV Curing Unit S2 is tailored to professional SLA 3D printing applications as the final stage of production. As a supporting device, it performs the secondary solidification of the models built by the DWS SLA printers. Even if perfectly formed, the printed models need an additional exposure to a specific UV light source to complete the polymerization and stabilization of their structure. With post-curing, not only does the model obtain a refined and smooth outlook but, more importantly, it becomes really durable and resistant.

Specifications:

• Curing volume
• Controls
• Look and feel
• Price

Curing volume

The DWS UV Curing Unit S2 offers a capacious curing volume of 6.3 x 6.3 x 6.3 in (160 x 160 x 160 mm) that is suitable for effective polymerization of single models.

Controls

The DWS UV Curing Unit S2 features simple and convenient user controls making for a smooth operation experience. One can start the machine by pushing a standard on/off button. The unit also comes with a precise timer allowing to set the curing time up to 30 minutes, which is more than enough for your SLA 3D printed parts.

Look and feel

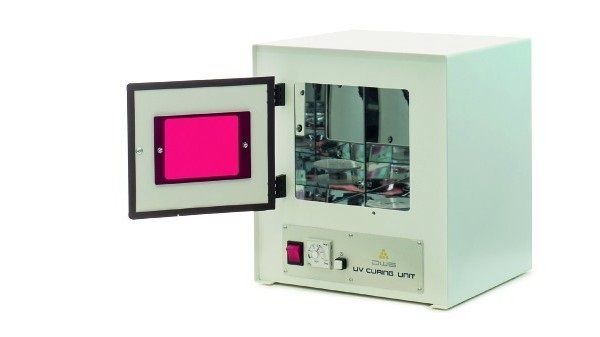

The DWS UV Curing Unit S2 features a white body and a door with a pink transparent window. Its solid look in combination with ergonomic design makes the machine ideal for a number of professional applications, such as prototyping, end-use parts manufacturing, jewelry making, digital dentistry, automotive, aerospace, and more.

The outer dimensions of the device are 10.4 x 11.8 x 13 in (265 x 300 x 330 mm). It weighs approximately 26 lbs (11.8 kg).

Price

The price for the DWS UV Curing Unit S2 is $1,990.00, which is reasonable considering its curing volume, functionality, and efficiency.
