Elephant Robotics myPalletizer 260 M5Stack

In Stock
Compact 6-axis dual-screen collaborative robotic arm
  • Built on M5Stack Atom and Basic ESP32 modules
  • Open-source platform
  • Lego interface
  • Compact and lightweight
When purchasing with us you get:
  • FREE training
  • 1 Year Warranty
  • 24/5 Customer Support
  • Delivery: $350
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This robotic arm comes with:
  • Power supply with DC connector
  • USB Type-C cable
  • Connection cables and jumpers
  • User manual
The estimated lead time is 5-10 business days.

The myPalletizer 260 M5Stack designed by the Chinese-based Elephant Robotics company is a compact and lightweight 4-axis robotic arm. Alongside , the device belongs to myPalletizer 260 series of 4-axis robotic arms, where 260 refers to the working range of the robot. Both modifications share the same mechanical construction and are equipped with the ESP32-based M5Stack Atom development board. The key difference between the two models is the mainboard they are based on, and, consequently, some variations in operation, capabilities, and application scenarios.

myPalletizer 260 is compact enough to fit into a backpack and weighs only 960 g. With the maximum load capacity of 250 grams, the working radius of 260 mm, and versatile operating tools, it provides endless possibilities for creative application scenarios anytime and anywhere. It is Linux-compatible, has built-in ROS and Python support, and features Bluetooth, Wi-Fi, and Ethernet connectivity.

The Elephant Robotics myPalletizer 260 M5Stack is equipped with the ESP32-based M5Stack Basic module featuring a dual-core 240 MHz CPU, 520 KB SRAM, 16 MB of Flash memory, and Wi-Fi connectivity. The module sports a 2" color IPS-screen and three custom buttons. The end of the arm houses the ESP32-based M5Stack Atom development board with a 5 x 5 RGB LED matrix panel, additional GPIO pins, a Grove interface, a programmable button, a USB-C port, and a steering gear interface for the connection of some end effectors, such as an adaptive gripper. The arm end is equipped with a Lego-compatible connector that expands the cobot’s customization opportunities and allows for quick and easy installation of multiple end effectors, including grippers, suction pumps, sensors, cameras, and much more.

Elephant Robotics myPalletizer 260 M5Stack

The Lego-compatible base of myPalletizer 260 M5Stack allows you to attach an optional flat or G-shaped base for enhanced stability.

The Elephant Robotics myPalletizer 260 M5Stack comes fully assembled and is ready to interact right out of the box.



Processing quality

Four high-performance servo motors of myPalletizer 260 M5Stack provide quick response and smooth rotation of the four joints with the repeatability of ±2 mm. The maximum joint rotating speed is 120°/s.

a processing quality on the Elephant Robotics myPalletizer 260 M5Stack



Applications

The Elephant Robotics myPalletizer 260 M5Stack is a compact yet fully functional robotic arm providing versatile opportunities for secondary development of cross-platform software. It is a great educational tool to explore the world of robotics and AI as well as master basic programming skills.

The robot can be used to palletize different things in your kid’s room, like wooden blocks or Lego bricks. You can even build your own mini warehouse!

a applications on the Elephant Robotics myPalletizer 260 M5Stack

a can even build your own mini warehouse on the Elephant Robotics myPalletizer 260 M5Stack

The machine vision allows using the robot for different applications, for example sorting objects by color or recognizing QR codes.

a recognizing QR codes on the Elephant Robotics myPalletizer 260 M5Stack

With a little bit of creativity and imagination you can teach myPalletizer 260 to do a lot of different things, like drawing, dancing, or even typing on your laptop keyboard.

a drawing, dancing, or even typing on your laptop keyboard on the Elephant Robotics myPalletizer 260 M5Stack



Working range

The working range of myPalletizer 260 M5Stack is 260 mm.

a working range on the Elephant Robotics myPalletizer 260 M5Stack



Robot controls

There are several ways of programming myPalletizer 260 M5Stack.

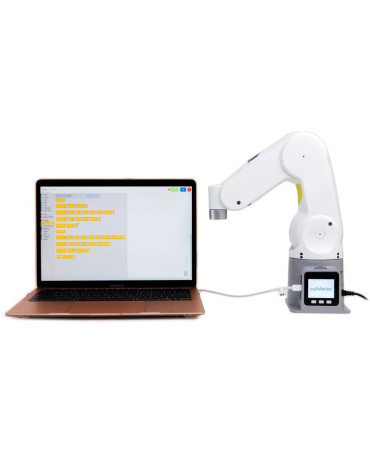

You can use the UIFlow visual programming software specially designed for M5Stack modules. It is based on Blockly graphical programming and Python coding methods. This is a great and simple way to make first steps in programming for beginners and kids.

a robot controls on the Elephant Robotics myPalletizer 260 M5Stack

For advanced users there is a support of RoboFlow software, designed by Elephant Robotics for industrial robots. It supports a lot of Arduino functional modules and the open source Robot Operating System (ROS).

a RoboFlow software on the Elephant Robotics myPalletizer 260 M5Stack

Finally, you can use the drag-and-teach method to show the cobot the required succession of moves, simply leading it through the desired waypoints, and using the recording function.

The M5Stack Basic module is equipped with a USB Type-C port, a 20-pin GPIO interface, and supports Wi-Fi and Bluetooth connections.

myPalletizer 260 M5Stack has built-in myStudio software platform providing the user with firmware updates, video tutorials and use cases, and maintenance and repair assistance.



What’s in the box

Elephant Robotics myPalletizer 260 M5Stack kit

  • myPalletizer 260 M5Stack robotic arm
  • Power supply with DC connector
  • USB Type-C cable
  • Connection cables and jumpers
  • User manual

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

Elephant Robotics myPalletizer 260 M5Stack

myPalletizer 260 M5Stack robotic arm is available in a white-and-gray color scheme. Its compact and strict design makes it ideal for home use as well as for any other environment where its capabilities can come in handy.



Price

To learn the current price of the myPalletizer 260 M5Stack, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
