Geomagic Control X Essentials Inspection Software

Geomagic Control X Essentials operates as a cost-optimized 3D inspection and metrology software platform built on the Geomagic Control X Professional framework, processing 3D scan data at rates up to 1 million points per second across portable CMMs and non-proprietary 3D scanners. The software reduces training time by 80% compared to traditional metrology tools through a CAD-like interface validated by 3D Systems’ usability studies.

For more Geomagic software options, such as Geomagic Control X and Geomagic Design X and more, use the site search.

Why choose Control X Essentials?

Control X Essentials achieves 96% alignment accuracy during scan-to-CAD comparisons using its proprietary initial alignment algorithm, which completes in 12 seconds for parts under 500,000 polygons. The software supports 8 international metrology standards, including ISO 10360-8 and ASME B89.4.1, ensuring compliance for aerospace, automotive, and medical device applications.

Users require 8 GB of RAM and 30 GB of storage to process datasets exceeding 100 million points, with NVIDIA Quadro GPUs enabling real-time rendering of deviation maps at 60 FPS. The Essentials package omits direct plugin 3D scanning and multi-result inspection tools available in the Professional edition but retains core functionalities for dimensional analysis, GD&T reporting, and surface defect detection.

Workflows

The software executes a 3-stage alignment hierarchy described below.

1. Initial alignment: Automatically matches scan data to CAD references with 96% success rates using curvature-based recognition, reducing manual setup by 73%.

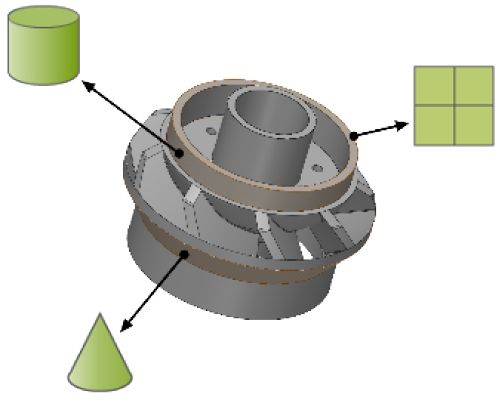

2. Datum refinement: Applies ASME Y14.5-2018 standards to prioritize planar, cylindrical, and conical features with ±0.025 mm repeatability.

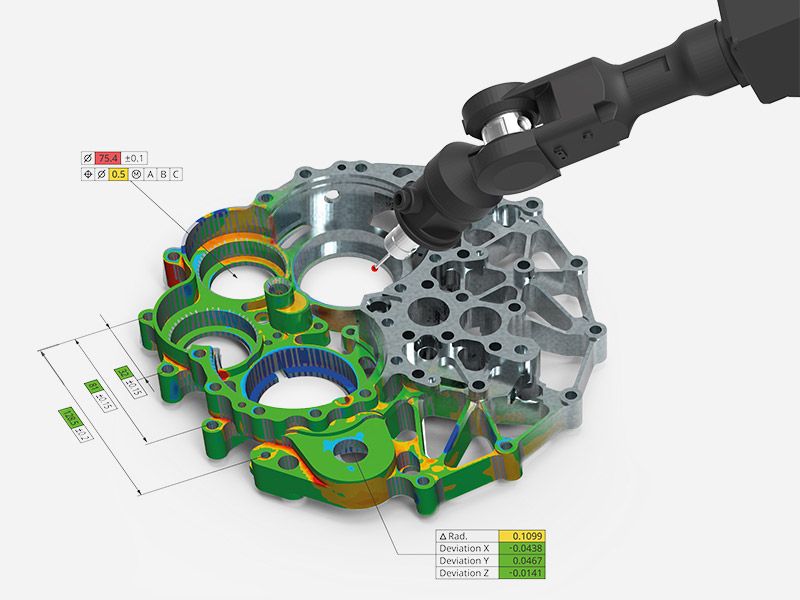

3. Deviation mapping: Generates color-coded tolerance plots at 0.01 mm resolution, exportable as PDF/Excel reports with embedded statistical process control (SPC) data.

Batch processing automates up to 50 concurrent inspection routines, cutting per-part analysis time by 64% in high-volume manufacturing environments.

Key features

Control X Essentials provides the user with four main functions.

1. Topography analysis: Quantifies surface roughness (Sa) between 0.1–25 µm using ISO 25178-2 filters, critical for sealing surfaces in hydraulic components.

2. Cross-sectional profiling: Measures wall thickness variations down to 0.05 mm across 200+ parallel slices, identifying warpage in injection-molded parts.

3. GD&T reporting: Evaluates 14 geometric tolerances per ASME Y14.5, including flatness, concentricity, and total runout, with MPE limits configurable to 0.5% of feature size.

4. Data fusion: Aligns CT scan data (DICOM), CMM point clouds (XYZ), and CAD models (STEP/IGES) into unified coordinate systems with 0.02 mm median error.

The software’s OpenGL 4.0 engine renders 10-million-polygon assemblies in 4.3 seconds on Quadro RTX 5000 GPUs, enabling real-time manipulation of turbine blade scans.

Capabilities

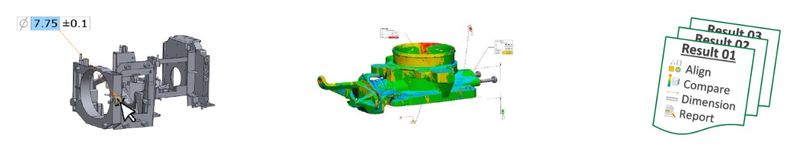

Choose from three packages that best fits your inspection needs.

Applications

Control X Essentials enables quality control and inspection across a wide range of industries and applications.

• Automotive tooling inspection: Asano Automotive reduced fixture inspection time by 2.3x using Control X Essentials, detecting 12µm deviations in stamping die surfaces.

• Aerospace composite layup: Stratasys Direct Manufacturing validated 450 CFRP brackets against CAD models in 8 hours instead of 32 hours using manual CMMs.

• Medical device compliance: Achieves ISO 13485 audit readiness through full traceability of 21 CFR Part 11-compliant reports, including electronic signatures and revision histories.

• Additive manufacturing: Identifies sinter warpage in DMLS titanium implants with 0.08 mm accuracy, enabling 99.2% first-pass success rates in orthopedic applications.

Here is data sourced from 3D Systems’ 2024 Metrology Benchmark Report.

Compatibility

Control X Essentials ingests data from 37 scanner models, including Faro Quantum S, Zeiss T-SCAN Hawk 2, and Nikon LS100, through native plugins or generic PLY/OBJ formats. The software’s API allows Python scripting to automate GD&T checks, with sample scripts reducing inspection plan creation time from 45 minutes to 8 minutes.

Minimum system requirements

• OS: Windows 10 64-bit (22H2 build)

• CPU: Intel i7-11800H (8 cores @ 4.6 GHz)

• GPU: NVIDIA Quadro RTX 3000 (6 GB VRAM)

• RAM: 32 GB DDR4 (3200 MHz)

• Storage: 512 GB NVMe SSD + 2 TB HDD for point cloud caching

Certifications

• NIST-tested for 0.005 mm/m measurement uncertainty under ASTM E2919-14

• UKAS-17025 accredited calibration workflows

• DIN SPEC 54191 compliance for additive manufacturing part assessment

Price of Geomagic Control X Essentials

To learn the current price of the software, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
