Gweike Cloud Pro II 50W CO₂ Laser Cutter & Engraver with Rotary

In Stock
Powerful and fast desktop laser cutter with rotary attachment
  • Carving speed up to 600 mm/s
  • Live preview with a built-in 5 MP camera
  • Engraving on spherical objects
  • Large working area expandable with a pass-through slot
When purchasing with us you get:
  • FREE Delivery
  • 1 Year Warranty
  • Local U.S. Support
  • FREE training
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This machine comes with:
  • Inline dust fan
  • Honeycomb panel
  • Material package
  • Rotary attachment
Price $3,499.00
The estimated lead time is 5-10 business days.

The Gweike Cloud Pro II is a laser cutting and engraving machine equipped with a powerful 50W COâ‚‚ laser tube sitting on the Y-axis gantry. To prevent overheating, the machine features an efficient internal closed-loop cooling system and a heat exchanger. The laser cutter has a solid construction with all-metal modules and main components. Hiwin industrial linear rails on all the three axes allow for lightning-fast engraving speed of up to 600 mm/s and high precision of 0.001".

The difference between the Gweike Cloud Pro and versions is the rotary attachment that comes with the Pro II model. You get two modules for different object dimensions that can perform as a roller, chuck, sphere, or bottle rotary. This tool allows you to engrave on various cylinder-shaped or spherical objects, such as bottles, tumblers, balls, and many others, greatly enhancing the capabilities of your laser engraver.

The rotary attachment that comes with the Gweike Cloud Pro II model.

The machine is equipped with a built-in 5 MP wide-angle camera for precise positioning of the design on the material. It also makes for image extraction, capturing a design from any object placed onto the working surface for its further use in your own projects.

Having a more than competitive price, the Gweike Cloud Pro II sports a lot of smart features that make it a highly versatile and easy-to-use machine both for beginners and professional makers. The material recognition function allows the machine to read the QR code on the proprietary materials, obtaining their type and thickness, and automatically set the operating parameters, such as speed, power, and autofocus length. When working with other materials, the parameters are set by the user with just a few clicks. The AI autofocus ensures accurate and consistent cutting results without a complicated setup. There is a removable waste tray at the bottom of the machine for a more convenient clean-up process.

To provide safe operation, the Gweike Cloud Pro is equipped with all the necessary features, such as a fully enclosed design with lid opening protection and a built-in air-assist, which efficiently protects the laser lens and allows for clean cuts without burning marks. The machine ensures quiet operation with the noise level not exceeding 70 dB. The cutter has CE, FCC, and FDA certification. To eliminate toxic fumes and odors, the machine can be equipped with an optional air filter with three-stage filtration, including HEPA and activated carbon filters.

Below you will find some examples of what the Gweike Cloud Pro II is capable of.

The example of the project by the Gweike Cloud Pro II 50W laser cutter and engraver.

Credit: @raluca_bologa / Instagram

The example of the project by the Gweike Cloud Pro II 50W laser cutter and engraver.

Credit: @gweikecloud1 / Instagram



Specifications

  • Compatible materials
  • Working area
  • Machine controls
  • Software
  • Applications
  • What’s in the box
  • Look and feel
  • Price



Compatible materials

Powered by a 50W COâ‚‚ laser, the Gweike Cloud Pro II can handle numerous materials, including wood, acrylic, cardboard, paper, leather, rubber, plastic, fabric, cork, and others for cutting, and even more options for engraving. In addition to the materials just mentioned, the machine can engrave on glass, stone, ceramic, marble, painted or coated metals, and even on food objects, such as bread slices or macaroons. Unlike diode lasers, the Gweike Cloud Pro II shows good results with transparent or white-colored objects.

A wide range of materials compatible with the Gweike Cloud Pro II 50W laser cutter and engraver.



Working area

With a working area of 510 x 300 mm and a maximum workpiece height of 51 mm without the honeycomb panel, the Gweike Cloud Pro II is suitable for home use as well as laser-engraving business projects, including small-batch production.

A general view on the Gweike Cloud Pro II 50W laser cutter and engraver.

The bottom-feeding design of the machine with a slot on the back panel allows engraving on objects that exceed the working area dimensions.

The working area is illuminated with warm light LED strips that help with focusing and provide more convenient operation.



Machine controls

The Gweike Cloud Pro II has various connectivity options including Wi-Fi, Ethernet, and USB. The connection ports as well as the power slot and switch are on the back panel of the machine. On the right top panel there is a start / stop button with an annular LED indicator which changes color, showing the machine current status.

The interface of the Gweike Cloud Pro II 50W laser cutter and engraver.

To use the rotary attachment, you need to remove the honeycomb panel and the waste tray, place the rotary attachment inside the working area, connect it, and switch to the rotary mode.

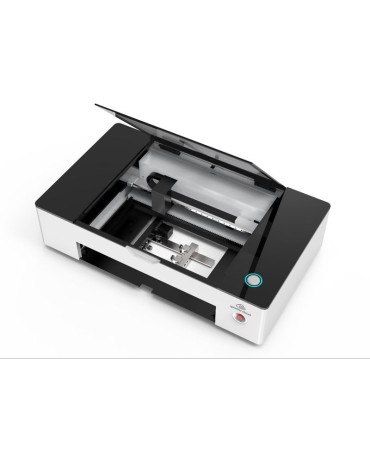

The Gweike Cloud Pro II 50W laser cutter and engraver from the top.



Software

There are three software options available for use with the Gweike Cloud Pro II laser cutter. The first and, probably, the easiest one is the Gweike Cloud web-based online software, which is great for beginners as it is incredibly simple, user-friendly, and does not require installation. This cloud-based software allows using basic editing tools and provides a vast library of ready-made designs. It is also fully compatible with the Gweike Cloud material recognition feature.

The Gweike Cloud web-based online software interface.

The machine also supports the Gweike Cloud offline software and Lightburn, which is a preferable software for a lot of makers.

The Lightburn software interface.



Applications

Due to its powerful laser, high-quality build, a spacious working area, and a plethora of smart features, the Gweike Cloud Pro II laser cutting and engraving machine can be used for a wide range of applications both at home and in a laser engraving studio or workshop. The machine is ideal for starting a small engraving business as well as creating personalized gifts and souvenirs for family and friends.

The example of the project by the Gweike Cloud Pro II 50W laser cutter and engraver.

Credit: @paintedbymandy20 / Instagram

The example of the project by the Gweike Cloud Pro II 50W laser cutter and engraver.

Credit: @laceyanndesigns / Instagram

The use of the rotary attachment allows realizing even more creative ideas.

The example of the project by the Gweike Cloud Pro II 50W laser cutter and engraver.

Credit: @gweike_laser_geffen / Instagram



What’s in the box

The supply package for the Gweike Cloud Pro II 50W laser cutter and engraver.

  • Gweike Cloud Pro II 50W COâ‚‚ laser cutter and engraver
  • Rotary attachment
  • Inline dust fan
  • Material package
  • Tool set
  • Accessory set
  • Air hoses with clamps
  • All necessary cables
  • User manual

For some items, package content may change. In case of any questions, please get in touch.



Add-ons

For more efficient and convenient use of the machine, the manufacturer offers various add-ons that you can purchase separately.

Air filter (home type)

The air filter for the Gweike Cloud Pro II 50W laser cutter and engraver.

The air filter is equipped with 3-layer filtration and ensures efficient air purification and safe operating environment. The middle HEPA filter absorbs over 99% of dust particles, and the third-layer activated carbon filter eliminates toxic fumes and odors. For more convenient operation, the air filter is equipped with handles and wheels. The airflow can be adjusted with a rotating knob.

  • Power: 300 W, 220V, 50Hz
  • Airflow: 400 m³/h
  • Weight: 25 kg
  • Air inlet dimensions: 20–150 mm
  • Dimensions: 420 x 320 x 580 mm
  • Noise level: ≤55 dB

Filter cartridge (1 set)

A replaceable filter cartridge for the Gweike Cloud air filter

A replaceable filter cartridge for the Gweike Cloud air filter. The cartridge includes a pre-filter, HEPA, and carbon filters.

Laser Lens

A spare laser lens for the Gweike Cloud Pro II 50W laser cutter and engraver.

A spare laser lens for your Gweike Cloud machine ensures a small spot size and impressive engraving results.

COâ‚‚ 50W Laser Tube

A spare COâ‚‚ 50W laser tube for the Gweike Cloud Pro II 50W laser cutter and engraver.

A spare COâ‚‚ 50W laser tube features an impressive lifespan of up to 10000 hours and can be easily installed into the Geike Cloud laser cutter.

Extra Material Package

The pack of materials for the Gweike Cloud Pro II 50W laser cutter and engraver.

The pack includes the most common materials for laser cutting and engraving, allowing you to implement a lot of projects. The material sheets feature a QR code that can be recognized by the software to automatically set the optimal operating parameters.

  • Acrylic 3 mm x 5
  • MDF 3 mm x 5
  • Cardboard 2 mm x 5
  • Basswood 3 mm x 5

Spare Inline Dust Fan

A spare inline dust fan for the Gweike Cloud Pro II 50W laser cutter and engraver.

The inline dust fan makes smoke and fumes removal much more efficient and provides a safer operating environment.

  • Airflow: 480 / 600 m³/h
  • Power: 50–60 W, 220–240 V, 50 Hz
  • Noise level: 35–45 dB
  • Dimensions: 310 x 220 x 215 mm
  • Type: 6"
  • Pressure: 250 / 300 Pa
  • Weight: 2.6 kg
  • Speed: 2070–2500 r/min



Look and feel

The Gweike Cloud Pro II laser cutter and engraver is available in a white and black color scheme with a transparent lid. Its stylish design makes it ideal for any workshop as well as home use.

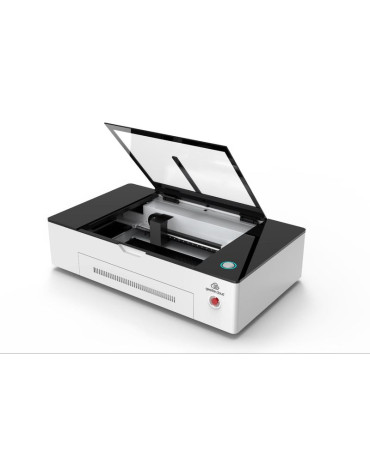

The Gweike Cloud Pro II 50W laser cutter and engraver in the open form.

The machine dimensions are 38.2 x 22.2 x 9.2 in (970 x 565 x 234.5 mm). It weighs approximately 93.9 lb (42.6 kg).



Price

The price for the Gweike Cloud Pro II laser cutter and engraver is $3,499.00, which is reasonable considering its high performance and versatility.
