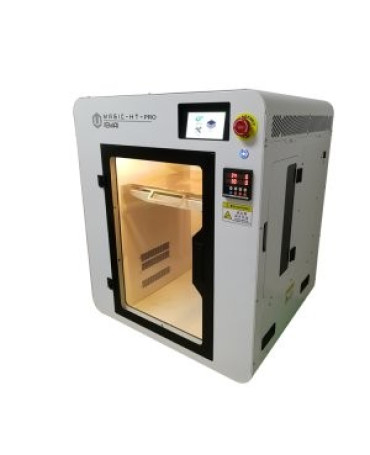

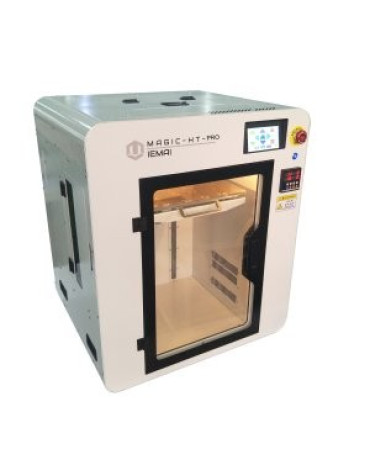

The Magic-HT-Pro is a professional FFF/FDM high-temperature 3D printer produced by the Chinese manufacturer IEMAI 3D. The printer has been specifically designed to 3D print with high-performance materials, including PEEK and PEI. It consists of a closed-box construction made of metal and glass. It comes pre-assembled. Thanks to its high-temperature capability and effective liquid cooling system, the Magic HT-Pro is capable of producing heat-resistant parts with a good level of detail.
This fully-enclosed printer is engineered with swappable dual extrusion print heads. The extruders feature all-metal nozzles that heat up to 450°C. This enables multi-material and multi-color high-temperature 3D printing. The heated build plate reaches up to 170°C, while the closed temperature-controlled printer chamber 120°C. At the end of the printing session, you can quickly remove the prints by sliding the build plate out. The Magic-HT-Pro includes a smart filament detection system, a power-off recovery system, and an effective moisture-proof cabinet for material storage, which lets you preserve the ideal humidity level of the filament coils.
The IEMAI Magic-HT-Pro features a decent build area of 310 x 310 x 480 mm. It can be used to produce large end-use tools that perform at high temperatures. This user-friendly high-performance 3D printing system comes with Wi-Fi connectivity and a responsive touch-screen for easy operation. An onboard camera for real-time monitoring is available as an optional.
The Magic-HT-Pro 3D printer is ideal for professionals, engineers, industrial designers, and more. It has been used to produce functional prototypes, ready-to-use tools, and more. Read our Magic-HT-Pro review to learn more about this functional IEMAI 3D printer.
Stable and reliable, the printer lets you produce dimensionally accurate models, just like this dental impression.
Thanks to its precision, it allows producing end-use tools ready to operate right off the printer.
The Magic-HT-Pro is a professional high-temperature 3D printer that can print layers at 50 microns. This way you can produce high-resistant parts with smooth and highly detailed exterior surfaces. It reaches a positioning accuracy of 12.5 microns on the XY-axis and 1.25 microns on the Z-axis.
The IEMAI Magic-HT-Pro can print at a maximum speed of 150 mm/s.
The printer comes with two standard nozzles of 0.4mm. It also supports a set of additional nozzles with diameters ranging from 0.1 to 1.0 mm. This gives you the possibility to choose the best nozzle size according to your speed and detail needs.
The dual print heads heat up to 450° and can be easily removed. The XY-axis drive features a cross shaft linear guide for improved motion stability. Also, it keeps the moving components in isolation, improving their life. The Z-axis adopts a ball screw with a linear guide and a high-temp resistant belt. This makes for high precision transmission.
The IEMAI Magic-HT-Pro can print at high temperatures (up to 450°C). Its enclosed chamber keeps the printing temperature constant reaching up to 120°C. This lets you print with a variety of high-performance engineering filaments, such as PEEK, PEAK, PEKK, PPSO, ULTEM, Carbon, Meral, and more. It can also print with standard materials, including PLA, ABS, HIPS, PA, and water-soluble filaments.
The printer is engineered with detachable dual print heads with high-temperature liquid-cooling extruders for better heat dissipation. It comes with both a heated build plate and an enclosed temperature-controlled build chamber, which makes it reliably print with ABS, Nylon, Polycarbonate, and other temperature-sensitive filaments.

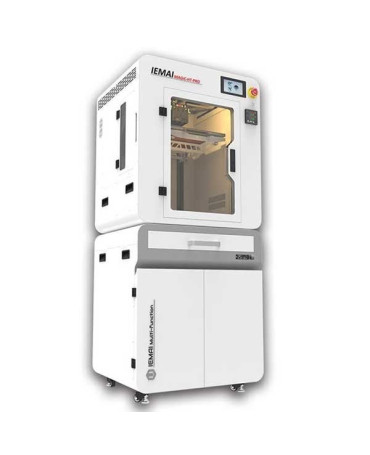

The removable bed can heat up to 170°C, while the chamber reaches up to 120°C. The enclosure keeps the printing temperature stable minimizing the risk of warping or shrinkage. The moisture-proof drawer features a humidity control range of 10 - 20%. It can store up to 36 bobbins of 1kg.
The IEMAI Magic-HT-Pro prints with 1.75mm filament. It features an open material system, which makes it compatible with any type of consumable commercially available. This gives you plenty of material choices. However, the company produces a range of quality consumables designed to provide optimum printing results with the proprietary devices. It currently supplies PEEK, PPSU, PEI, ABS, and high-temperature cleaning materials.
The IEMAI Magic-HT-Pro has a build volume of 12.2 x 12.2 x 18.8 inches (310 x 310 x 480 mm). It lets you print medium-to-large parts in a single printing session.
The printer features an open-source firmware. It can be operated via a 5-inch full-color touchscreen.
You can comfortably share your print files from a computer via USB cable, via an SD card or over Wi-Fi. The Wi-Fi function lets you monitor the printing status with a smartphone
The printer software is compatible with Windows operating systems. The device works with the own-brand IEMAI 3D slicing software as well as with the most popular Cura and Simplify3D.
For some items, package content may change. In case of any questions, please get in touch.
The Magic-HT-Pro is available in white with gray trimmings. Its stylish look makes it ideal for industrial applications, including functional prototyping and end-use production.
The printer dimensions are 27.6 x 24.5 x 62.6 inches ( 702 x 624 x 1,580 mm). It weighs 524.7 lb (238 kg).
To learn the current price of the 3D printer, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
