Mass Portal Pharaoh XD20 3D printer

In Stock
A dual-extrusion, delta 3D printer
  • Multi-material printing
  • Automatic calibration
  • Range of connectivity options
  • Versatile and flexible
When purchasing with us you get:
  • FREE Delivery
  • Full 1 Year Warranty
  • 24/5 Customer Support
  • 20% Filament Discount
This 3D printer comes with:
  • Essential parts required to operate the printer
  • A spool of sample filament
  • Printed object removal tool
  • USB cable and power cord
Price: $5,200.00
Order now and we’ll ship it in 24 hours or less

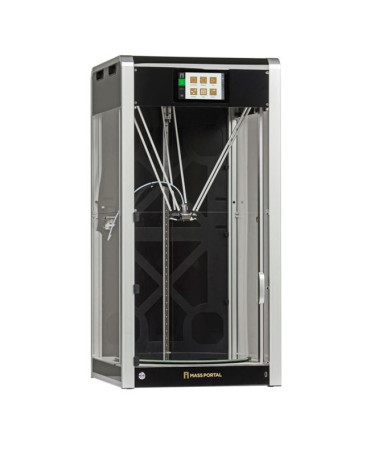

Mass Portal Pharaoh XD 20 is a professional, delta-style FDM 3D printer. It is part of the Mass Portal XD printer series, which includes the XD20, the XD30, and the XD40. It comes with a solid aluminum frame with removable doors and panels, which make it convenient to use. It adopts two Bowden-type extruders with dual heaters and all-metal hot ends. The dual-extrusion system allows printing with two materials simultaneously. It includes a detachable heated bed and four fans for effective cooling the models while printing. It is equipped with a 7-inch touch screen, Wi-Fi and Ethernet connections, which enable easy navigation, remote monitoring, and standalone operation. Mass Portal XD20 has been used to print a wide range of models for various applications. Keep on reading the full review.

For example, the Dutch start-up 3Dmouthguard has been using the Mass Portal XD20 to produce custom sports guards to protect your teeth from injuries. Look how at this dental impression. It shows a good amount of details and high accuracy.

the Dutch start-up 3Dmouthguard has been using the Mass Portal XD20 to produce custom sports guards to protect your teeth from injuries. Look how at this dental impression

This tiny model has been printed at 0.1mm with Polycaprolactone (PCL), a material particularly suited for medical applications. The little part turned out almost perfect.

This tiny model has been printed at 0.1mm with Polycaprolactone (PCL), a material particularly suited for medical applications. The little part turned out almost perfect.



Specifications:

  • Print quality
  • Materials
  • Build volume
  • Printer controls
  • What’s in the box
  • Look and feel
  • Price



Print quality

The Mass Portal Pharaoh XD20 is an FDM 3D printer that can print layers at 10 microns. This way you can produce parts with smooth exterior surfaces. The dual-heaters extrusion mechanism lets the extruder reach up to 300°C. Its high temperature along with the heated bed and the enclosure allow for 3D printing with a range of functional, temperature-sensitive materials. The automatic calibration ensures accurate results without the need for manual bed leveling. The printer delivers good quality prints within an interesting build volume.

Look at its great performances. This Moai 3D model has been printed with Spectre gold PLA. Notice how smooth and shiny it is.

Look at its great performances. This Moai 3D model has been printed with Spectre gold PLA. Notice how smooth and shiny it is.

The Mass Portal Pharaoh XD20 comes with a standard 0.4 mm nozzle, giving you the best balance between speed and detail. Apart from it, there is a wide set of extra nozzles available (from 0.1 to 0.8).

Have a look at these PLA-made screws. Their detailing is extremely high making each bit clearly visible.

Have a look at these PLA-made screws. Their detailing is extremely high making each bit clearly visible.

This is a delta-type 3D printer with high print speed. Since there is minimal vibration of the print bed, the print quality is high.

This is a delta-type 3D printer with high print speed. Since there is minimal vibration of the print bed, the print quality is high.



Materials

Mass Portal Pharaoh XD20 prints with PLA, ABS, special filaments, and other materials.

The printer features four different fans. Three of them aim at cooling the nozzles down, while the last one cools down the radiator. This fan-system is ideal for printing with PLA-type materials. By cooling the model down, it reduces warping, stringing and, generally, makes for higher quality prints.

The model printed on the Mass Portal XD20

Unlike many FDM printers, the Mass Portal Pharaoh XD20 has a heated print bed that can heat up to 110°C and a closed print chamber, which means it can reliably print with ABS-type materials.

Mass Portal Pharaoh XD20 3D printer

The Mass Portal Pharaoh XD20 prints with a standard 1.75 mm filament, providing you with a wide choice of materials.

The Mass Portal Pharaoh XD20 prints with a standard 1.75 mm filament, providing you with a wide choice of materials.



Build volume

Mass Portal Pharaoh XD20 3D printer

The cylindric build area of ⌀ 7.9 x 7.9 inches (⌀ 200 x 200 mm) lets you print just about anything, even a huge lamp.

The cylindric build area of ⌀ 7.9 x 7.9 inches (⌀ 200 x 200 mm) lets you print just about anything, even a huge lamp.



Printer controls

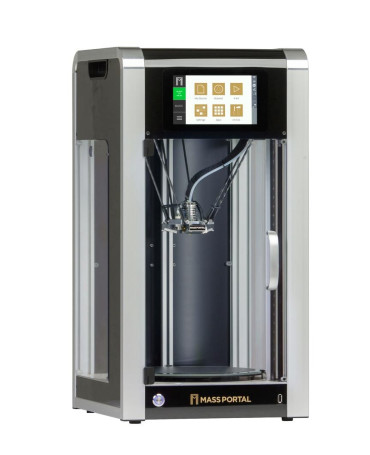

The printer includes a 7-inch touch screen, which allows full control over the machine and printing settings. The USB and Ethernet slot lets you easily plug it into your computer, while the Wi-Fi module allows for remote controlling.

a 7-inch touch screen of the 3d printer Mass portal xd20

3D models can be printed from computer via USB 2.0, Ethernet, and Wi-Fi. You can also manage your files on Cloud by connecting the printer and a web-enabled device to the same Wi-Fi network. The printing chamber is illuminated, letting you check the printing process in real-time.

The XD20 features a self-developed Linux-based operating system. It comes with a full Simplify3D license.

The XD20 features a self-developed Linux-based operating system. It comes with a full Simplify3D license. Easy-to-use and versatile, the slicer works with a wide range of 3D models, ensuring high compatibility. It is available for Windows, Mac OS, and Linux.



What’s in the box

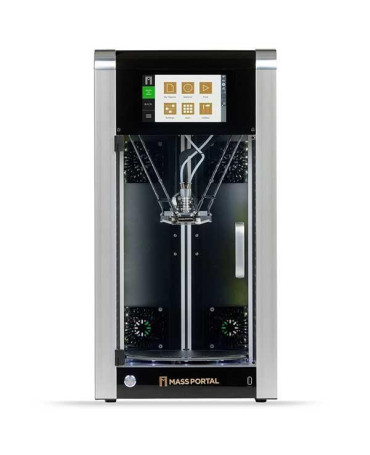

Mass Portal Pharaoh XD20 3D printer

  • Mass Portal Pharaoh XD20 3D printer
  • USB cable
  • Power cord
  • Sample printing material
  • Printed object removal tool

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

Mass Portal Pharaoh XD20 3D printer

Mass Portal Pharaoh XD20 is available in a black and gray color combo. Its stylish look makes it ideal for professional use.

The printer dimensions are 13.4 x 15 x 26 inches (340 x 381 x 660 mm). It weighs 49 lb (22.2 kg). The spool holder is mounted on the back of the printer.



Price

The price of the Mass Portal Pharaoh XD20 is $5,200.00, which is reasonable considering its functionality.
