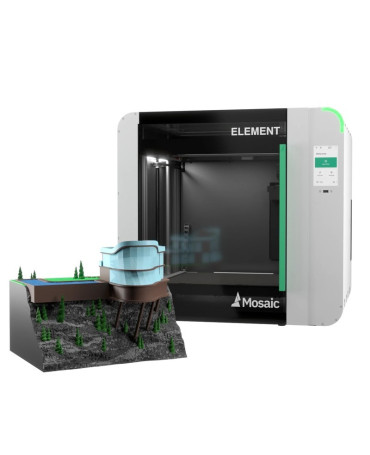

Mosaic Element 3D Printer

The Mosaic Element is a professional FFF 3D printer enhanced with the manufacturer’s patented technology — Series Enabled Multi-Material Extrusion (SEME), which is realized through the company’s most powerful filament splicer — the Palette X. This built-in device features an automated material server module consisting of filament drives, a material cutter, filament homing, and filament measurement systems. It enables printing a single model with up to 8 different consumables supplied with the Mosaic Material Pods — reusable and environmentally sealed dry boxes for filament storage.

The machine is engineered with a capacious build envelope of 14 x 14 x 14 in (355 x 355 x 355 mm). In contrast to its counterpart, the Element HT, this model has no heated chamber and the maximum extruder temperature does not exceed 300 °C. The well-balanced motion system as well as all-metal construction and gantry provide top performance and smooth working process. The print speed of 100 mm/s makes the Element model a highly productive tool for complex projects.

Apart from the listed benefits, the machine offers multiple advanced functions, such as a modular extruder, temperature sensors, rapid build plate change, automated filament load and retraction, optional external fume extraction mechanism (purchased separately), built-in camera for remote monitoring, free dedicated software with a cloud functionality, HEPA and activated carbon filters, removable container for storage, and more.

The Mosaic Element is perfect for professional use in manifold spheres, including small-scale manufacture, functional prototyping, industrial part design, artistic architecture, and more.

Print quality

The Mosaic Element can print layers at 20 microns. With it, you can produce parts with smooth exterior surfaces, complex geometry, and detailed composition.

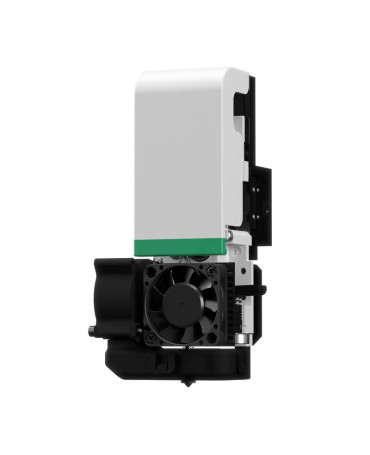

Thanks to the all-metal gantry, serviceable 0.4 mm hardened steel nozzle, and a reliable motion system, the device boasts increased stability of printing. The closed loop feedback system ensures better accuracy and high-quality output.

Materials

The Mosaic Element uses a wide range of consumables including 3rd party materials. The machine can print PLA, PETG, ABS, ESD as well as Mosaic Origin, Mosaic Matrix, Dissolve LT, and Mosaic Breakaway LT. Nonetheless, TPE and many TPU options are not supported. The manufacturer recommends using Mosaic Flex.

The integrated Palette X filament splicer and 8 Mosaic Material Pods provide an impressive flexibility allowing you to print a single model with up to 8 different materials of various properties. Combine rigid, flexible, and soluble filaments to get unique prints of high quality.

Build volume

The build area of 14 x 14 x 14 inches (355 x 355 x 355 mm) lets you make medium-to-large objects and multiple small parts in a single print session.

Printer controls

The Element is equipped with a 5" color touchscreen featuring an easy-to-use and clear interface. The connectivity options include USB, LAN, and Wi-Fi, making for an effortless standalone operation. The machine also has a built-in camera for remote monitoring.

Apart from the aforementioned options, the printing process can be controlled through the Canvas smartphone app.

Credit: youtube.com

The Mosaic Element comes with the proprietary Canvas slicer — free print preparation software with optional paid functionality that supports major file formats. The Mosaic Canvas makes for simple creation, slicing, and managing your print projects via the cloud. The program runs on Windows, macOS, and Linux operating systems.

Look and feel

The Mosaic Element is available in white with green trimmings and a status indicator. Its stylish look will decorate any workshop or maker lab.

The printer dimensions are 36 x 24 x 25 in (911 x 613 x 634 mm). It weighs 57 lb (26 kg). The Material Pods (x4 2-packs) are mounted on the side of the printer.

Price

To learn the current price of the Mosaic Element 3D printer, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
