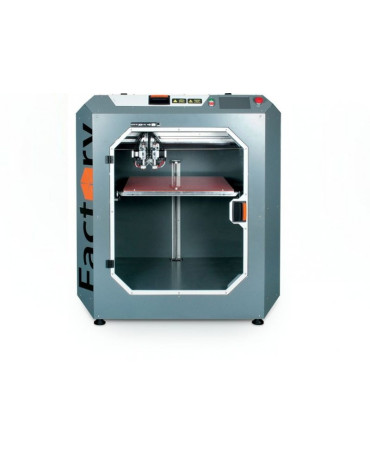

Omni3D Factory 2.0 3D printer

The Omni3D Factory 2.0 is a professional FDM 3D printer designed for demanding engineering tasks. Due to the standard filament diameter support, this industrial device can handle a wide range of proprietary and third-party materials. With a massive build volume of 19.7 x 19.7 x 19.7 inches (500 x 500 x 500 mm) and two extruders, the Factory 2.0 is able to produce large items and smaller batches simultaneously.

The device is equipped with a fully enclosed chamber with the heating function that allows working with fairly tricky filaments like ABS. Thanks to the high-efficiency fan, it is possible to create a controlled temperature inside the machine (max. 70 ºC), which prevents warping and deformation of printouts during the process. The maximum print head temperature is 360 ºC, while the optional value can reach 420 ºC.

Among other smart features introduced by the Factory 2.0, the printer offers an automated height adjustment system for the extruders, automatic platform calibration algorithms, filament flow control, carbon and HEPA filtration, and extruder cooling system.

The print quality of the Omni3D Factory 2.0 is precise and overall decent. The minimum layer height is 50 microns, and the declared print accuracy is 0.2%.

The complex models below are the result of the so called torture test. They were printed in ABS-42 without supports in 43 hours. The final look proves that the Factory 2.0 is ready for such challenges.

Credit: youtube.com

Due to the aforementioned properties and smart features, the Omni3D Factory 2.0 will make a great tool for professional use in small-batch production, design, architecture, advertising, crafting, jewelry, and education.

Print quality

The Omni3D Factory 2.0 can print layers at 50 microns. This way you can produce parts with smooth exterior surfaces.

With this model, you get three options for the nozzle diameter: 0.4, 0.6, and 0.8 mm. The printer is additionally equipped with the automatic extruder leveling system, which ensures high precision and minimizes potential quality loss of printouts.

Credit: engineering.com

Materials

The Factory 2.0 uses 1.75 mm filament, providing you with a wide choice of dedicated and third-party consumables.

Thanks to the high-temperature extruders, the device is compatible with all common filaments. The enclosed heating chamber enables quality printing with industrial thermoplastics. In particular, the manufacturer notes successful operation with ABS, PETG, and PEEK.

Credit: youtube.com

Build volume

The massive build area of 19.7 x 19.7 x 19.7 inches (500 x 500 x 500 mm) lets you print a single large model or simultaneously produce several smaller ones.

Printer controls

The Omni3D Factory 2.0 is equipped with a 7" LCD touchscreen that features a clear user-friendly interface. The machine supports SD card connectivity.

Credit: propertydesign.pl

Items for printing are prepared in the Simplify3D. It is a professional software that allows processing and analyzing models, plating, slicing, and making ready-to-print files with impressive speed. Apart from this, the program is capable of overall monitoring and realistic pre-print simulations. The interface of the Simplify3D is very simple and intuitive.

Credit: simplify3d.com

The program works with STL, OBJ, 3MF, G-сode, and Factory file formats. The Simplify3D runs on Windows, macOS X, and Linux.

What’s in the box

Credit: facebook.com

The Omni3D Factory 2.0 comes fully assembled and ready to use. The device is only supplied with the minimum of elements, namely:

• User manual
• Warranty card
• Scraper

For some items, package content may change. In case of any questions, please get in touch.

Look and feel

The Omni3D Factory 2.0 is available in blue-gray with white and orange trimmings. Its stylish look will decorate any workshop or maker lab.

The printer dimensions are 42.1 x 30.3 x 47.2 in (1070 x 770 x 1200 mm). It weighs 396.8 lb (180 kg).

Price

To learn the current price of the Omni3D Factory 2.0 3D printer, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
