Picaso 3D Designer X Pro 3D printer

In Stock
An industrial-grade, dual-nozzle printer
  • Patented nozzle-switching technology
  • Fast and quality multi-material prints
  • Automated, self-monitoring features
  • Extended operating temperatures
When purchasing with us you get:
  • FREE Delivery
  • Full 1 Year Warranty
  • 24/5 Customer Support
  • 20% Filament Discount
This 3D printer comes with:
  • Essential parts required to operate the printer
  • Test filament
  • Toolset and spare parts
  • USB flash drive
Price: $4,700.00
Order now and we’ll ship it in 24 hours or less

Designer X PRO is the flagship 3D printer from the Russian company PICASO 3D. It is a professional FDM 3D printing device based on a dual-extrusion system. It has a durable framed body that ensures high stability and accuracy. It’s successfully used in prototyping and small-scale manufacturing.

It features the patented JetSwitch technology, a valve system able to change the active nozzle in just 5 seconds while completely blocking the idle one. Thus, it provides fast dual-filament printing. The printer relies on an automated system with advanced self-monitoring functions for optimal quality prints. The high operating temperatures - up to 380° C - ensure wide compatibility with several materials. The printer includes built-in networking that lets you easily create a performance 3D printing farm controlled by a single device.

Designer X Pro has been used to print a range of medical models, jigs, fixtures, spare parts, and more. Continue reading for a thorough review.

For example, it was used to print an arm prosthetics. Made with CyberFiber PVA and REC Relax materials, it ensures a perfect fit and optimal performance.

it was used to print an arm prosthetics. Made with CyberFiber PVA and REC Relax materials, it ensures a perfect fit and optimal performance.

Credit: @picaso_3d / instagram

The textured surfaces of these PLA-made covers are almost perfect.

The textured surfaces of these PLA-made covers are almost perfect.

Credit: @top3dshop / instagram

Specifications:

  • Print quality
  • Materials
  • Build volume
  • Printer controls
  • What’s in the box
  • Look and feel
  • Price



Print quality

The Designer X PRO is an FDM 3D printer that can print layers at 50 microns. This way you can produce parts with smooth exterior surfaces. It offers an extended operating temperature range suited for temperature-sensitive materials and resistant prints. Based on a 32-bit ARM CORTEX M4 architecture, it is fast, accurate, quiet, and resilient. It includes feed control, filament profiles management, first layer print monitoring, fast calibration, and advanced notifications. These smart features help to prevent printing failures always delivering great quality outputs.

Look at the accuracy and smoothness of these cover moldings for a Mercedes Benz.

these cover moldings for a Mercedes Benz printed on the picaso 3d designer x pro

Credit: @vertex3d / instagram

The Designer X PRO is engineered with two different nozzles for multi-material and multi-color printing. Both nozzles measure 0.3 mm in diameter and can produce fine details.

the robot printed on thePicaso 3D Designer X Pro 3D printer

The machine employs a new print head with a switching accuracy of 1 micron. It grants a nozzle positioning repeatability of 0.001mm ± 0.0025mm. It runs on rails, making the design more simple, lightweight and effective, all characteristics that are desirable in a 3D printer.



Materials

Designer X PRO features a new directional material feed design and a high-temperature extruder. Thus, it supports a large selection of filaments, namely PLA, ABS, Elastic( Flex ), Nylon, ASA, ABS/PC, PET, PC, and other materials.

This 3D printed and yellow-painted Bruce Willis action figure is brilliant.

This 3D printed and yellow-painted Bruce Willis was printing on the picaso 3d designer x pro

Credit: @kef_fiend / instagram

The extruder can heat to a maximum temperature of 380°C. It comes with a fan for printing with PLA-type materials. By cooling the model down, it reduces warping, stringing and, generally, makes for higher quality prints.

Unlike many FDM printers, the Designer X PRO has a heated print bed and closed print chamber, which means it can reliably print with ABS-type materials. The print platform reaches an operating temperature of 140°C.

Picaso 3D Designer X Pro 3D printer

The extruder has a maximum working temperature of 716 °F (380 °C), which means it can print with high-temperature materials like PEEK, ABS/PC, PEI, carbon fiber and glass fiber.

The Designer X PRO prints with 1.75 mm filament. It is compatible with all the commercial consumables available on the market, providing you with a wide choice of materials.

The Designer X PRO prints with 1.75 mm filament



Build volume

Picaso 3D Designer X Pro 3D printer

The build area of 7.9 x 7.9 x 8.3 inches (200 x 200 x 210 mm) lets you print just about anything,  even some functional, real-scale hoverboard parts.

The build area of 7.9 x 7.9 x 8.3 inches (200 x 200 x 210 mm) lets you print just about anything,  even some functional, real-scale hoverboard parts.

Credit: @picaso_3d / instagram



Printer controls

The printer is controlled via PC or the built-in LCD interface.

three Picaso 3D Designer X Pro 3D printers

3D models can be printed from computer via USB and Ethernet connection. You can also print them via a USB Flash Drive.

The printer works with the Polygon X software

The printer works with the Polygon X software. It supports STL and PLG 3D model formats. It runs on Windows operating systems. Mac OS X and Linux users will have to install a virtual machine.



What’s in the box

Designer X PRO on the table

Credit: @picaso_3d / instagram

  • PICASO 3D Designer X PRO
  • Spool of filament
  • Tools
  • Nozzle
  • Flash drive
  • Warranty
  • Power cable
  • USB cable
  • Glue stick

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

Picaso 3D Designer X Pro 3D printer

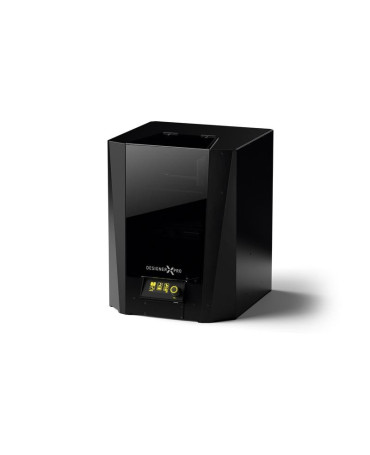

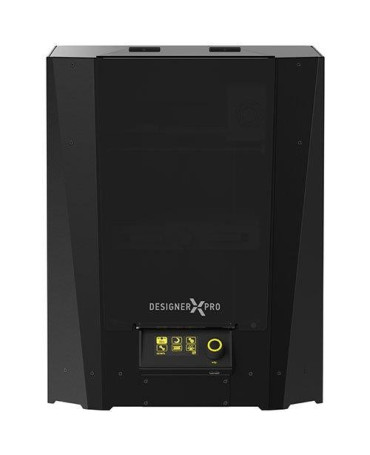

Designer X PRO is available in a graphite black theme with a translucent front cover. Its stylish look makes it ideal for both home and professional use.

The printer dimensions are 19.4 x 15.4 x 16.9 inches (492 x 390 x 430 mm). It weighs 35 lb (16 kg). The spool holder is mounted inside.



Price

The price of the Designer X PRO is $4,700.00, which is reasonable considering its functionality and versatility.
