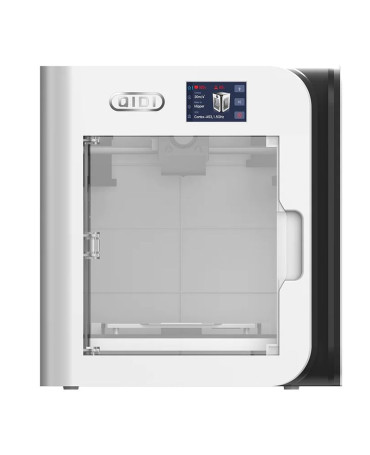

QIDI Tech X-SMART 3 3D Printer

The QIDI Tech X-SMART 3 is a compact desktop FDM 3D printer equipped with a number of smart features and capable of extremely fast print speeds. Being the least expensive of the three models from the latest QIDI lineup, the X-SMART 3 shares many key features with the more advanced X-MAX 3 and X-PLUS 3, providing users with professional print quality and ease of use at an affordable price. The machine comes fully assembled and ready to use out of the box. The enclosed build chamber and removable transparent top cover allow creating the most suitable printing environment for various filaments.

The CoreXY structure of the printer allows reducing inertia and achieving print speeds of up to 500 mm/s. Such a fast speed usually leads to increased vibrations and, consequently, quality loss, but the X-SMART 3 uses resonance compensation function to prevent this issue and retain decent print quality. The same carbon rods on the X-axis, as used on the X-MAX 3 and X-PLUS 3, alongside a new lightweight extruder, significantly reduce the weight of the printhead and the X-axis, which also allows for smoother movements.

Resonance compensation function

The X-SMART 3 runs on Klipper firmware and uses a 64-bit Cortex A53 processor with 1.5 GHz frequency, 8 GB eMMC and 1 GB DDR3. The machine features auto bed leveling with a sensor that calibrates the bed in 16 points. To save time and material, the X-SMART 3 has a print recovery function, which allows resuming printing after a power outage.

Specifications:

• Print quality
• Materials
• Build volume
• Printer controls and software
• What’s in the box
• Look and feel
• Price

Print quality

The maximum nozzle temperature of 280 °C and a heated print bed make for hassle-free printing with most consumer thermoplastics. Equipped with a direct drive extruder with a 9.5:1 gear ratio and a maximum flow rate of 30 mm³/s, the QIDI Tech X-SMART 3 ensures consistent high-quality printing even at high speeds. The magnetic double-sided build plate can be bent for easy part removal. The printer comes with a 0.4 mm brass nozzle.

Material: PLA; time: 4h 30min

Material: PLA; time: 29h 10min

Materials

The X-SMART 3 is compatible with most common filaments, such as PLA, ABS, ASA, PETG, TPU, and others. As an open-material system, it can use thermoplastics from any manufacturer. Full enclosure prevents temperature fluctuations and makes printing with ABS-type materials more reliable.

Build volume

The build volume of 180 x 180 x 170 mm is suitable for printing small to medium parts and is enough for most consumer projects. To make the printing process more convenient, the enclosure features integrated LED lights.

Printer controls and software

The 4.3" color LCD touchscreen of the X-SMART 3 features an intuitive user interface and allows operating the printer. The machine supports Wi-Fi connection and is equipped with a USB slot.

Based on the popular Cura slicer, the QIDI Print software has normal and expert modes to provide maximum flexibility both for beginners and experienced users. It runs on Windows, macOS, and Linux. The printer is also compatible with Cura, Simplify3D, or PrusaSlicer.

What’s in the box

• QIDI Tech X-SMART 3 3D printer
• Spool of filament
• Filament spool holder
• Tool set
• 0.4 mm nozzle cleaning tool
• Power cord
• Scraper
• Glue stick
• USB 2.0 stick
• Spare parts kit

For some items, package content may change. In case of any questions, please get in touch.

Look and feel

The QIDI Tech X-SMART 3 3D printer is available in white and black. Its compact size and enclosed design make it ideal for a maker’s studio or workshop.

The machine dimensions are 14.6 x 14.3 x 15.6 in (370 x 362 x 397 mm). It weighs 23.1 lb (10.5 kg).

Price

The price for the QIDI Tech X-SMART 3 3D printer is $419.00, which is reasonable considering its enclosed build chamber and fast print speed.
