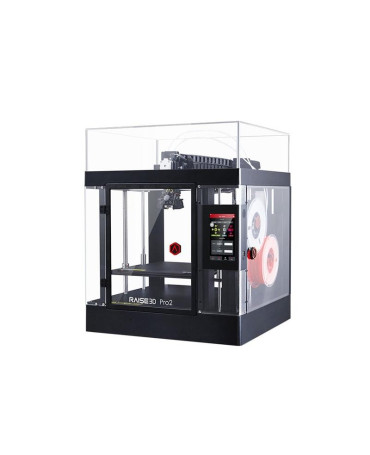

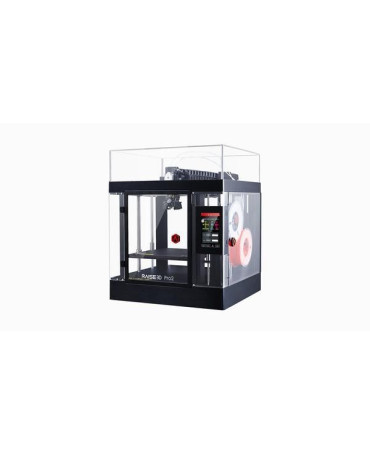

Raise3D Pro2 3D printer

Check out the Raise3D product catalog to browse the Raise3D's newest models: https://top3dshop.com/3d-printers/p-raise3d/

The Raise3D Pro2 is an FDM professional 3D printer from the next generation of the award-winning series by Raise3D. This fully enclosed device ships already assembled. You’ll only need to unbox and plug it to start printing. It can be successfully used in prototyping and small-scale manufacturing by professionals, makers, and companies worldwide.

The printer sports an electronic driven dual extrusion system with a filament end sensor, quality optical end-stops, flexible magnetic build plate, air filtration mechanism, and more. The functioning extruder is backed by advanced technology that automatically retracts the idle nozzles. The resume printing option allows recovering prints from where they left off. The printer supports wireless control over Wi-Fi. Plus, the connectivity options alongside the remote monitoring control improve usability. The advanced IdeaMaker software provides numerous handy tools, such as automated support customization. The closed design makes the Pro2 quiet and safe. The new machine is ideal for professionals but it is also a good choice for makers and hobbyists.

Find out more about the product and its technical properties from the following review.

Thanks to the adoption of additive manufacturing technologies peculiar to the Raise3D Pro series, DRAKES has been able to print final pieces in-house, speeding up the processing and reducing downtimes.

Syther Gaming is a company committed to tabletop gaming development. It has been using Raise3D printers, including the Pro2 series, to produce reliable end use parts for their board games. Unlike traditional design methods, 3D printing allows developing competitive and interactive components in no time. The picture shows one of their complex mechanisms.

Specifications:

• Print quality
• Materials
• Build volume
• Printer controls
• What’s in the box
• Look and feel
• Price

Print quality

The Raise3D Pro2 is an FDM 3D printer that can print layers at 10 microns. This way you can produce parts with very smooth exterior surfaces and high quality. The extreme resolution of the printer lets you create minute details and intricate shapes. The closed chamber and the heated bed reduce filament warping and shrinkage. An additional silicone heated pad enhances heat distribution improving the overall quality of the product. The flexible magnetic build plate ensures easy removal of ready parts. The print recovery option and the material end detection let you complete your projects with ease reducing printing failures.

The Raise3D Pro2 has 4 interchangeable nozzles of 0.2, 0.4, 0.6, 0.8 mm in diameter, giving you the best balance between speed and detail.

The print head runs on rods with linear bearings, making the design more simple, lightweight, and effective—all characteristics that are desirable in a 3D printer.

Materials

The new Raise3D product prints with PLA, ABS, HIPS, TPU, PC, Nylon, TPE, FLEX, PETG, Metallic PLA, Wood PLA, ASA, Carbon Fiber, and other materials.

The extruder comes with a fan for printing with PLA-type materials. By cooling the model down, it reduces filament warping, stringing, and, generally, makes for higher quality results. The fan also includes a new fitted HEPA filter capable of trapping over 90% of toxic particles. Also, you can easily adjust the fan speed to regulate its cooling power.

In the picture below, you can see some screws and bolts printed with Raise3D PLA. The products look highly accurate and seem to work perfectly.

Unlike many FDM printers, the Raise3D Pro2 has a heated print bed and closed print chamber, which means it can reliably print with ABS-type filament. Indeed, the enclosure ensures temperature stability being perfect for temperature sensitive materials. Still, the build plate features a magnetic removal mechanism to easily pop off the prints.

The following violin tailpiece designed by Vanessa was printed with ABS. It took three hours and turned out excellent.

The Raise3D Pro2 supplies its own branded filament as well as runs the open filament program, making recommendations on which filaments provide higher performance with the machine.

Build volume

The large build area of 12 x 12 x 11.8 inches (305 x 305 x 300 mm) lets you print just about anything.

For example, one user 3D printed a huge robot made of several big parts interlocked together. The final product is 14-foot tall and has been built with more than eleven 3D printers, including a Raise3D Pro2. It took about 2,681 hours to complete the printing.

Printer controls

The printer can be controlled via PC or via a built-in, 7-inch color touch screen. The display lets you calibrate, monitor, and modify 3D prints on the fly. The real-time preview keeps you constantly updated about the printing progress.

The machine offers a variety of input options. You can easily print your 3D models from a computer via Wi-Fi, LAN, or offline over a USB stick. You can keep an eye on things via the printer built-in camera.

The printer works with the IdeaMaker slicing software with a neat interface and automatic support generation. It works with 3D models in STL, OBJ, 3MF file formats. The software is available for Windows, Mac OS, and Linux.

What’s in the box

• Raise3D Pro2 3D printer
• Magnetic build plate
• Power cables (5x)
• Hex wrenches
• Filament (two spools PLA 1.75mm)
• Build plate (with BuildTak surface cover)
• USB stick
• Heat resistant gloves
• Filament holders (2x)
• Spatula
• Nozzle cleaning tools
• Tweezers
• Spare parts (fuses, thumbscrews for the bed, other accessories)

For some items, package content may change. In case of any questions, please get in touch.

Raise3D Starter Bundle

Raise 3D starter bundle includes the set of consumables that will ensure the smoothest experience over time. They will be there when you need them.

• Interchangeable Hot End
• Extra Buildtak Printing Surface
• V3H Nozzle 0.4 mm Hardened steel  - to print with Carbon Fiber Filled materials
• Extra Filter

Raise3D Premium Bundle

Raise 3D starter bundle includes the set of consumables that will ensure the smoothest experience over time. They will be there when you need them.

• Interchangeable Hot End
• Build Plate With Handle And Buildtak Printing Surface
• Extra Buildtak Printing Surface
• V3H Nozzle 0.4 mm Hardened steel  - to print with Carbon Fiber Filled materials
• Extra Filter

Look and feel

The Raise3D Pro2 is available in black. Its stylish look makes it ideal for both home and professional use.

The printer dimensions are 24.4 x 23.2 x 29.9 inches (620 x 590 x 760 mm). It weighs 97 lb (44kg). The spool holder is mounted inside.

Price

The price of the Raise3D Pro2 product is $3,499.00, which is reasonable considering its functionality.

Warranty

The up-to-date warranty policy can be found here: https://s1.raise3d.com/2019/12/Raise3D-Limited-Warranty.pdf
