RangeVision NEO 3D Scanner

RangeVision NEO is a compact desktop 3D scanner produced by the Russian RangeVision. It is the company's entry-level offering. Affordable and user-friendly, this 3D scanning device is aimed at both beginners and educational institutions.

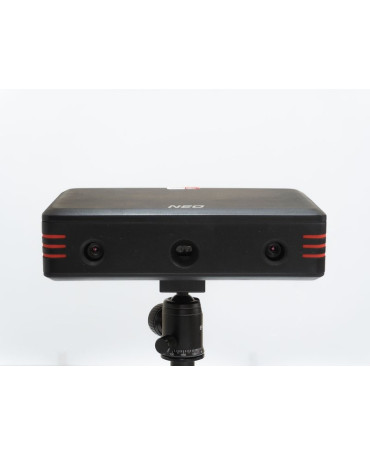

The RangeVision NEO is an optical 3D scanner powered by structured light technology. It is equipped with two 2-megapixel cameras capable of capturing both small details and textures. The NEO 3D scanner is able to digitize different-sized objects. The professional software along with a set of powerful tools streamlines the capturing process. For example, the automatic scanning mode takes care of all the scanning settings, being ideal for newbies. The scanner comes with a protective hard case for safe storage and easy transportation.

Thanks to its ease of use and affordability, the RangeVision NEO is perfect for scanning a variety of workpieces for reverse engineering, 3D modeling, heritage preservation, and 3D printing. Read our RangeVision NEO 3D scanner review for further info.

Here are some examples of the scanning results achievable by the NEO.

Specifications:

• Scan accuracy
• Scan volume
• Scanner controls
• What’s in the box
• Look and feel
• Price

Scan accuracy

The RangeVision NEO is a reliable desktop 3D scanner that can capture data with an accuracy of 0.06 mm and a 3D resolution of 0.18 mm. This professional scanner generates detailed 3D color models. The automatic alignment scanning mode lets you easily align single scans by markers, on the rotary table, and by the geometry of the part.

Scan volume

The scan area of 300 x 240 x 240 mm lets you capture objects from 30 mm to 1.2 m in sizes. The maximum load capacity of the table is 44 lb (20 kg). The automatic turntable measures ø 200 mm.

Scanner controls

The scanner is controlled via a USB-tethered computer (USB 3.0). It doesn’t require external power.

The RangeVision NEO comes bundled with the proprietary ScanCenter post-processing software. This intuitive yet powerful program efficiently processes the captured data and turns them into realistic models. Suitable for both rookies and experts, ScanCenter features an automatic alignment mode that helps you interconnect separate parts and fill empty spaces effortlessly. The software comes with an unlimited license and features fee ongoing updates.

The captured data can be exported in a variety of 3D formats compatible with most 3D printers (OBJ, STL, ASC, ASCII, etc.).

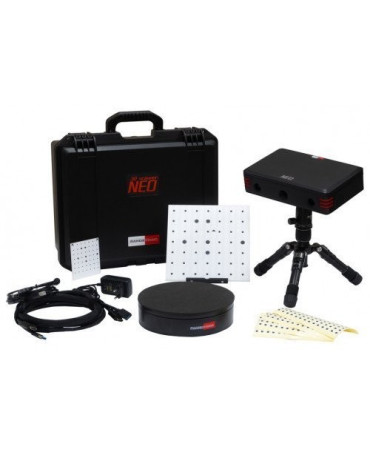

What’s in the box

• RangeVision NEO 3D scanner
• Automatic turntable

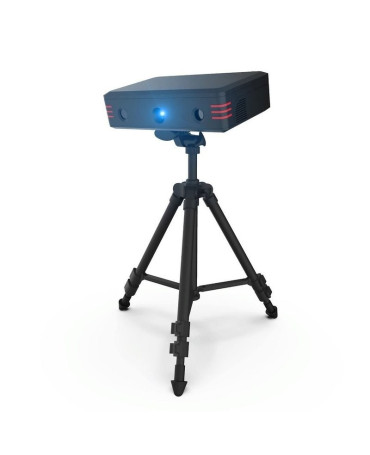

• Tripod

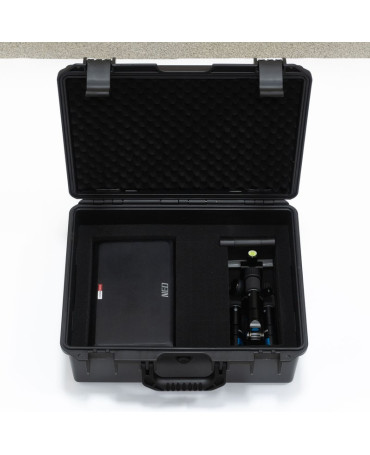

• Protective Travel case
• RangeVision ScanCenter Software

For some items, package content may change. In case of any questions, please get in touch.

Look and feel

The RangeVision NEO is available in black. Its stylish look makes it ideal for reverse engineering, industrial and amateur 3D printing, research and education, and 3D modeling.

The scanner weighs 2.2 lb (1 kg). The case measures 420 x 350 x 180 mm and weighs 10.6 lb (4.8 kg).

Price

To learn the current price of the scanner, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
