Revopoint MetroY & MetroY Pro Wireless Blue Laser 3D Scanner

The Revopoint MetroY and MetroY Pro are industrial-grade handheld 3D scanners utilizing blue laser technology for precision metrology applications. Blue laser scanning delivers superior accuracy compared to conventional red laser systems, with wavelengths of approximately 405–450nm providing enhanced surface detail capture according to research from Photoneo's engineering team (Pavel Soral, 2025).

The MetroY scanners achieve volumetric precision of 0.02 + 0.04 mm x L(m) through multi-line laser projection combined with structured light technology on the Pro model. The MetroY incorporates 46 laser lines across 3 scanning modes, while the MetroY Pro extends this to 96 total projection lines across 5 modes including full-field structured light capability. According to metrology specialists at SCANTECH (2024), structured light scanning ensures comprehensive surface capture beyond traditional point-based measurement methods.

Professional applications of the MetroY and MetroY Pro 3D scanners span 6 primary sectors:

1. Industrial design, perfect for reverse engineering
2. Quality control and inspection
3. Dental and medical applications
4. Cultural heritage preservation
5. Automotive and aerospace
6. Research and product development

Industrial reverse engineering utilizes the scanners' 0.02mm single-frame accuracy for CAD model generation. For example, aerospace manufacturers employ these systems for turbine blade analysis according to research published by the International Committee for Metrology (2024). Quality control applications leverage the scanners' volumetric accuracy specifications for dimensional verification in automotive component inspection. Medical and dental applications benefit from Class 1/2M laser safety ratings for prosthetic scanning. Cultural heritage preservation employs the non-contact scanning capability for artifact digitization, as demonstrated in forensic applications by researchers at the University of Messina (Roberta Somma et al, 2023). Research institutions utilize the cross-platform software compatibility for academic measurement projects across Windows and macOS systems.

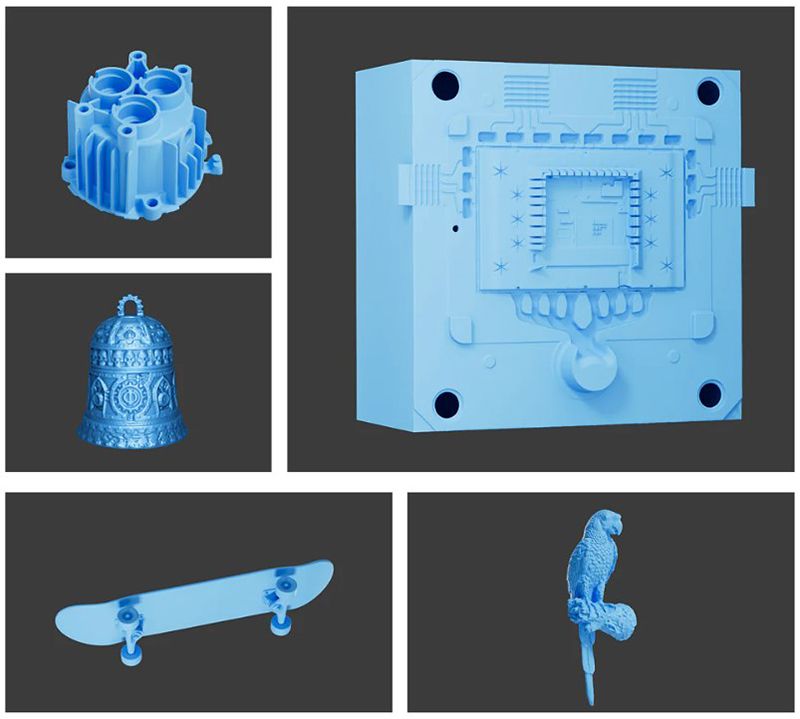

To assess the capabilities of the Revopoint MetroY / MetroY Pro 3D scanner, take a look at these remarkably detailed renders captured by the device. (Note: the STL files below are what you can achieve after post-processing the raw scans in the mesh-editing software.)

Mold by Revopoint 3D on Sketchfab

Scateboard by Revopoint 3D on Sketchfab

Apollo Bust by Revopoint 3D on Sketchfab

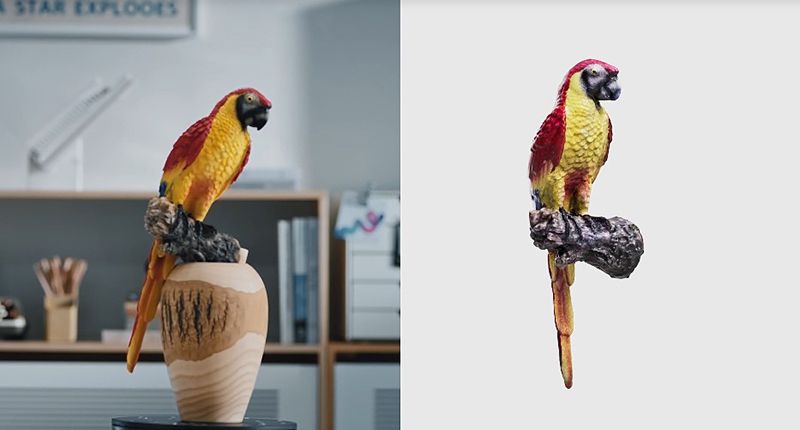

Parrot by Revopoint 3D on Sketchfab

Here is how the Revopoint MetroY 3D scanner differs from the MetroY Pro version.

Specifications:

• Scan accuracy
• Scanning modes specifics
• Scan volume
• Scanner controls
• Software
• What’s in the box
• Look and feel
• Price

Scan accuracy

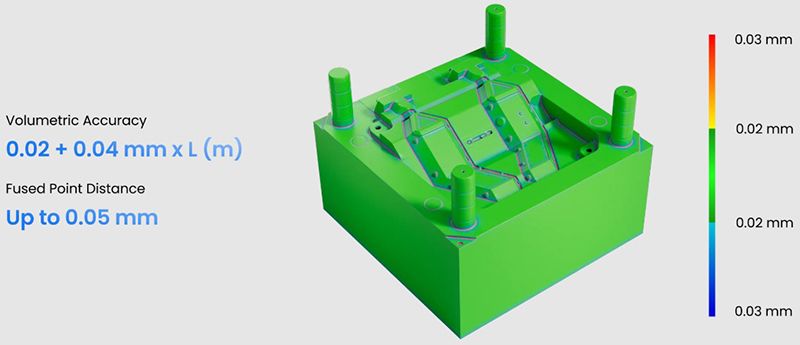

The MetroY series achieves single-frame accuracy of 0.02 mm and single-frame precision of 0.01 mm according to ISO 10360-13 measurement standards. The volumetric accuracy specification of 0.02 mm + 0.04 mm x L(m) establishes measurement reliability across the scan volume, where L represents object length in meters. This accuracy performance meets VDI/VDE 2634 Part 3 metrology standards for multi-view optical 3D measuring systems according to the Association of German Engineers (2025).

Fused point distance measures 0.05 mm, enabling capture of surface details down to 50 micrometers.

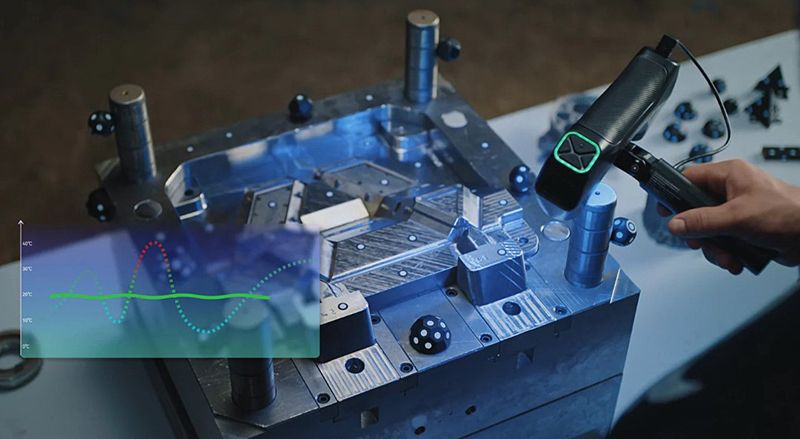

Temperature compensation systems incorporate real-time thermal monitoring to prevent measurement drift during scanning sessions.

The Revopoint MetroY Pro incorporates 3 tracking methods: marker tracking, global marker tracking, and feature tracking. Feature tracking eliminates physical marker requirements for objects with sufficient surface features, maintaining accuracy standards through natural feature recognition algorithms.

Both MetroY models incorporate 2 MP RGB cameras for color texture capture, with the MetroY Pro offering enhanced color scanning capabilities through Auto Turntable mode. Color scanning operates exclusively during Auto Turntable mode on the MetroY Pro, providing consistent texture alignment and accurate color reproduction.

Research by comparative scanner analysis demonstrates that the MetroY Pro's structured light mode captures more comprehensive color data compared to standard handheld modes, while the standard MetroY provides basic color information during all scanning modes.

3D models captured with MetroY series

Monitor Casing Mold by Revopoint 3D on Sketchfab

Conical Part by Revopoint 3D on Sketchfab

Ornate Bell by Revopoint 3D on Sketchfab

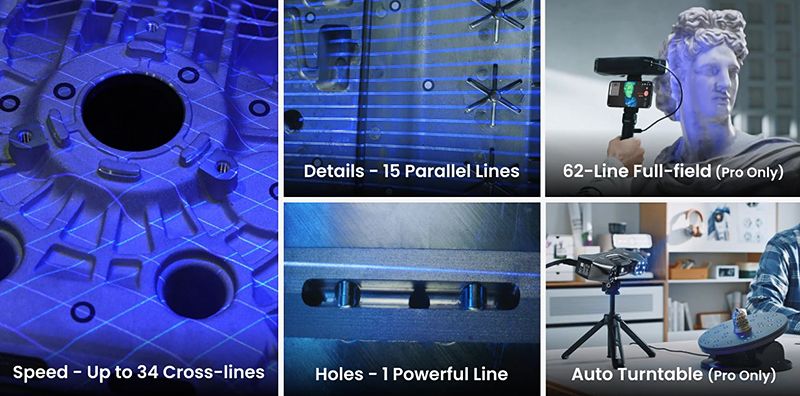

Scanning modes specifics

The MetroY series employs multi-modal laser projection with the standard model offering 3 scanning modes and the Pro version extending to 5 modes including structured light technology. Each mode utilizes specific laser line configurations optimized for distinct surface geometries and scanning requirements, with point acquisition rates ranging from single-line precision to 7 million points per second structured light capture.

MetroY standard model

The MetroY offers three laser scanning modes:

1. 30 Cross Lines Mode: Rapid scanning at up to 1.5 million points per second, ideal for flat surfaces and shiny or black objects without spray coating

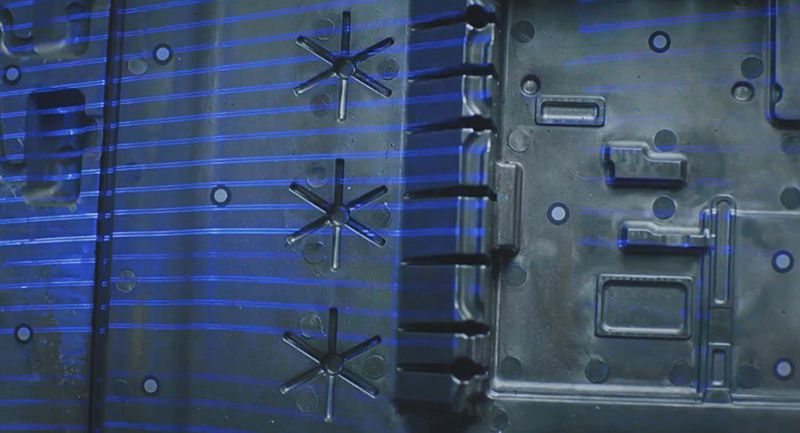

2. 15 Parallel Lines Mode: Optimized for detailed edge capture and complex surface geometries requiring maximum precision

3. Single Line Mode: Specialized for deep recesses, narrow gaps, and grid structures where other modes cannot penetrate

MetroY Pro Advanced Model

The MetroY Pro expands capabilities with five scanning modes:

1. 34 Cross Lines Mode: Enhanced version with four additional laser lines, delivering 1.7 million points per second for 12% faster scanning

2. 15 Parallel Lines Mode: Identical to standard MetroY for detailed surface capture

3. Single Line Mode: Same specialized capability for difficult access areas

4. Full-field Structured Light: Revolutionary 62-line blue structured light technology achieving 7 million points per second, enabling rapid scanning of complex objects with or without markers

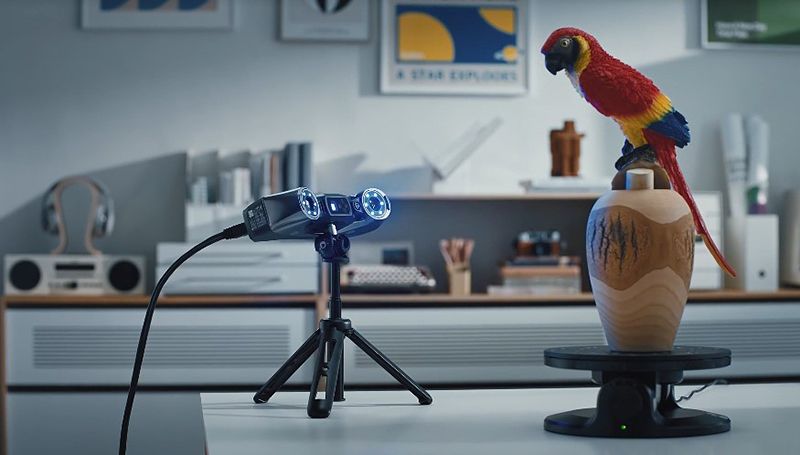

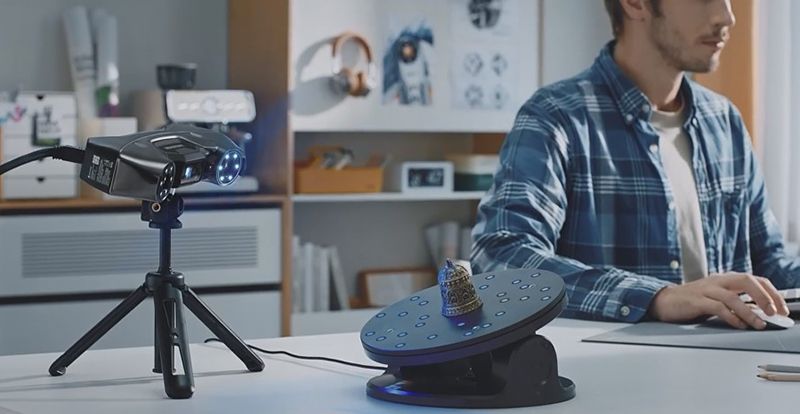

5. Auto Turntable Mode: Automated scanning using the included dual-axis turntable, providing hands-free 360° capture with live color data recording

The Pro model supports mid-scan mode switching within the same tracking mode, allowing users to adapt scanning strategy based on surface complexity without losing alignment.

Scan volume

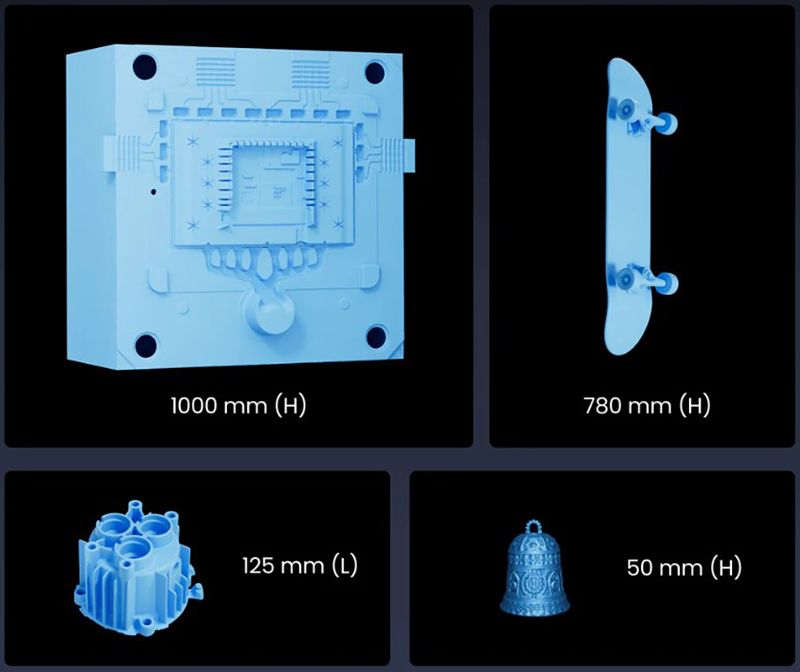

The MetroY models accommodate objects measuring 10 x 10 x 10 mm minimum to 1 x 1 x 1 m maximum scan volume. Working distance operates between 200–400 mm, establishing optimal scanning conditions according to optical triangulation principles. Single capture areas expand proportionally with distance: the MetroY captures 123 x 130 mm at 200 mm extending to 290 x 260 mm at 400 mm, while the MetroY Pro achieves 152 x 138 mm at 200 mm expanding to 332 x 276 mm at 400 mm.

The MetroY Pro incorporates an angular field of view of 49 x 38° compared to the standard MetroY's 43 x 33°. Research by SHINING 3D (2023) demonstrates that larger field of view reduces scan count by up to 30% for equivalent object coverage, improving workflow efficiency through fewer capture positions. This expanded coverage translates to approximately 17% fewer scanning passes for complete object digitization according to field of view optimization studies.

Working distance optimization affects point density and accuracy according to triangulation geometry principles. Research published by HandsOnMetrology (2023) confirms that positioning objects at optimal distances within the specified range maximizes measurement precision while maintaining volumetric accuracy specifications.

Scanner controls

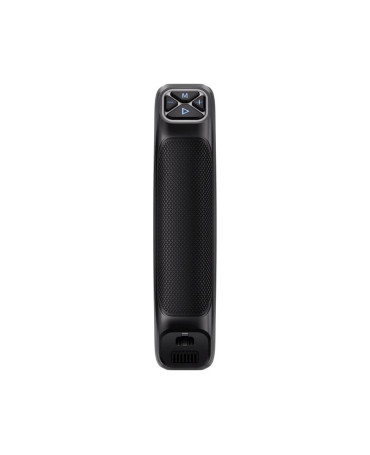

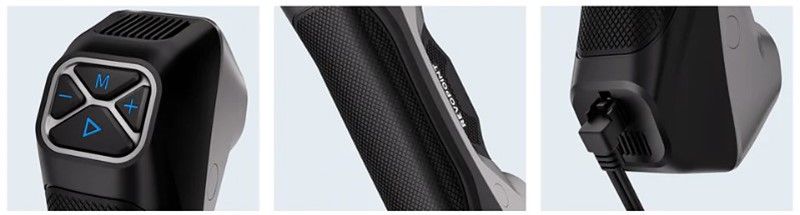

The MetroY series incorporates a 4-button hardware interface for direct operation independent of software connection. Power management, scanning mode selection, scan start/stop functions, and settings access operate through dedicated button assignments.

USB Type-C connectivity implements 3.2 specification supporting data transfer rates up to 20 Gbps through dual-lane operation. Real-time data streaming operates at maximum bandwidth capacity for continuous scan data transmission to connected devices. Wi-Fi 6 wireless capability enables data transmission rates up to 9.6 Gbps according to IEEE 802.11ax standards, supporting real-time scan preview through the Revo Mirror functionality.

The MetroY Pro operates autonomously with the included dual-axis turntable for hands-free 360° scanning through Auto Turntable Mode. The turntable integrates with the scanner's wireless control system, enabling automated object rotation synchronized with scan capture without manual intervention. This capability eliminates operator handling requirements during complete object digitization.

Software

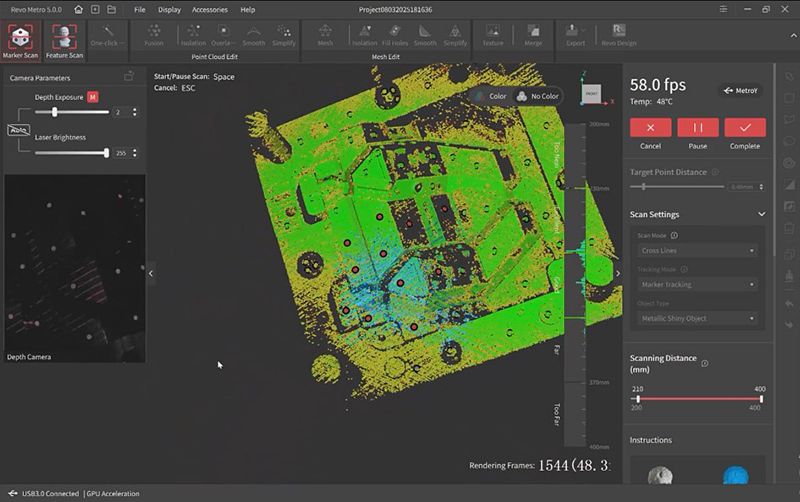

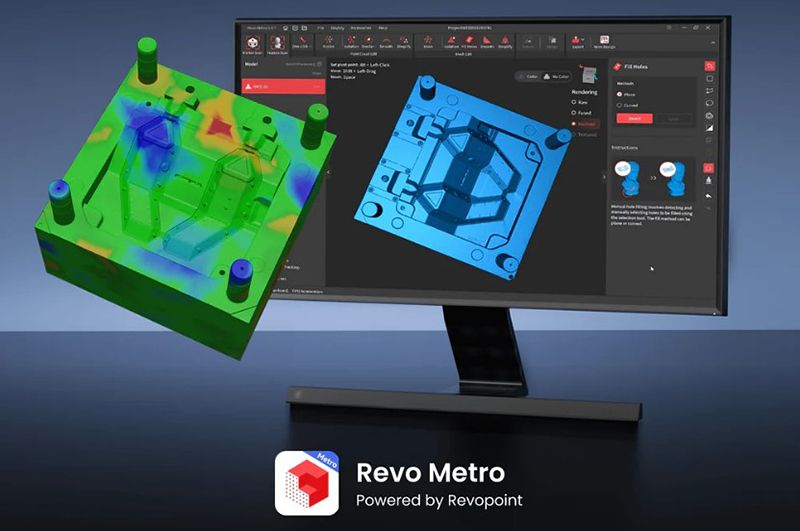

The MetroY series operates with Revo Metro — free scanning software supporting Windows 10/11 (64-bit), macOS 11.0+, Android, and iOS operating systems.

System requirements:

• Windows: Intel i7 12th Gen or AMD Ryzen 7 5800, 32GB RAM minimum, optional NVIDIA GeForce RTX 3050 (8GB)
• macOS: M1 Pro/Max/Ultra processor, 16GB RAM minimum
• Recommended: Intel i9 12th Gen or better, 64GB RAM, NVIDIA RTX 4060 (8GB) or better

Revo Metro exports 7 file formats: PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX according to manufacturer specifications. The software processes scan data through 4 operational steps: capture, fusion, mesh generation, and export according to the Revo Metro workflow specification.

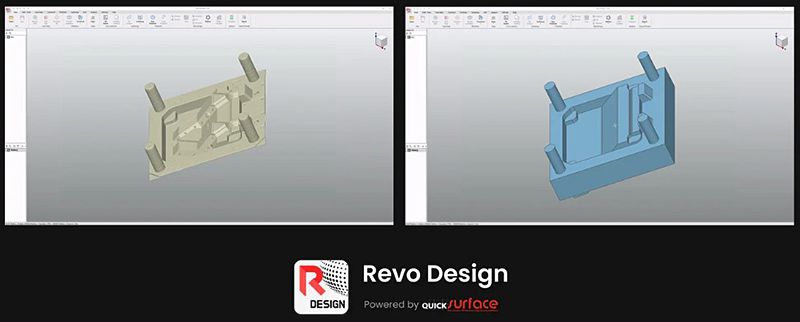

Revo Design software integrates with Revo Metro for scan-to-CAD workflows using QUICKSURFACE technology, supporting mesh editing, parametric modeling, and IGES/STEP format exports.

Real-time processing executes point cloud capture, mesh generation, and color texture mapping during scanning operations. The software processes scan data at rates up to 7 million points per second during structured light capture mode on the MetroY Pro. Revo Metro includes granular scan settings, real-time point cloud monitoring, one-click editing, and mesh optimization tools while preserving dimensional accuracy according to software documentation.

What’s in the box

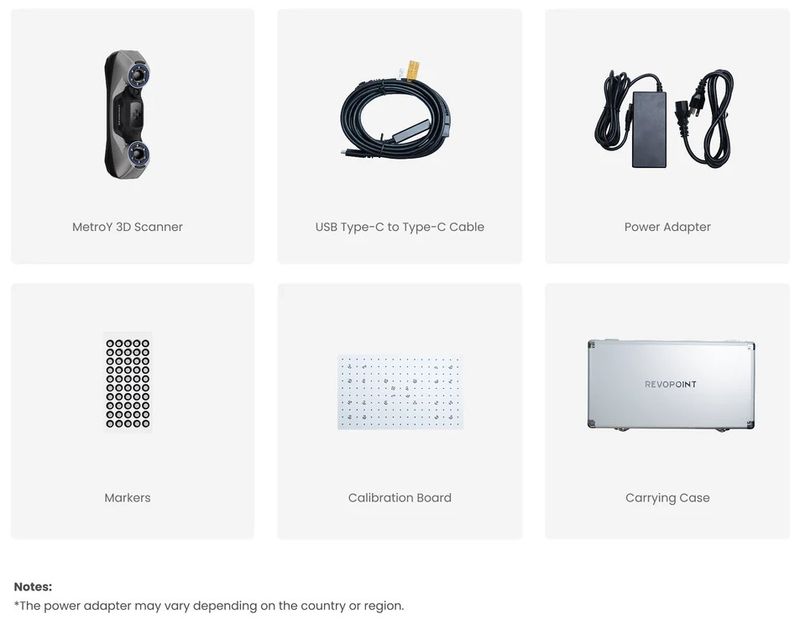

MetroY Standard Package:

• 1 x MetroY 3D scanner
• 1 x USB Type-C to Type-C cable
• 1 x Power adapter
• Marker set for tracking
• 1 x Calibration board
• 1 x Carrying case

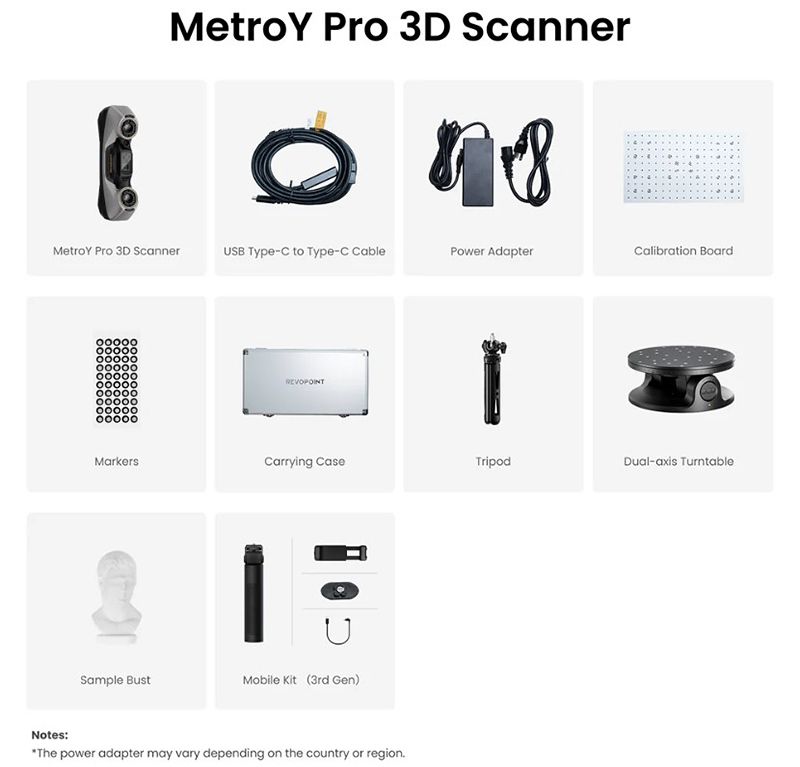

MetroY Pro Complete Package:

• 1 x MetroY Pro 3D scanner
• 1 x USB Type-C to Type-C cable
• 1 x Power adapter
• Marker set for tracking
• 1 x Calibration board
• 1 x Carrying case
• 1 x Tripod (professional scanning support)
• 1 x Dual-axis turntable (automated 360° scanning)
• 1 x Mobile kit (3rd Generation) (portable workflow enhancement)
• 1 x Display bust (calibration and demonstration object)

The MetroY Pro's inclusion of the dual-axis turntable and professional tripod represents significant added value, providing automated scanning capabilities typically requiring separate purchase with competing systems.

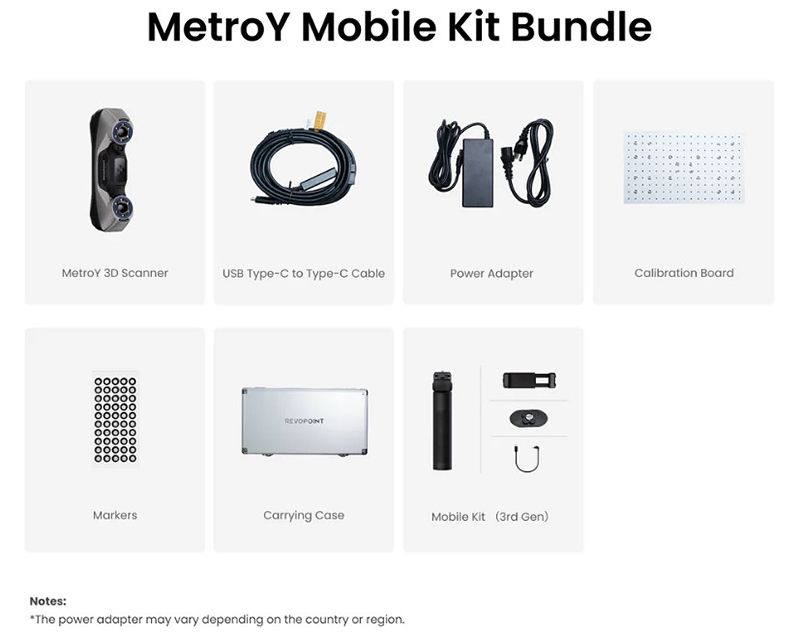

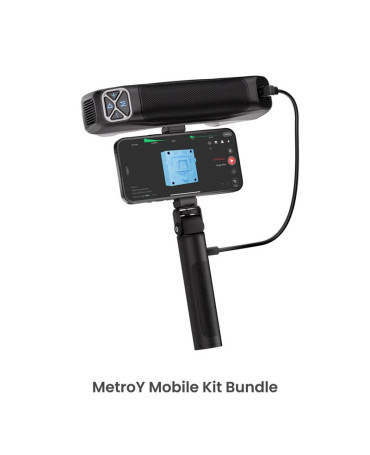

MetroY Mobile Kit Bundle:

• 1 x MetroY 3D scanner
• 1 x USB Type-C to Type-C cable
• 1 x Power adapter
• Marker set for tracking
• 1 x Calibration board
• 1 x Carrying case

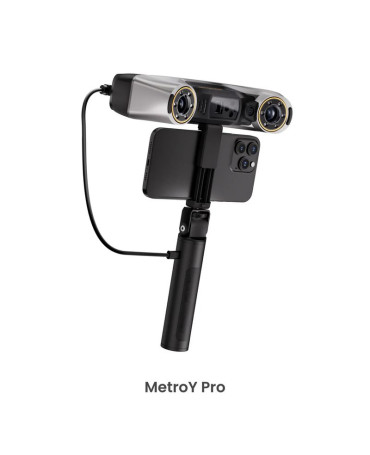

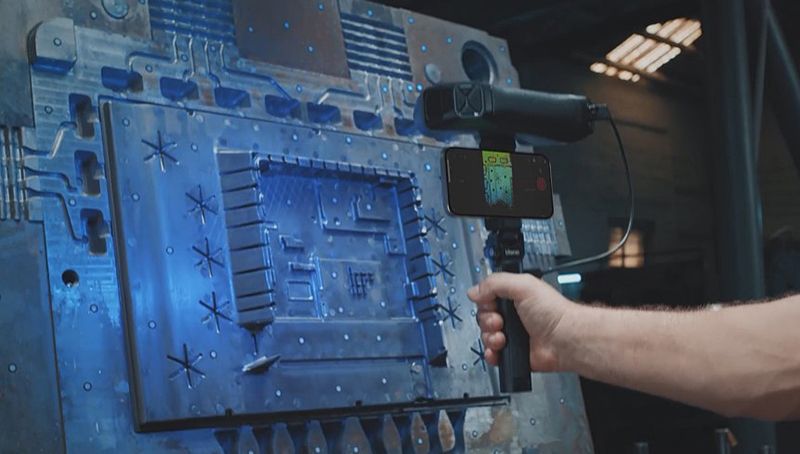

• Mobile Kit (3rd Gen):

• • 1 x Battery grip (5500 mAh capacity)
  • 1 x Phone holder (ABS+PC construction)
  • 1 x Power cable (USB Type-C to Type-C, 350mm)
  • 1 x Quick release plate (ABS+PC material)

For some items, package content may change. In case of any questions, please get in touch.

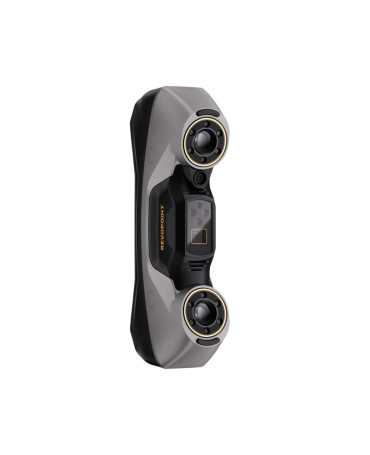

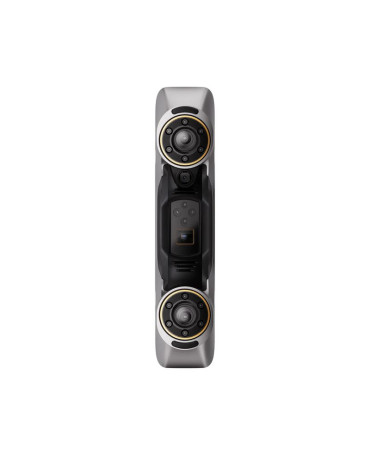

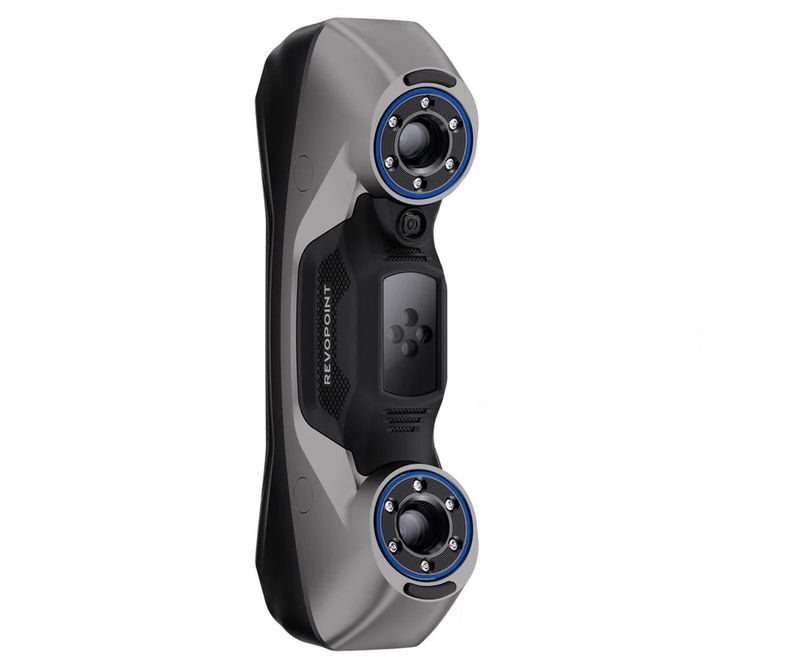

Look and feel

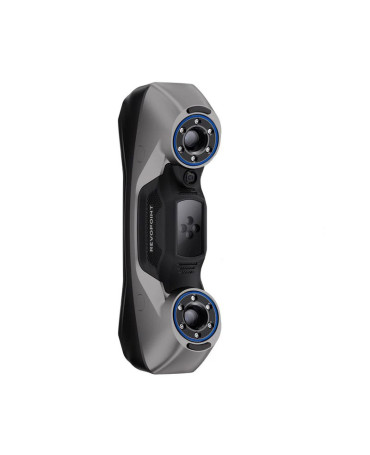

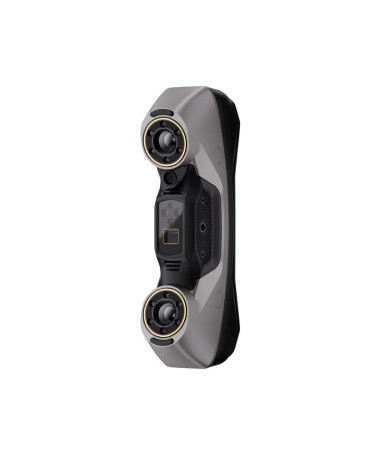

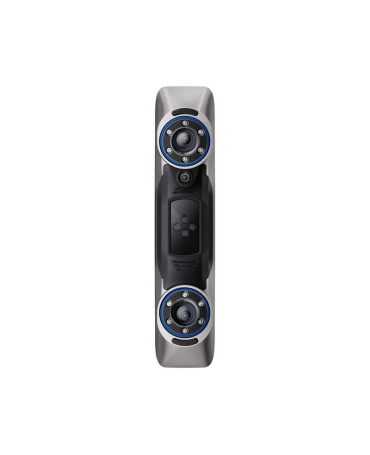

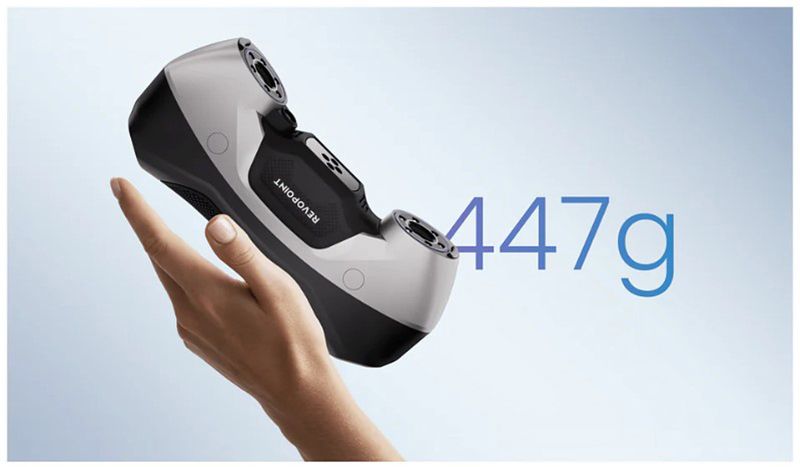

Both MetroY series scanners measure 211 x 94 x 47 mm with weights of 447 g (MetroY) and 450 g (MetroY Pro), constructed from magnesium alloy materials for durability.

The MetroY incorporates Class 1 laser safety rating while the MetroY Pro operates under Class 2M laser safety compliance according to IEC 60825-1 standards. Blue laser arrays project through 12 blue LED fill lights providing consistent illumination, with 2 MP RGB cameras capturing color information at full resolution during Auto Turntable mode on the MetroY Pro.

Power requirements specify DC 12V at 3A operation (36W total consumption), supplied through the included AC adapter or compatible power banks for portable operation. Both models exclude internal battery systems, requiring continuous external power during scanning operations according to manufacturer specifications.

Price of the Revopoint MetroY / MetroY Pro high-precision blue laser 3D scanner

To learn the current price of the Revopoint MetroY / MetroY Pro wireless blue laser 3D scanner, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
