Revopoint Miraco Plus 3D Scanner

BUY THREE, GET +10% OFF

The Revopoint Miraco Plus is a professional-grade standalone 3D scanner powered by a quad-camera infrared structured light projector with optical zoom and ultra-resolution photogrammetric metrology. Engineered with onboard software that runs on the built-in CPU, the Miraco Plus can freely operate, save and edit scan projects without any cables or connection to a computer. This makes the Miraco Plus a perfectly self-contained device able to support a wide range of personal and professional scanning needs. At the same time, it is aimed at a tangibly user-friendly experience.

The Revopoint Miraco series includes two more versions — Basic and Pro. Apart from the amount of RAM, they differ in terms of the supply package and functionality. Compared to the two previous models, the Miraco Plus features photogrammetric metrology, optical zoom, improved single-frame accuracy and scanning speed.

The proprietary Photogrammetric Metrology Kit (PMK) compatible with the Miraco Plus enables the creation of metrology-grade 3D models for inspection, reverse engineering, and other measurement use cases right on the device. The PMK is ideal for helping reduce manufacturing errors, rapidly carrying out quality control, speeding up the prototyping process, and reverse engineering applications.

Featuring photogrammetric metrology capabilities, a flexible working distance, two scanning modes, and high-resolution RGB camera, the Revopoint Miraco Plus is great for various purposes, capturing both monochrome and colorful objects of different sizes. The outstanding scan accuracy is achieved due to rapid data processing and precise tracking algorithms.

Providing an intuitive interface with simple controls, fast scanning speed, powerful onboard software, compact and lightweight design, fast Wi-Fi connectivity, and long-lasting battery, the Miraco Plus is a capable and easy-to-use 3D scanner that does not require an expensive PC to work with 3D data. Combining outstanding scan quality and accessibility, the Miraco Plus 3D scanner is well suited to the needs of both new and seasoned users.

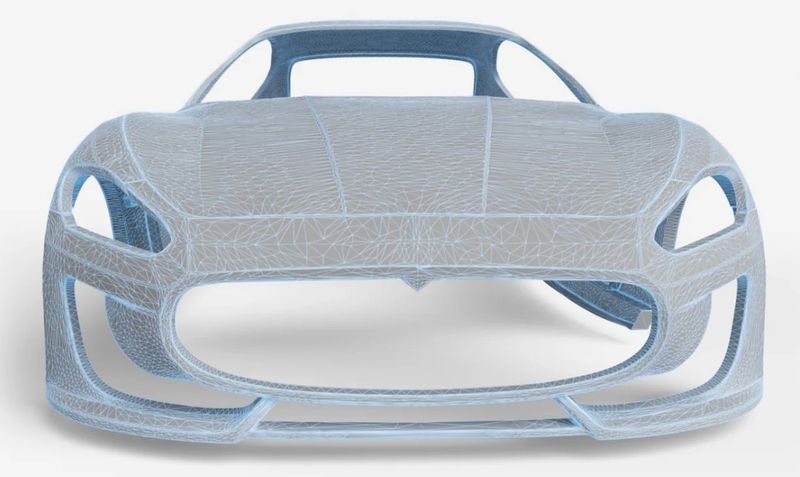

With an astonishing range of capabilities and features that are not presented in other modern 3D scanners, the all-in-one Miraco Plus from Revopoint will be useful for a variety of applications. The device allows one to scan a multitude of objects, from miniatures and functional parts to artifacts and full-size cars. It can serve as a cost-effective 3D digitization solution for use in many spheres, such as:

• Aerospace
• Car customization
• Industrial design
• Art and design
• 3D animation
• Preservation and restoration
• Scientific research
• Healthcare
• Education

To assess the capabilities of the Revopoint Miraco Plus 3D scanner, take a look at these remarkably detailed renders captured by the device.

For example, this S14 Silvia was scanned by Lajos Turi using the Miraco Plus and the Photogrammetric Metrology Kit (PMK). The resulting model is not only extremely accurate: it also demonstrates how the scanner works with large objects and shiny surfaces.

S14 Silvia by Revopoint 3D on Sketchfab

When it comes to smaller objects requiring high precision, the Miraco Plus model has it covered with remarkable precision and texture quality.

Plaster Hand by Revopoint 3D on Sketchfab

Thanks to the high-resolution 48-megapixel RGB camera, the Miraco Plus provides bright and saturated models with high color fidelity. This makes it particularly useful for inspection, documenting and archiving, 3D modeling for video games, reverse engineering, and more.

Toy spinosaurus by Virtual Curation Lab on Sketchfab

 Navigation

• Scan accuracy
• Scanning modes specifics
• Scan volume
• Scanner controls
• Software
• Applications
• What’s in the box
• Look and feel
• Price

Scan accuracy

The Revopint Miraco Plus is engineered with 9-axis IMU positioning sensors, 2 MP depth cameras, and a potent light source. This allows it to achieve 20 FPS scanning speed and a surgical single-frame accuracy of up to 0.04 mm. With a point-to-point distance of 0.05 mm, the device can reconstruct high-resolution geometric structures and capture fine details, easily handling scanning tasks for various professional spheres.

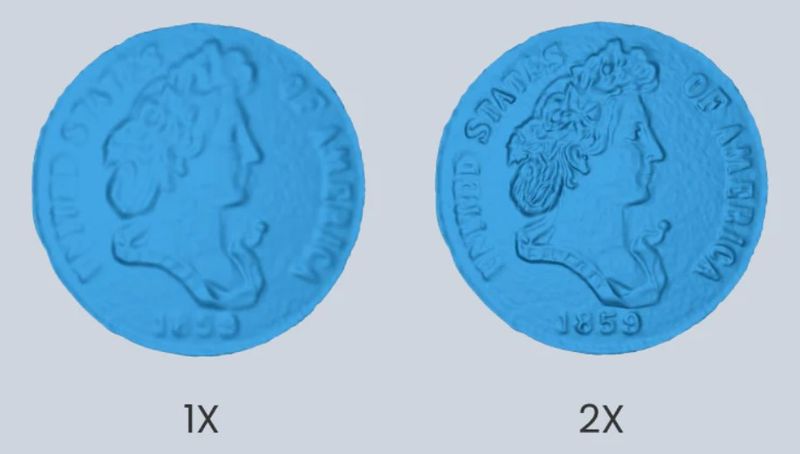

With the new 1.5x and 2x infrared optical zoom feature, the Miraco Plus model can create higher resolution structured light. This allows the device to reduce noise, increase the smoothness, and capture even finer details for the smallest objects.

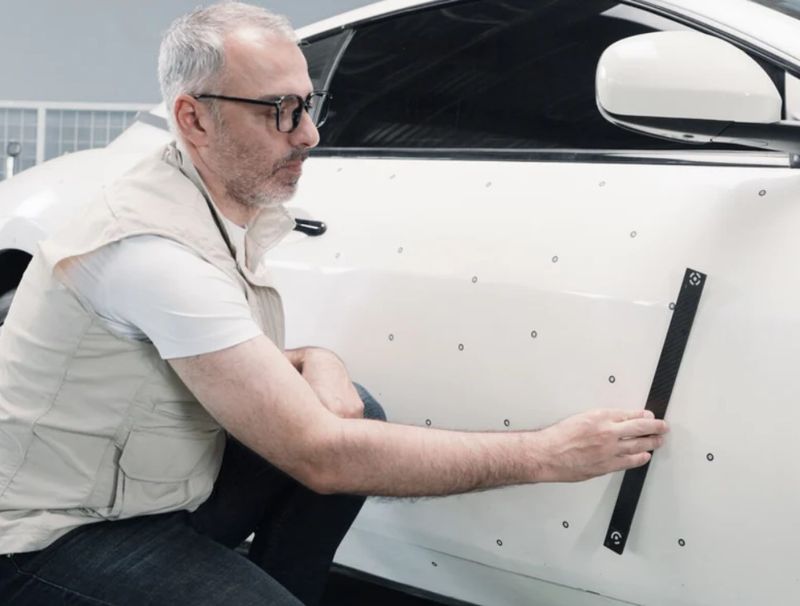

To create photogrammetric models with the Miraco Plus, one can use the Photogrammetric Metrology Kit (PMK). With two sets of coded targets (magnetic and sticky), 4 magnetic carbon fiber scale bars, and the Miraco Plus’s 48MP RGB camera, powerful hardware, and advanced tracking algorithms, there are only four simple steps to follow:

1. Place the scale bars, coded targets, and markers on or around the object’s surface.
2. Shoot photos of the object at different heights and angles till fully captured.
3. Calculate the markers, then capture the point clouds all on the Miraco Plus 3D scanner.
4. Process, edit, and then transfer the results to a PC.

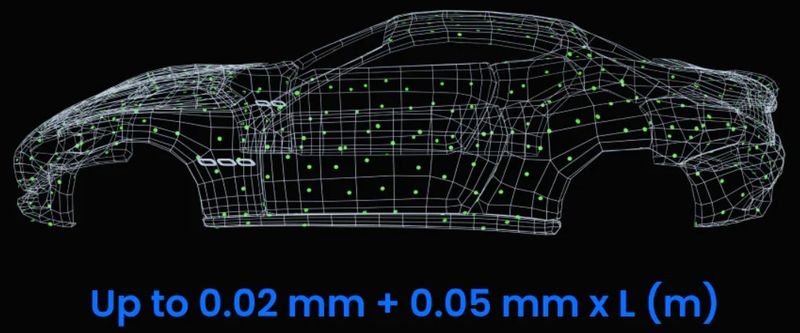

The Revopoint Miraco Plus features photogrammetric length accuracy of 0.02 mm + 0.05 mm x L (m) where L is the maximum measuring distance in meters.

Being a powerful standalone 3D scanner, the Miraco Plus is equipped with an 8-core 2.4 GHz CPU and 256 GB hard drive to effectively process and store captured 3D data. In contrast to the standard Miraco, the Plus version comes with 32 GB RAM sufficient for up to 10,000 frames for non-color and up to 8,000 frames for color scans.

Due to the built-in 48 MP RGB camera, the Revopoint Miraco Plus boasts 8K color capture, which makes it great for scanning objects with rich colors and delivering breathtaking photorealistic color textures.

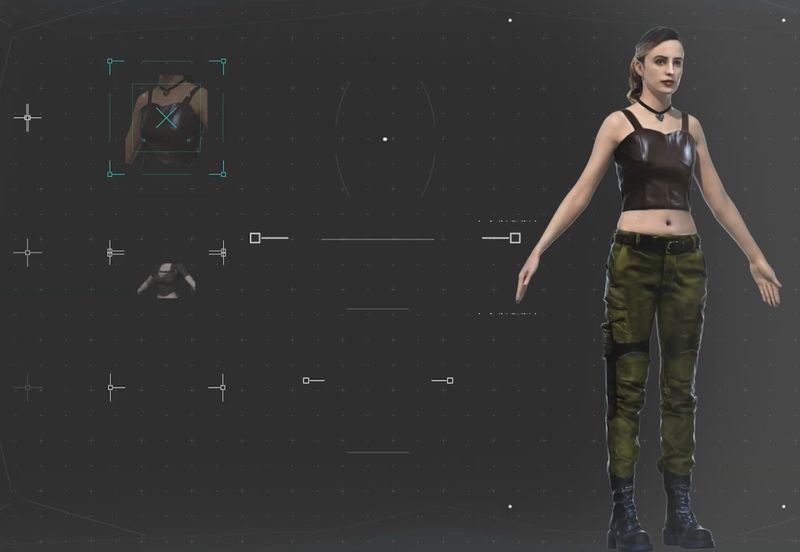

Engineered with reliable tracking algorithms, the Miraco Plus is capable of accurately capturing full-body scans and body parts for design, video game development, and healthcare applications in under 60 seconds. Thanks to the scanner’s handy 180° adjustable screen, one can also do detailed self-face scans. The Class I infrared light source of the device is completely safe for the eyes.

As for individual cases of scanning transparent, dark, or highly reflective objects, the manufacturer recommends using a special scanning spray to ensure best possible results.

Scanning modes specifics

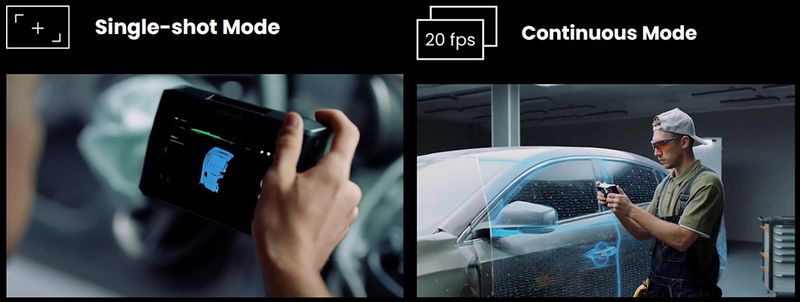

The Revopoint Miraco Plus provides two scanning modes — Single-shot and Continuous — that enable smooth 3D data acquisition for different applications. To achieve the best scan quality, it is important to understand the purpose of each mode.

One can smoothly switch mid-scan between capturing fine detail with a near-mode accuracy of up to 0.05 mm or capturing large areas with a far-mode accuracy of up to 0.3 mm.

Scan volume

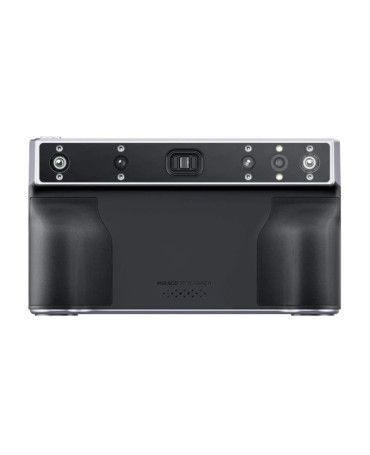

The Revopoint Miraco Plus comes with an effective quad-depth camera system, which makes for a flexible scanning range for rendering objects of different sizes, with the working distance standing at 100–1000 mm. The device can accurately capture small (10 x 10 x 10 mm) to large-sized (4000 x 4000 x 4000 mm) objects with a single capture range varying from 28 x 53 mm (at 100 mm) to 975 x 775 mm (at 1000 mm). Thus, the Miraco Plus can go from scanning a single screw to a life-size car door in seconds without a loss of precision and detail.

Scanner controls

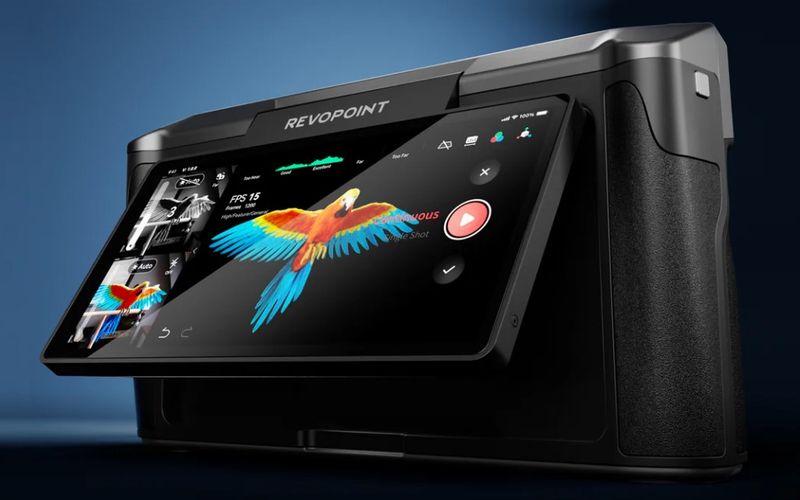

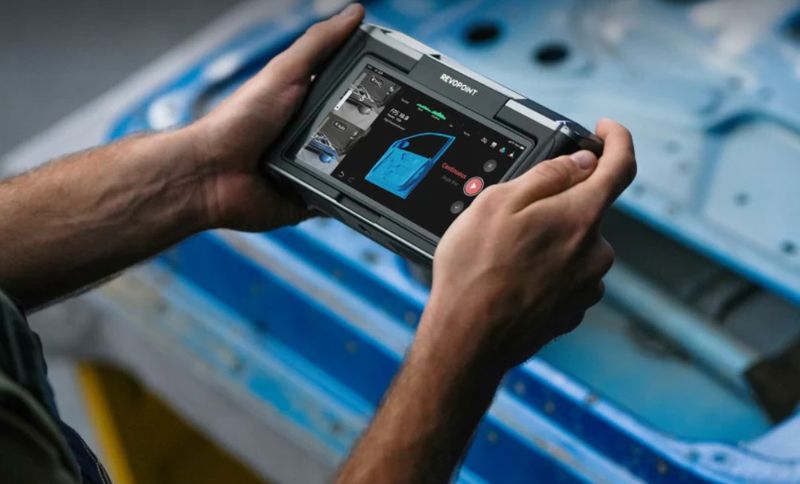

To begin using the Revopoint Miraco Plus, just turn it on and start scanning, no cables or PC needed. You can see your scans with outstanding clarity on a 6" 2K backlit AMOLED touch-sensitive screen.

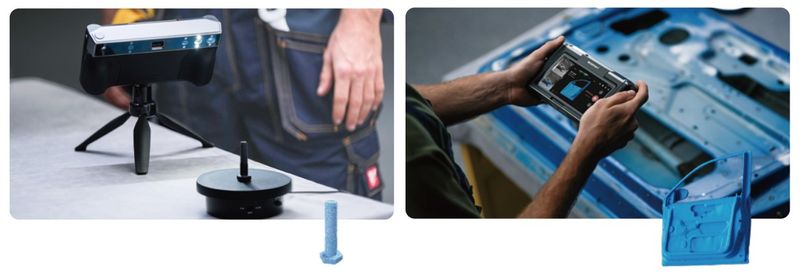

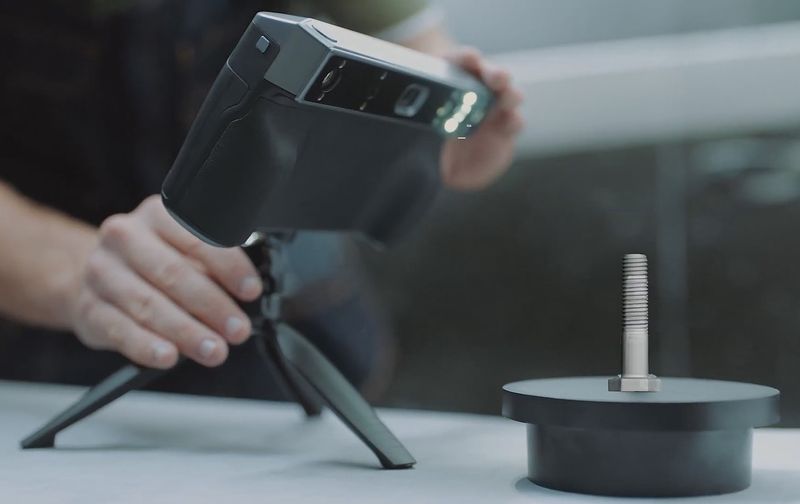

Thanks to the thoughtful supply package, one can also mount the Miraco Plus on a dedicated tripod and use it with a turntable to capture small and finely detailed objects in a stationary mode with enhanced precision.

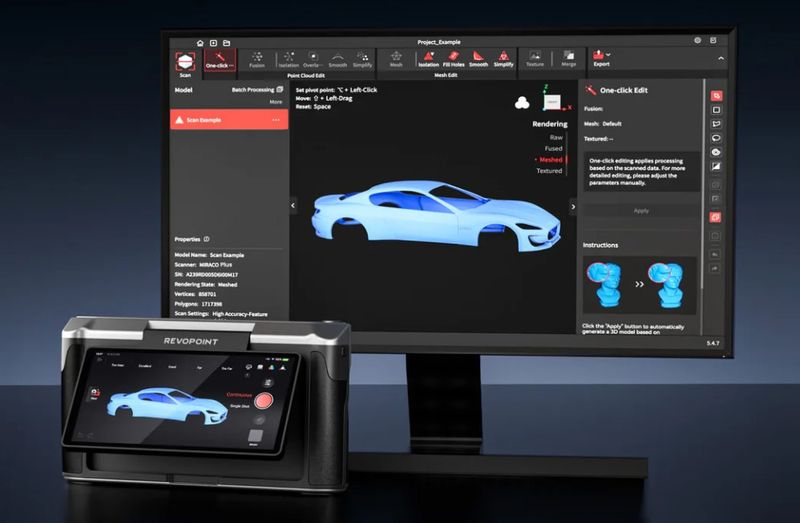

It is possible to connect the Miraco Plus 3D scanner to TVs and monitors through a USB-Type C to HDMI adapter or a DP port for convenient 3D model checks or presentations.

To ensure long scanning sessions of up to 2 hours and 65W fast charging (power up the Miraco Plus to 80% in only 35 mins), the scanner is equipped with an internal lithium battery boasting 5000 mAh capacity. It is covered under a 2-year warranty.

Software

The Revopoint Miraco Plus comes with integrated software featuring a clear UI with intuitive controls. Ensuring rapid capturing and easy post-processing, it allows the user to perform fusion, meshing, and editing on the go, without transferring their projects to a PC.

Featuring USB Type-C and lightning-fast Wi-Fi 6 connectivity, the Miraco Plus model can further export scans in the most common file formats, such as PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX.

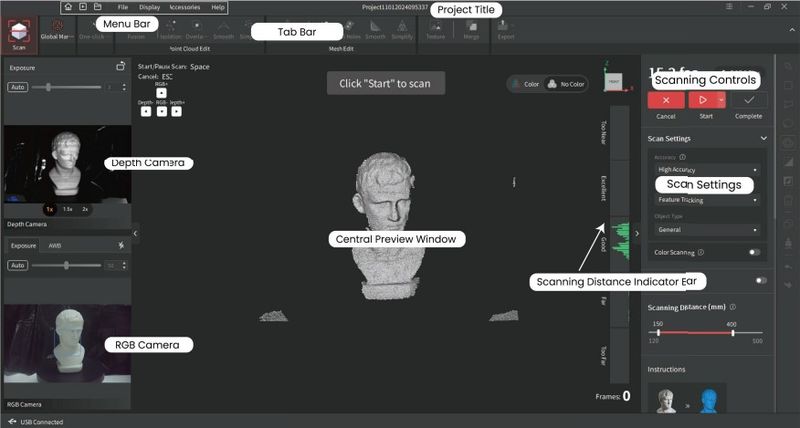

For advanced editing, one can use Revo Scan software on a PC. The program offers efficient post-processing (one-tap edits, hole filling, etc.) and multi-model alignment functionalities, empowering users to effortlessly accomplish 3D modeling tasks. Plus, it does not require a powerful computer.

• Supported OS: Windows, macOS, Android, iOS.
• Minimum specs: Windows — CPU Intel i7 12th Gen or better, RAM ≥ 16GB; macOS — CPU M1 Pro or better, RAM ≥ 8GB.
• Recommended specs: Windows — CPU Intel i9 11th Gen or better, RAM ≥ 32GB; macOS — CPU M3 or better, RAM ≥ 8GB.
• No discrete GPU like an Nvidia or AMD graphics card is needed.

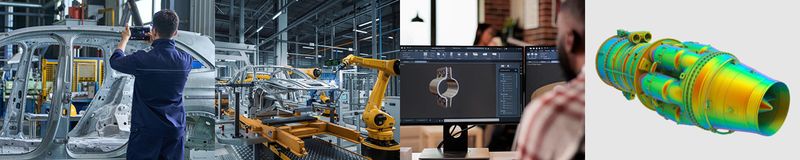

Applications

Deeply integrated into your workflow, the Revopoint Miraco Plus 3D scanner can significantly enhance your productivity and help you achieve remarkable results in different professional spheres.

• Industrial manufacturing: Boost assembly precision, efficiency, and product quality with on-the-line scanning with accurate 3D measurements of large items.
• Additive manufacturing: The Miraco Plus can quickly scan large, medium, and small objects to create perfect digital models for replication with 3D printers.
• Reverse engineering: With the Miraco Plus’s new photogrammetric feature, one can create metrology-grade 3D models of large objects that ensure accuracy during reverse engineering processes.
• Industrial design: Rapidly prototype large products using the generated 3D data to refine appearance and structure, enhance design accuracy and efficiency as well as shorten the design cycle. Verify and improve the final product to ensure it meets all requirements.

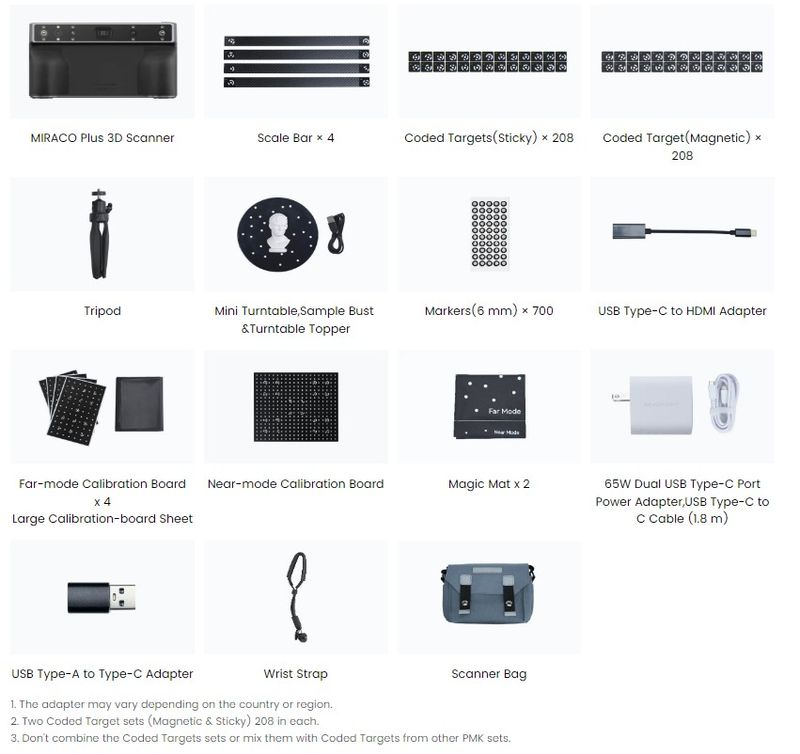

What’s in the box

• Revopoint Miraco Plus 3D scanner
• Scale bar x4
• Coded targets (sticky) x208
• Coded targets (magnetic) x208
• Tripod
• Mini turntable
• Turntable topper
• Turntable power cable
• Sample bust
• Markers (6 mm) x700
• USB Type-C to HDMI adapter
• Near-mode calibration board
• Far-mode calibration board
• Large calibration-board sheet x4
• Magic mat x2
• 65W dual USB Type-C port power adapter
• USB Type-C to Type-C cable (1.8 m)
• USB Type-A to Type-C adapter
• Wrist strap
• Scanner bag

For some items, package content may change. In case of any questions, please get in touch.

In addition, the manufacturer offers a few accessories (purchased separately) for the Miraco Plus 3D scanner. The list of supported accessories includes:

• Large turntable
• Dual-axis turntable
• Large calibration board
• Power Bank Kit
• Photogrammetric Metrology Kit (do not combine the coded targets sets or mix them with coded targets from other PMK sets)

Look and feel

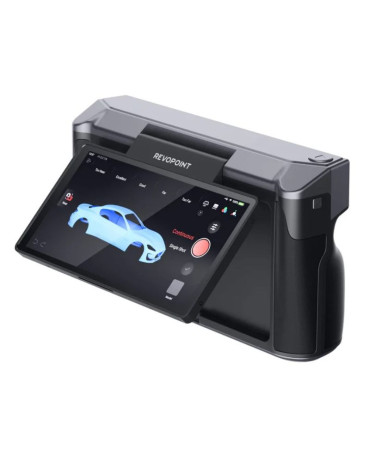

The Revopoint Miraco Plus 3D scanner is available in matte black. It is equipped with a 180° adjustable screen that allows one convenient viewing from any angle and can be flipped for selfie scans.

With its lightweight, ergonomic design and stylish look, the Revopoint Miraco Plus is ideal for a wide range of personal and professional applications. The scanner dimensions are 7.9 x 2 x 4.3 in (200 x 50 x 110 mm). It weighs only 1.65 lb (750 g).

Price

To learn the current price of the Revopoint Miraco Plus 3D scanner, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
