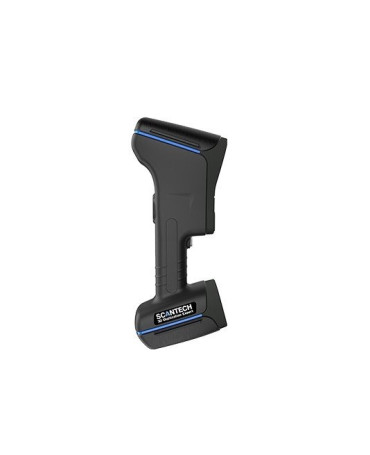

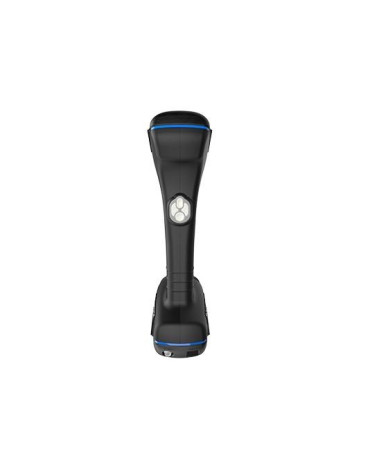

Scantech AXE-B11 3D Scanner

The AXE-B11 is a professional handheld 3D scanner produced by the Chinese 3D measurement company Scantech. It uses a Class II, eye-safe laser technology that consists of 11 blue laser crosses plus an extra blue laser line. It is targeted at large-scale 3D measurements. It captures accurate data without the need for extra devices.

Thanks to the multiple crossed laser lines, this accurate 3D scanner can perform large-volume 3D measurements with high precision and efficiency requiring only a few markers to finish the process. It supports both high-efficiency scanning mode for large-volume scanning and single-line scanning mode for deep hole scanning and dead angle inspection. The AXE-B11 is also very fast. It can perform up to 1,300,000 measurements/s speeding up the digitization process.

The Scantech AXE-B11 features an integrated photogrammetry system, which highly increases its volumetric accuracy (up to 0.020 mm/m).

This customer-oriented portable 3D scanner provides a high-quality 3D scanning experience to anyone. Indeed, it meets multiple demands thanks to its versatile combination with the reference bar, helpers engineer kit, and more. It is ideal for a variety of applications, such as quality control, R&D, and more. Read our AXE-B11 review to learn more about this 3D scanner.

Specifications:

• Scan accuracy
• Scan volume
• Scanner controls
• What’s in the box
• Look and feel
• Price

Scan accuracy

The AXE-B11 is a professional handheld 3D scanner that can effectively scan objects with an accuracy of 0.0.20mm. Thanks to the integrated photogrammetry function, the scanner features a volumetric accuracy of 0.020mm + 0.035 mm/m. It has a resolution of 0.100 mm.

The 11 blue laser crosses let it efficiently perform up to 1,300,000 measurements/s. The single blue laser line allows scanning inaccessible parts with ease.

The AXE-B11 provides accurate results even when scanning reflective or shiny objects.

Scan volume

The AXE-B11 has a scan area of 550 mm × 600 mm, a stand-off distance of 450 mm, and a depth of field of 500 mm. The photogrammetry depth of field is 2,500mm. This portable scanner is particularly suitable for large-scale measurements without extra devices.

Scanner controls

The scanner is controlled via a USB-tethered computer. It can process and export data to multiple file formats (PLY, XYZ, DAE, FBX, MA, OBJ, ASC, STL, and more).

What’s in the box

• Scantech AXE-B11 3D scanner
• USB cable
• Class II laser
• Built-in photogrammetry system

For some items, package content may change. In case of any questions, please get in touch.

Look and feel

The Scantech AXE-B11 3D scanner is available in black. Its stylish look makes it ideal for industrial 3D measurement in a variety of industries, including rapid prototyping, reverse engineering, 3D inspection and 3D visualization.

Price

To learn the current price of the scanner, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
