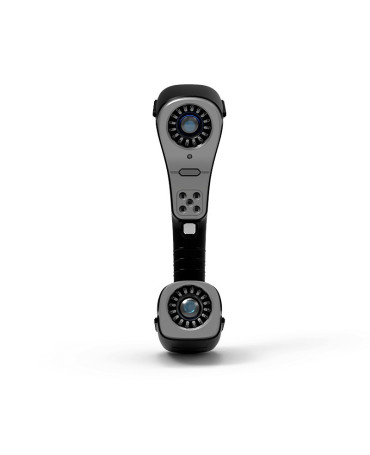

Scantech KSCAN-Magic 3D Scanner

Available on backorder
Ultra-precise metrology-grade 3D scanner
  • Max. accuracy: 0.020 mm
  • Max. scanning area: 1440 mm × 860 mm
  • Max. resolution: 0.010 mm
  • Lightning-fast scanning rate
When purchasing with us you get:
  • FREE Delivery
  • 1 Year Warranty
  • 24/5 Customer Support
  • FREE training
This 3D scanner comes with:
  • Calibration board
  • Waterproof case
  • Markers
  • ScanViewer software
Shipped from China. Lead time is 45 days.

The KSCAN Magic boasts its 925 mm depth of field, allowing you to adjust the working distance depending on the application. Besides, this revolutionary device offers intelligent edge detection, contact probing, and pipe measurement that expand its range of applications even further. Thanks to a plethora of different scanning modes, namely: ultra-fast, hyperfine, large area, and deephole scanning modes and a built-in photogrammetry system, this industrial-grade scanner is an outstandingly flexible device that can be used for any kind of 3D scanning projects.

The scanner can be used in a plethora of different applications, such as:

  • Aerospace industry
  • Automotive industry
  • Industrial production
  • Reverse engineering
  • Quality control
  • 3D modeling
  • Production of injection molds
  • Healthcare and dentistry
  • Cultural heritage preservation
  • Education, science
  • Design
  • AR/VR

Take a look at this remarkably detailed render of an engine cylinder block. As you can see, the KSCAN Magic renders everything up to the smallest detail, which makes it a perfect choice for industrial applications that require millimeter-precision renders.

How about a high-precision scan of a helix impeller?

If scanning of wood carved pieces is your kind of thing, the KSCAN Magic would be a perfect choice for your application. Notice how it preserves all the decorative patterns and hollow textures.



 Navigation

  • Scan accuracy
  • Scanning mode specifics
  • Scan volume
  • Scanning tips
  • Scanner controls
  • Software
  • What’s in the Box?
  • Look and feel
  • Price



Scan accuracy

The Scantech KSCAN Magic is a professional handheld 3D scanner with outstanding accuracy and scan speed. This multifunctional device delivers a maximum accuracy of 20 microns which is backed up by a precision level of 10 microns along with a 925 mm depth of field, making it a perfect choice for any kind of industrial application.



Scanning Modes Specifics

Mode

Ultra-fast scanning

Hyperfine scanning

Large-area scanning

Deep hole scanning

Laser details

11 blue laser crosses (eye safe)

7 blue parallel laser lines (eye safe)

11 parallel infrared laser lines (eye safe)

1 extra blue laser line (eye safe)

Scan speed

Up to 1,350,000 measurements/s

Resolution (point distance)

0.010 mm

Volumetric accuracy

Up to 0.010 mm + 0.030 mm/m (standalone operation)

Up to 0.010 mm + 0.020 mm/m (with a reference bar)

Up to 0.010 mm + 0.015 mm/m (with MSCAN-L15)



Scan volume

The Scantech KSCAN Magic offers a large single-scan range of up to 1440 × 860 mm. Thanks to its built-in advanced photogrammetry system, it can even be prolonged up to 3760 × 3150mm, which is astounding. Not even the smallest detail will be left behind.



Scanning Tips

Overall tips:

  • Use the CMM K-Probe to easily scan dark, shiny, and transparent objects
  • Scan with a dark background
  • Use correct scanner settings
  • Fine-tune your scanner
  • Create a controlled environment
  • Avoid scanning moving objects



Scanner controls

To begin using the scanner to your heart’s content, just connect it to your computer with the dedicated USB aviation cable and complete the one-click-setup.



Software

The Scantech KSCAN Magic comes with a highly efficient proprietary ScanViewer software solution. It is a professional software for 3D scanning and data processing that offers a variety of advanced options for data editing. For instance, it allows you to manually create features, request a thorough feature analysis, distance measurement, pipe inspection, dimensional and tolerance analysis according to the scanned data, and much more.



What’s in the Box?

  • Scantech KSCAN-Magic 3D scanner
  • Calibration board
  • USB drive
  • Power cord
  • Charger
  • Calibration board support
  • Markers
  • Waterproof case
  • ScanViewer software suite

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

The Scantech KSCAN Magic is available in a stylish black color with gray trims. Its neatly-looking appearance makes it ideal for professional and industrial applications.



Price

To learn the current price of the scanner, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
