Scantech SIMSCAN 3D Scanner

In Stock
Hand-size metrology-grade 3D scanner
  • Lightweight and portable
  • Fast scanning speed
  • Different scanning modes
  • Max. accuracy: 20 microns
When purchasing with us you get:
  • Favorable PO Terms
  • 1 Year Warranty
  • Local U.S. Support
  • FREE training
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This 3D scanner comes with:
  • Calibration board
  • Waterproof case
  • Markers
  • ScanViewer software
Shipped from China. Lead time is 2-3 weeks.

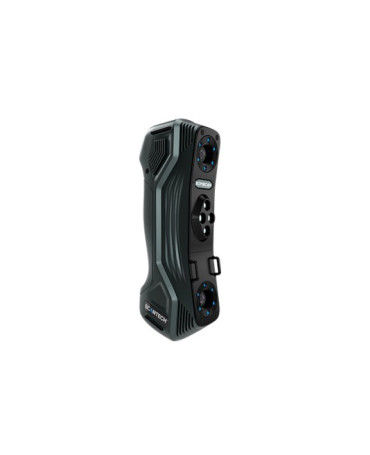

The Scantech SIMSCAN is a professional high-resolution handheld 3D scanner that offers an outstanding acquisition speed of 2,020,000 points/s alongside 20 microns accuracy. Weighing less than 600g, the SIMSCAN is one of the smallest and most lightweight 3D scanners in the world. The device features a futuristic and refined design and is outstandingly portable. Thanks to its resolution of 0.025 mm, it can easily capture details of hard-to-scan objects (e.g. complex surfaces, deep holes, dead angles). Moreover, the scanner has been integrated with optimized data algorithms, which provide a high level of adaptability, meaning that the device can even scan objects with transparent, shiny, and black surfaces more easily.

The Scantech SIMSCAN offers a 250 mm depth of field and volumetric accuracy of 0.020 mm + 0.040 mm/m, which is remarkable considering its dimensions. Thanks to a plethora of different scanning modes, namely: ultra-fast, hyperfine, and deephole, this metrology-grade device becomes an outstandingly flexible solution that can be used for literally any kind of 3D scanning project.

The scanner can be used in a plethora of different applications, such as:

  • Aerospace industry
  • Automotive industry
  • Industrial production
  • Reverse engineering
  • Quality control
  • 3D modeling
  • Production of injection molds
  • Healthcare and dentistry
  • Cultural heritage preservation
  • Education, science
  • Design
  • AR/VR

Check out some of the renders made with the Scantech SIMSCAN to see what it's capable of.

As you can see, the SIMSCAN can create precise and well-detailed three-dimensional renders of complex and hard-to-scan objects, which makes it a good choice for industrial applications that require rapid scanning speed and millimeter-precise renders.



 Navigation

  • Scan accuracy
  • Scanning mode specifics
  • Scan volume
  • Scanning tips
  • Scanner controls
  • Software
  • What’s in the Box?
  • Look and feel
  • Price



Scan accuracy

The Scantech SIMSCAN is a professional lightweight 3D scanner that offers impressive accuracy and scanning speed. This metrology-grade solution can scan at a maximum accuracy of 20 microns. Besides, it features a precision level of just 25 microns alongside a depth of field of 250 mm, making this scanner a perfect choice for any kind of industrial or professional application. It can scan at a maximum speed of 2,020,000 measurements/s.



Scanning Modes Specifics

Mode

Ultra-fast scanning

Hyperfine scanning

Deep hole scanning

Laser details

11 blue laser crosses

7 blue parallel laser lines (eye safe)

1 extra blue laser line (eye safe)

Scan speed

Up to 2,020,000 measurements/s

Resolution (point distance)

0.025  mm

Volumetric accuracy

0.020 mm + 0.040 mm/m

0.020 mm + 0.015 mm/m (with MSCAN-15)

Accuracy

0.020 mm



Scan volume

The Scantech SIMSCAN offers an impressive single-scan range of 410 x 400 mm and a volumetric accuracy of 0.020 mm + 0.040 mm/m. Thanks to the scanner’s precision, it will capture everything up to the smallest detail.



Scanning Tips

Overall tips:

  • Use the CMM K-Probe to easily scan dark, shiny, and transparent objects
  • Scan with a dark background
  • Use correct scanner settings
  • Employ appropriate scanning modes
  • Fine-tune your scanner
  • Create a controlled environment
  • Avoid scanning moving objects



Scanner controls

To begin using the scanner, just connect it to your computer using the dedicated USB aviation cable that comes with the device and complete a simple one-click setup.

The scanner can be controlled via a set of built-in buttons located on its back side.



Software

The Scantech SIMSCAN comes with a proprietary ScanViewer software solution. It is a free professional software suite for 3D scanning and data processing that offers a variety of advanced options for data editing. It lets you create a variety of different features, request advanced feature analysis, provide distance measurement, pipe inspection as well as perform accurate and thorough dimensional and tolerance analysis according to the scanned data, and much more.



What’s in the Box?

Credit: Digitize Designs / YouTube

  • Scantech SIMSCAN 3D scanner
  • Calibration board
  • USB drive
  • Power cord
  • Charger
  • Calibration board support
  • Markers
  • Waterproof case
  • ScanViewer software suite

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

The Scantech SIMSCAN is available in sleek black. The dimensions of the device are 203 x 80 x 40 mm (7.9 x 3.1 x 1.5 inches) and it weighs just 570 g (1.26 lb). Its neatly-looking appearance makes it ideal for professional and industrial applications.



Price

To learn the current price of the scanner, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
