Shining 3D Transcan C 3D Scanner

In Stock
Professional-grade 3D scanner for multiple uses
  • Dual scan range
  • Increased accuracy
  • Outstanding color fidelity
  • 12MP high-resolution camera
When purchasing with us you get:
  • FREE Delivery
  • 1 Year Warranty
  • Local U.S. Support
  • FREE training
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers

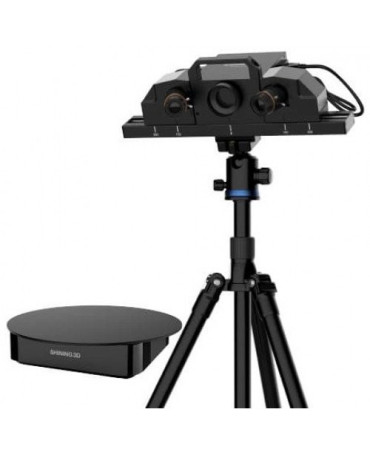

This 3D scanner comes with:
  • Essential parts required to operate the scanner
  • Turntable and tripod
  • Calibration board and markers
  • 3D scanning and CAD software
Price $4,899.00
The estimated lead time is 5-10 business days.

The Shining 3D Transcan C is a professional 3D scanner with a broad range of advanced functions and compact design. The device boasts 12MP high-resolution cameras enabling you to capture accurate scans of complex objects with rich texture and 24-bit color map. The dual scan range system provides two scanning options with the varying point and working distance. The inner position with the minimum point distance of 0.0375 mm allows reproducing even fine details of smaller models. Apart from this, it is possible to adjust multiple resolution parameters for a single object.

The device is supplied with a tripod and turntable for comfortable work. The turntable ensures complete autonomy of the scanning process with further automated stitching through the user-friendly software. No manual involvement is required. All the mentioned features will make the product perfect for engineers, designers, small manufacturers, and customizing experts.



To find out what the Transcan C is capable of, check out this accurate render of a tyrannosaurus skull. The resulting model looks quite impressive for an object with complex geometry. With the right toolkit and sufficient post-processing, one can achieve high levels of precision and smooth angles.

by on

As for the color capture, the device also shows decent outcomes, which can be seen from the render below. The high color fidelity is one of the main benefits of using the Transcan C.

by on



Scan accuracy

The Shining 3D Transcan C is a high-precision 3D scanner that allows you to acquire accurate 3D data, which can be valuable for certain spheres of application.

Shining 3D Transcan C 3D scanner

The Transcan C provides high accuracy of 0.035 mm at its inner position, with 0.05 mm for the outer one. This allows you to capture the finest details of the model surface.

a blue model scanning on the Shining 3D Transcan C 3D scanner

The scanner operates with the multi-resolution fusion algorithm that lets you combine 3 levels of resolution in one model. You can choose high, medium or low settings for complex scanning projects to increase the efficiency of the work and reduce the number of stages required to achieve the goal.

a 3 level scanning resolution on the Shining 3D Transcan C 3D scanner

With two 12 MP high-resolution color cameras, you will be able to capture a detailed 24-bit color map that will reproduce the original color of the scanned object perfectly.

a different colour clutch bag scanning on the Shining 3D Transcan C 3D scanner



Scan volume

a scan volume on the Shining 3D Transcan C 3D scanner

The Transcan C is engineered with a slide-rail mechanism, making it easy to switch between two basic positions with varying scan range: 150 x 96 mm for small objects and 300 x 190 mm for variable object sizes. In the first case, the point distance will be within a 0.0375–0.114 mm range, with the working distance of 260 mm. For the second mode, the point distance varies from 0.075 mm to 0.23 mm; the working distance is 480 mm.



Scanner controls

The scanner should be calibrated manually. It also includes a USB 3.0 interface and supports all mainstream 3D design software programs.

a scanner conrols on the Shining 3D Transcan C 3D scanner

Credit: youtube.com

The Transcan C comes with the dedicated EXScan C software solution. The program features a clear and intuitive interface that smoothly guides the user through a simple operation process. Moreover, it offers powerful tools for the hustle-free optimization of the scan results.

a EXScan C software use on the Shining 3D Transcan C 3D scanner

The turntable provides complete automation of the scanning process. It is controlled by the software’s stitching algorithm, which ensures the efficient acquisition of 3D data without manual intervention.



What’s in the box

Shining 3D Transcan C 3D scanner kit

  • Shining 3D Transcan C 3D scanner
  • Power cable
  • USB cable
  • USB drive
  • Turntable
  • Tripod
  • Calibration board
  • Markers
  • Scanning software
  • Solid Edge Shining 3D Edition CAD Software
  • User manual

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

Shining 3D Transcan C 3D scanner

Credit: shining3d.com

The Shining 3D Transcan C is available in black with blue and red trimmings. Its stylish look makes it ideal for product design, reverse engineering, education, and digital industry.

The scanner weighs only 2.74 kg (6 lb) and features a compact size of 332 x 110 x 142 mm (13 x 4.3 x 5.6 in), making it a portable and easy-to-carry device.



Price

The price for the Shining 3D Transcan C 3D scanner is $4,899.00, which is reasonable considering its functionality and smart features.
