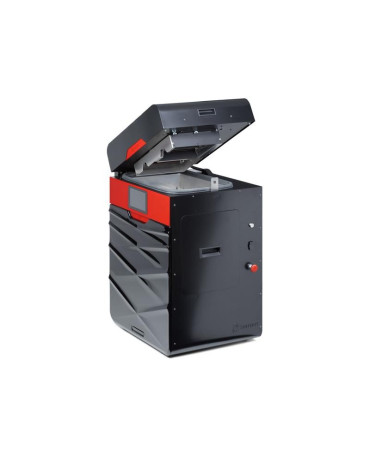

Sinterit Lisa Pro 3D printer

The Sinterit Lisa Pro is a professional compact selective laser sintering 3D printer that boasts some features of industiral-size machines. The device is a reworked version of the Sinterit's original Lisa. Simple-to-use and reliable like its predecessor, this model features an ultra-durable design and larger build area of 110 x 160 x 250 mm, as well as an integrated nitrogen chamber for wider material compatibility. More than that, the open software enables the use of third-party consumables. The enlarged volume lets you print bigger parts in one go cutting the lead time. Some hard- and software upgrades have further improved the overall printer's reliability and ease-of-use. As the original Lisa, the Pro model comes with an integrated camera for remote monitoring and Sinterit Studio slicing software. It is also equipped with a 5W, 808nm IR Laser Diode.

Aimed at increasing your business efficiency, this reliable printer is a great tool for various industrial applications, including prototyping and small-scale manufacturing. Keep reading the complete review to learn about all key features of the device.

For example, it was used in pediatric cardiac surgery to print a model of a child's heart. Thanks to its dimensional accuracy and extreme similarity to the real organ, cardiologists could use it to plan a delicate heart operation with care.

The printer has been widely used by designers to create custom embellishments for the fashion and textile industry.

Specifications:

• Print quality
• Materials
• Build volume
• Printer controls
• What’s in the box
• Look and feel
• Price

Print quality

The Sinterit Lisa Pro is an SLS 3D printer that can print layers at 75 microns. This way you can produce parts with smooth exterior surfaces. The robust, high-precision hardware along with a responsive, performance software delivers accurate prints with an excellent finish and high dimensional stability.

Materials

The list of compatible materials for this SLS 3D printer includes different variations of polyamide powders (PA), flexibles like TPE/TPU, FLEXA, and some more special materials like polypropylene (PP). Overall, the Lisa Pro produces high-quality parts characterized by unique properties with over nine compatible materials. Check this page to learn what proprietary Sinterit materials are available at the moment. The Sinterit Studio software provides all the recommended printing settings so you are free to change materials according to your needs without trouble — the pre-defined parameters make it easy and hassle-free.

The SLS 3D printing machine works with 20–100 micron powder and has an open materials system, which means it supports not only dedicated materials but also third party materials as well. The nitrogen supply into the build chamber creates a special environment that makes the printer compatible with a wider range of materials — discover unique properties of various options and achieve personalized shapes to meet the requirements of your innovative projects. The printer's maximum printing temperature is 392 °F (200 °C).

Build volume

The build voume of the machine is 4.3 x 5.9 x 9.8 inches (110 x 150 x 250 mm) for the Flexa/TPE and 3.5 x 5.1 x 9 inches (90 x 130 x 230 mm) for the PA materials. Such a print bed and layer height Z allow you to print fairly large models in one single piece.

Printer controls

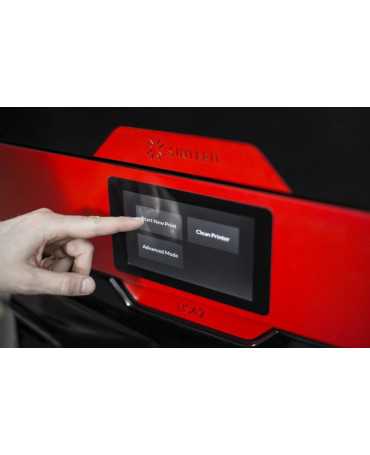

The printer operates as a standalone device — you can directly control it and manage printing parameters through the built-in touchscreen. Easy-to-use and navigate, it allows operating the machine with ease, letting you start your print jobs in no time. The printer can also be tethered to an external device via USB.

3D models can be printed from computer via Wi-Fi and USB port. They can also be transferred via a USB drive. Thanks to the printer's built-in camera, you can constantly have an eye on your 3D models while printing.

The printer software, Sinterit Studio, is available in different versions. Lisa Pro features a renewed version compared to the original model, with enhanced user experience and increased automation. It allows easily preparing and arranging the models in the build area. It also enables monitoring the print status in real-time. The software works with 3D models in a variety of common 3D formats. It is available for Windows.

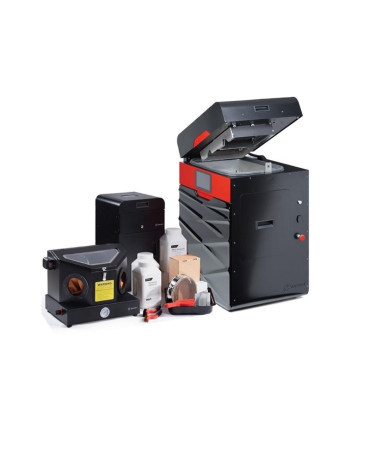

What's in the box

• Lisa Pro 3D printer
• Plate for carrying the prints
• Molds to cool prints
• Powder trowel
• Plastic, measuring cup
• Metal strainer
• Sinterit mug
• Sinterit Studio User Manual
• Sinterit LISA Pro User Manual
• Spatula for getting out the powder
• USB Flash Drive with Sinterit Studio 2019
• Ignition key
• Stylus pen
• A set of cleaning brushes
• Metal detail purifiers
• Laser protective glasses
• Pair of protective gloves
• Silicone grease
• Ethyl alcohol
• Power cable
• Set of plastic spatulas
• Spare Recoater wire
• Protective dust mask

For some items, package content may change. In case of any questions, please get in touch.

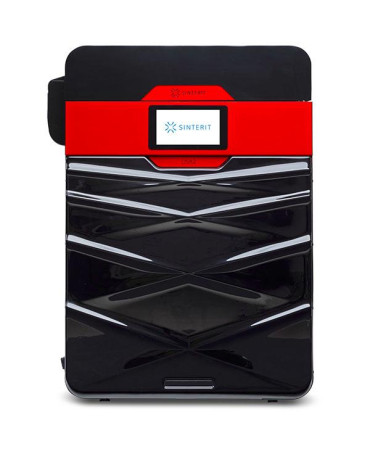

Look and feel

The Sinterit Lisa Pro is available in black. Its stylish look makes it ideal for digital crafting, rapid manufacturing, and design testing.

The printer dimensions are 27.2 x 19.7 x 34.6 inches (690 x 500 x 880 mm). It weighs 198 lb (90 kg).

Price

To learn the current price of the 3D printer, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
