The Sinterit Lisa Professional Printing Module is a complete system for producing high-quality 3D prints that contains the Lisa SLS 3D printer and a set of add-ons along with dedicated tools. The bundle is aimed at increasing the convenience in work with the machine as well as the overall functionality of the system.
The Sinterit Lisa is a professional SLS 3D printer perfect for making large-scale prototypes and movable parts both for small entrepreneurs and 3D printing enthusiasts. The elaborated system allows you to print high-resolution models with no support structures. Due to these smart features, the machine is great for a variety of purposes.
The Sinterit Lisa is a cost-effective and reliable solution when it comes to the SLS technology. With the intuitive UI of the Sinterit proprietary software, it is possible to automate the process and still get high-quality results in prototyping and functional parts printing.
Credit: @3deasyprintch / Instagram

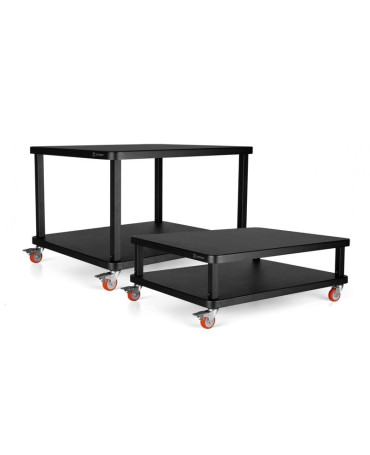

The Sinterit Platform is an adjustable structure with rubber wheels that is designed to provide ergonomic workspace by giving access to all the essential devices in the printing process. Stable and robust, the platform ensures reliability and convenience coupled with the easy transportation of the bundle’s components.
This essential toolkit is meant to make working with SLS powders simpler, cleaner, and safer. The set includes tools and accessories associated with personal protection, powder management, and post-processing. It includes a variety of spatulas and brushes, a scoop, measuring cup, trowel, IO box, foldable tray, funnel, binder, a service kit, and other tools, as well as protective glasses, gloves, a mask, and even a T-shirt.

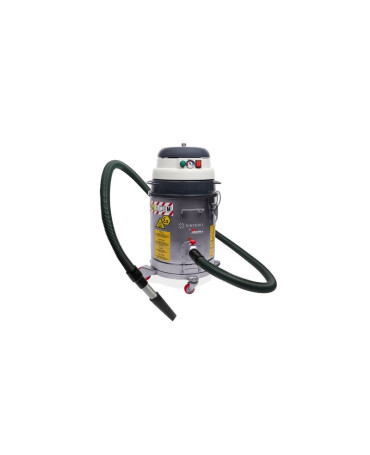

The Sinterit ATEX Vacuum Cleaner will be of great use when having to clean and collect unsintered powder. The device has a compact size yet rather a large capacity of 12 liters, which makes it extremely convenient. Thus, powder cleaning and recovery become easy, fast, and more effective.
The Sinterit Powder Handling Station serves as a supporting device for depowdering, sieving, cleaning, and powder refreshing. It features a sieving module, powder separator, three drawers, a flexible 2 m suction hose, special vacuum inlets, LED lighting, and 20 L metal powder container, which makes it a complete solution for powder management. The two mounting heights of the separate shelf are dedicated for both Sandblaster and Sandblaster XL, which makes the post-processing of prints even more convenient.

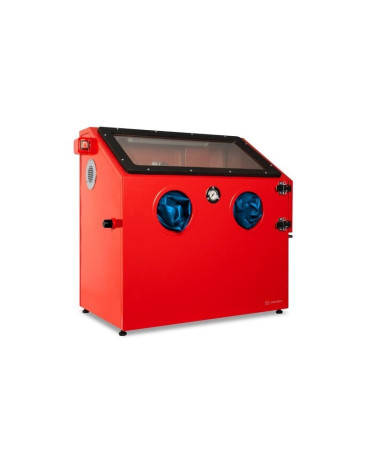

An upgraded and enlarged version of the Sinterit Sandblaster, the XL iteration boasts a working area of 675 x 450 x 415 mm, LED-illuminated camera, and two working modes — it is possible to use a handheld blaster or a fixed nozzle. With dry abrasive material, you can clean small lines and gaps and polish the surface, adjusting the airflow with a pedal to manipulate the object freely with both hands. Thanks to the five ceramic nozzles of different diameter, the device supports a wide range of abrasives. All that makes it a perfect device for post-processing SLS prints.

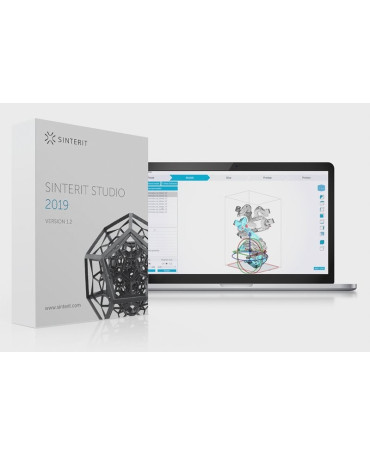

The bundle comes with the proprietary Sinterit Studio software — a highly efficient tool for slicing and preparation of 3D models for printing. The program features a plethora of smart functions such as auto nesting, collision detection, scale and temperature modification. It also has pre-defined profiles for PA12 Smooth and Flexa Grey Sinerit materials.
|
Technology |
SLS |
|
Connectivity |
USB cable |
|
Display |
4 inches, LCD |
|
Laser Class |
Class IV infrared laser, 5w, 808nm |
|
Max heated bed temperature |
190 °C |
|
Operating systems |
Windows, macOS, Linux |
|
Outer dimensions |
650 x 550 x 400 mm |
|
Printable materials |
PA12 powder, TPU powder |
|
Slicing |
Sinterit Studio |
|
Weight |
35 kg |
|
Build volume |
150 x 200 x 150 mm |
|
Min layer thickness |
75 μm |
|
Dimensions |
550 x 740 mm |
|
2 leg heights |
240 / 440 mm |
|
Weight |
25 kg |
|
Max. load capacity |
100 kg |
|
Wheels |
50 mm rubber wheels with brakes |
|
Material |
Powder-coated steel |
|
Dimensions |
440 x 420 x 780 mm |
|
Weight |
25 kg |
|
Power |
1.1 kW |
|
Voltage |
230 V AC, 50/60 Hz or 110 V AC 50/60 Hz |
|
Noise level (EN ISO 3744) |
77 dB(A) |
|
Max. air flow (rate) |
215 m³/h |
|
Suction inlet |
50 mm |
|
Filter type |
Star, M class filtration |
|
Capacity of the collection unit |
40 L |
|
ATEX zones |
Z22 or INTERTEK certification |
|
Dimensions |
700 x 1000 x 1800 mm |
|
Weight |
160 kg |
|
Space of installation |
1700 x 2200 x 1800 mm |
|
Voltage |
230 V AC, 50/60 Hz or 110 V AC 50/60 Hz |
|
Power supply |
110/230 V AC, 12 V DC 6.67 A, 80W |
|
Compatible with |
Sandblaster, Sandblaster XL, and ATEX Vacuum cleaner |
|
Dimensions |
760 x 500 x 720 mm |
|
Weight |
27 kg |
|
Working pressure |
5.0–8.6 bar (72.5–125.0 psi) |
|
Working area |
675 x 450 x 415 mm |
|
Max. abrasive material capacity |
10 kg |
|
Illumination power |
6W |
|
Compatible with |
ATEX Vacuum Cleaner |
|
OS |
Windows 7+ (64-bit Edition) |
|
RAM |
2 GB or more |
|
Hard disk |
1 GB or more |
|
GPU |
Compatible with OpenGL 3.0 or higher |
The price of the Sinterit Lisa Professional Printing Module is $28,670.00, which is reasonable considering its functionality, smart features, and efficient tools.
