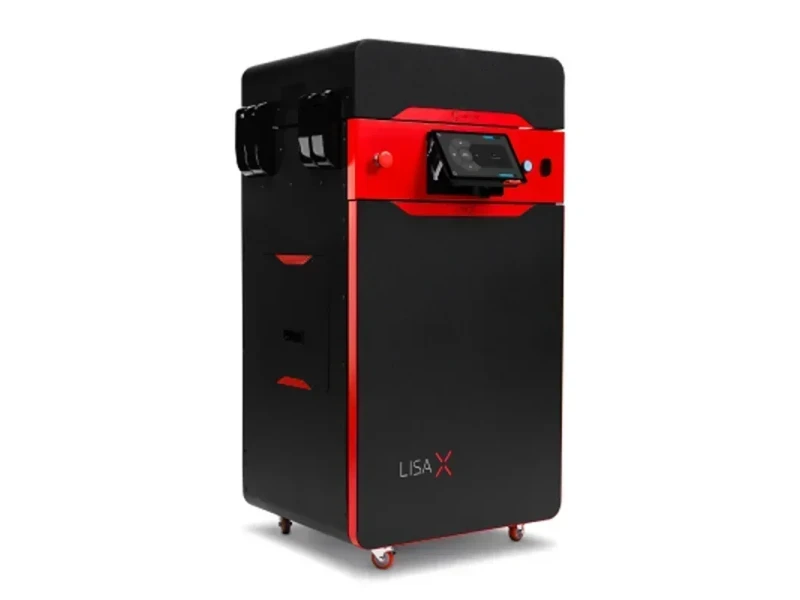

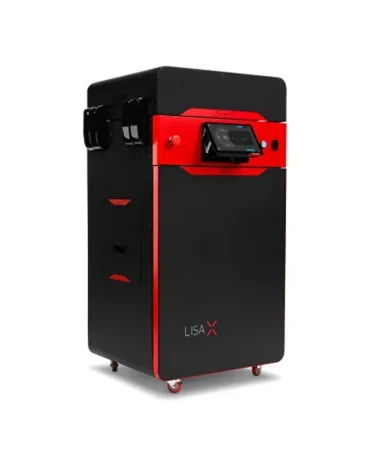

Sinterit Lisa X 3D printer

Available on backorder
Fast and compact SLS 3D printer
  • High build speed
  • Excellent print quality
  • Wide material range
  • Cost-effective solution
When purchasing with us you get:
  • Favourable PO Terms
  • 1 Year Warranty
  • Local U.S. Support
  • FREE training
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This 3D printer comes with:
  • IO box
  • New foldable tray
  • Spare recoater wire
  • Personal protection tools
Price: $21,990.00
The estimated lead time is 3-4 months.

The Sinterit Lisa X is a brand new iteration in the Lisa series of professional compact SLS 3D printers. The machine allows you to multiply your production by taking advantage of the dramatically increased print speed and enlarged build volume, as well as numerous smart features to enhance the performance of the device.

The revolutionary speed and outstanding powder refresh ratio of the Lisa X make for optimal printing costs, while ergonomic operation ensures excellent user experience and streamlined workflow. The printer features fast cooldown, simple material change, responsive display with user-friendly interface, as well as a complete slicing solution with many advanced functions. The powerful 30W laser along with a galvo scanner make it possible to achieve detailed, high-quality outputs in a short time, which results in a great return on investment and allows you to focus on checking and reinventing your ideas much faster.

The Sinterit Lisa X is designed mainly for (functional) prototyping and small to medium manufacturing in a variety of industries. The device is a perfect tool for designers, engineers, small and medium-sized businesses, and everyone who is ready to work with professional 3D equipment. Also, it is great for education and advanced R&D.

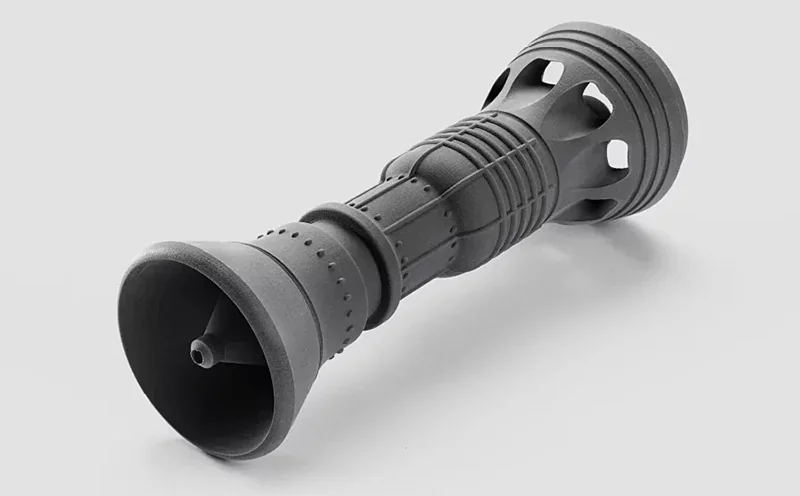

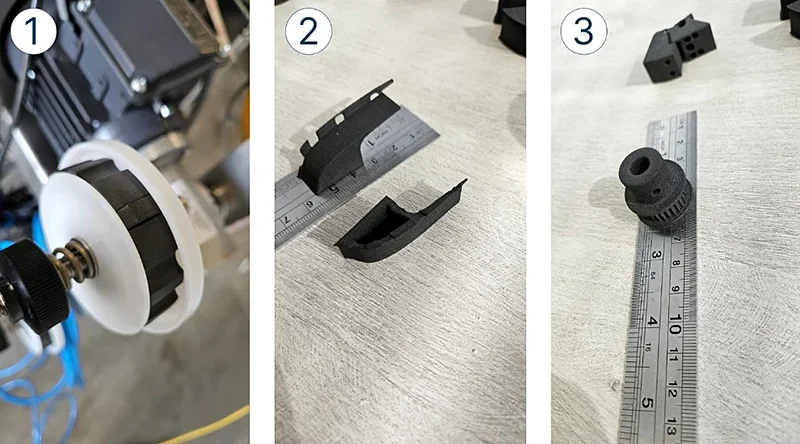

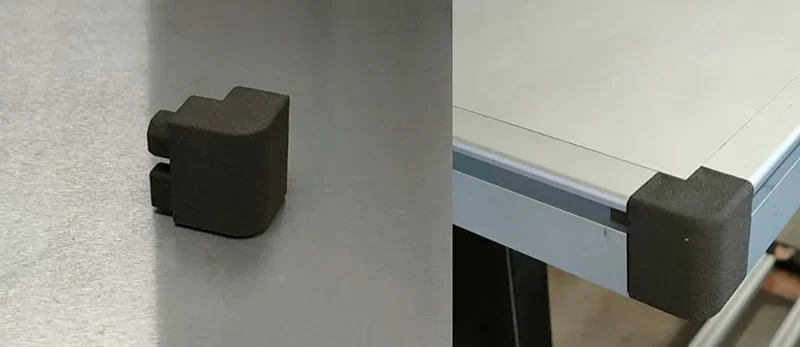

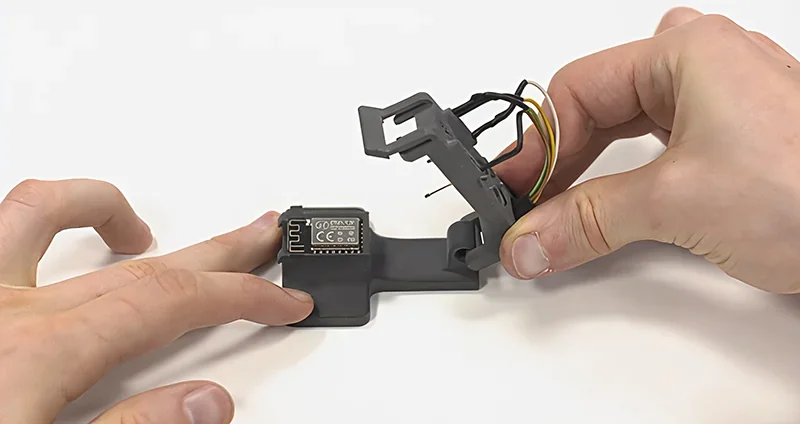

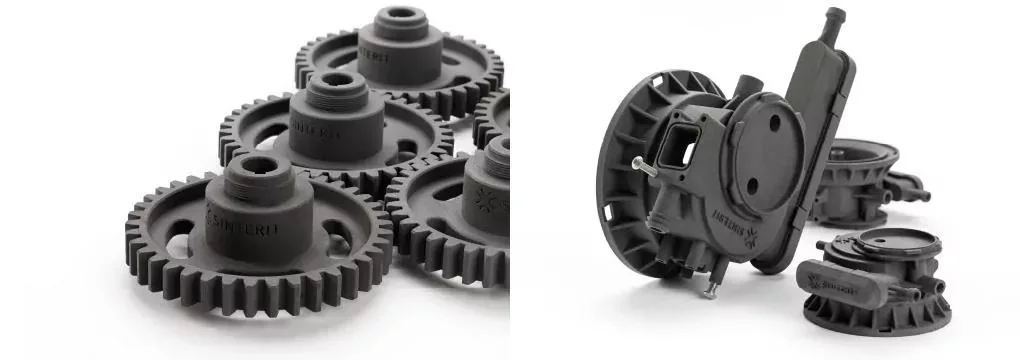

a black model printed on the Sinterit Lisa X

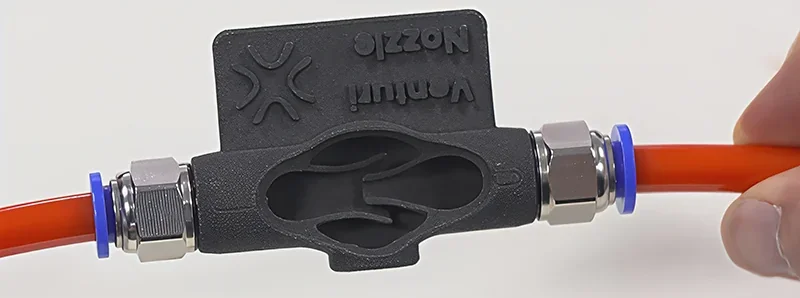

a black model printed on the Sinterit Lisa X

Look through the following table to compare the specs of the Lisa X with other products by Sinterit.

Parameter

Lisa

Lisa PRO

Lisa X

NILS 480

Build volume

110 x 160 x 155 mm



4.3 x 6.3 x 6.1 in

110 x 160 x 245 mm



4.3 x 6.3 x 9.6 in

130 x 180 x 330 mm



5.1 x 7.1 x 13.0 in

200 x 200 x 330 mm



7.9 x 7.9 x 13.0 in

Max. print diagonal

248 mm



9.8 in

313 mm



12.3 in

398 mm



15.7 in

435 mm



17.1 in

Print speed

3 mm/h

3 mm/h

10-14 mm/h

10-14 mm/h

Laser type

IR 5 W

IR 5 W

IR 30 W

IR 30 W

Wavelength

808 nm

808 nm

976 nm

976 nm

Layer height

0.075–0.175 mm



0.003–0.006 in

0.075–0.175 mm



0.003–0.006 in

0.075–0.175 mm



0.003–0.006 in

0.075–0.175 mm



0.003–0.006 in

Scanning type

XY

XY

Galvo

Galvo

Laser spot size

400 μm



0.0157 in

400 μm



0.0157 in

650 μm



0.0256 in

560 μm



0.0220 in

Feed bed capacity

3.4 L

5.2 L

14 L

30 L

Inert gas control system

-

Automatic Powder Distribution System (APDS)

-

-

-

Continuous Printing System (CPS)

-

-

-

Outer dimensions

620 x 400 x 660 mm



24.4 x 15.8 x 26.0 in

690 x 500 x 880 mm



27 x 20 x 35 in

650 x 610 x 1200 mm



25.6 x 24.0 x 47.2 in

1200 x 1200 x 1750 mm



31.5 x 47 x 69 in

Weight

44.0 kg



96.8 lbs

90 kg



198 lbs

145 kg



330 lbs

300 kg



660 lbs

Display

4" interactive touchscreen

7" interactive touchscreen

9" interactive touchscreen

15.6" interactive touchscreen

Software

Sinterit Studio

Sinterit Studio

Sinterit Studio

Sinterit Studio 2

Connectivity

WiFi, USB

WiFi, USB

Ethernet, WiFi, USB

Ethernet, WiFi, USB



Print quality

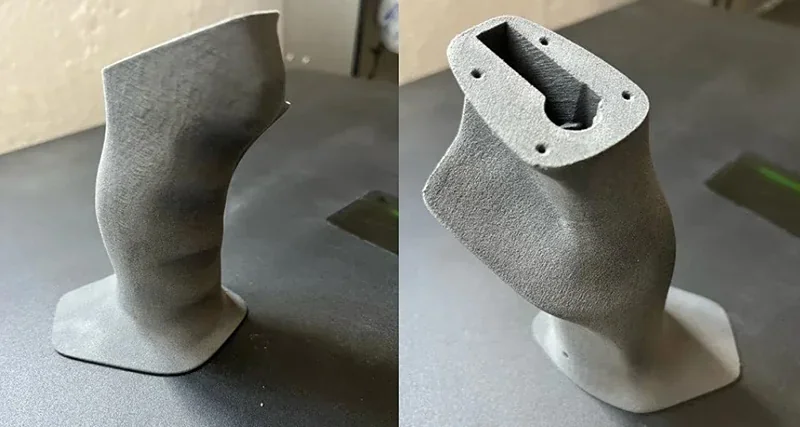

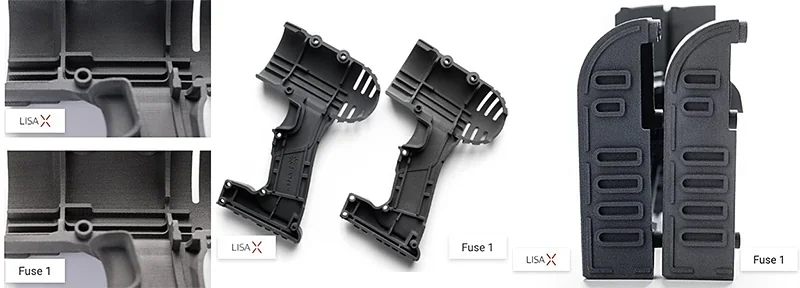

The Sinterit Lisa X is an SLS 3D printer that can print layers at 75 microns, allowing you to produce parts with smooth exterior surfaces. The printout quality provided by the machine features high precision and dimensional stability even in parts characterized by complex geometry, no support structures needed.

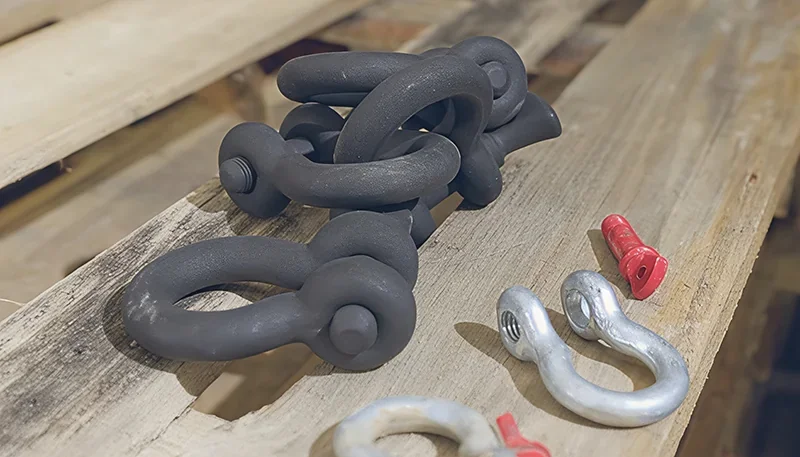

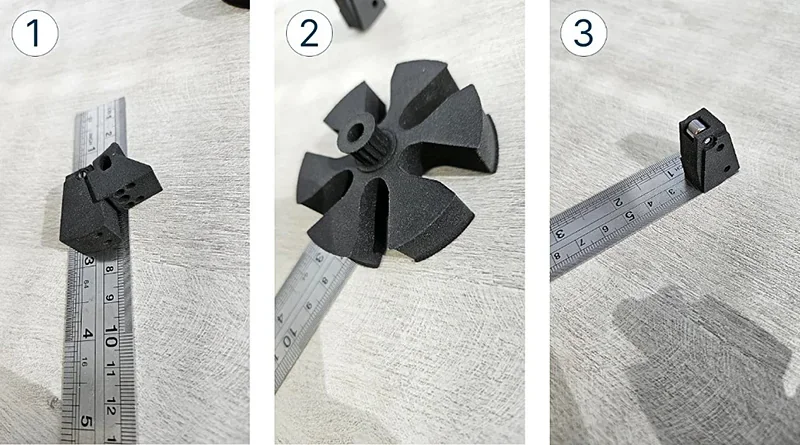

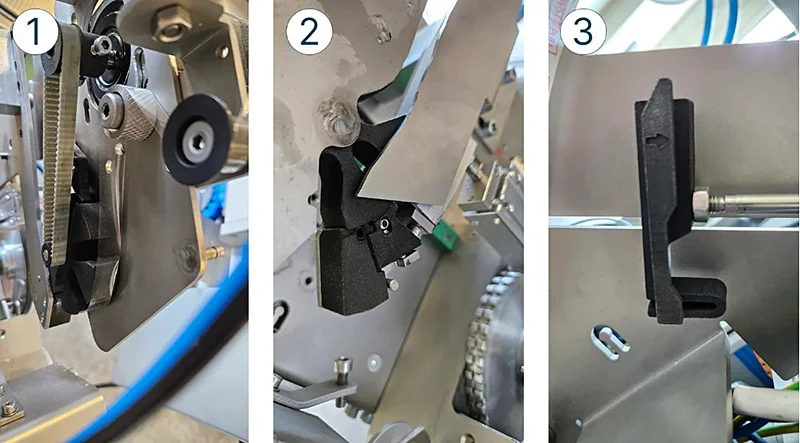

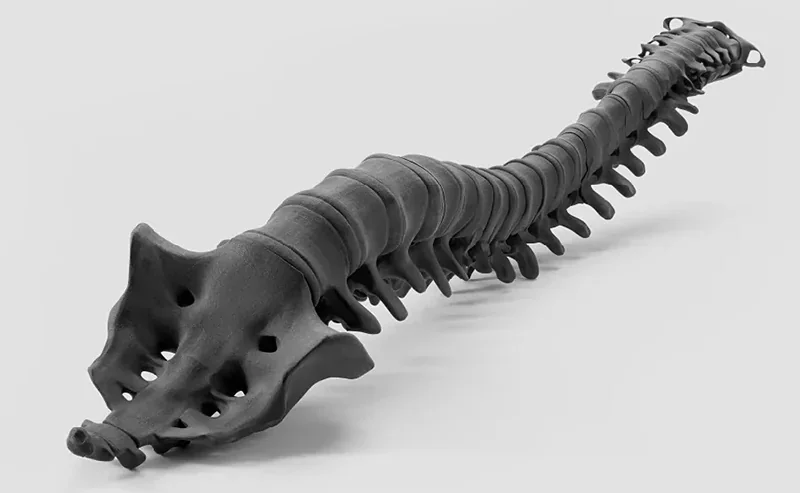

a different black model printed on the Sinterit Lisa X



Materials



NILS 480

LISA X

LISA PRO

LISA

Standard



PA12 Smooth

2/6 kg

PA11 Onyx

2/6 kg



Performance



PA11 CF

2/6 kg



PA11 ESD

2/6 kg

On demand

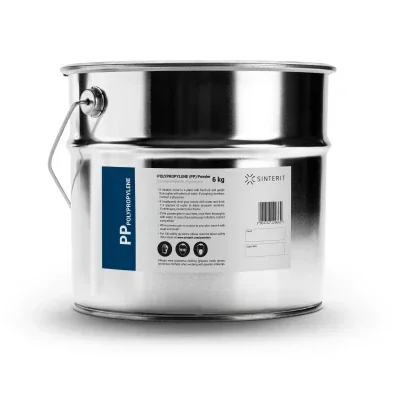

PP

6 kg

On demand

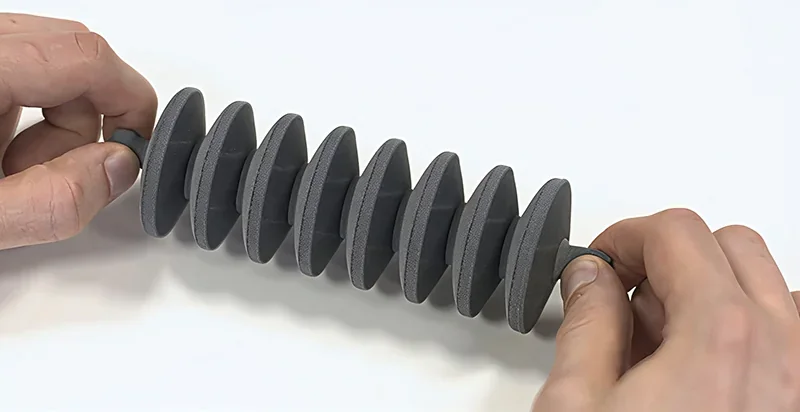

Flexible



TPE

2 kg

On demand



Flexa Bright

2 kg

On demand



Flexa Soft

2 kg

On demand



Flexa Grey

2/6 kg

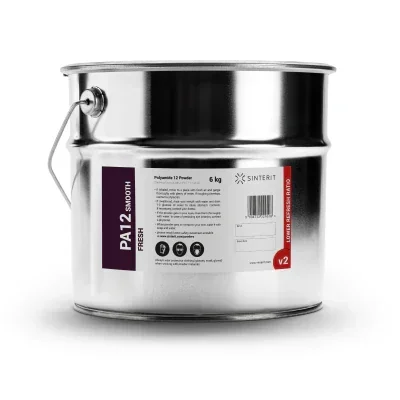

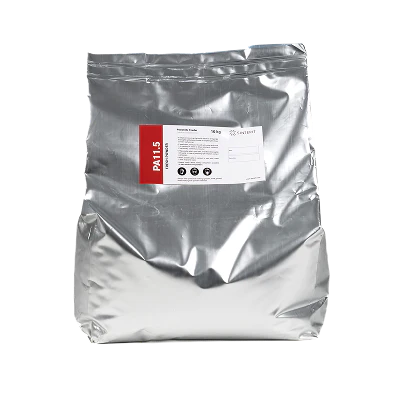

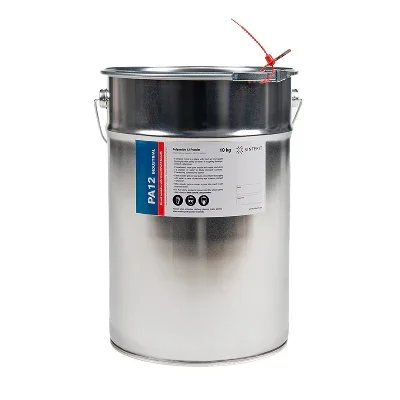

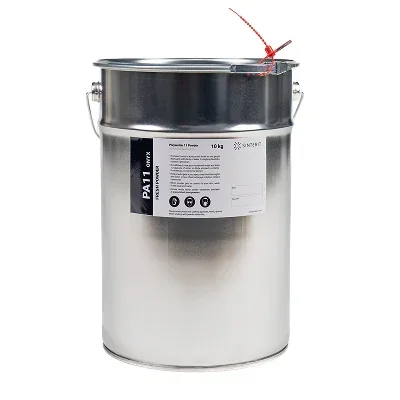

The Lisa X works with all Sinterit proprietary materials and supports third-party polyamide powders. The use of the proprietary consumables is more efficient due to the profiles included in the printer software, which can, however, be edited. It is possible to adjust more than 50 printing parameters to achieve perfect results. The Sinterit Studio software also allows you to create profiles for third-party materials.

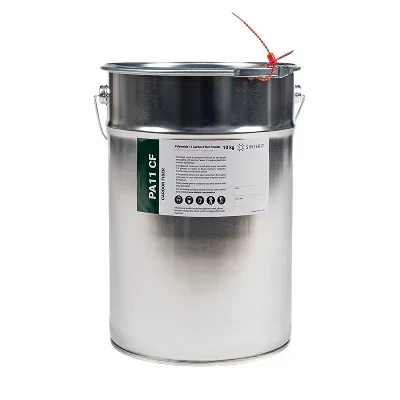

a different print materials used on the Sinterit Lisa X



Build volume

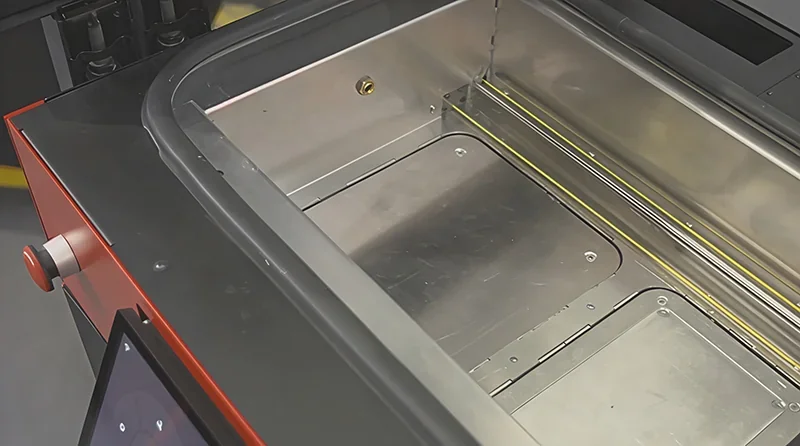

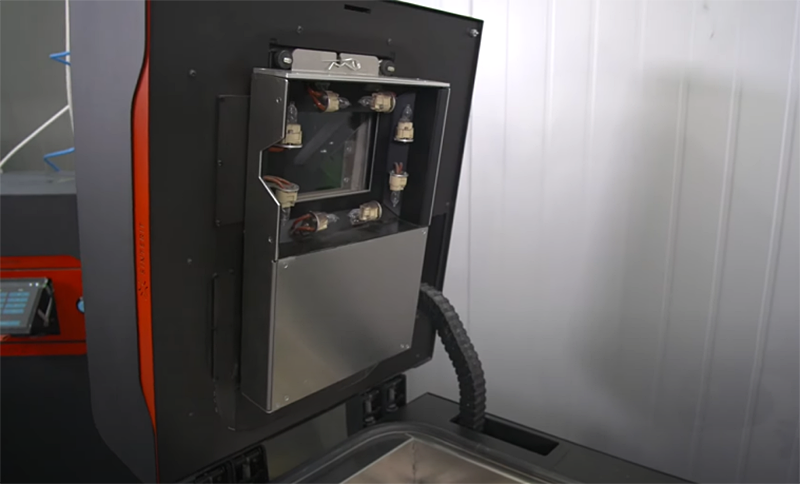

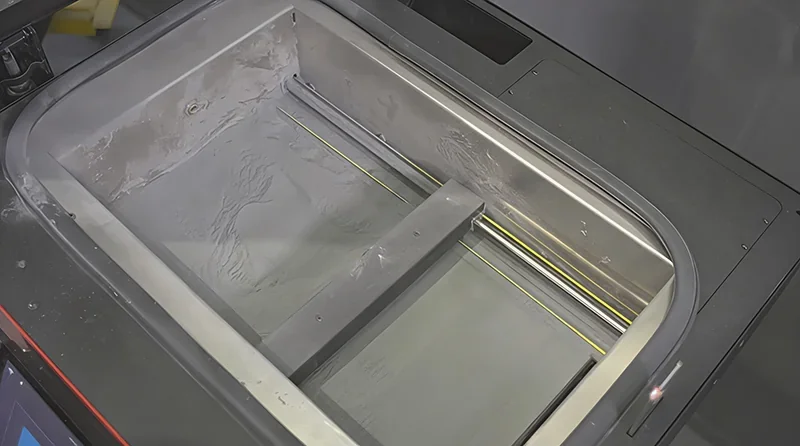

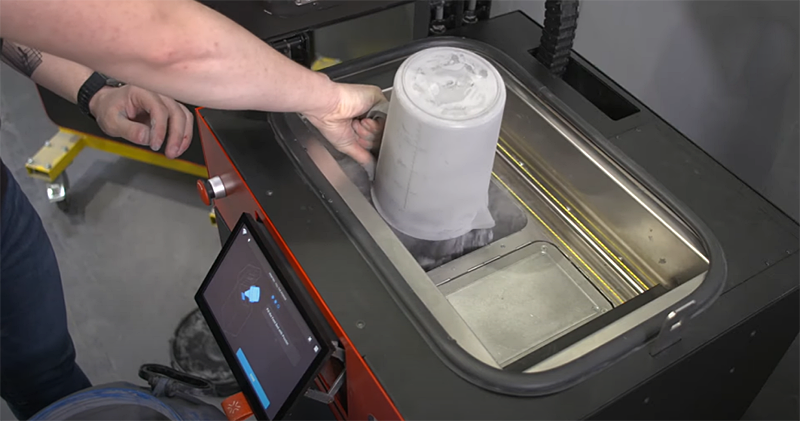

a build volume on the Sinterit Lisa X

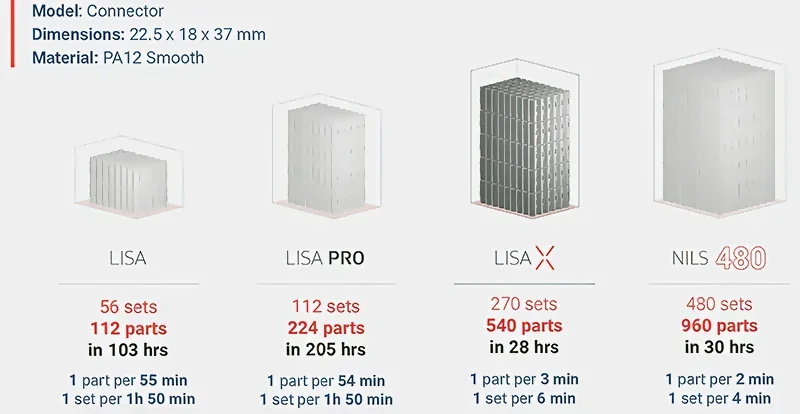

The build area of 5.1 x 7.1 x 13.0 inches (130 x 180 x 330 mm) lets you print fairly large objects or numerous smaller parts in one go. Coupled with the print speed of 14 mm/h, this makes it possible to produce, for instance, 540 parts or 270 sets of connectors in 28 hours (1 part per 3 minutes, 1 set per 6 minutes).

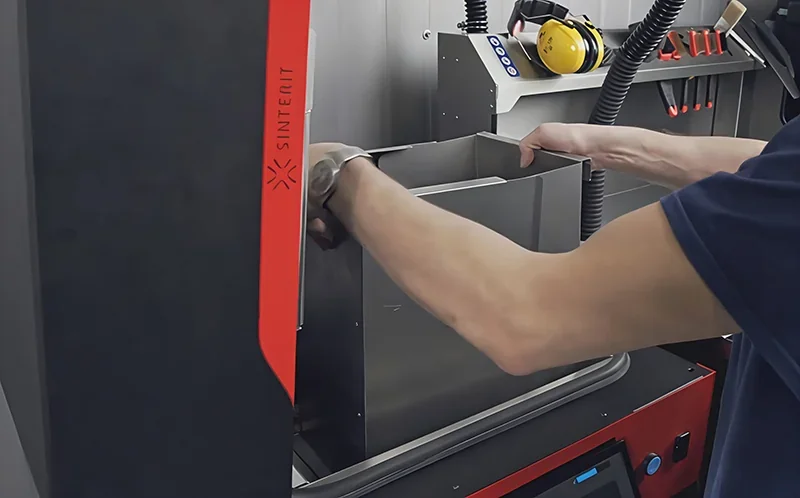

a build volume on the Sinterit Lisa X



Printer controls

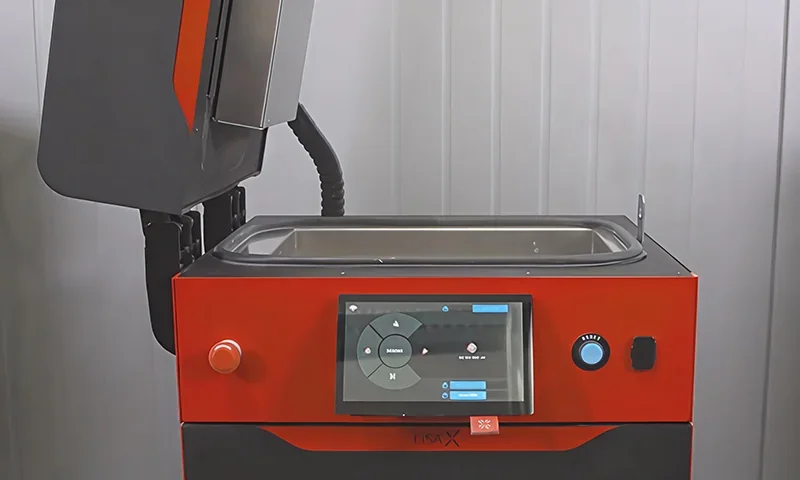

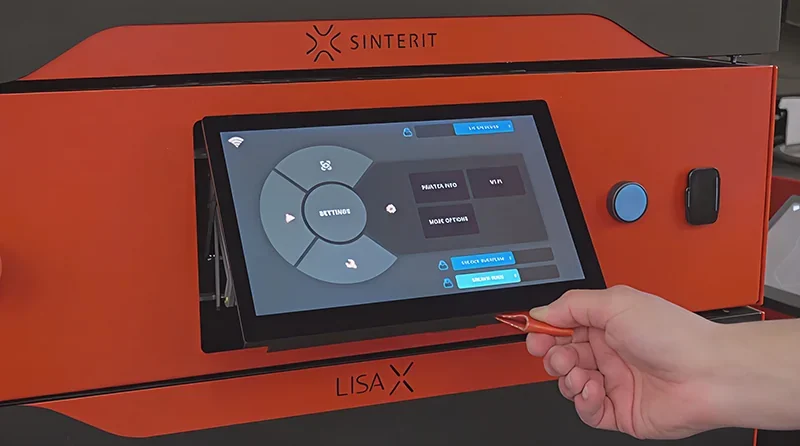

The printer can be controlled via PC or its 7-inch interactive touchscreen with an easy-to-understand interface. You will be able to manage the printing process with ease at the first use.

a touchscreen on the Sinterit Lisa X

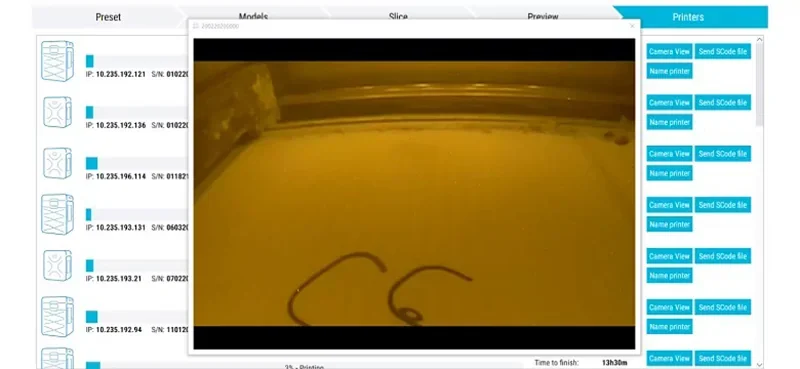

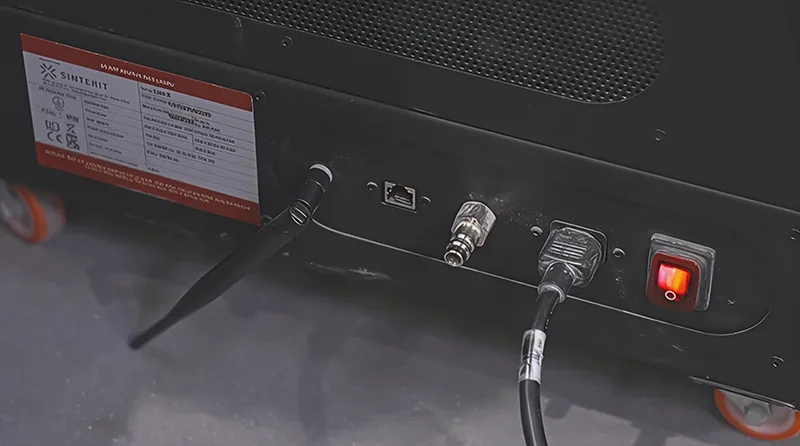

3D models can be printed from a computer via USB or Ethernet connectivity being also included.

a 3D models can be printed from a computer via USB on the Sinterit Lisa X

The Lisa X uses the proprietary Sinterit Studio slicing software that boasts plenty of functions to control the parameters for printing, including temperature, model scale, laser power and movement, warmup and cooldown, and many others. The software works with 3D models in a variety of common 3D formats. It is available for Windows 10 and above.

a Sinterit Studio slicing software on the Sinterit Lisa X

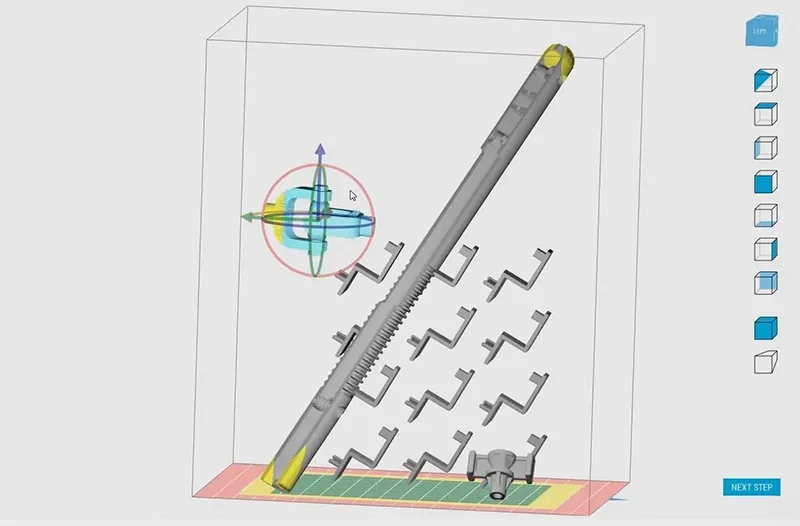

The unique Auto Nesting solution built into the software ensures the optimal arrangement of parts to be printed.

a unique Auto Nesting solution build on the Sinterit Lisa X

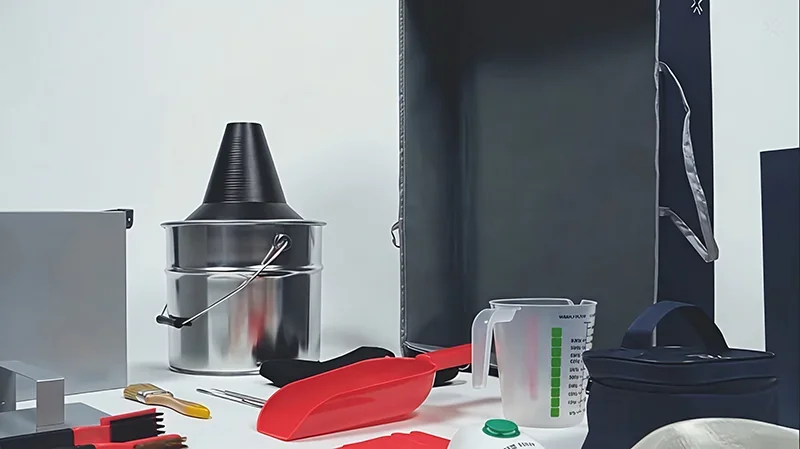

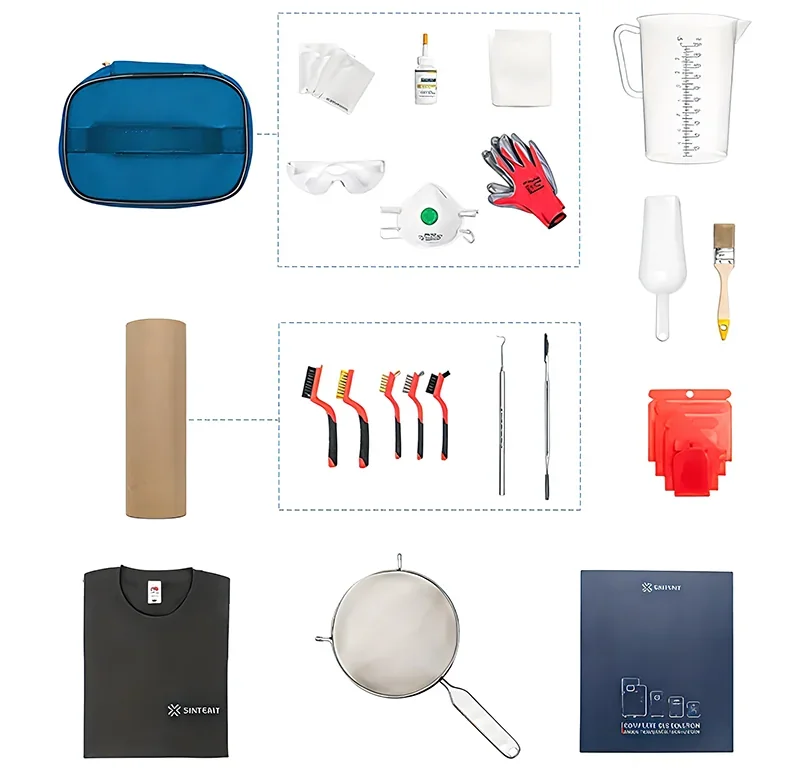

What’s in the box

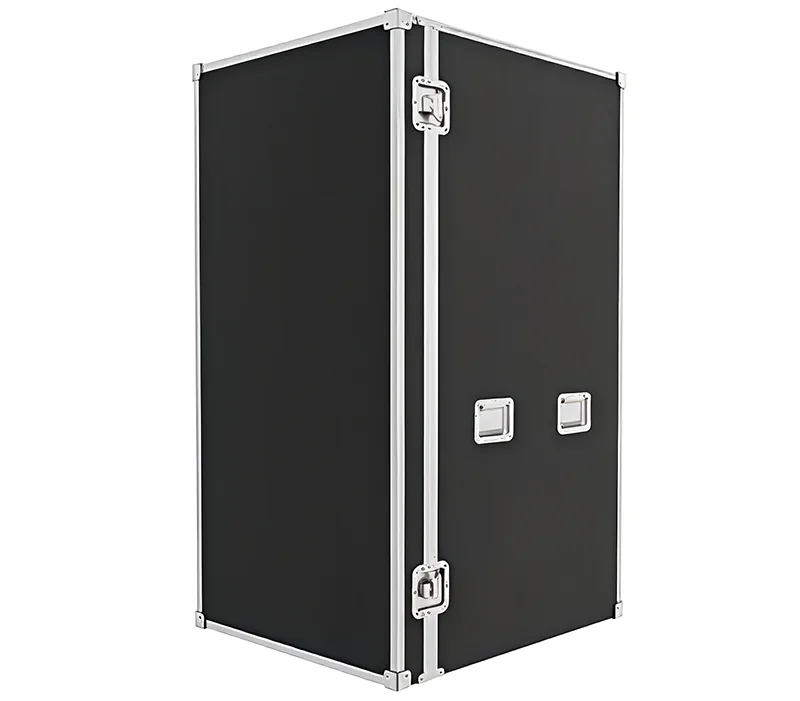

Sinterit Lisa X box

  • Sinterit Lisa X 3D printer
  • IO box
  • Trowel
  • Foldable tray
  • Funnel
  • Binder
  • Powder management tools
  • Personal protection tools
  • Post-processing tools
  • Maintenance kit
  • Spare recoater wire
  • USB drive with Sinterit Studio software
  • Power cable
  • User manuals

For some items, package content may change. In case of any questions, please get in touch.

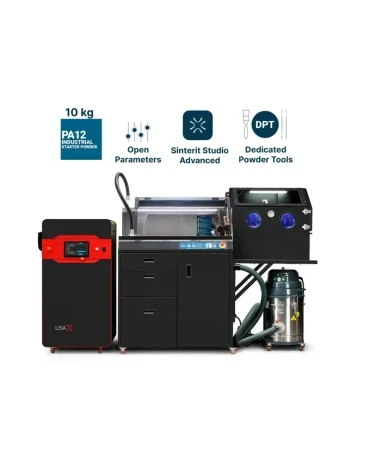

Apart from the basic set, Sinterit offers peripheral equipment (purchased separately as add-ons or as a complete set with the printer) to enhance operation and user experience. This includes:

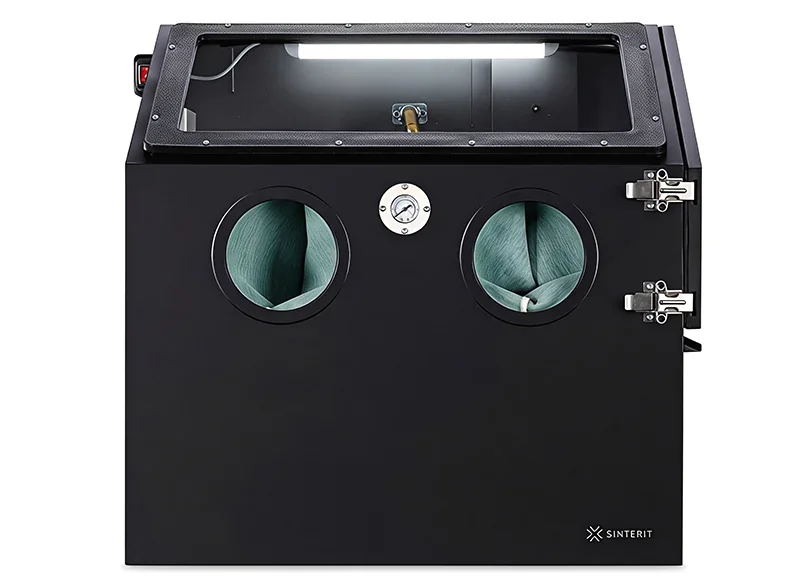

  • Powder handling station
  • Sandblaster SLS

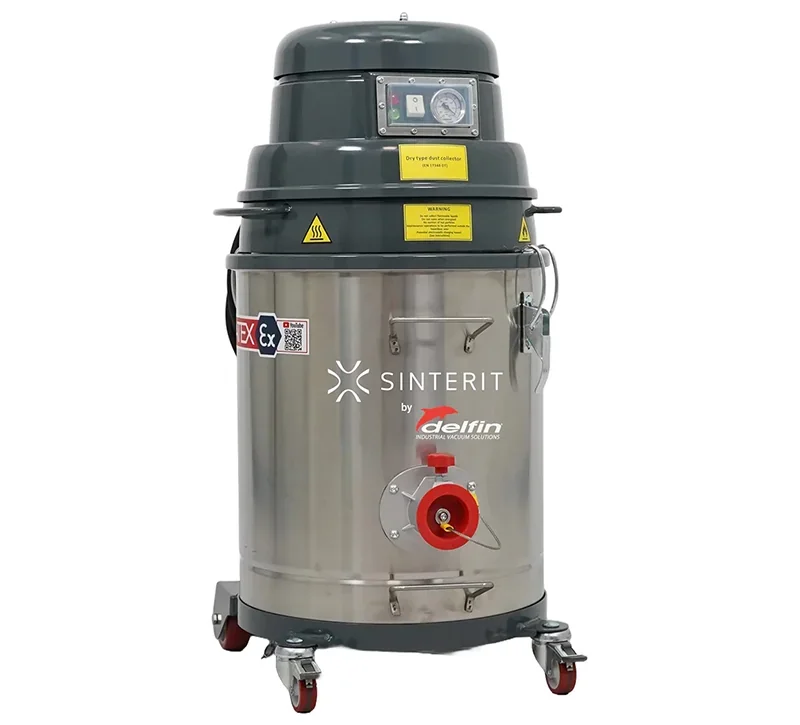

  • Intertec vacuum cleaner
  • Platform

Sinterit Lisa X kit

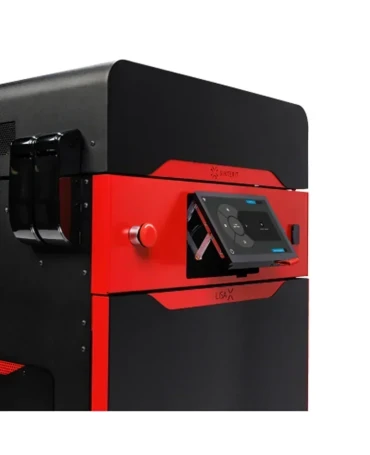

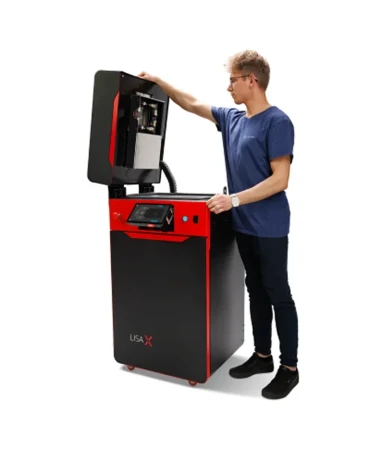

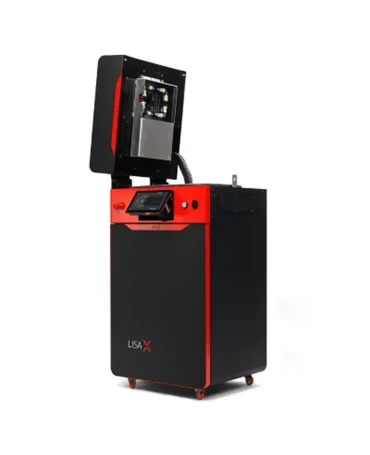

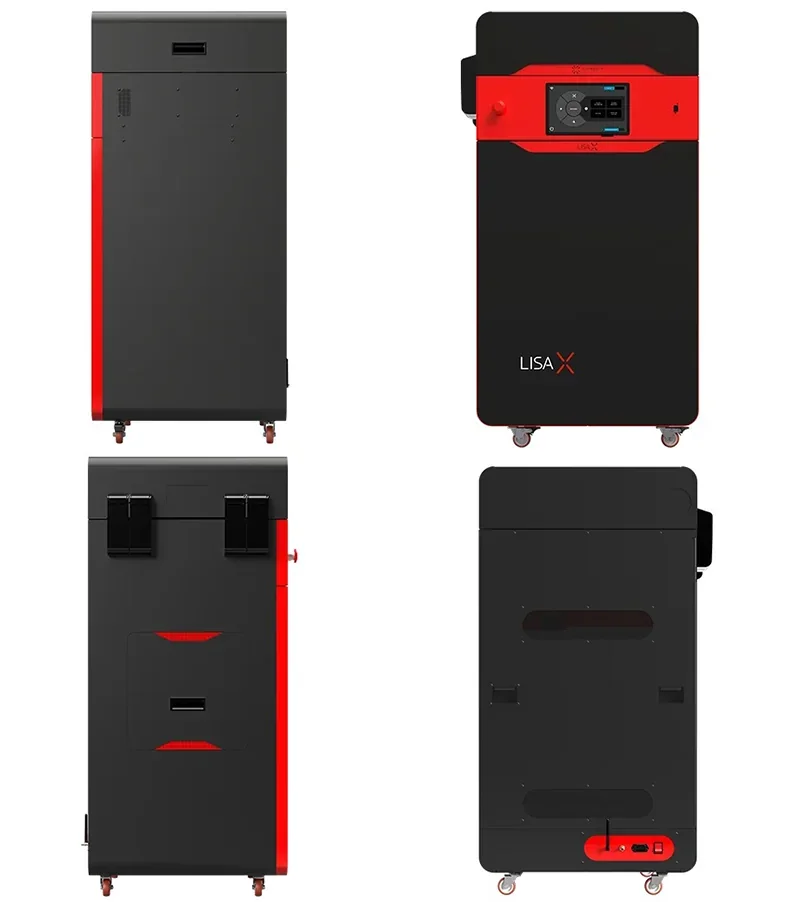

Look and feel

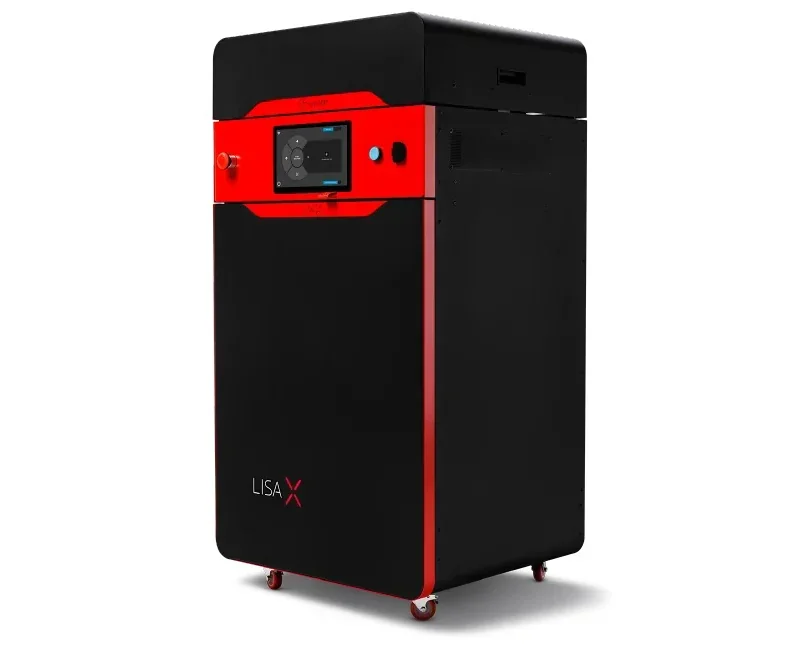

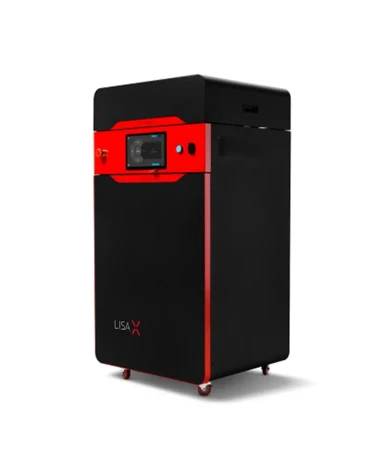

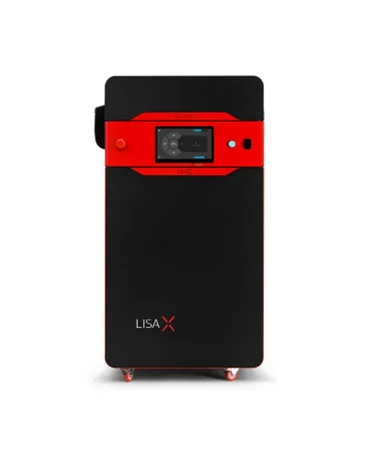

Sinterit Lisa X

The Sinterit Lisa X is available in black with red trimmings. Its stylish look will decorate any type of workshop.

The printer dimensions are 25.6 x 24.0 x 47.2 inches (650 x 610 x 1200 mm). It weighs 330 lb (150 kg).



Price

The price for the Sinterit Lisa X is $21,990.00, which is reasonable considering its functionality.
