Thor3D Original Calibry 3D Scanner

Calibry is a professional, handheld 3D scanner for industry use. It has been developed by the Russian Thor3D manufacturer. It adopts structured white-light technology for eye-safe use and accurate results. The scanner employs patented texture cameras for capturing colors. Calibry is small and fast like a hummingbird, so its name invokes images of Colibri for good reason. It is inexpensive, ergonomic, and lightweight 3D scanner. You can easily use it just after unboxing and take it with you anywhere. It has been designed to accurately scan small objects and yet it works just as great with medium and large objects covering the range from 20 cm to 10 m.

As an alternative, check the Calibri Mini model: this hand-held 3D scanner from the same manufacturer is designed to digitize small objects (from 2 cm to 30 cm in length).

The Calibry model produces industrial-grade, full-color 3D scans through simple operation: just point and scan. It is also able to capture traditionally tricky objects, such as hair, sharp edges, dark and shiny objects, etc. This modular device offers three different tracking modes: texture, geometry, and markers. Texture tracking is recommended for objects with little geometry but ample contrasting textures, especially antiques or museum artefacts. The geometry tracking mode can be used for scanning body parts or objects, and the marker tracking mode for capturing anything with a smooth, shiny or transparent surface, such as a car.

It is equipped with the manufacturer's proprietary camera for quality results and lower production costs. It includes in-house powerful software and a built-in touchscreen with a real-time preview for seamless 3D scanning and post-processing experience. The scanner comes pre-calibrated. Nevertheless, the company provides a calibration board for any further calibration. Calibry can be used by engineers, medical professionals, designers, universities, artists, and more. Keep reading for a thorough review.

The following pics highlight the incredible accuracy and level of detail achievable by the scanner.

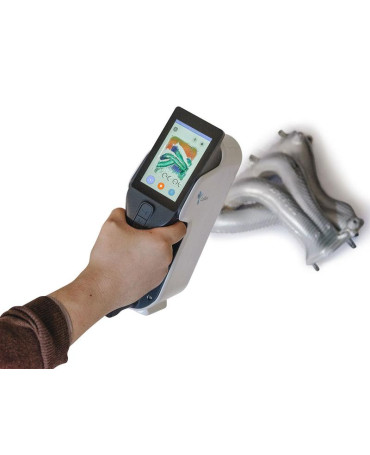

It took about 5 minutes to scan this exhaust manifold 3D-scan. After 10 minutes of post-processing, here is how it looks like.

Credit: @calibry3d / instagram

Specifications:

• Scan accuracy
• Scan volume
• Scanner controls
• What’s in the box
• Look and feel
• Price

Scan accuracy

Calibry is an industrial, handheld 3D scanner, which relies on structured light technology. It offers an accuracy of up to 0.1 mm and a point resolution of 0.6 mm, which guarantees users fast and accurate results. It is able to capture difficult objects in 3 million PPS at up to 30 frames per second. The 2.3 MP texture cameras ensure good texture resolution providing a field of view of 850 x 1100 mm and a depth of view of 45-100 cm.

The device is able to capture objects like cars, engines, human faces and make full-body scans. By using the markers, it grants high accuracy on big, featureless products.

Look at this statue of an Orthodox Priest. It has been scanned by the Calibry Team. Notice how accurate and detailed it is.

Credit: @calibry3d / instagram

Scan volume

Calibry allows scanning and digitizing products from 20 cm to 10 m in length. This wide capture range lets you easily get almost unlimited sized scan without loss of accuracy even for large-sized objects.

Scanner controls and software

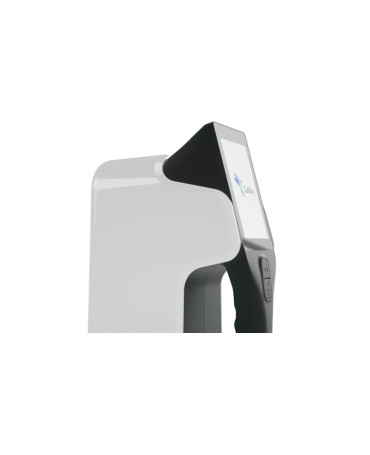

The scanner is controlled via a fitted, 4-inch touchscreen that enables simple operation and easy navigation. It works as a standalone 3D scanning device and doesn't require a computer screen to monitor the scanning process. The onboard screen immediately shows the captured images for enhanced user experience.

Calibry comes bundled with the proprietary Calibry Nest software that lets you view and edit 3D models. Basically, it takes raw data collected by Calibry and transforms it into a finished model. Being a professional software for 3D scanning and data processing, it offers a variety of advanced options for data editing. It comes with an advanced module for point cloud processing, alignment, noise removal, watertight mesh creation, sharpness adjustment, automatic model completion, and many others. Fill holes, simplify the mesh, apply texture – all of it can be done in a single program. During the scanning process, you can also adjust texture brightness, switch between geometry, texture, and marker tracking modes, and regulate sensitivity parameters to capture difficult objects.

Calibry Nest software can also be used in Simple Mode, making it perfect for inexperienced users. With such a powerful solution, nothing will stop you from executing the projects of your dreams.

What’s in the box

• Calibry 3D scanner
• Calibration board
• Proprietary software with unlimited license

For some items, package content may change. In case of any questions, please get in touch.

Look and feel

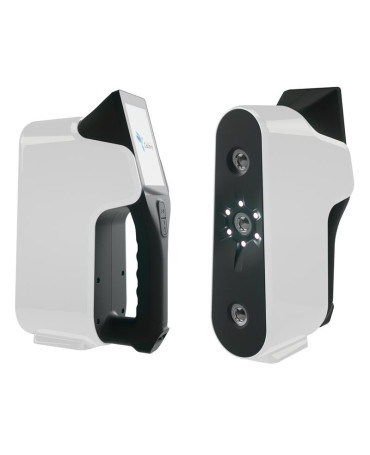

Calibry is available in a black and off-white palette. Its stylish look and versatility make it ideal for a wide range of industrial and creative applications.

The scanner dimensions are 6.5 x 3.3 x 10.8 inches (165 x 85 x 274 mm). It weighs 1.5 lb ( 0.7 kg).

Price

The price of the Calibry 3D scanner is $5,790.00, which is reasonable considering its impressive technical specifications, functionality, accuracy, and adaptability.
