Unitree Robotics Z1 Air

In Stock
Collaborative robotic arm for Unitree quadruped robots
  • Compatible with Unitree Aliengo and B1 quadrupeds
  • Compact and lightweight
  • 6 degrees of freedom
  • Variety of end effectors
When purchasing with us you get:
  • FREE training
  • 1 Year Warranty
  • Local U.S. Support
  • Delivery: FREE
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This robotic arm comes with:
  • Power supply
  • All the necessary cables
  • User manual
  • End effectors (optional)

The Chinese-based Unitree Robotics company is known for its high-performance quadruped robotic dogs. To make the quadrupeds even more functional and enhance their application range, the company has designed a collaborative robotic arm that is compatible with their two robotic dogs, namely the Aliengo and B1 models.

The Unitree Z1 robotic arm comes in two versions with the only difference in weight and maximum payload. The lighter Z1 Air model features the maximum load capacity of 2 kg and weighs 4.1 kg, while the 200 grams heavier Z1 Pro can carry 3–5 kg.

The robotic arm can be used independently or mounted on the Unitree Aliengo, B1, or other mobile robots, which significantly expands their capabilities and allows performing complex tasks. The Unitree Z1 can be equipped with interchangeable end effectors, such as a gripper, a screwdriver, suction cups, and others.

Unitree Robotics Z1 Air



Processing quality

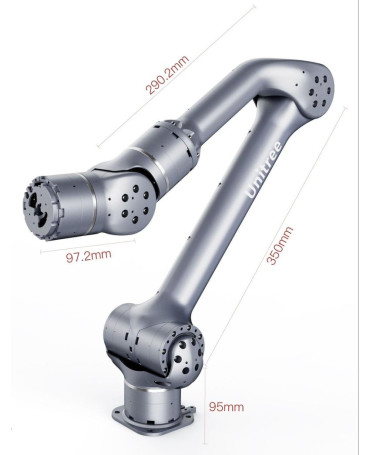

Consisting of four segments, the arm features six joints with a maximum torque of 33 Nm equipped with harmonic reducers and cross roller bearings providing reliable operation and accuracy of 0.1 mm. The maximum joint rotating speed is 180°/s.

The rotation limits of the joints are as follows: J1 ±150°; J2 ±90°; J3 ±90°; J4 ±160°; J5 ±90°, J6 ±162°.



Applications

The Unitree Z1 robotic arm can perform a variety of tasks connected with picking and sorting objects.

a applications on the Unitree Robotics Z1 Air

Being equipped with a screwdriver, the Z1 can work on the assembly line.

Being equipped with a screwdriver, the Unitree Robotics Z1 Air can work on the assembly line.

It is even accurate enough to pour you a glass of wine.

It is even accurate enough to pour you a glass of wine on the Unitree Robotics Z1 Air

Mounted on a quadruped robot, the Z1 arm becomes a mobile functional manipulator that can be employed wherever it is needed.

Mounted on a quadruped robot, the Unitree Robotics Z1 Air arm becomes a mobile functional manipulator that can be employed wherever it is needed.



Working range

The working range of the Unitree Z1 is 700 mm.

a working range on the Unitree Robotics Z1 Air



Robot controls

The Unitree Z1 runs on Ubuntu open source platform.

It supports the most simple and convenient drag-and-teach method that allows any person to operate it with ease. The effective collision protection mechanism ensures safe interaction with people.



What’s in the box

Unitree Robotics Z1 Air kit

  • Z1 Air robotic arm
  • Power supply
  • All the necessary cables
  • User manual

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

Unitree Robotics Z1 Air

The Z1 Air robotic arm is available in metal gray color. Its slick and strict design makes it an ideal companion for the Unitree robotic dogs.



Price

To learn the current price of the Unitree Z1 Air, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
