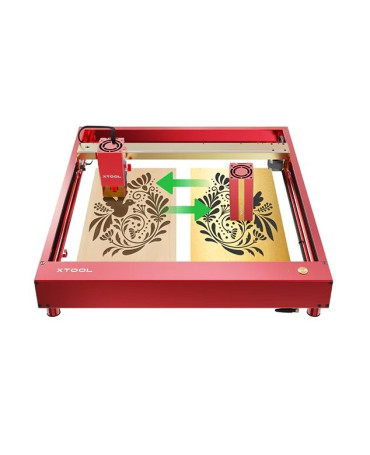

The xTool D1 Pro 20W is one of the most powerful cutting / engraving diode laser machines in the market. This DIY kit featuring a robust aluminum open-frame construction and stainless steel rollers and linear rails is easily assembled thanks to the detailed instructions. The D1 Pro 20W is equipped with a blue laser module comprising four 5 W diode lasers focused on the same spot, which provides the incredible output laser power of 20 W. A 10-mm basswood or an 8-mm acrylic plate can be cut through in one pass. In addition, the kit includes the xTool D1 Pro 1064 nm infrared laser module which works perfectly on all metals as well as plastic and acrylic surfaces.
The machine features a lightning-fast maximum speed of 400 mm/s yet providing high accuracy of up to 0.004 in. Four limit switches on both axes prevent the laser head from hitting the frame and allow setting the machine’s home position and working with absolute coordinates. To ensure safe operation, the D1 Pro is equipped with a flame detector and a shake sensor. For better protection, you can buy an optional protective enclosure.
There are a lot of possible applications for the xTool D1 Pro limited only by your imagination.
Credit: @the_bearded_artisan / Instagram
Credit: @armoryunlimited / Instagram
The xTool D1 Pro can work with a wide range of materials. The blue laser module can be used to cut most kinds of wood, including plywood and composite, paper and cardboard, cork, acrylic, leather, and others. All these materials can be engraved as well. Besides, the blue laser can engrave coated metals, stainless steel, plastic, marble, stone, ceramic tiles, glass, and more. You can find the optimal material settings on the manufacturer’s website.
The infrared 1064 nm laser module is ideal for engraving on all metals, including platinum, gold, silver, titanium, copper, zinc, aluminum, stainless steel, and others. This makes it an invaluable tool for a jewelry business. The infrared laser also performs great on plastic and acrylic materials, leaving no burn marks.
The working area of 430 x 390 mm allows you to implement large-scale design projects or to engrave multiple smaller patterns at a time which can be extremely helpful for small businesses.
The maximum workpiece height of 50 mm can be increased with the use of optional risers. Each riser set adds 45 mm to the maximum height.
On the right side of the machine frame there is a power and a USB port and a power switch. On top of the front panel you will find a start / stop button and a light status indicator.
The machine is equipped with an easy and convenient focus adjustment mechanism using the lever on the laser module. Besides, you can further lower the laser head when cutting thick materials to achieve the optimal focal length and the maximum cutting capacity of the laser.
The machine can be connected to the PC using Wi-Fi or USB. It is also equipped with a TF card slot.
The xTool D1 Pro comes with the proprietary xTool Creative Space software. This free software is user-friendly, functional, and allows for firmware updates. xTool Creative Space is compatible with Windows and macOS.
Those looking for enhanced functionality can use the third-party LightBurn engraving software which is more powerful and supports more file formats, such as AI, SVG, DXF, PDF, HPGL, and PLT for vector files and PNG, JPEG, BMP, TIFF, TGA, and GIF for raster images. LightBurn is a paid software but it offers a free trial period. It is compatible with Windows, macOS, and Linux.
Credit: lightburnsoftware.com
The xTool D1 Pro 2-in-1 Kit is a perfect choice both for hobbyists and for small to medium laser engraving businesses. Two laser modules are capable of handling virtually any material, opening unlimited creative opportunities.
The D1 Pro can be used to make customized home decorations, like wall hangings or photo frames, accessories, like wallets, bags, belts, or phone cases, jewelry, kitchenware, toys and puzzles, and much more.
Credit: @mjmcreations7 / Instagram
Contains xTool D1 Pro 20W Machine, Air Assist, RA2 Pro, 8 Risers, Honeycomb, Enclosure, and FREE xToolCare
You can extend the capabilities of the xTool D1 Pro and increase safety and convenience of use by purchasing various add-ons.
Air Assist Set
The Air Assist Set is connected to the laser head and blows away smoke and dust, protecting the laser lens. An output power of 30 L/min efficiently reduces the temperature on the material surface, preventing discoloration and ensuring a clean result with smooth cut edges.
Compatible with: xTool D1 5W / 10W, xTool D1 Pro
Power supply voltage: 110 / 220V
Air flow: 25–30 L/min
Air pressure: 30 kPa
Power: 17 W
Dimensions: 120.2 x 127.8 x 61.5 mm
Weight: 1200 g
Smoke Purifier
The xTool Smoke Purifier is compatible with the D1 Pro equipped with an optional enclosure. The device is connected to the machine and features a large, 250 x 195 x 390 mm, filter with three-stage filtration including activated carbon and HEPA filters. It efficiently absorbs dust particles, toxic fumes, and unpleasant odors, allows adjusting the suction power, and works very quietly, with the noise level not exceeding 55 dB.
Honeycomb Working Panel Set
The Honeycomb Panel Set consists of an aluminum plate and a honeycomb working panel, both having dimensions of 50 x 50 cm. They are used for placing the materials to be processed and protect the working surface under the machine. The honeycomb structure speeds up smoke exhaustion and prevents the material from turning yellow.
Includes:
1 x honeycomb working panel 19.68 x 19.68 x 0.87 in (50 x 50 x 2.2 cm)
1 x aluminum panel 19.68 x 19.68 x 0.039 in (50 x 50 x 0.1 cm)
Extension Kit
The Extension Kit for the D1 Pro increases the machine working area to the impressive 936 x 432 mm, which allows for much more efficient production.
Enclosure
As the D1 Pro features an open-frame design, a foldable protective enclosure is indispensable for those who want to use the machine indoors safely and comfortably. The enclosure has three-layer walls, with the inner layer made of flame-retardant polyester and the middle layer being high-hardness honeycomb board material. The PU outer layer can be easily wiped and cleaned. With the enclosure, the user gets efficient ventilation and protection from dust particles, odors, and noise.
Dimensions: 625 x 610 x 310 mm (24.6 x 24 x 12.2 in)
Weight: 3.4 kg
Viewing window size: 455 x 250 mm（17.9 x 9.8 in
Material: 4-mm honeycomb board material combined with 600D flame retardant polyester fabric
Viewing window material: blue light filtering PC
RA2 Pro rotary attachment
The RA2 Pro 4-in-1 rotary attachment allows engraving not only on flat objects, but also on spheres, rings, and cylinders and includes roller, chuck, sphere and ring rotary.
With additional risers, you can engrave on objects with a diameter of 3–198 mm. The use of the rotary attachment greatly expands the scope of application for the D1 Pro laser engraver, providing even more room for creativity.
Dimensions: 321 x 138 x 105 mm
Compatible with: xTool D1, D1 Pro, and other open laser engravers
Gear ratio: Chuck 4:1
Chuck diameter: 50 mm
Engrave diameter range (with additional risers): Roller: 3–198 mm; Chuck: 0–100 mm; Sphere: 25–100 mm; Ring: 11–70 mm
Software: Laserbox basic / LightBurn / LightGRBL
Material Package
The Laser Material Explore Kit includes 111 pieces of 17 material types and provides everything you need for your creative projects.
The xTool D1 Pro desktop laser cutter and engraver is available in a metal gray or golden red color scheme. Its stylish design makes it ideal for any studio or workshop as well as for home applications.
The machine dimensions are 23.6 x 23.2 x 5.9 in (600 x 590 x 150 mm). It weighs approximately 11 lb (5.5 kg).
The price for the xTool D1 Pro 20W 2-in-1 Kit is $1,688.99, which is reasonable considering its high performance and versatility.
