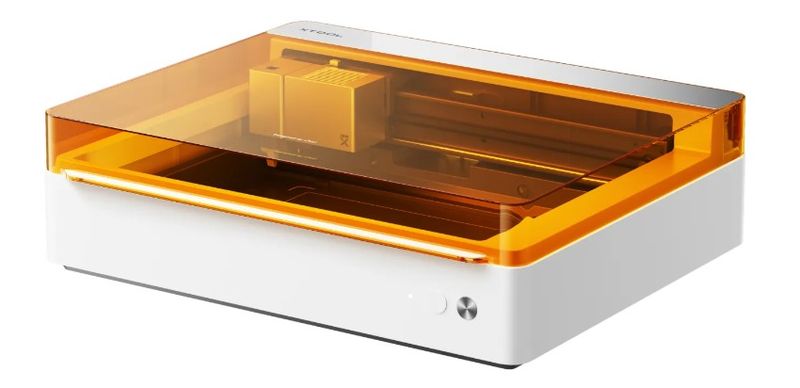

xTool M1 Ultra 10W 4-in-1 Craft Machine

The xTool M1 Ultra is the world’s first hybrid craft machine combining four working modules in a single device. With laser, die-cutting, printing, and drawing capabilities, it represents a one-stop studio that supports 1,000+ materials and meets almost all crafting needs. This flexible combination of four modules in one machine reduces its cost, boosts workspace efficiency, and greatly adds to the user’s convenience. And while the M1 Ultra boasts numerous functions, it remains incredibly easy to use for crafters of all levels.

The xTool M1 Ultra 4-in-1 craft machine is available in two versions, 10W and 20W, that basically differ in terms of laser power. The maximum laser cutting capacity of the 10W version is a 6mm basswood board, and for the 20W version it is 10mm.

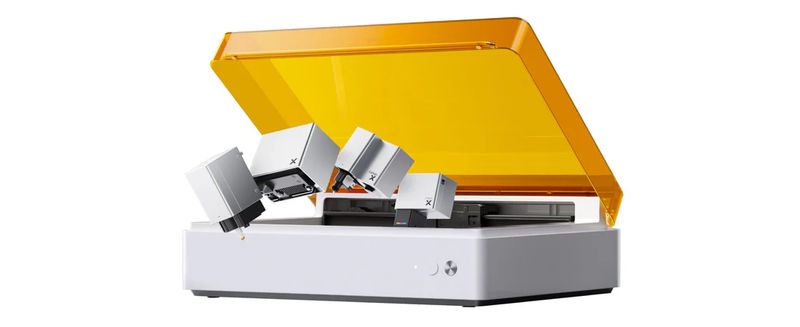

Featuring four independent modules, the xTool M1 Ultra offers unprecedented versatility in a single device. For example, the precise 10W diode laser of the M1 Ultra can capture the smallest details of intricate engravings, while its cutting blade is capable of accurately slicing through thick materials up to 2.5mm. Thanks to the Easy Swap design, one can switch the modules in just 3 seconds to get each project done with ultimate effectiveness, without jumping to different devices. Read more about the working modules in the Applications section.

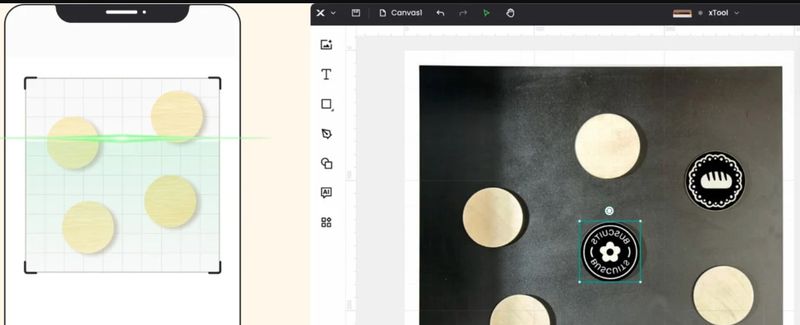

Aimed to maximize user convenience and material usage, the M1 Ultra boasts a revolutionary Pin-point Positioning tech, which is 10 times more accurate than single-camera systems. Now you can tackle even the most delicate crafting tasks with total ease. Just place your material and try smart multitasking in one go. The M1 Ultra ensures efficiency and accuracy for all your combo crafting needs.

The functionality of the M1 Ultra can be expanded by adding optional accessories provided by the manufacturer. To increase the height of the working area and process taller objects up to 125 mm, the M1 Ultra Riser Base Kit is available for purchase. Using the RA2 Pro Rotary Attachment, one can also perform engraving on cylinder shapes, like tumblers or glasses, to increase their creative potential (for more information check out the Add-ons section).

The xTool M1 Ultra was designed to ensure safe operation, so it can be used even by children under adult supervision. The machine is immediately put on hold once the lid is open. Besides, the lid filters the harmful blue light for eye protection. The M1 Ultra is equipped with an AI fire detection feature, built-in ventilation system with an exhaust fan and a pipe extracting toxic fumes and dust. Additionally, you can purchase the xTool SafetyPro AP2 Air Purifier or the IF2 Hyper Flow Inline Duct Fan to safely use the machine in a closed space.

Due to a number of automatic functions and ease of use, even beginners can achieve impressive results with the xTool M1 Ultra. One can even start a small business that will not require a lot of initial investment. Whether you are crafting personalized gifts, designing home decor, or preparing for life’s milestones, the M1 Ultra offers versatile crafting options with just one machine, saving precious workspace. Enjoy a smooth experience with xTool Creative Space, which includes beginner-friendly tutorials and smart AI, making every project a breeze.

The M1 Ultra is the improved version of the original xTool M1 — the world’s first hybrid cutting and engraving machine. In contrast to its predecessor, the M1 Ultra model features even more crafting tools combined in a single device. Other key differences are presented in the table below.

Specifications:

• Compatible materials
• Working area
• Machine controls
• Software
• Applications
• What’s in the box
• Add-ons
• Look and feel
• Price

Compatible materials

Due to the efficient combination of four modules, the xTool M1 Ultra can handle more than 1,000 different materials — three times more than a typical vinyl cutter or single-mode laser engraver. From soft to hard, thin to thick, and flat to 3D curved surfaces, the M1 Ultra is designed to meet all your crafting needs.

The xTool M1 Ultra has 4 modes and 9 processing methods, supporting multiple materials.

• Laser Mode: Wood, leather, MDF, coated acrylic, electroplated metal, painted metal, coated glass, ceramic, marble, etc.
• Blade Mode: Vinyl (Blade Mode only), paper, leather, felt, fabrics, etc.
• Inkjet Mode: Wood, coated acrylic, canvas, fabrics, printing paper, etc.
• Pen Mode: Paper, ceramic, etc.

You can find the full list of compatible materials and the optimal settings on the manufacturer’s website.

Since setting the materials to your desired effect can be time consuming, xTool tested 500+ materials and built the world’s first material setting library (Material EasySet Library). Now, users can set a specific material through a click of the desired effect on the photo.

Working area

The working area of 300 x 300 mm is large enough for most of your creative home projects or even for a batch production of smaller items, which is especially helpful if you have decided to start a business. In some modes, the working area can be slightly smaller, namely: Blade Mode — 295 x 295 mm for cutting blade; Inkjet Mode — 296 x 286 mm.

Machine controls

The xTool M1 Ultra is extremely user-friendly and easy to operate from almost any device via Wi-Fi. You can also launch the M1 Ultra by clicking the start button on the front panel of the machine. The power, USB, and extension ports are on the back side.

The M1 Ultra craft machine can be connected to the PC using Wi-Fi or USB and is controlled through the dedicated software. Either way, the crafting process consists of just a few simple steps shown below.

Software

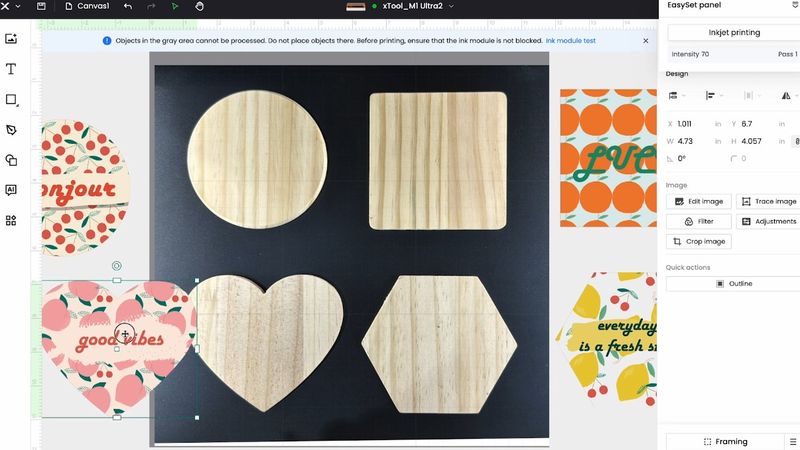

The xTool M1 Ultra comes with the proprietary xTool Creative Space software. This free program is user-friendly, multifunctional, and allows for firmware updates. It offers various editing functions, design elements and fonts, and a constantly updated base of step-by-step project files. xTool Creative Space is compatible with Windows, macOS, Android, iOS, and iPadOS. It works with SVG, DXF, JPG, JPEG, PNG, BMP, and other file formats.

Effortlessly juggling multiple processes across versatile functions, xTool Creative Space streamlines your workflow in one setup. For example, the instant preview feature allows one to quickly adjust the settings for the chosen objects from a snapshot with 10x accuracy.

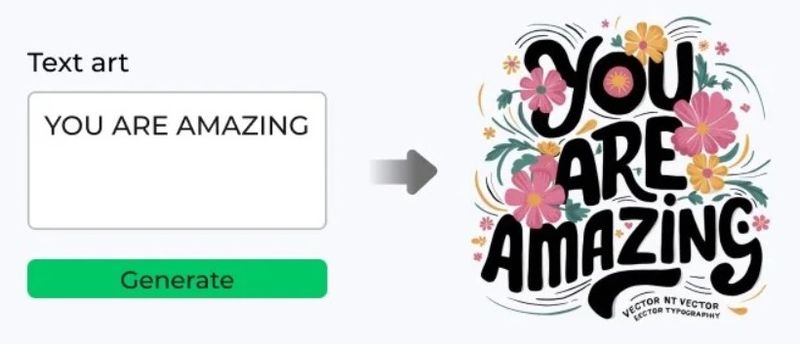

With generative AI, one can create production-ready designs with just a few words. This feature offers over 20 stunning style options to bring your vision to life in the most suitable format.

Applications

With its versatile laser cutting, engraving, inkjet printing, foiling and drawing capabilities, the xTool M1 Ultra can perfectly perform various design tasks, boosting your imagination and bringing creativity to a new level. The machine is ideal for making unique home decorations, accessories, personalized gifts, customized kitchenware, and plenty of other creative things. From door signs and greeting cards to clothing and holiday decor, the M1 Ultra is here to help you customize every item in your life.

Overall, there are four operating modes for the xTool M1 Ultra.

Laser Mode uses a 10W diode laser for cutting and engraving. Focused down to a tiny dot, laser precision is sharper than you can imagine: achieved at the micron level (up to 0.01 mm), it can capture all the details perfectly. Plus, the laser can effortlessly cut through materials up to 6mm thick in one smooth pass. Using the optional RA2 Pro rotary attachment, you can engrave on just about anything round or curved, from party favors to sports gear.

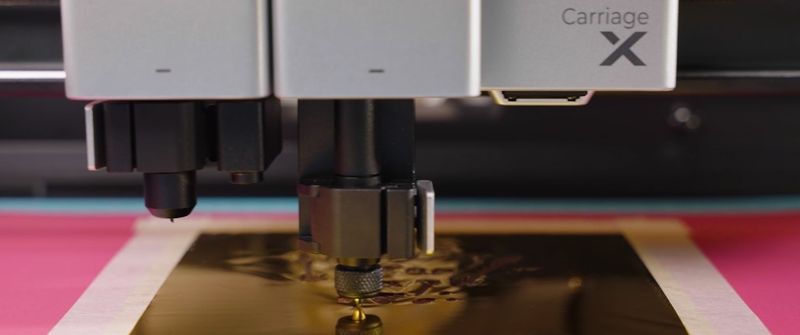

Blade Mode works with four different blade tools, two default and two available as add-ons. The Fine-point Blade provides premium delicate cutting for 1.5mm paper, stickers, vinyl, etc. The Cutting Blade boasts the ability to process thick materials up to 2.5mm, which is ideal for leather, matboard, and even balsa wood. The Rotary Blade (add-on) glides through fabrics like denim, cotton, and linen. Finally, the Foil Transfer Tip (add-on) is capable of creating stunning foil accents or adding elegant debossing to paper, cardstock, leather, and more.

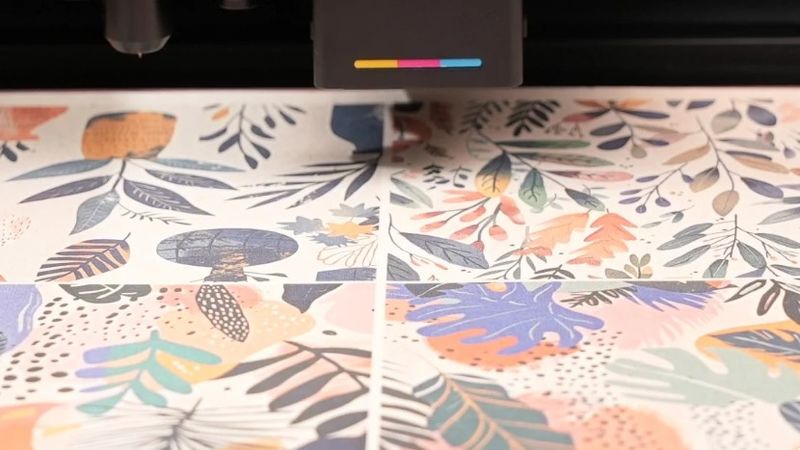

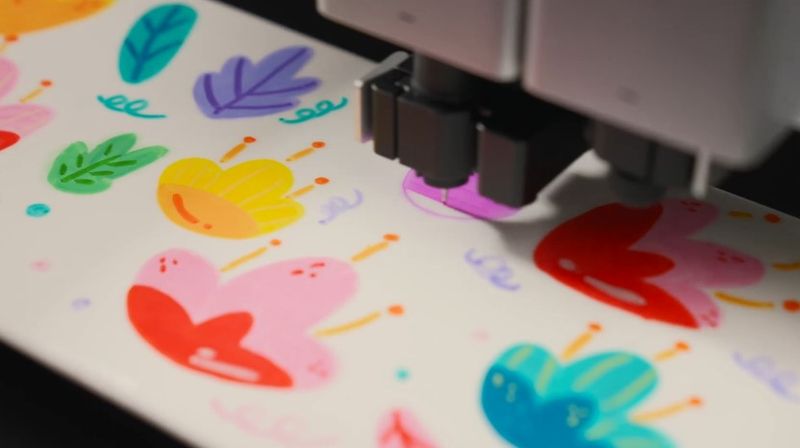

Inkjet Mode (add-on) opens up a whole new world of possibilities for unconventional media like wood, clay, coated stone, fabric, etc. With CMY technology, it is easy to create stunningly colorful prints, enhancing the vibrancy of your creations.

Pen Mode uses various pens for auto drawing and writing. Enjoy precise strokes, smooth fills, and endless customization with third-party pens like Cricut—just ensure they fit the pen holder. For longer pens, the machine supports open-lid processing (Pen Mode only).

What’s in the box

• xTool M1 Ultra craft machine
• xTool M1 Ultra 10W laser module
• Cutting blade
• Fine-point blade
• Fine-point pen
• All the necessary cables
• User manual
• 15+ free courses

For some items, package content may change. In case of any questions, please get in touch.

Add-ons

With the xTool M1 Ultra, the manufacturer offers various optional accessories which enhance the machine’s capabilities and provide safer and more convenient operation.

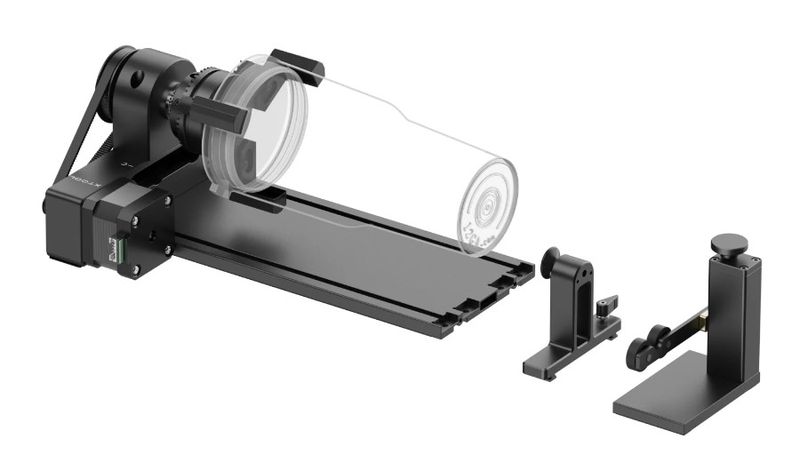

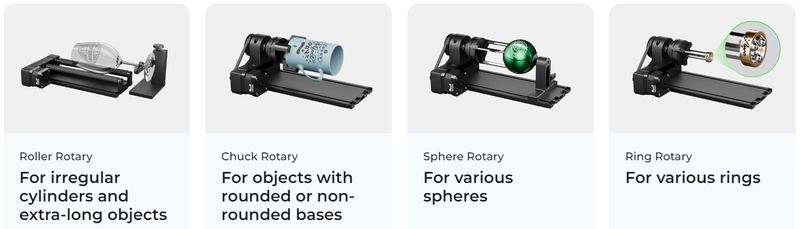

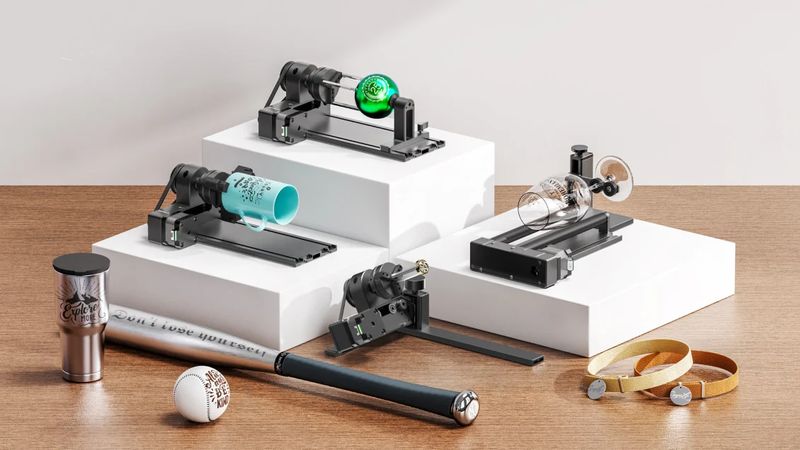

xTool RA2 Pro Rotary Attachment

The RA2 Pro 4-in-1 rotary attachment allows engraving not only on flat objects, but also on spheres, rings, and cylinders and includes roller, chuck, sphere, and ring rotary. The use of the RA2 Pro greatly expands the scope of applications for the M1 Ultra, providing even more room for creativity.

The xTool RA2 Pro Deluxe version comes with three additional modules: 26° Adjust Module — supports inner ring and beveled-edge cups engraving; Laser Positioning Module — helps achieve optimal focus alignment quickly; Limit Piece — secures your machine and reduces repetitive alignment.

• Dimensions: 321 x 138 x 105 mm / 300 x 185.5 x 188.5 mm (Deluxe version)
• Weight: 1.96 kg / 2.61 kg (Deluxe version)
• Engrave diameter range: Roller: 3–198 mm; Chuck: 0–100 mm; Sphere: 25–100 mm; Ring: 11–70 mm
• Software: xTool Creative Space, LightBurn, LightGRBL

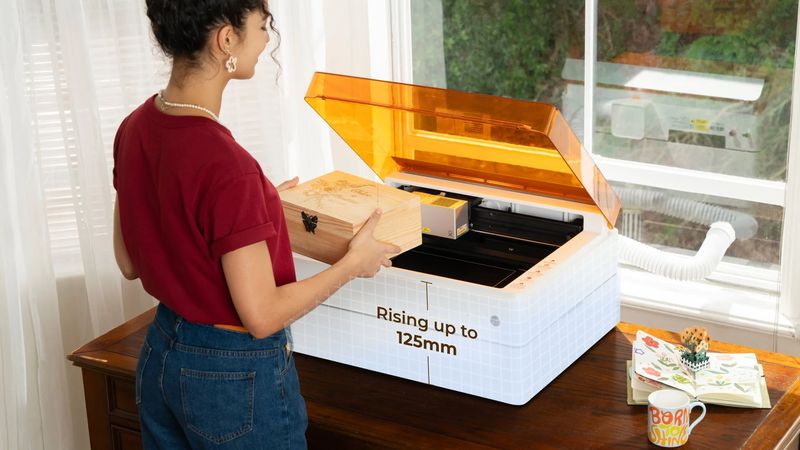

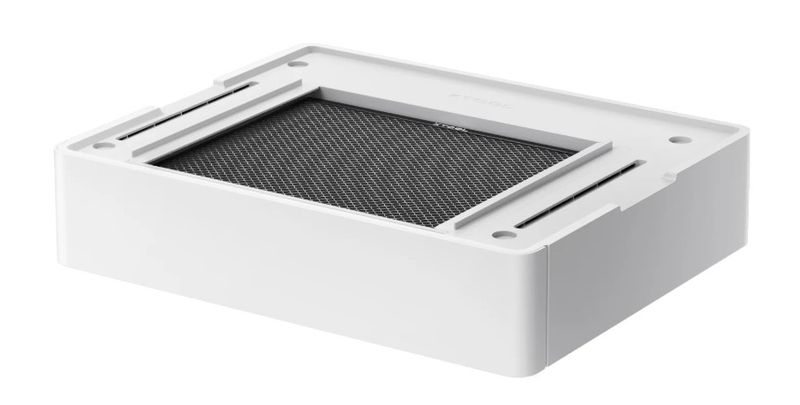

xTool M1 Ultra Riser Base Kit

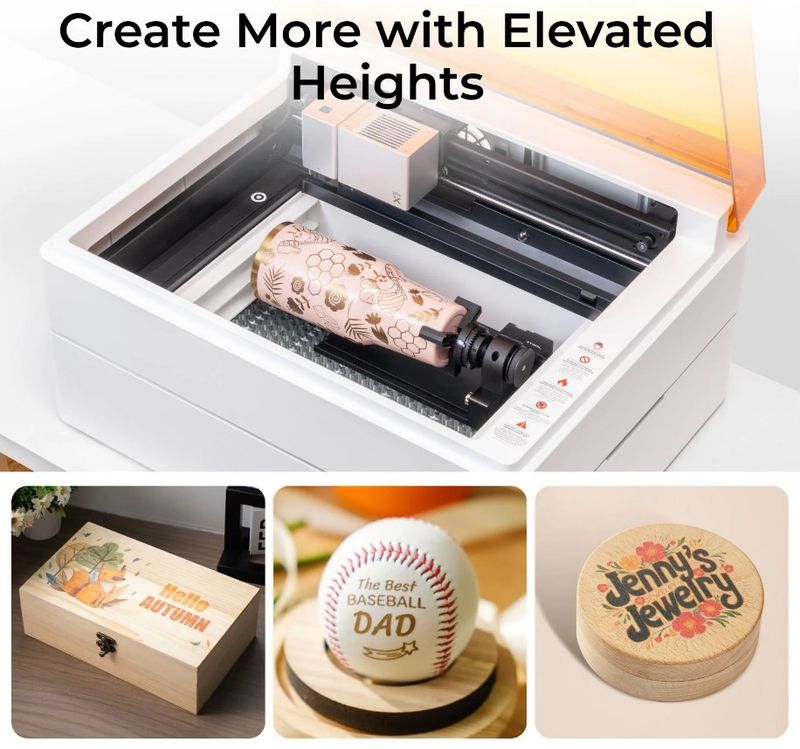

The xTool M1 Ultra Riser Base Kit is used to increase the height of the working area. The base supports all operating scenarios of the M1 Ultra model and allows engraving on objects up to 125 mm height. It is fully compatible with the RA2 Pro rotary attachment and makes engraving on curved surfaces easy. Thus, one can effortlessly engrave rings, mugs, tumblers, balls, and more.

The base is fully enclosed, the acrylic cover blocking 90% of dust, smoke, and hazardous blue light emission. Serving as an extra storage, the Riser Base Kit allows you to keep your tools handy and well-organized, ensuring they are always at hand. In addition, the kit comes with the Honeycomb panel ensuring fast heat dissipation and preventing burn marks on the object surface.

• Processing area: 300 x 300 mm
• Loading capacity: 4 kg
• Max. workpiece height: 125 mm
• Honeycomb weight: 1.36 kg
• Honeycomb size: 407 x 329 mm

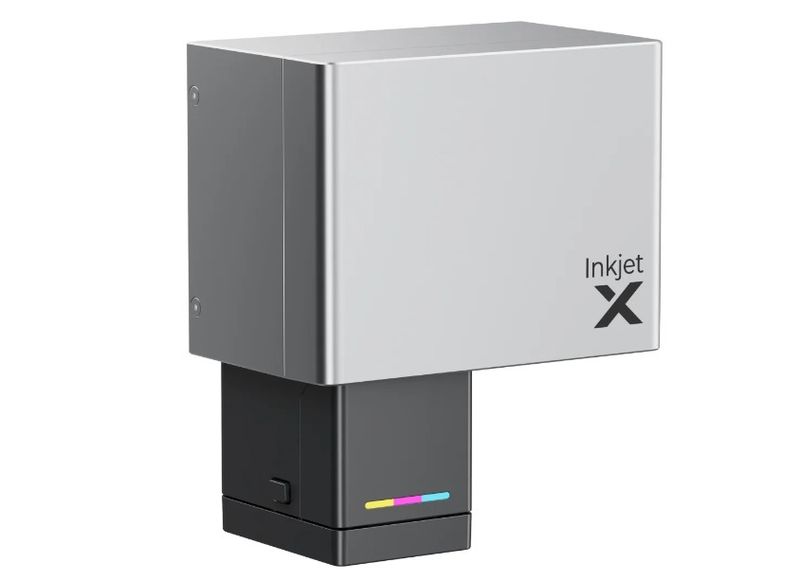

xTool M1 Ultra Inkjet Module

The M1 Ultra Inkjet Module lets one bring colors to their crafts with CMY ink technology. No dried-up ink: the inkjet module automatically seals itself after each job, always fresh for action. It can print on fabrics, boards, printing paper, clay, leather, and other materials. However, the module does not work with very dense or smooth surfaces, such as metal, glass, and ceramics, because the ink cannot penetrate or adhere. These materials can be processed after applying a suitable ink coating.

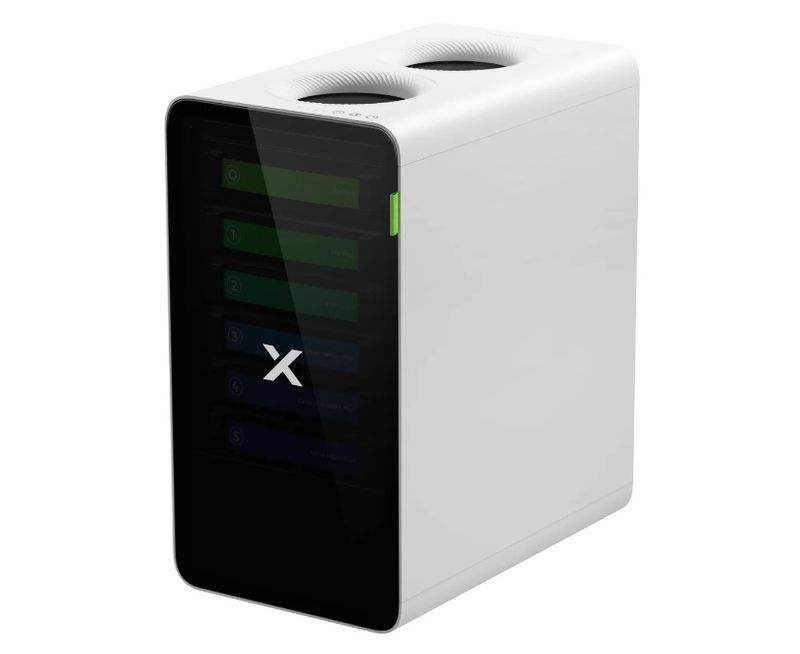

xTool SafetyPro AP2 Air Purifier

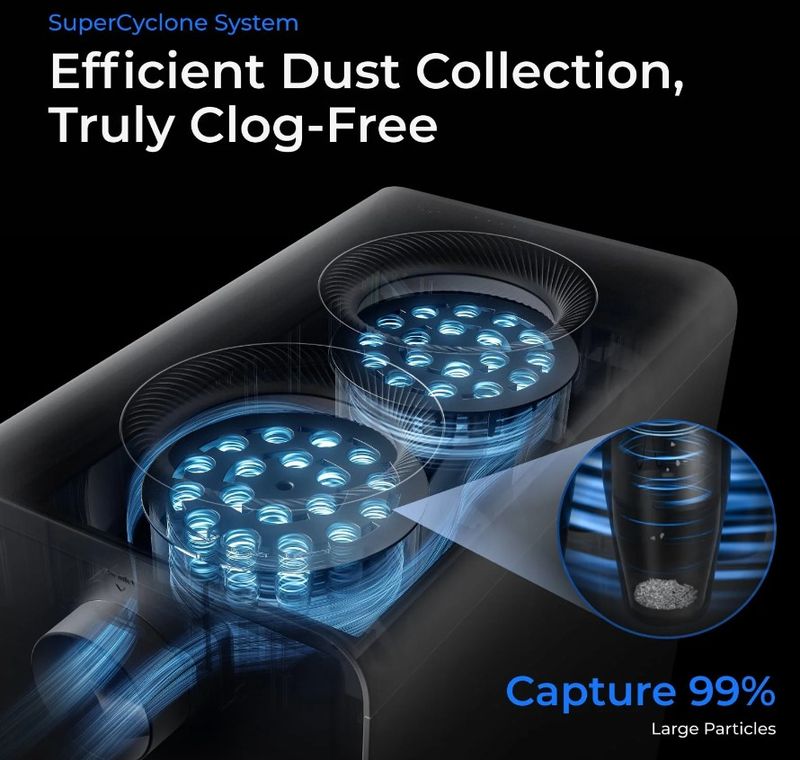

The xTool SafetyPro AP2 Air Purifier with SuperCyclone System is designed for the M1 Ultra to efficiently absorb 99% of dust particles, fumes, and unpleasant odors and ensure safe operation in any environment. With its 6-stage filtration and 36 small cyclone groups operating in parallel, the AP2 Air Purifier generates super centrifugal force, efficiently separating dust and dirt and preventing clogging of filters.

The intelligent control functions include Auto-On/Off, Sync with xTool Lasers, Tailored Setting for Every Material, and Filter Life Cycle Monitoring. In addition, the SuperCyclone filter is easy to clean and reuse. Simply wash it to keep the cyclone working like new, saving you the cost of replacing pre-filters.

• Dimensions: 290 x 491 x 542 mm
• Weight: 20.7 kg
• Control mode: Touch button, four adjustable gears
• Pre-filtration system: Cyclone separation
• Rated power: 220W
• Noise level: 55dB
• Filter layers: SuperCyclone filter, Pre-filter, Medium-efficiency filter, Activated carbon layer, Ultra-dense carbon mesh, High-efficiency filter

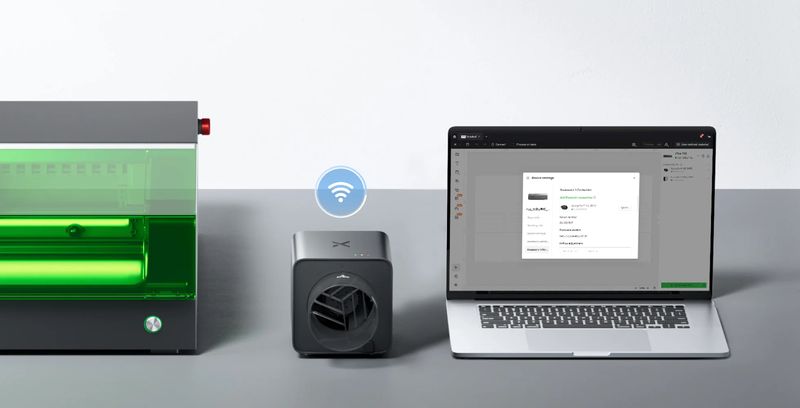

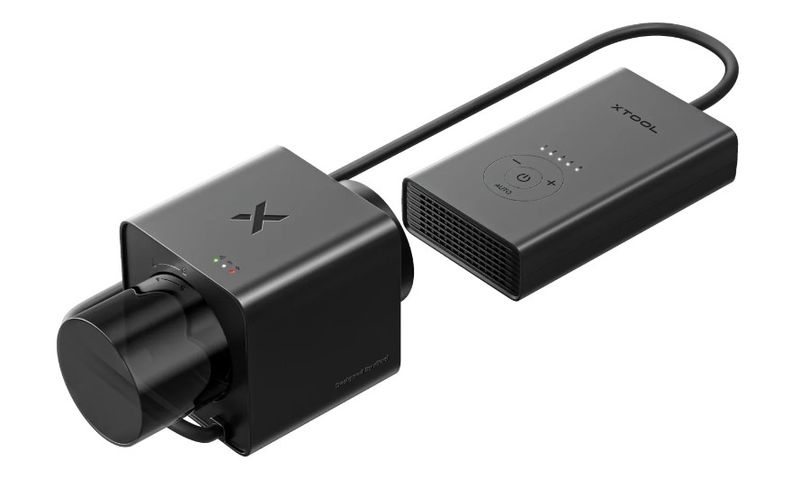

xTool SafetyPro IF2 Hyper Flow Inline Duct Fan

Laser cutting generates smoke quickly, demanding not only strong airflow but also faster, more efficient suction when it comes to inline fans. The xTool SafetyPro IF2 enhances both airflow and suction performance up to 200% to ensure a clean and safe workspace for the M1 Ultra users when in Laser Mode.

Alongside its quiet operation and smart connectivity, the IF2 boasts a compact, waterproof (IP55), and removable design that ensures quick and effortless maintenance. Like the AP2, the IF2 comes with the following intelligent control functions: Auto-On/Off, Sync with xTool Lasers, and Tailored Setting for Every Material.

One can use the xTool AP2 air purifier and IF2 inline fan with the M1 Ultra simultaneously. To do this, just make sure to connect the AP2 first and then the IF2, or it might affect performance. However, it is not necessary to use them together. Each device can work perfectly on its own, so you can choose based on what suits your needs best.

• Dimensions: 193.4 x 115 x 119 mm
• Weight: 2.76 kg
• Duct opening size: 3 in
• Airflow: 140 CFM
• Suction power: 1300 Pa
• Intelligent control: Yes
• Knob control: Touch button, four adjustable gears
• Rated power: 100W

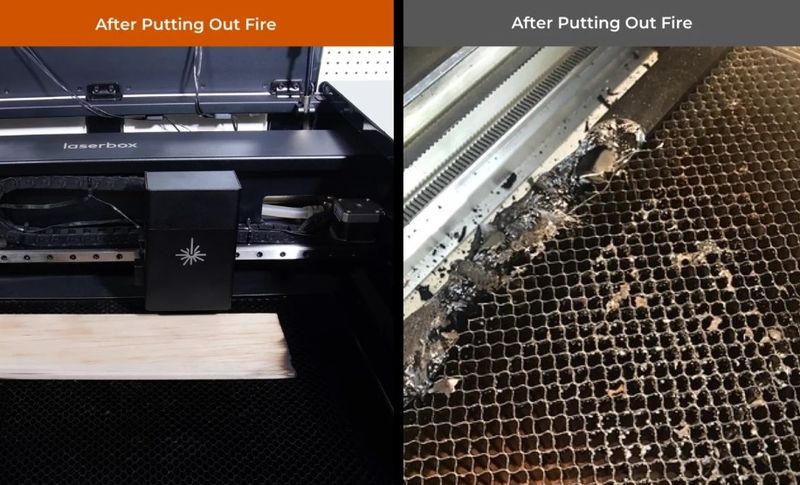

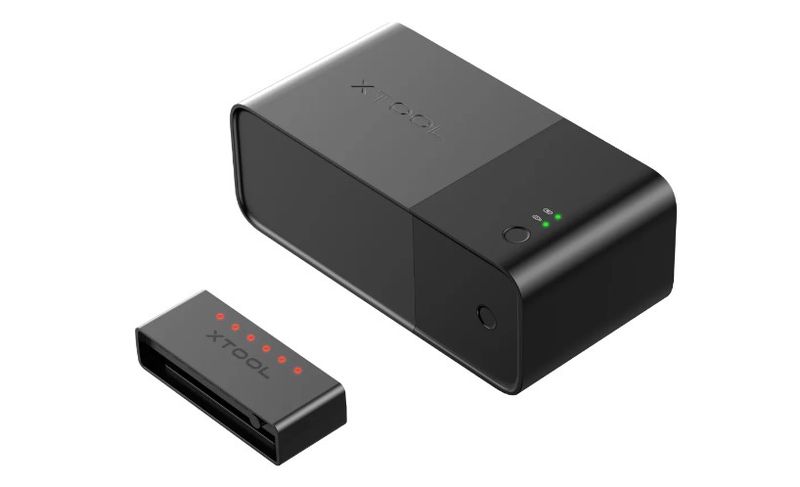

xTool Fire Safety Set

As the world’s first fully automated fire safety system for desktop laser cutters, the xTool Fire Safety Set boasts such capabilities as auto flame detection, alarm triggering, power cut, and fire extinguishing. All these features effectively minimize the possibility of fire accidents caused by the laser of the M1 Ultra in Laser Mode.

By using 5 fire detection sensors and integrated algorithms of light, temperature, and position inside an enclosed laser cutter, the xTool Fire Safety Set is sensitive to any possible dangers. Immediately after detecting fire, it will automatically trigger the alarm, shut down the working laser in a few seconds, and automatically release the CO2 gas into the enclosed space to quench the fire with non-toxic and odorless fumes, thus preventing the machine from further damage.

The package includes:

• Control box
• Power adapter and cable
• CO2 gas bottle x4
• USB cable
• Tube

Look and feel

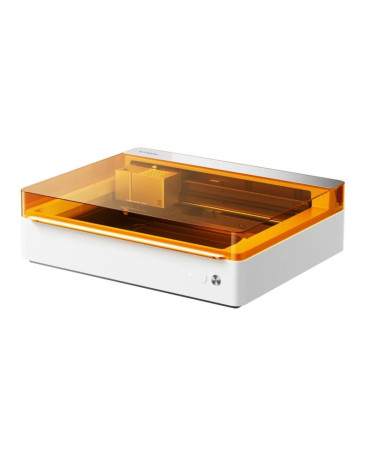

The xTool M1 Ultra desktop 4-in-1 craft machine is available in white with an orange transparent lid. Its stylish and compact design makes it ideal both for home use and for a craft workshop.

The machine dimensions are 24.4 x 19.6 x 7 in (620 x 498 x 178 mm). It weighs approximately 26.5 lbs (12 kg).

Price

The price for the xTool M1 Ultra 4-in-1 craft machine is $0.00, which is reasonable considering its multifunctionality, efficiency, and high performance.
