The xTool P2 is a powerful desktop 55W CO2 laser cutter from the Chinese-based xTool brand, well-known for its diode laser cutters and the CO2 Laserbox. The P2 model is a notable step forward, as the machine has adopted a number of smart features and technologies compared to the rest of the xTool lineup and many competitors in the market. It is definitely ready to take your art to the next level.

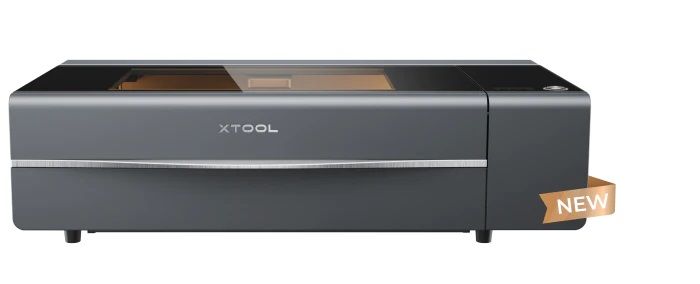

As the latest, extended version, the xTool P2S (available as an add-on option) comes with the improved air assist system as well as helpful daily maintenance features. For more information, check out the specs table below.
| xTool P2S | xTool P2 | |
| Bed size | 26.7'' x 14.1'' (680 x 360 mm) | 26.7'' x 14.1'' (680 x 360 mm) |
| Working space | 23.6" x 12" (600 x 305 mm) | 23.6" x 12" (600 x 305 mm) |
| Laser power | 55W CO₂ laser | 55W CO₂ laser |
| Outer dimensions | 39.4" x 25.1" x 10.6" (1000 x 639 x 268 mm) | 39.4" x 25.1" x 10.6" (1000 x 639 x 268 mm) |
| Weight | 45 kg | 45 kg |
| Max. working speed | 600 mm/s (X-Axis acceleration 6400 mm/s²) | 600 mm/s (X-Axis acceleration 6400 mm/s²) |
| Max. workpiece height | With tray 2.5" (64 mm), Without tray 2.7" (71 mm), With riser base 8.5" (215 mm) | With tray 2.5" (64 mm), Without tray 2.7" (71 mm), With riser base 8.5" (215 mm) |
| Rotary engraving diameter | With riser base 0–180 mm, Without riser base 3–50 mm | With riser base 0–180 mm, Without riser base 3–50 mm |
| Z-axis movement | 3" (75 mm) | 3" (75 mm) |
| Operating ambient temperature | 10–30 °C (10–86 ℉) | 10–30 °C (10–86 ℉) |
| Air assist | 200 kPa (Dual Cylinders) | 150 kPa (Single Cylinder) |
| Exhaust fan | 233.3 CFM (14,000 RPM Dual Blades) | 145 CFM(7,000 RPM Single Blade) |
| Optical path indicator | Included | Not available |
| Daily maintenance | Quick-Release Fan Button, Magnetic Filter Screen, Mistake-Proof Laser Mirror | Not available |
| Water-cooling system | Capacity: 1.4L (0.37 gal) | Capacity: 1.4L (0.37 gal) |
| Ranging system | LiDAR (processing precision: 0.01 mm) | LiDAR (processing precision: 0.01 mm) |
| Camera type | Panoramic camera + Close-range camera | Panoramic camera + Close-range camera |
| No. of pixels (effective) | 16MP×2 | 16MP×2 |
| Vision precision | 0.3 mm | 0.3 mm |
| Image resolution | 1000 DPI | 1000 DPI |
| Focus mode | Autofocus | Autofocus |
| Software | xTool Creative Space / Lightburn | xTool Creative Space / Lightburn |
| Connectivity | WiFi & USB | WiFi & USB |
| File formats | SVG / DXF / JPG / JPEG / PNG / BMP, etc. | SVG / DXF / JPG / JPEG / PNG / BMP, etc. |
| Operating systems | Android / iOS / iPad / Windows / macOS | Android / iOS / iPad / Windows / macOS |
Equipped with a powerful 55W CO2 laser tube, the xTool P2 boasts ultra-high absorption efficiency compared to diode lasers and can cut an 18-mm walnut or a 20-mm clear acrylic plate in one pass. Its sturdy all-metal chassis and high-quality motor allow for a maximum speed of engraving of 600 mm/s. Combined with a large working area and capability of engraving multiple objects, this ensures utmost efficiency of your engraving business with the xTool P2 model.
The xTool P2 features two 16-megapixel cameras, a panoramic one for a live preview of the entire working area, and a close-range camera for a precise view of a particular spot with a vision precision of 0.3 mm. The camera is also used to detect the shapes of multiple similar objects placed on the bed surface, and apply a selected design pattern to all of them, thus allowing fast batch engraving. With the xTool P2, object shapes that can be engraved are not limited to only flat ones. Automatic surface scanning and 3D model building allow it to engrave on curved surfaces with auto focal length adjustment. And the use of an optional rotary add-on further extends creative opportunities with curved surface engraving on cylinders, spheres, and rings. The machine is equipped with a pass-through slot for processing extra-large objects. With an optional Automatic Conveyor add-on, the maximum working area can reach 3000 x 500 mm.
The xTool P2 55W CO2 laser cutter and engraver was designed with safety in mind. Its fully enclosed design with a transparent light-filtering lid blocks hazardous laser radiation and prevents smoke leakage. The lid has an automatic lock that is active during operation. The machine’s multiple-warning system alerts the user in case of motherboard overheating, cooling system problems, and other abnormal situations, and the E-stop button ensures a quick shutdown. Equipped with an adjustable built-in air assist and a 145 CFM exhaust fan representing an excellent smoke exhaust system, the xTool P2 features efficient ventilation, and when connected to an optional air purifier, can be used safely in any environment without risk of hazardous fumes.
The xTool P2 laser cutter and engraver is a highly versatile machine, capable of cutting a wide range of materials, including paper, wood, acrylic, leather, cardboard, MDF, felt, rubber, bamboo, fabric. It can engrave on glass, ceramic, jade, marble, shale, cement, brick, coated metal, anodized aluminum, and more.
With the working bed dimensions of 680 x 360 mm, the xTool P2 laser engraver features a working area of 600 x 308 mm (26 x 14 inches), suitable for processing large-sized materials as well as for batch production. The maximum object height of 64 mm can be extended up to 71 mm if you remove the tray. And the optional riser base allows engraving on objects with a maximum height of 215 mm.
The xTool P2 55W CO2 laser cutter and engraver can be connected to a computer via Wi-Fi, USB, or Ethernet. Apart from this, the xTool P2 features intuitive controls and a number of automatic functions, such as autofocus adjustment, so even beginners can operate it with ease. There is a Start button on top of the device, and the Emergency stop switch is on the right-side panel.
The xTool P2 CO2 laser cutter and engraver works with the proprietary xTool Creative Space software compatible with Windows and macOS. It supports multiple file formats including SVG, DXF, PNG, JPG, and BMP and provides all the necessary tools for image design and editing as well as material parameters and machine control settings.
For more complicated projects, one can also use the LightBurn software which supports more file formats, such as AI, SVG, DXF, PDF, HPGL, and PLT for vector files and PNG, JPEG, BMP, TIFF, TGA, and GIF for raster images, and offers comprehensive design tools.
Credit: lightburnsoftware.com
The xTool P2 55W CO2 laser cutter and engraver is an ideal choice for professional makers who want to start or expand their engraving business. The advantages of high speed, precision, large expandable working area and numerous smart features ensure high productivity and unlimited creative possibilities.
Credit: Aurora Tech / YouTube
Credit: Mellowpine Lasers / YouTube
For some items, package content may change. In case of any questions, please get in touch.
You can extend the capabilities of the xTool P2 CO2 laser cutter and engraver by purchasing various add-ons.
The xTool P2 Riser Base increases the maximum height of an object to be engraved up to 215 mm. The base is completely enclosed and ensures safe operation. It is compatible with the Automatic Conveyor and the RA2 rotary add-ons.
The Automatic Conveyor mechanism is used with an automatic passthrough function for long material boards and allows for automatic engraving path planning and material feeding. It ensures precise material positioning and eliminates inaccuracy usually caused by manual feeding. By combining the Basic kit containing two pairs of conveyor rails with three additional kits (each containing two pairs of rails), you can handle materials of up to 3 meters long. Note that the Automatic Conveyor add-on must be used with the Riser Base.
The xTool Smoke Purifier is connected to the machine and features a large, 250 x 195 x 390 mm, filter with three-stage filtration including activated carbon and HEPA filters. It efficiently absorbs dust particles, toxic fumes, and unpleasant odors, allows adjusting the suction power, and works very quietly, with the noise level not exceeding 55 dB.
The RA2 Pro 4-in-1 system for the xTool P2 allows rotary engraving on spheres, rings, and cylinders and includes roller, chuck, sphere and ring rotary.
Equipped with 5 fire detection sensors, the Fire Safety Set triggers the alarm as soon as it detects fire. A few seconds later, the smart switch shuts down the machine, and CO2 gas is pumped into the working area to extinguish fire and prevent possible damage to the machine.
The xTool P2 55W CO2 laser cutter and engraver is available in a dark gray color. Its stylish look makes it ideal for any workshop or design studio.
The dimensions of the xTool P2 are 39.4 x 25.1 x 10.6 in (1000 x 639 x 268 mm). It weighs 99.2 lb (45 kg).
The price for the xTool P2 55W CO2 laser cutter and engraver is $4,349.00, which is reasonable considering its powerful laser source and numerous smart features.
