Bondtech LGX Large Gears eXtruder

In Stock
High-performance extruder based on Dual Drive technology
  • Increased filament grip
  • Multi-function interface socket
  • Durable PA12 housing
  • Reliable outputs
When purchasing with us you get:
  • FREE Delivery
  • 1 Year Warranty
  • Local U.S. Support
  • Up to 20% Filament Discount
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers

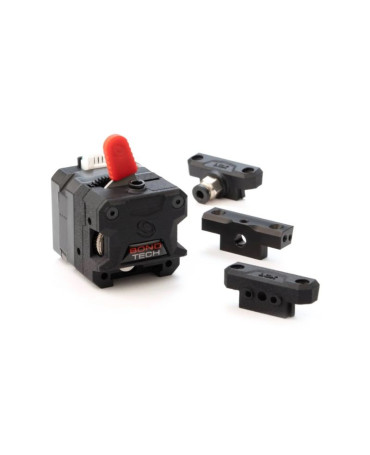

This extruder comes with:
  • Bowden and Direct Drive interface plugs
  • Custom LDO stepper motor
  • All the necessary tools
  • Information brochure
Price $99.99
The estimated lead time is 5-10 business days.

The Bondtech LGX extruder is a powerful filament feeder designed for smooth and consistent 3D printing. It features the manufacturer’s new Dual Drive technology that provides increased performance thanks to larger drive gears for maximum filament grip and smart pre-tension mechanism that makes loading and unloading the material really simple. Due to its versatile mounting hole patterns, the LGX boasts flexible setup and almost universal compatibility, while the device’s thoughtful construction ensures long service life and easy maintenance.

Being a compact, easy to use, and highly adaptable extrusion system, the LGX is available for Bowden and Direct Drive setups as well as for special applications. Thus, in one of its configurations, the device can become a full-fledged printhead where the heat break fits directly in the extruder for a shorter filament path, which enables it to print ultra-flexible filaments with an impressive speed.

Different versions of the Bondtech LGX extruder.

Apart from the standard LGX variant, the Bondtech extruder comes in several printhead setups, which represent the combinations of the Shortcut and ACE add-ons with the extruder itself. Also, there are some upgrade kits and accessories to choose from. The desired options can be selected in the Add-ons and Extras menu. To find out more about the LGX add-ons and accessories, check out the sections below.

Due to innovative design, enhanced performance, and high integration capabilities, the Bondtech LGX extruder will become a game-changing 3D printing tool for hobbyist makers, corporate professionals, and full-blown manufacturers.



Specifications:

  • Highlights
  • Add-ons and accessories
  • What’s in the box
  • Look and feel
  • Price



Highlights

The Bondtech LGX extruder installed on a 3D printer.

Top-notch performance

Despite its compact and lightweight design, the Bondtech LGX is based on elaborate mechanisms that ensure high-quality printing at each stage. Compared with earlier versions, filament is now driven with more teeth engaged to achieve increased grip. To prevent potential extruder damage, this grip is sufficient to overcome the stepper motor torque if a blockage occurs. Also, the unique pre-tension mechanism streamlines material loading and unloading.

Strong PA12 housing

To make the LGX extruder as durable and reliable as possible, Bondtech uses the housing parts that are professionally printed with nylon for maximum strength, precision, and higher temperature resistance.

Perfect for Slice Engineering hotends

The Bondtech LGX extruder is manufactured to be a direct fit for the Mosquito and Copperhead hotends by Slice Engineering. It can be easily combined with the following devices:

  • (Screw Mount version)
  • Copperhead LGX Heat Break (LGX Shortcut Copperhead Hotend required)

Nozzles for any occasion

The LGX add-ons are compatible with the following RepRap style nozzles that can be used for various purposes:

  • Slice Engineering — great for printing with abrasive filaments at high temperatures;
  • Slice Engineering — designed for peak bridging performance due to optimized thermal conduction;
  • Bondtech — with 30% higher flow rates, they are ideal for high-flow applications.

Please note that the LGX Shortcut Hotend is not compatible with the 3DSolex Matchless 1.75mm nozzles.

Simple maintenance

The Bondtech LGX extruder is engineered with high accessibility and ease-of-use in mind. For example, it has maintenance windows to facilitate cleaning procedures for the drive gears. In addition, a multi-function interface socket makes for tool or application quick swap.

Thoughtful package

The extruder comes with everything one needs to start 3D printing right after receiving the package, including a set of dedicated tools and information brochure. Moreover, the LGX extruder is delivered in environmentally-friendly craft boxes without bleaching and coating.



Add-ons and accessories

LGX Shortcut

The Shortcut add-on for the Bondtech LGX extruder.

The LGX Shortcut is a special hotend add-on that mounts to the side of the LGX extruder to form a highly effective printhead for dealing with all common materials, especially soft and flexible ones. It includes a reversible heat sink that can be installed on the left or right side of the cold block. With a dedicated hole pattern, it is possible to attach 40x40 fans to cool down the cold block and cold zone of the heat break.

The Shortcut add-on comes in two variants: Copperhead and Mosquito. In the table below, you can see the benefits of each version:

Copperhead Mosquito
  • great for softer materials
  • faster printing of flexible and soft materials
  • small, compact, and lightweight
  • different mounting options
  • robust structure
  • simple one-handed nozzle change
  • better access to softer materials
  • faster printing of flexible and soft materials
  • small, compact, and lightweight
  • different mounting options

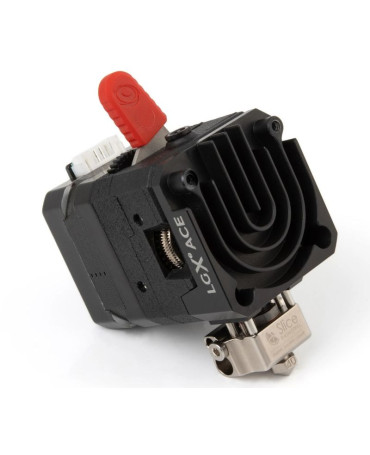

LGX ACE

The LGX ACE add-on for the Bondtech LGX extruder.

The LGX ACE is an add-on attachment that mounts to the front of the LGX extruder. It represents a special short filament path hotend, co-developed by Bondtech and Slice Engineering.

The device’s different variants, such as Mosquito Magnum+, Mosquito, and Copperhead, are designed for rigid, flexible, and soft materials, improved cooling capacity, and high-flow applications.

LGX Lite

The Lite version of the Bondtech LGX extruder.

The LGX Lite is a smaller version of Bondtech’s filament feeder based on Dual Drive technology with larger drive gears. It weighs only 48 g individually and 141 g with the Nema14 pancake stepper motor.

Accessories

A set of accessories for the Bondtech LGX extruder.

The list of available accessories for the Bondtech LGX extruder includes a wide variety of upgrades and parts used to successfully integrate the device into certain 3D printers, such as Creality, Prusa, Artillery, etc.

They provide the following advantages to the user:

  • using all available nozzle temperatures without compromise;
  • mastering abrasive, rigid, flexible, and soft filaments;
  • better part cooling;
  • clean, simple, and easy installation;
  • improved extrusion reliability and resolution.

Please note that some products require additional items to function properly. They are listed in the table below:

Upgrade Specifics
LGX Lite mount Used to attach a Slice Engineering Mosquito or Copperhead Groove Mount hotend to the LGX Lite extruder.
LGX Accessories for MK3S and Mosquito Used to build the LGX for Prusa MK3S and Mosquito upgrade kit. Requires the LGX X-carriage for MK3S & Mosquito.
LGX Accessories for Shortcut Prusa MK3S Used to build the LGX for Shortcut Prusa MK3S and Mosquito upgrade kit. Requires the LGX Shortcut printhead and LGX Shortcut X-carriage for Prusa MK3S(+).
LGX Lite Arrow for Creality Used to mount the LGX Lite Extruder onto the following printers: Creality CR-6 SE, CR-6 Max, CR-10 Smart. Requires the LGX Lite Extruder and Arrow Hotend Upgrade adapter set.
LGX Accessories for Artillery Sidewinder and Genius Used to mount the LGX onto the Artillery Sidewinder X1, Sidewinder X2, and Genius 3D printers with the Copperhead, Mosquito, Mosquito Magnum, and Mosquito Magnum+ hotends.
LGX Accessories for Sidewinder X1 and Mosquito / Copperhead Used to mount the LGX onto the Artillery Sidewinder X1 with the Mosquito or Copperhead hotend.
LGX Shortcut Accessories for Anycubic Used to install the LGX Shortcut Mosquito and Copperhead printhead onto the Anycubic Mega-X, Mega-S or Mega-P(ro). Requires the LGX Shortcut Copperhead or Mosquito hotend.

In case you have some questions, feel free to contact us.



What’s in the box

A package for the Bondtech LGX extruder.

The Bondtech LGX extruder is supplied with:

  • LGX feeder
  • Custom LDO Nema17 25mm pancake stepper motor
  • Bowden interface plug (with threaded metal push-fit)
  • Direct Drive interface plug (for Slice Engineering hotends)
  • 2mm hex key (recommended tool)
  • Product line information brochure

The LGX Lite version comes with:

  • LGX Lite feeder
  • LDO Nema14 Round 20mm pancake stepper motor
  • 2mm hex key (recommended tool)
  • Push-fit collar
  • 30mm PTFE tube to use in the PTFE tube adapter
  • 8x M3 square nuts for reinforcing mounting holes

The LGX Shortcut Hotend package includes:

  • LGX black anodized aluminum heat sink
  • LGX black anodized aluminum air-cooled cold block
  • LGX air-cooled cold block mounting hardware
  • Mosquito Heat Break and Hot Block hardware / Copperhead LGX Heat Break
  • Mosquito / Copperhead Hot Block
  • Bondtech M6 x 1 x 7.5 Coated Brass nozzle (0.4 mm)
  • Silver-based thermal paste sachet (0.5 g)

The LGX ACE Mosquito Magnum+ Hotend package includes:

  • LGX black anodized aluminum monolithic Cold Block and Heat Sink
  • Magnum+ Heat Break
  • Magnum+ Hot Block
  • Bondtech M6 x 1 x 7.5 Coated Brass nozzle (0.4 mm)
  • Boron nitride paste (5 ml syringe)
  • Arctic MX-4 thermal compound (2 g syringe)
  • Mounting hardware:
    • 4x 14.5 mm steel stand-offs
    • 2x M1.5 x 16 mm screws
    • 2x M2 washers
    • 6x M2.5 x 4 mm screw with washer

The LGX ACE Mosquito Hotend package includes:

  • LGX black anodized aluminum monolithic Cold Block and Heat Sink
  • Mosquito LGX Heat Break
  • Mosquito Hot Block
  • Bondtech M6 x 1 x 7.5 Coated Brass nozzle (0.4 mm)
  • Silver-based thermal paste sachet (0.5 g)

The LGX ACE Copperhead Hotend package includes:

  • LGX black anodized aluminum monolithic Cold Block and Heat Sink
  • Copperhead LGX Heat Break
  • Copperhead Hot Block
  • Bondtech M6 x 1 x 7.5 Coated Brass nozzle (0.4 mm)
  • Silver-based thermal paste sachet (0.5 g)

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

A general view on the Bondtech LGX extruder.

The Bondtech LGX extruder is fairly compact and lightweight, which in combination with various add-ons makes it perfect for a wide range of 3D printers.

The device weighs only 218.6 g (Direct Drive) or 224 g (Bowden).



Price

The price for the Bondtech LGX extruder is $99.99, which is reasonable considering its printing capabilities and high performance.
