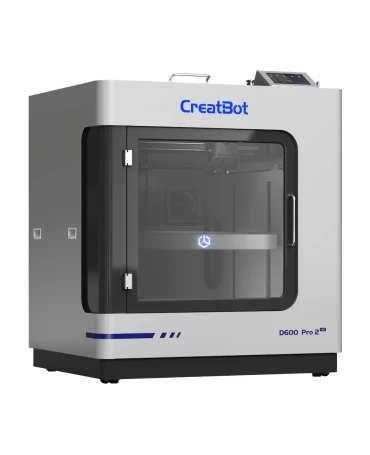

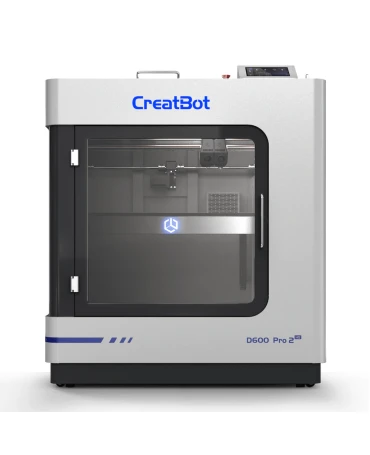

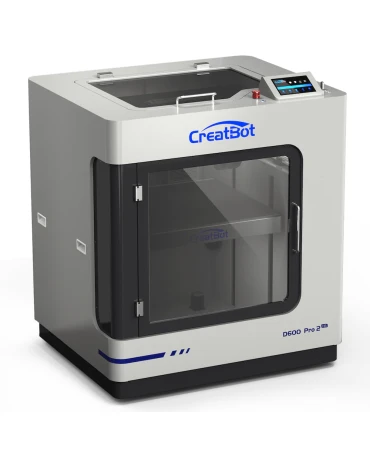

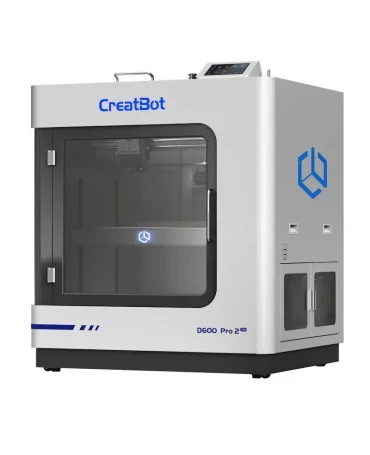

The CreatBot D600 Pro 2 HS is a high-speed, large-format 3D printer with Klipper firmware and a 90 mm³/s flow hotend, printing at 300 mm/s with ±0.05 mm precision. It features dual 420°C extruders for 20+ engineering materials, a magnetic platform stable over 100°C, and Z-axis tech that prevents surface defects on tall prints.
Designed for continuous industrial use, it offers a 600×600×600 mm build volume, 70°C heated chamber, 32-bit NPU motherboard, camera monitoring, auto bed leveling, and HEPA+Carbon filtration — ideal for automotive, aerospace, and engineering.
The CreatBot D600 Pro2 HS prints with 50-micron layer resolution and ±0.05 mm XY accuracy, plus 10-micron Z resolution for consistent precision. It reaches speeds of 300 mm/s — five times faster than the standard model — delivering both speed and high-quality surface finishes.
The CreatBot D600 Pro 2 HS uses proprietary Z magic box technology to eliminate surface defects in tall prints, surfaces remain smooth and consistent across full build height. High-precision linear guide rails, servo motors, and photoelectric switches on the X and Y axes further enhance positioning accuracy.
The D600 Pro 2 HS includes a removable magnetic PEI platform with auto bed leveling for strong adhesion and consistent quality. Its heated bed (100°C) and 70°C enclosed chamber prevent warping in engineering materials. Dual direct-drive extruders with 420°C capacity and auto-rising function reduce stringing and support advanced filaments. Stock nozzles are 0.6 mm but can be swapped from 0.3–1.0 mm for detail or speed.

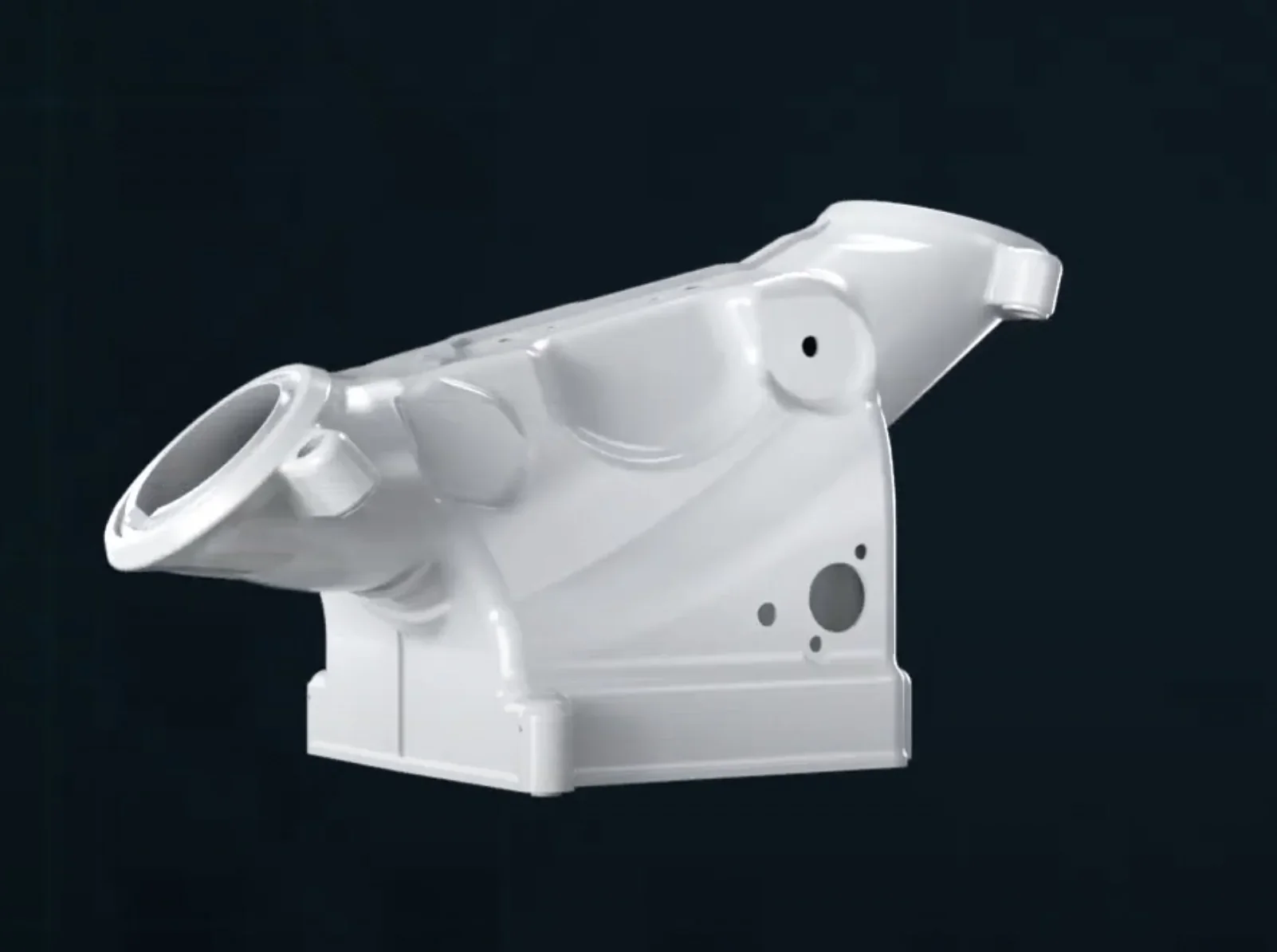

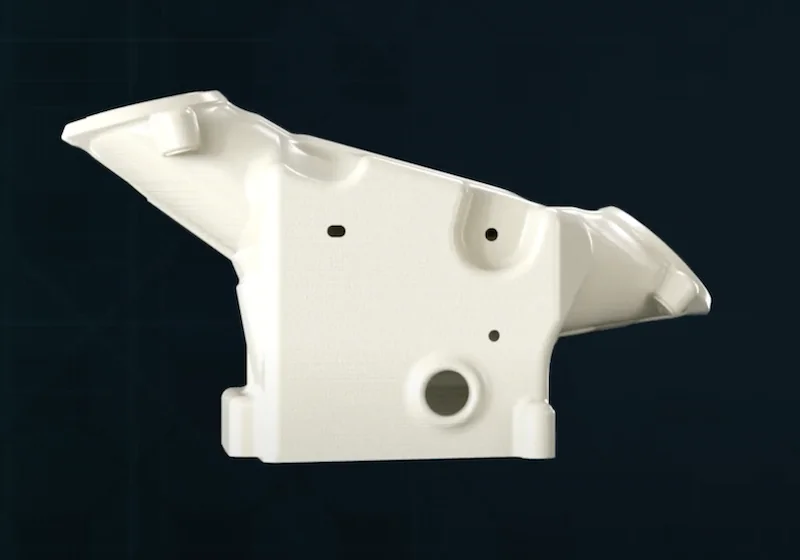

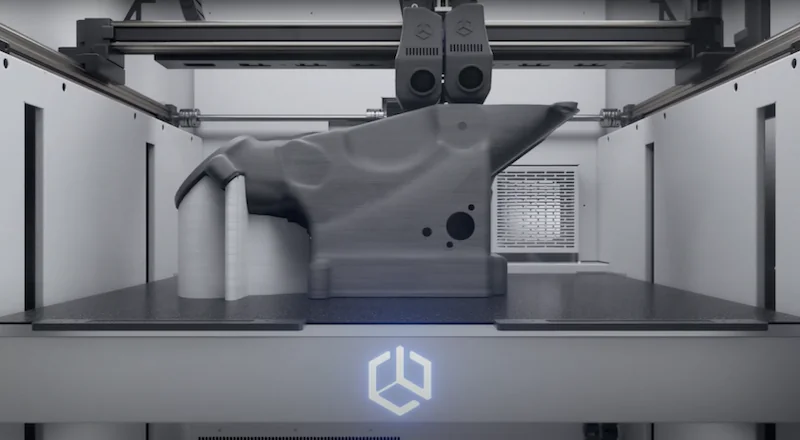

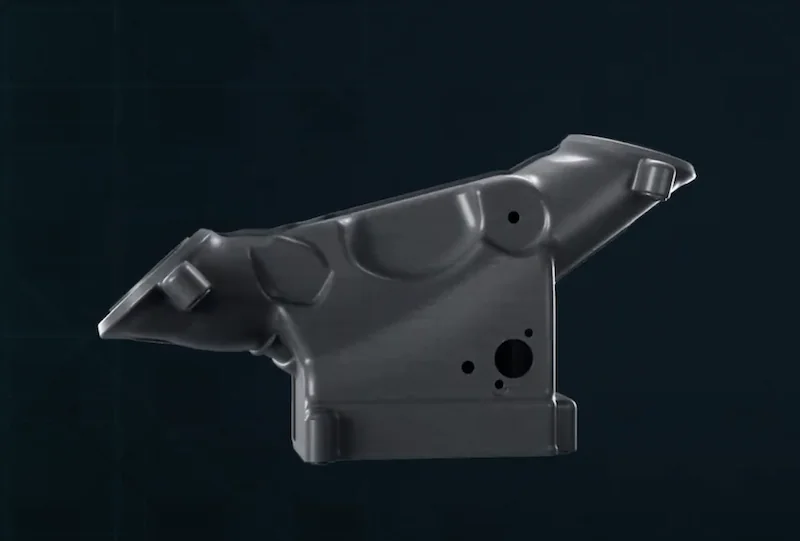

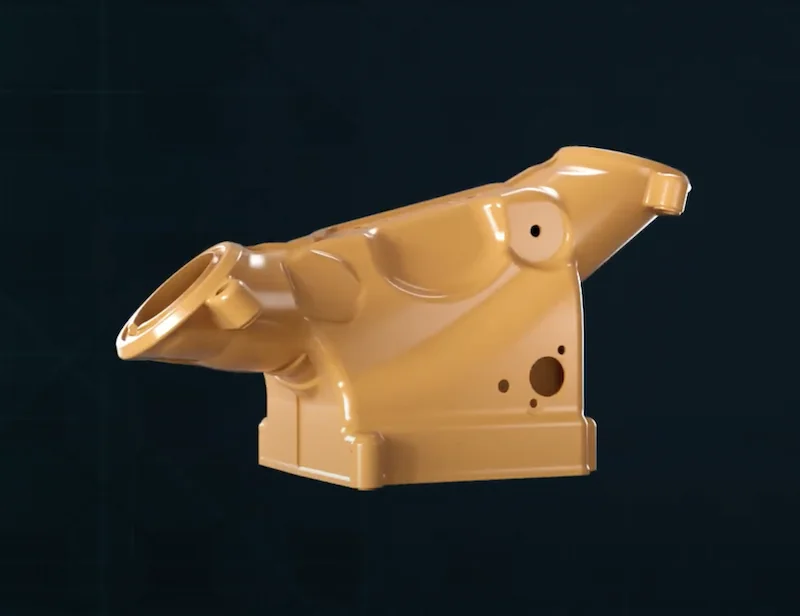

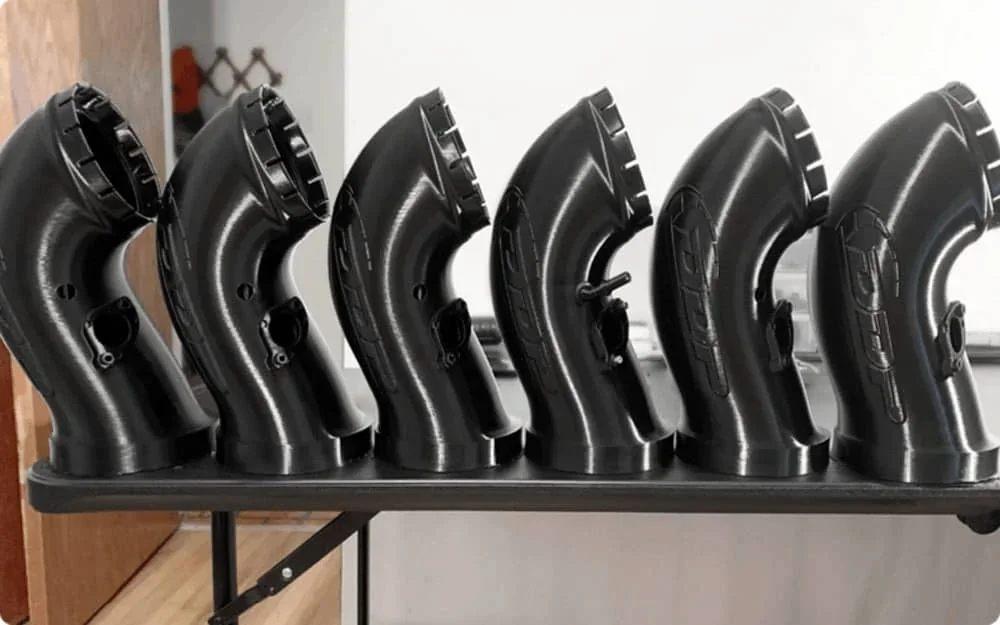

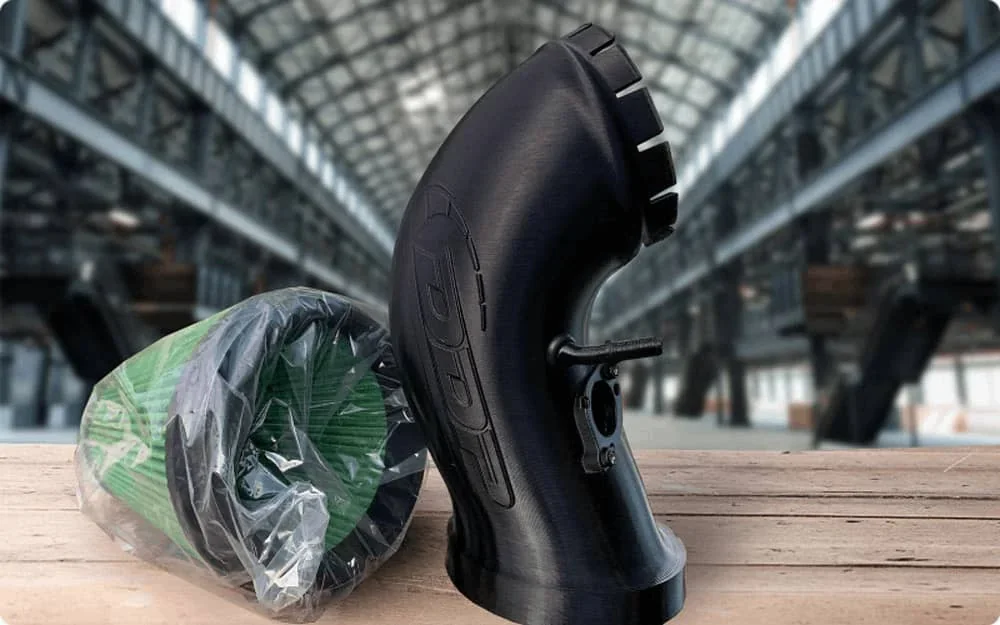

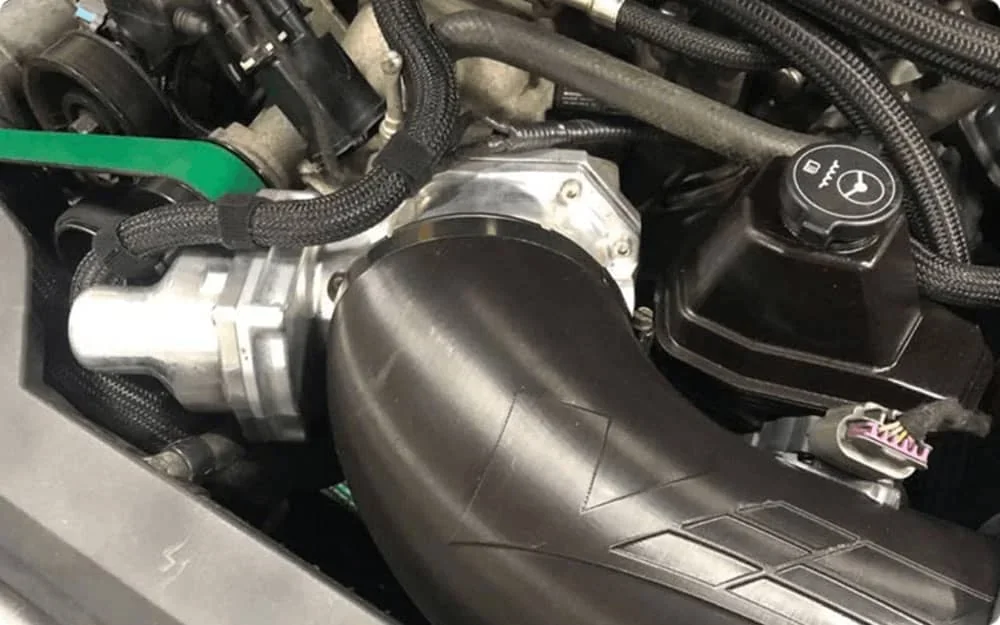

With a 90 mm³/s hotend flow rate, the D600 Pro 2 HS efficiently prints large parts without losing quality. Its capabilities were proven when a 3D-printed air intake helped Bruce Wanner set a 192.2 mph (309.3 km/h) world record in a Cadillac CTS-V.
The Creatbot D600 Pro 2 HS FFF 3D printer supports 12+ filaments including PLA, ABS, Carbon Fiber, Glass Fiber, Nylon, Ultra-PA, UltraPA-CF, PET-CF, PC, TPU, ASA, and PETG, all compatible with its 1.75 mm filament system.
ASA:
ULTRA-PA:
ABS:
ULTRA-PA CF:
PET-GF:

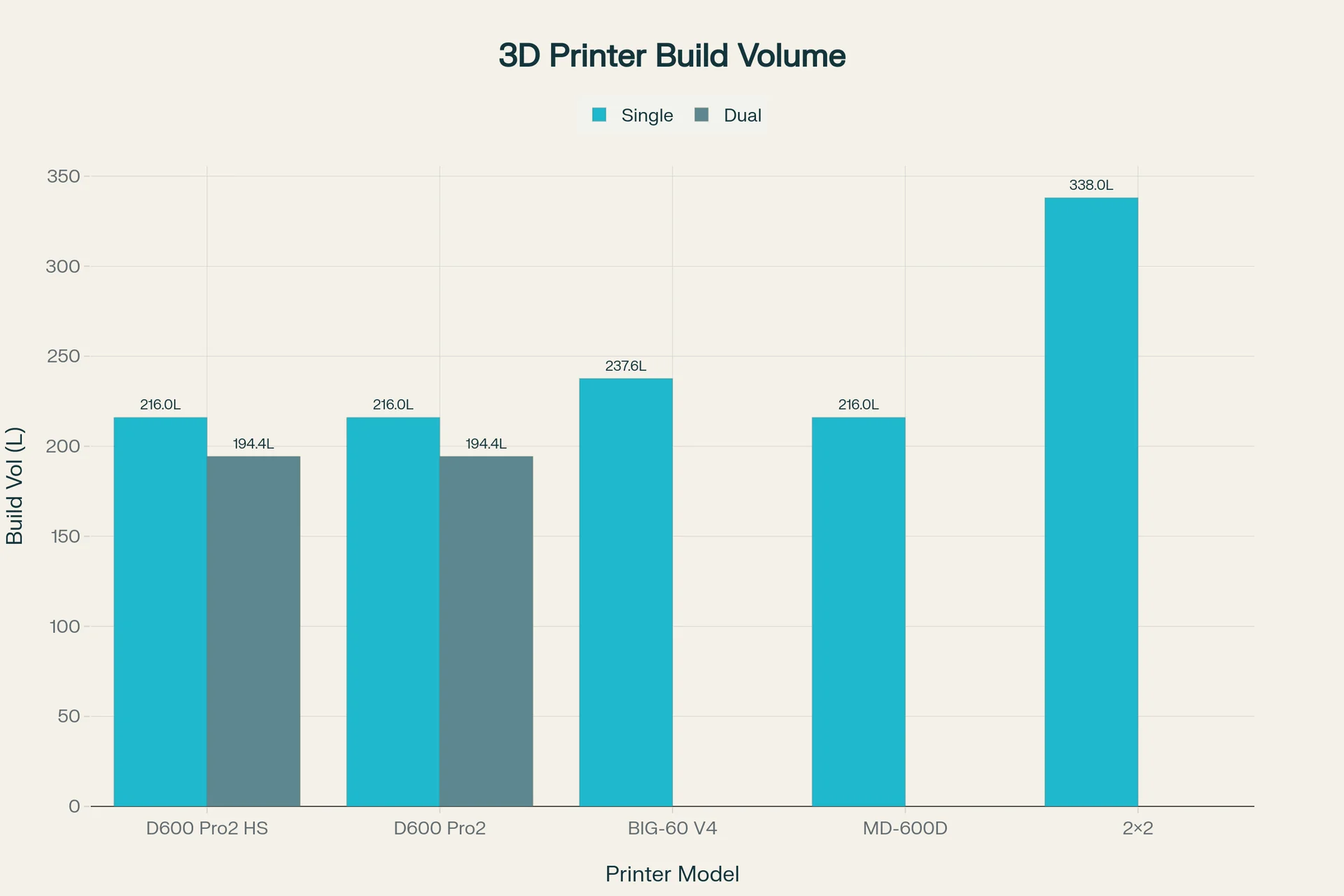

The CreatBot D600 Pro 2 HS offers a large print volume of 600 × 600 × 600 mm in single extrusion mode. In dual extrusion, the space adjusts to 540 × 600 × 600 mm.
Creatbot D600 Pro2 HS — 600×600×600 mm industrial platform with an active 60–70 °C chamber, 420 °C nozzles, ~90 mm³/s flow, dual auto-rising (non-IDEX) extruders, Klipper HS firmware, servo-driven XY, HEPA+carbon filtration, and an integrated filament dry box; tuned for thermal stability and high-flow engineering polymers/composites.
In contrast:
| Specification | Creatbot D600 Pro2 HS | Creatbot D600 Pro2 | Modix BIG-60 V4 | Mingda MD-600D | MAKEiT 2×2 |
|---|---|---|---|---|---|
| Price (USD, from) | $16,999+ | $10,659 | $8,000+ | $16,999+ | $25,000+ |
| Build volume (mm) | 600×600×600 (single) / 540×600×600 (dual) | 600×600×600 (single) / 540×600×600 (dual) | 600×600×660 | 600×600×600 | 650×650×800 |
| Enclosure / chamber | Enclosed, active heated (spec up to 70 °C; some docs list 60 °C) | Enclosed, active heated (up to ~70 °C) | Enclosed; no active heated chamber | Enclosed; no active heated chamber | Optional enclosure; no heated chamber |
| Extruders / IDEX | Dual (auto-rising), non-IDEX | Dual, non-IDEX | Single; IDEX optional | Dual, non-IDEX | Single |
| Max nozzle temp (°C) | 420 | 420 | Components rated 500 (tested 340) | ≤ 350 (rec ≤320) | 450 |
| Max bed temp (°C) | 100 | 100 | 110 | 110 | 110 |
| Volumetric flow (mm³/s) | 90 | n/s | 30 (Std) · 45–60 (HF) · 160 (Ultra) | ~40 | n/s |
| Rated output (g/h) | n/s | n/s | ~94 (Std) · >500 (Ultra) | n/s | n/s |
| Assembly | Assembled | Assembled | Self-assembly kit (assembly services available in the US/EU) | Assembled | Assembled |
| Notable features | Klipper HS firmware; servo XY; HEPA+Carbon; filament dry box (0–70 °C) | Direct-drive; outage recovery; filament runout | Best value, tallest Z in class; scalable hotend choices | Turnkey; included dual (non-IDEX) | 100-hour test before ship; Layer Shift Prevention |
Bottom-Line:
The Creatbot D1000 HS has a larger build volume (1000 mm³) than the D600 Pro series (600 mm³).

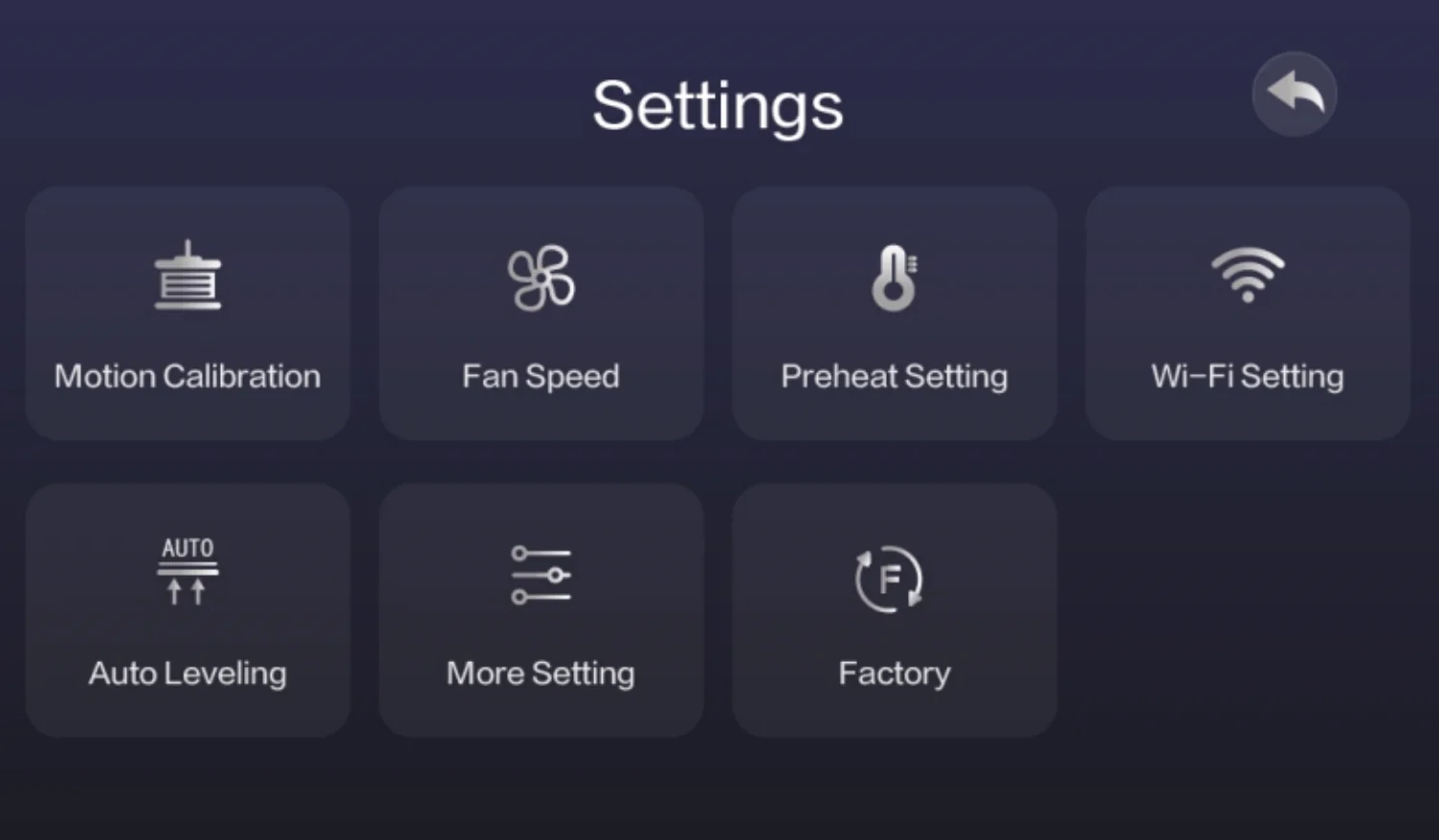

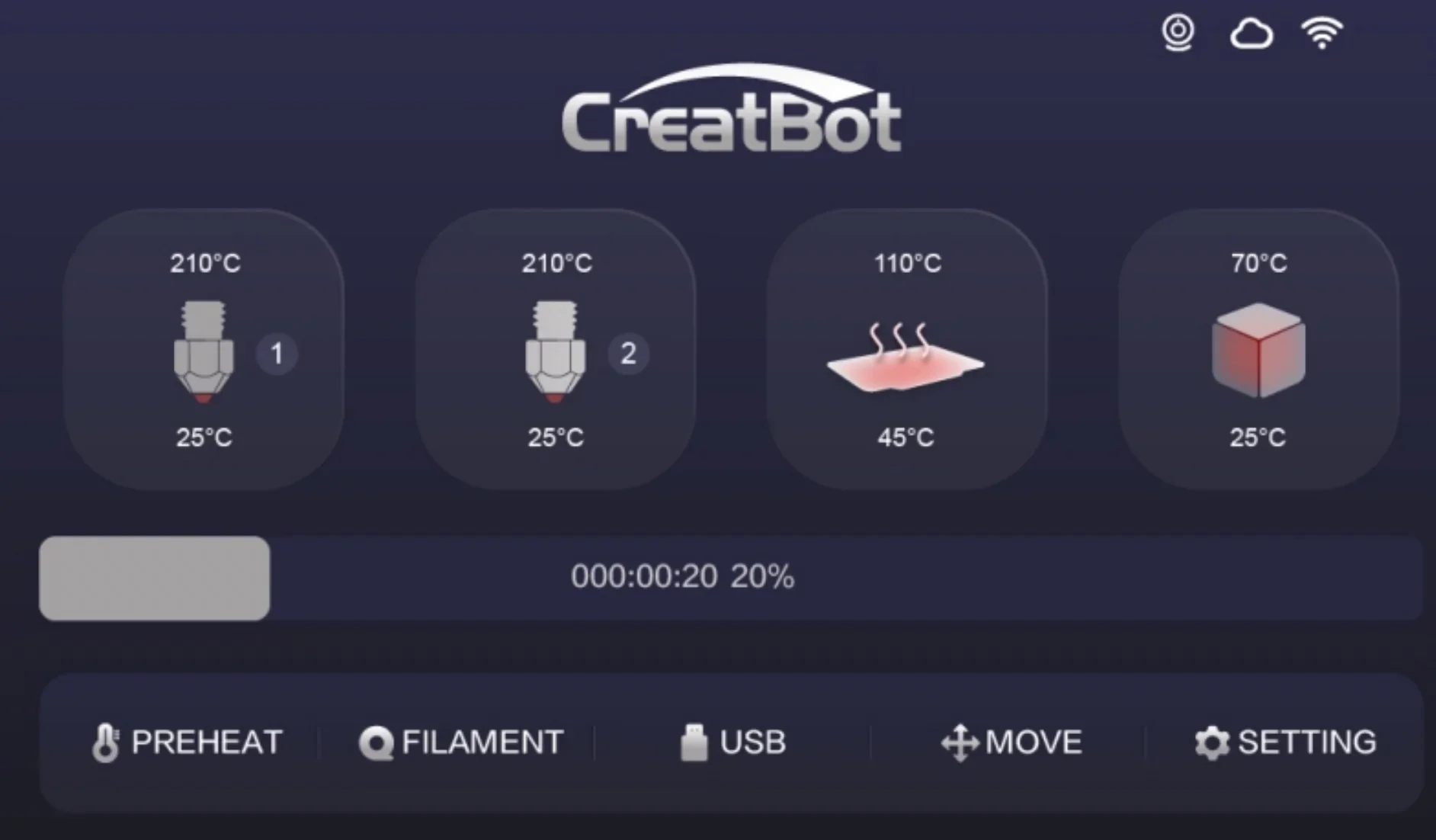

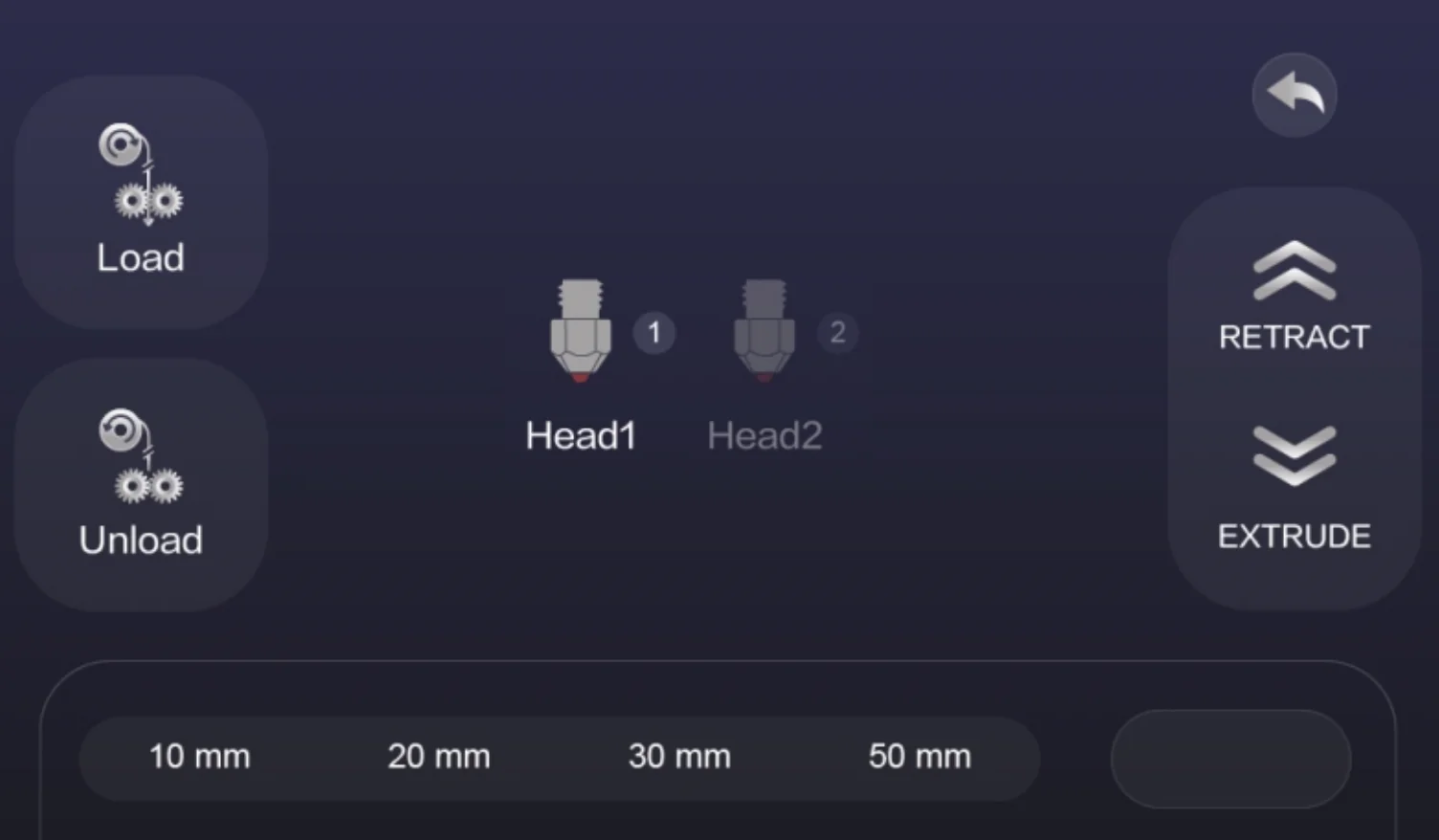

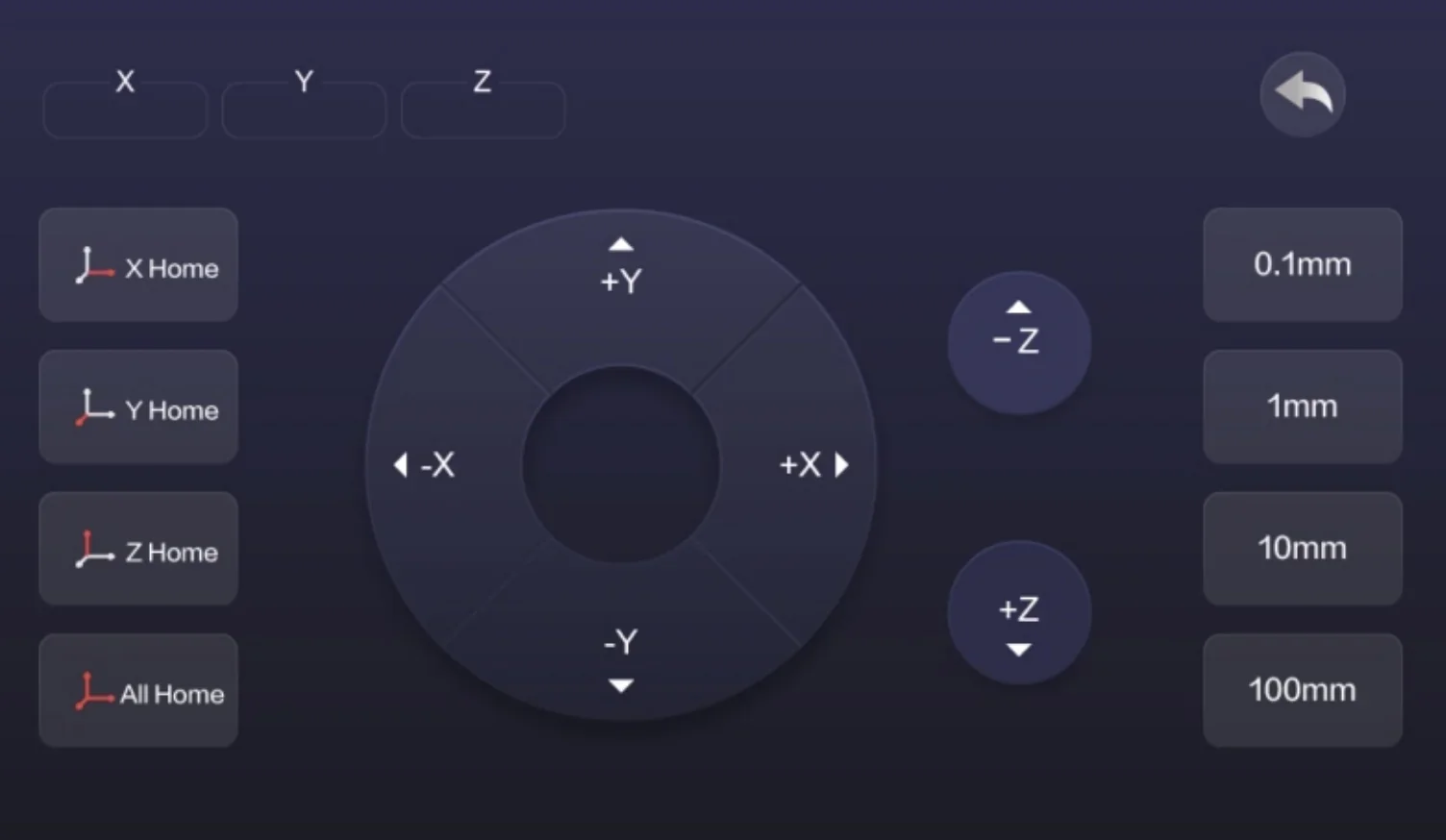

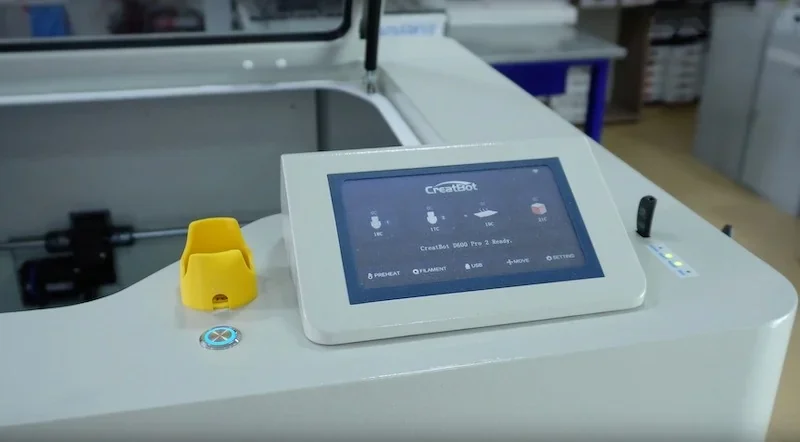

The Creatbot D600 Pro 2 HS offers over 40 touchscreen controls including temperature, axis, filament, and print management, plus physical controls like a power switch, U-disk input, and indicator light.

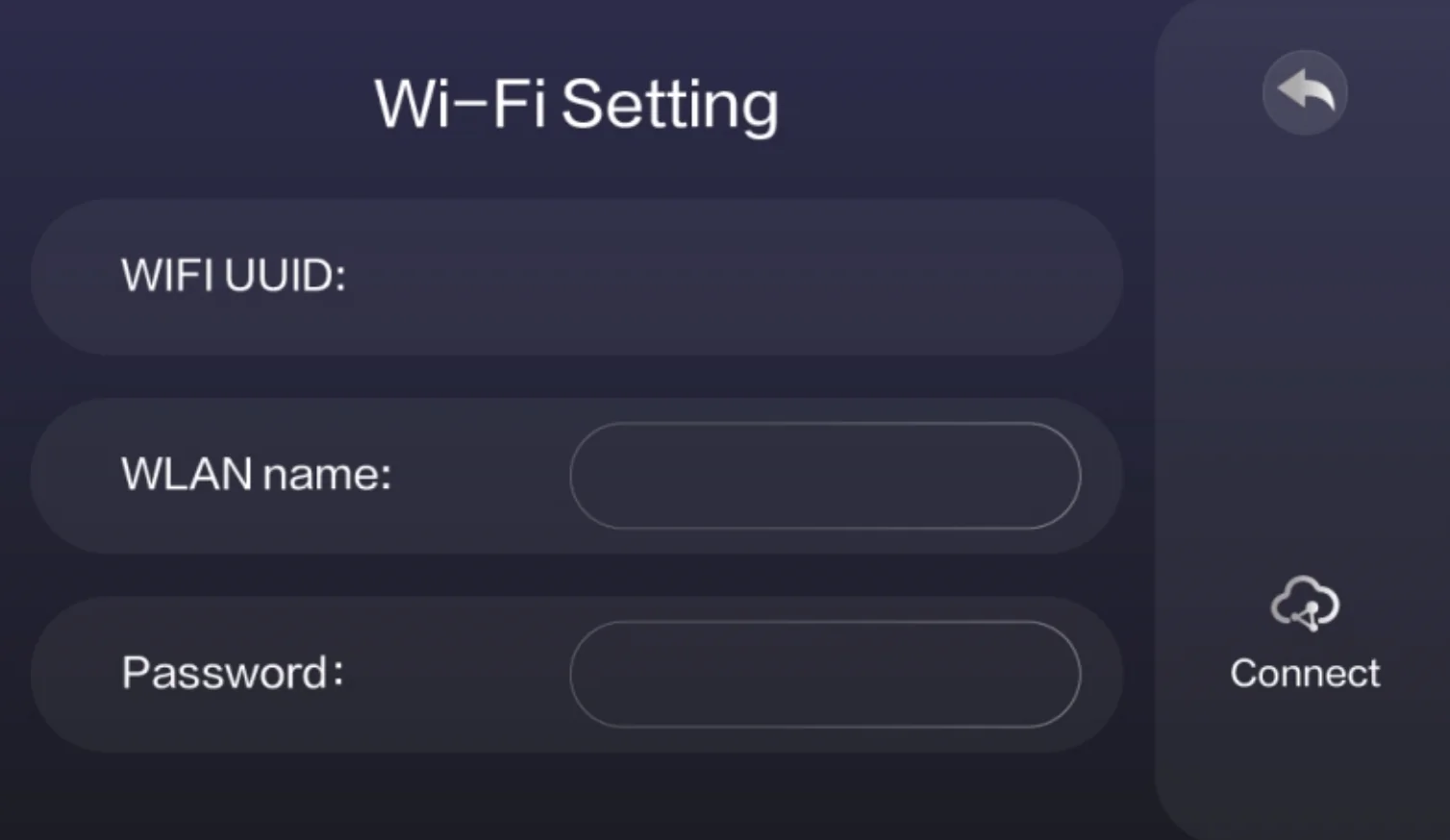

The CreatBot D600 Pro 2 HS supports USB computer connection, USB flash drive printing, and built-in Wi-Fi for wireless file transfer. These options provide flexible workflows, with Wi-Fi enabling remote uploads for streamlined production.
The D600 Pro 2 HS includes camera control for remote monitoring via mobile app, allowing users to adjust speed, temperatures, and pause/resume functions over the network. Real-time video feedback is especially useful for long prints, supporting 24/7 production by enabling operators to oversee multiple machines remotely.

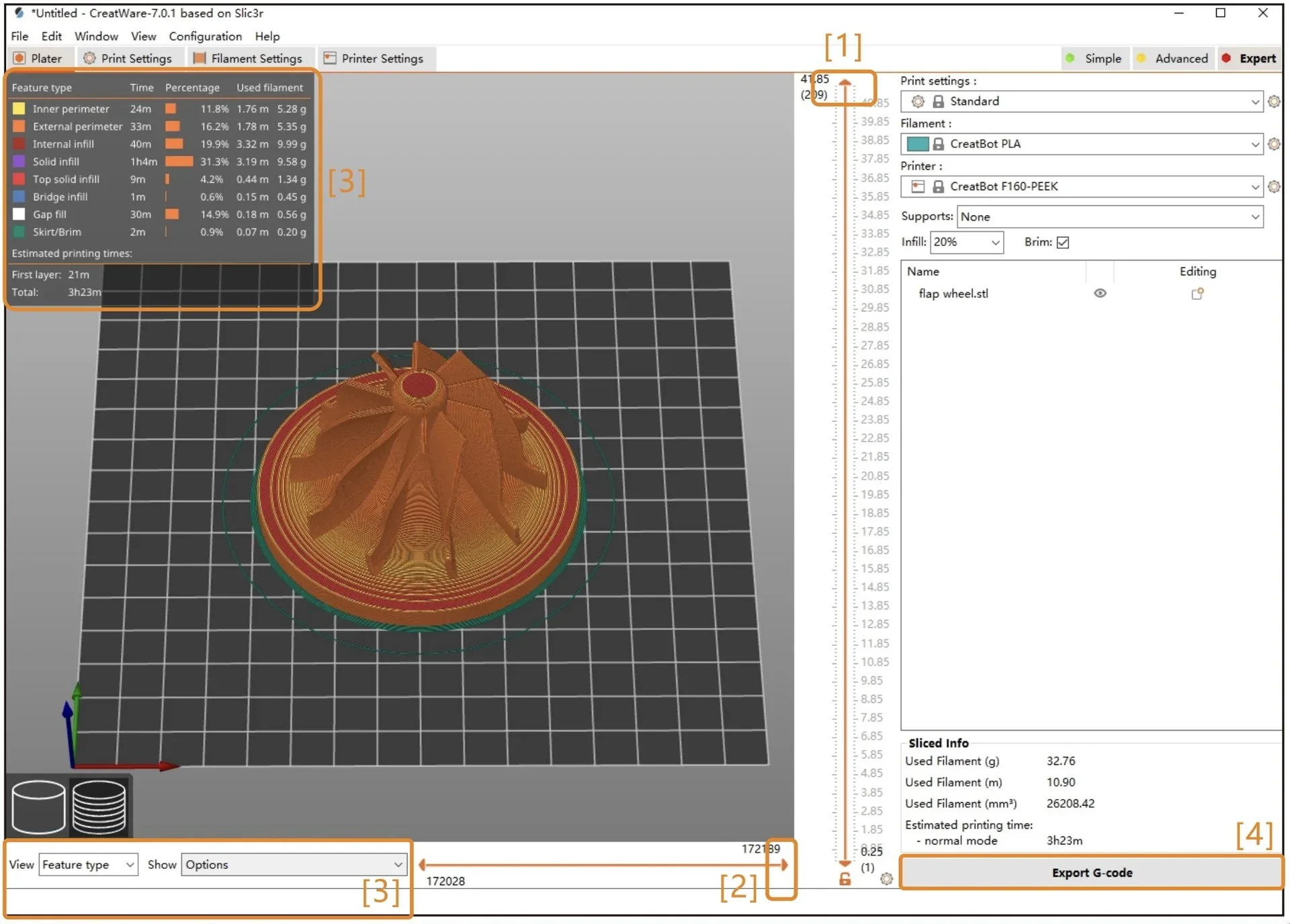

The CreatBot D600 Pro 2 HS comes with CreatWare slicing software, offering multilingual support, optimized presets, and full material/nozzle profiles. It also supports OrcaSlicer, Cura, and Slic3r, giving users flexibility with familiar interfaces while retaining advanced printer features. All slicers handle STL, OBJ, and AMF files on Windows and macOS.
The D600 Pro 2 HS uses Klipper firmware with a 32-bit NPU processor for fast calculations, responsive control, and stable speeds up to 300 mm/s with high precision. A mobile app links to the integrated camera, enabling remote monitoring and adjustments to speed, temperatures, and pause/resume functions — especially useful for long prints using the full 600 × 600 × 600 mm build volume.

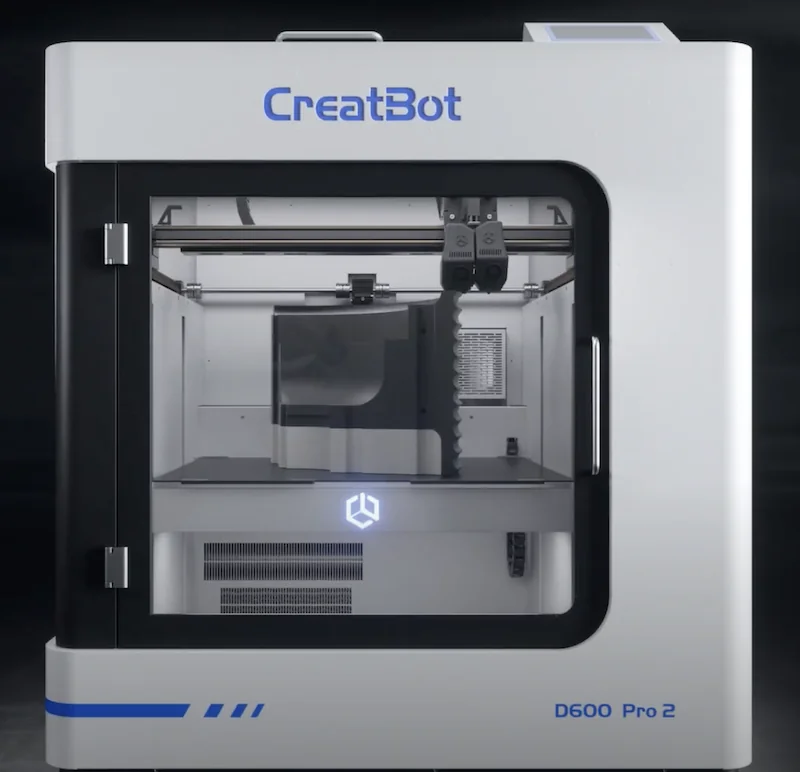

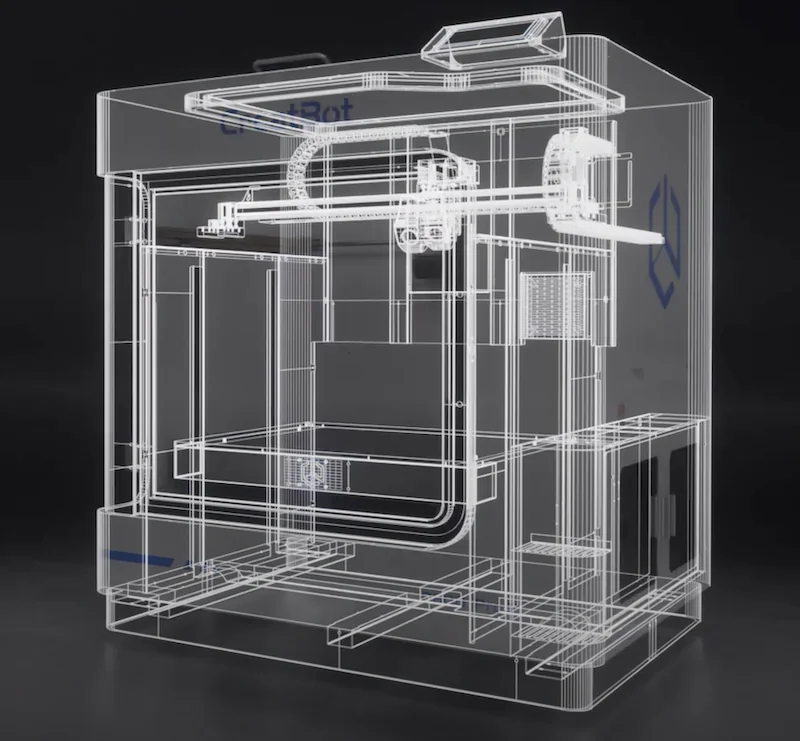

The CreatBot D600 Pro 2 HS features an industrial all-metal chassis for stability, measuring 1080 × 920 × 1245 mm and weighing 200 kg, designed for professional use.

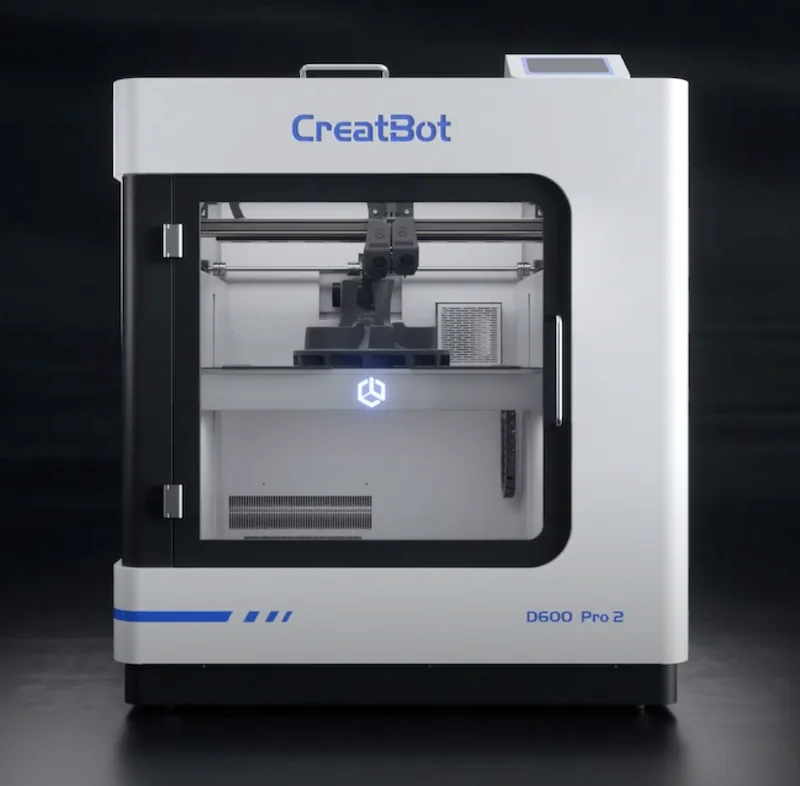

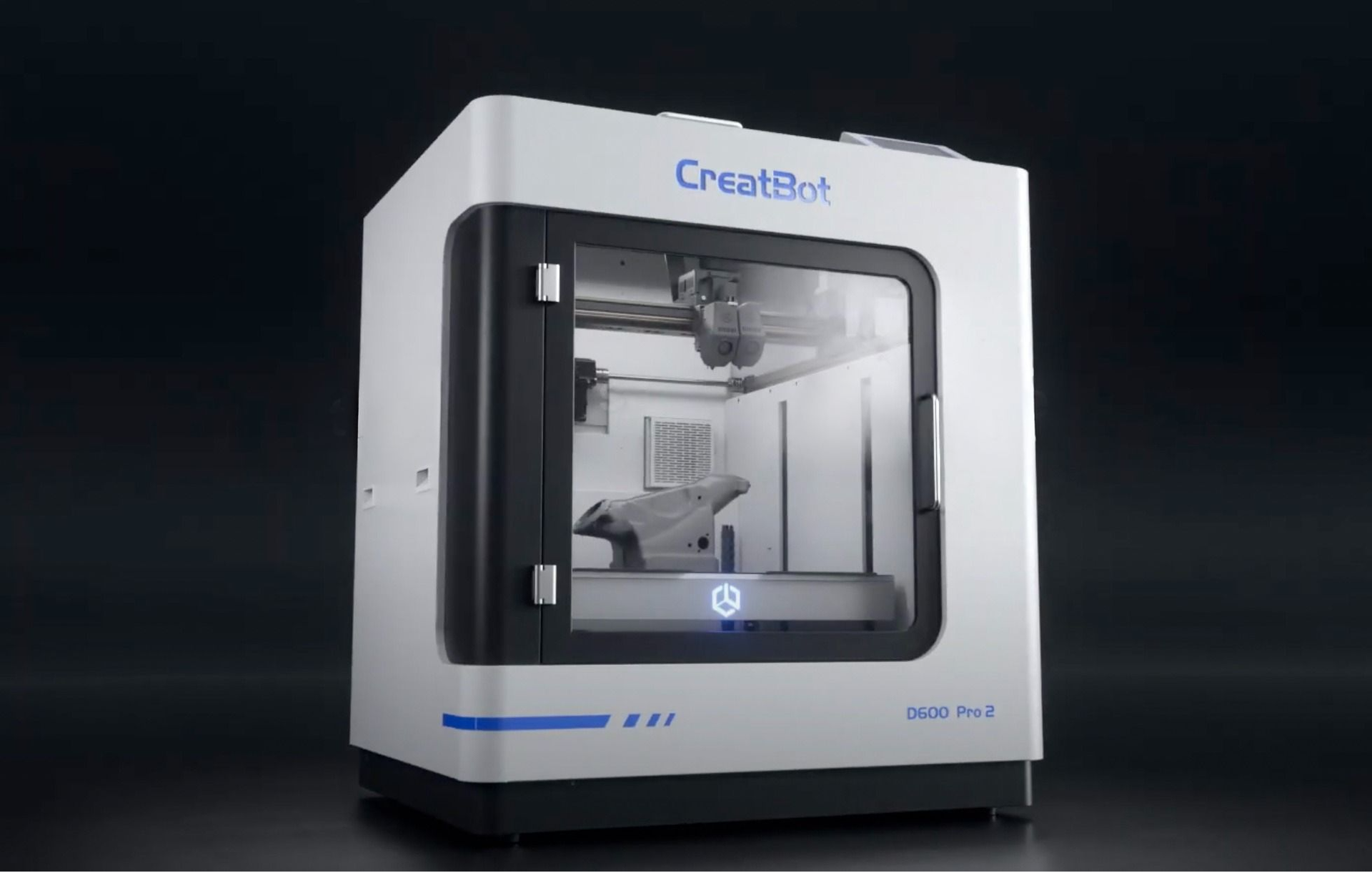

The D600 Pro 2 HS has a fully enclosed design with a transparent viewing window. Its build platform uses aviation-grade aluminum with a removable magnetic PEI-coated sheet for strong adhesion and easy part removal.

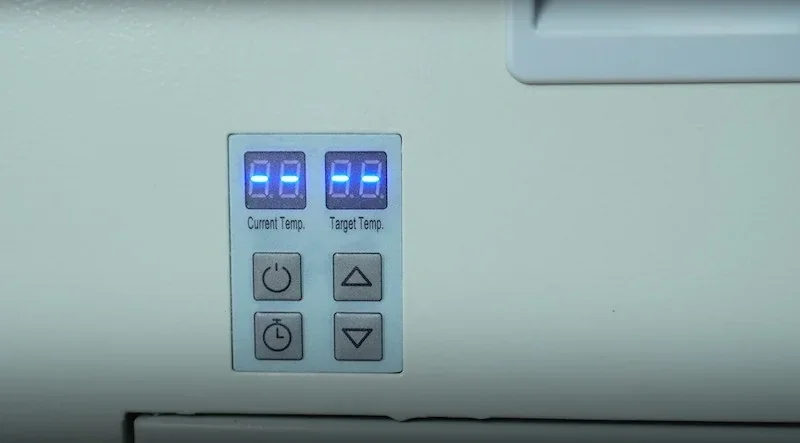

The built-in heating unit maintains 70°C chamber temperature.

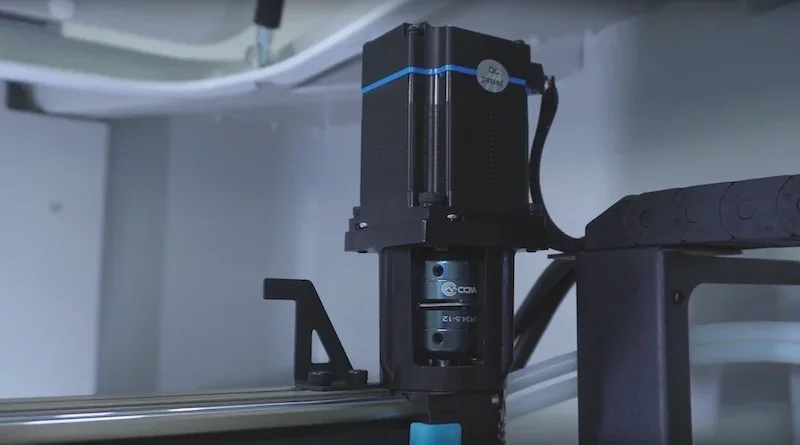

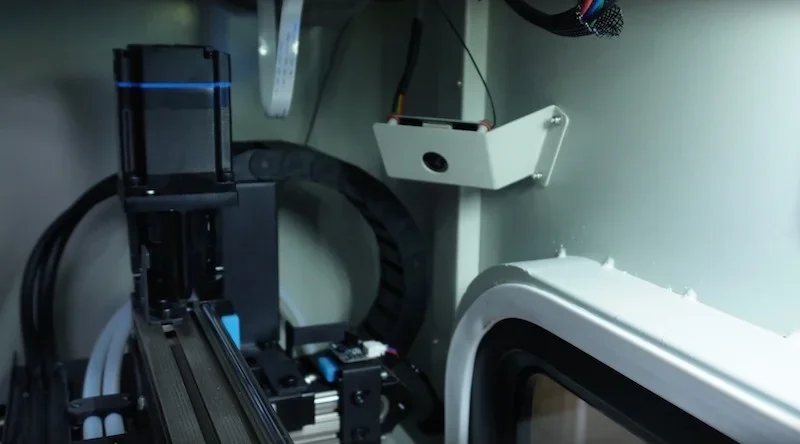

The D600 Pro 2 HS motion system uses linear guide rails with NEMA 23 closed-loop servo motors, delivering ±0.05 mm accuracy at speeds up to 300 mm/s. Photoelectric switches ensure precise X/Y positioning, while Z-axis Magic Box technology removes surface texture issues in tall prints for consistent quality across the full 600 mm height.

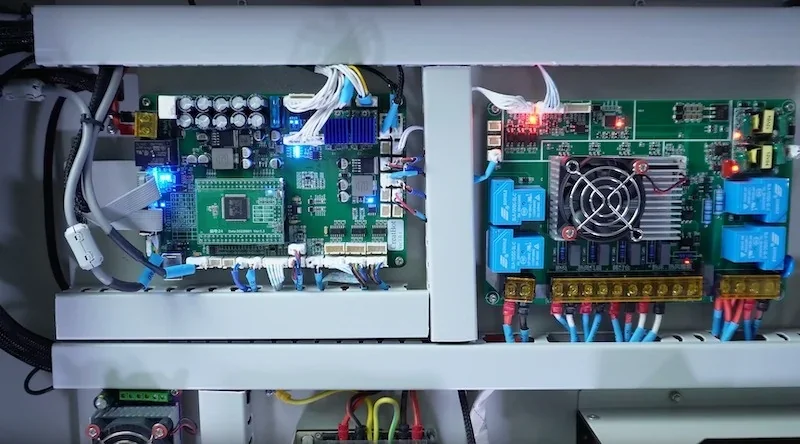

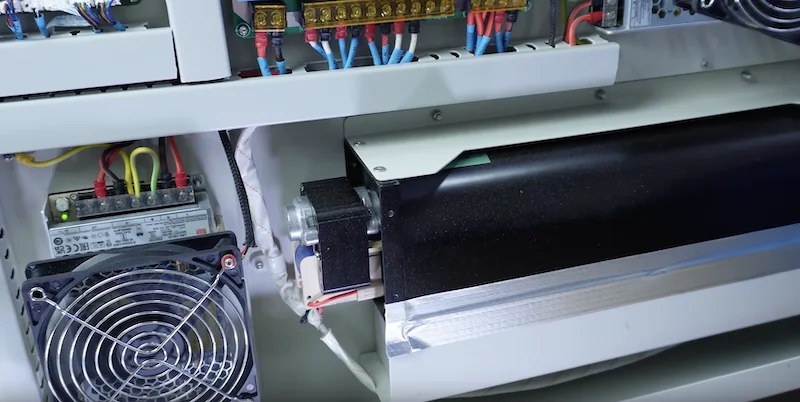

All electronics are housed in a rear compartment for easy servicing. An STM32 ARM-based motherboard powers the system, using a dual-chip design: one chip manages power and motors, while the other handles print operations and the interface. This separation boosts reliability and thermal management.

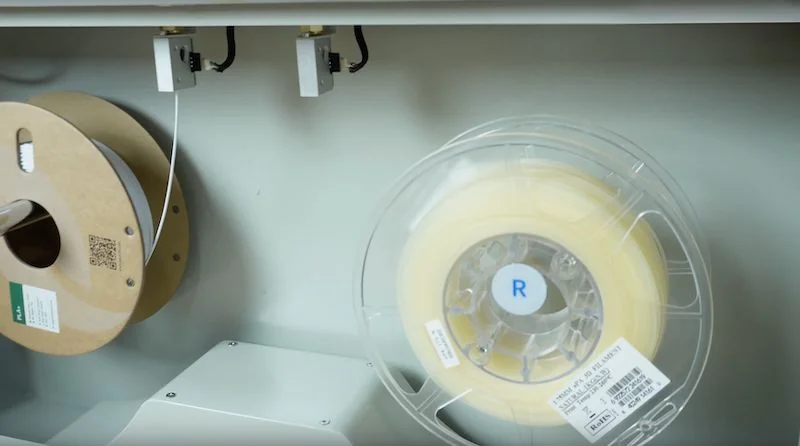

A dedicated filament compartment with adjustable 0–70°C temperature control protects moisture-sensitive materials, strengthening the printer’s thermal management system.
An integrated HEPA and carbon filtration system captures particulates and fumes, enabling odor-free ABS printing in enclosed spaces by reducing emissions from heated thermoplastics.

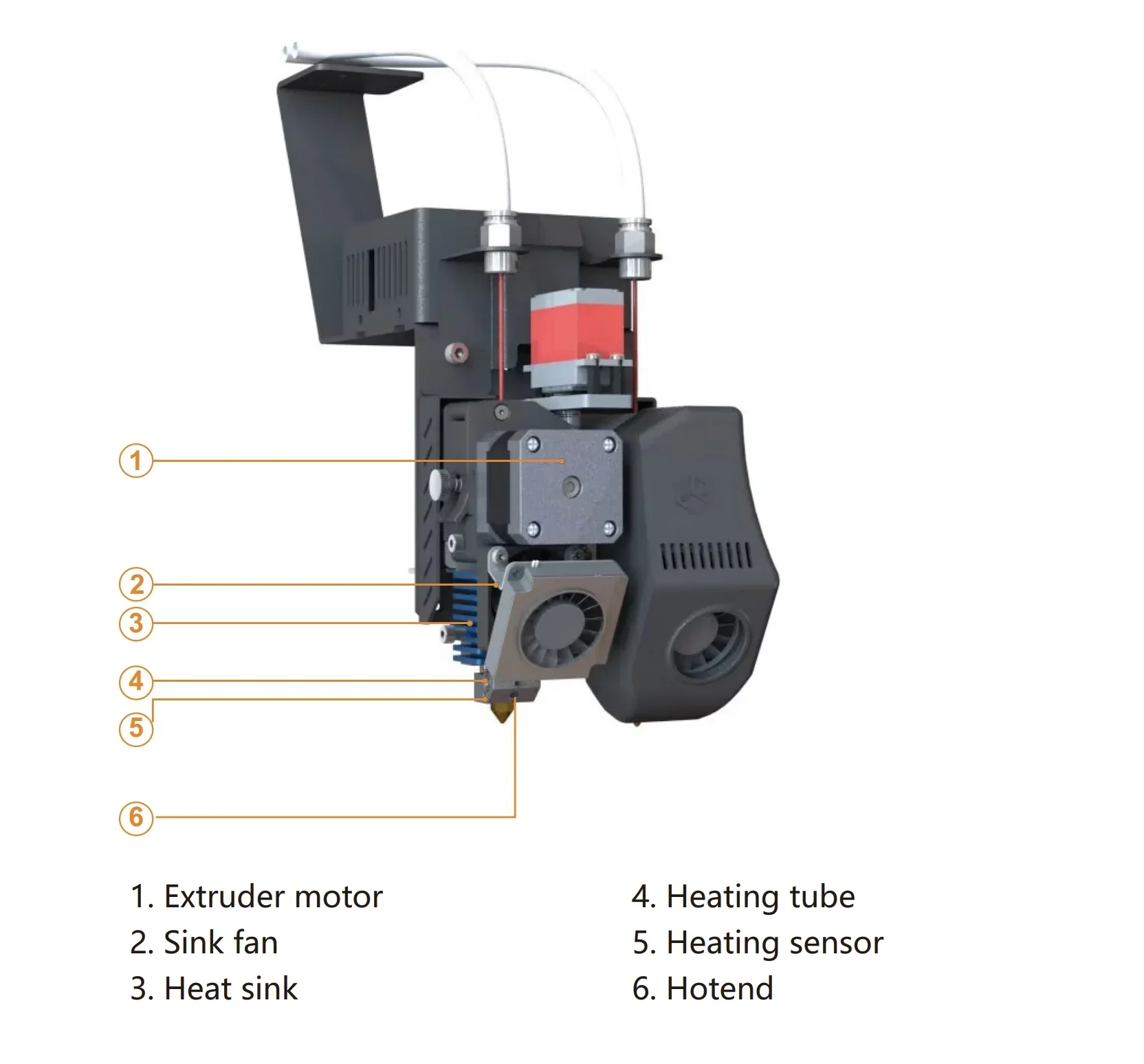

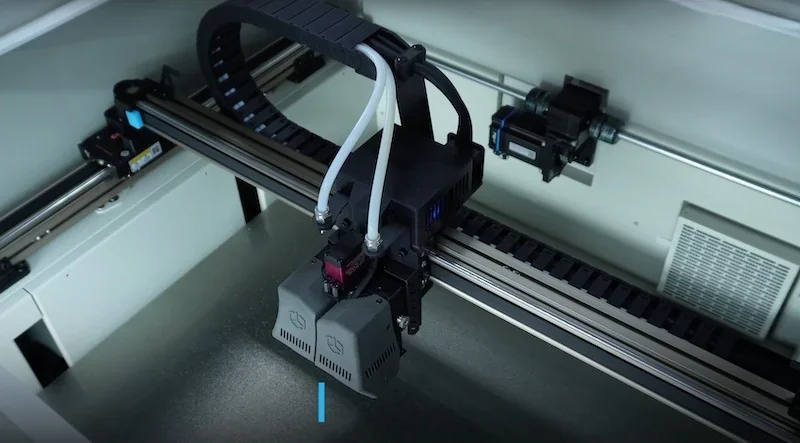

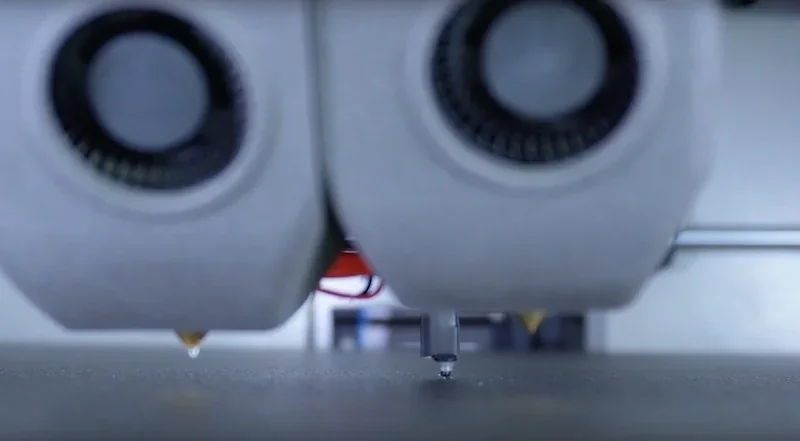

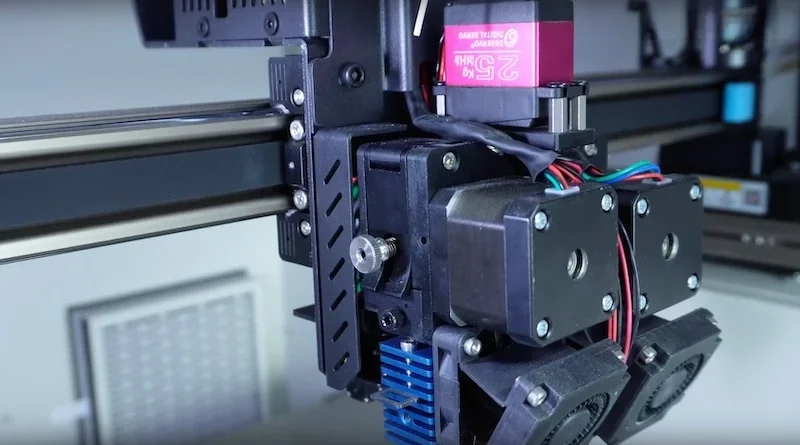

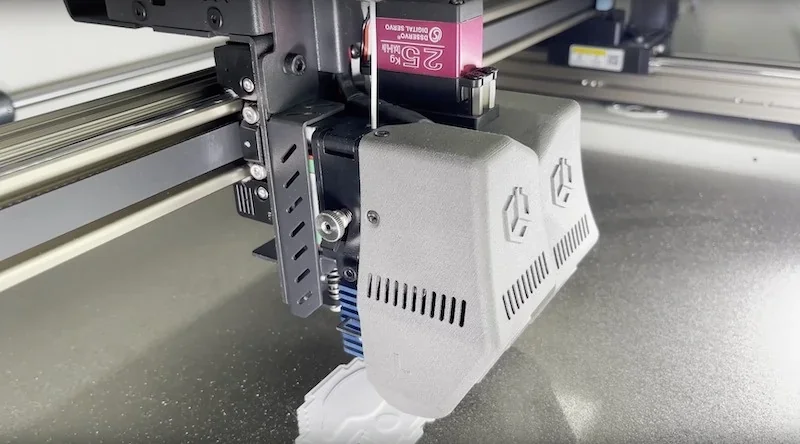

The dual extruder system includes auto-rising nozzles to avoid interference when inactive. Martensitic steel hotends handle up to 420°C for long periods without wear.

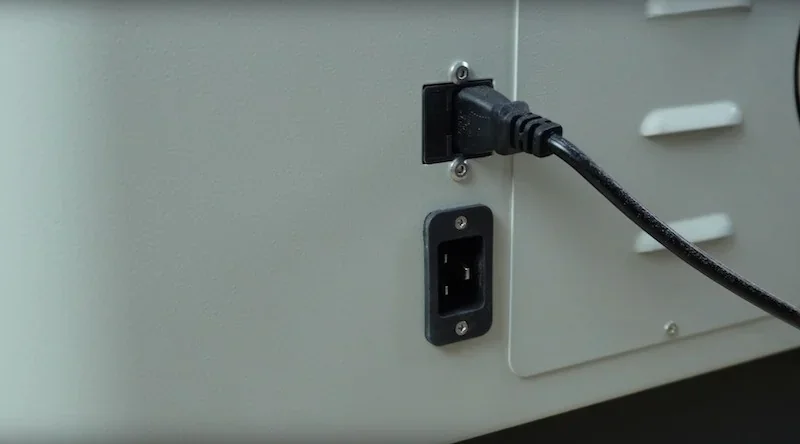

The system uses dual power connectors — one for motors, electronics, and lighting, and another dedicated to the heated chamber. This separation improves power management and prevents overload during high-temperature operation.

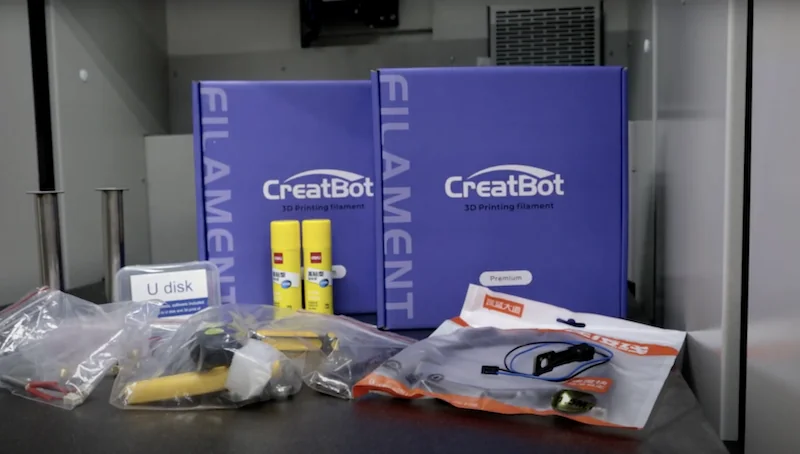

The CreatBot D600 Pro 2 HS arrives fully assembled with a pre-installed magnetic PEI build platform, ready to print after basic setup. It includes two PLA spools, essential maintenance tools, and detailed documentation to guide first-time use.
Note: Package contents are set by the manufacturer and may change without notice. Confirm the current inclusions with a Top3DShop sales representative before ordering.
Creatbot offers 24 accessories and spare parts for the Creatbot D600 Pro 2 HS.
| Accessory | Price (USD) | Image |
|---|---|---|
| GROUP: Hotend, Nozzles, and Heating Components | ||
| CREATBOT HARDENED STEEL NOZZLE FOR CREATBOT D600 PRO2 HS | $29.00 |  |
| CREATBOT QUICK-REMOVE HOTEND FOR CREATBOT D600 PRO2 HS | $329.00 |  |
| CREATBOT HOTEND FOR CREATBOT D600 PRO2 HS | $239.00 |  |
| CREATBOT HEATING SENSOR FOR CREATBOT D600 PRO2 HS | $54.00 |  |

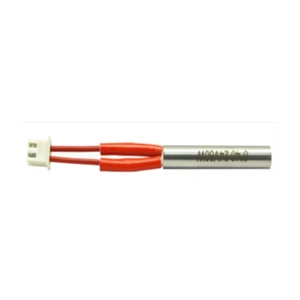

| CREATBOT HEATING TUBE FOR CREATBOT D600 PRO2 HS | $54.00 |  |
| GROUP: Cooling Fans | ||

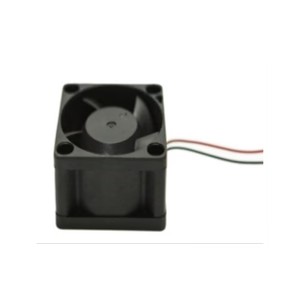

| CREATBOT SINK FAN FOR CREATBOT D600 PRO2 HS | $83.00 |  |

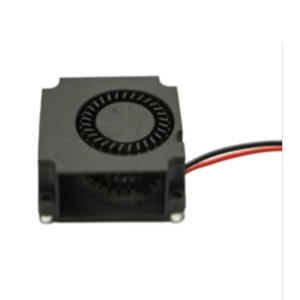

| CREATBOT COOLING FAN (FRONT) FOR CREATBOT D600 PRO2 HS | $83.00 |  |
| CREATBOT COOLING FAN (BACK) FOR CREATBOT D600 PRO2 HS | $83.00 |  |
| GROUP: Electronics and Control Boards | ||

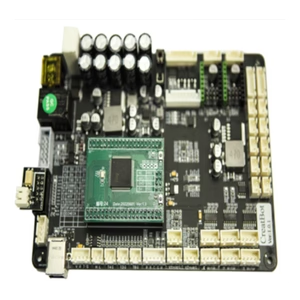

| CREATBOT MOTHERBOARD FOR CREATBOT D600 PRO2 HS | $469.00 |  |

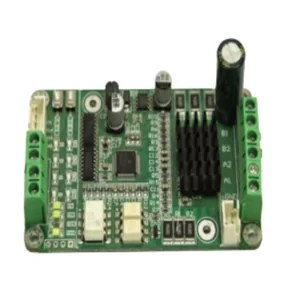

| CREATBOT EXTRUDER PCB FOR CREATBOT D600 PRO2 HS | $179.00 |  |

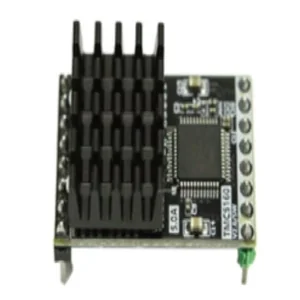

| CREATBOT EXTRUDER MOTOR DRIVER FOR CREATBOT D600 PRO2 HS | $113.00 |  |

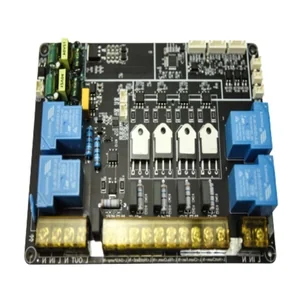

| CREATBOT AC POWER CONTROL BOARD FOR CREATBOT D600 PRO2 HS | $348.00 |  |
| GROUP: Motors, Drivers, and Servos | ||

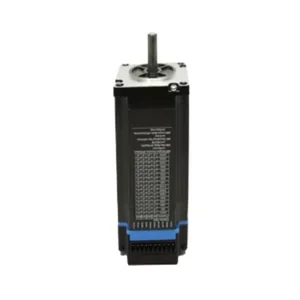

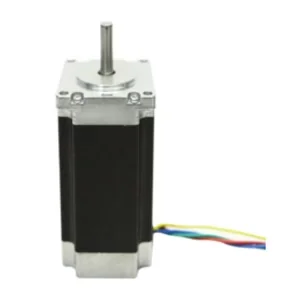

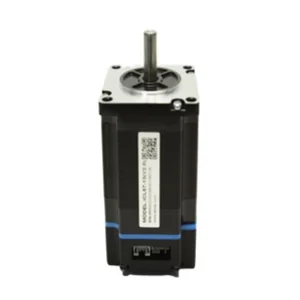

| CREATBOT X CLOSED-LOOP MOTOR FOR CREATBOT D600 PRO2 HS | $480.00 |  |
| CREATBOT Y CLOSED-LOOP MOTOR FOR CREATBOT D600 PRO2 HS | $499.00 |  |
| CREATBOT Z MOTOR FOR CREATBOT D600 PRO2 HS | $289.00 |  |
| CREATBOT Z MOTOR DRIVER FOR CREATBOT D600 PRO2 HS | $119.00 |  |

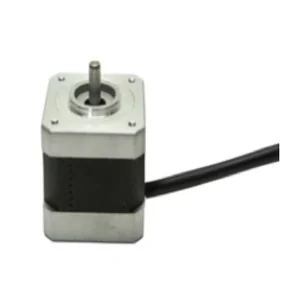

| CREATBOT EXTRUDER MOTOR FOR CREATBOT D600 PRO2 HS | $148.00 |  |

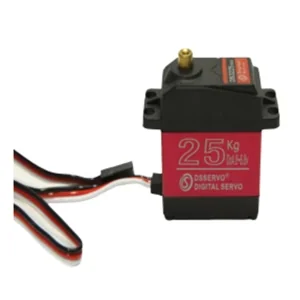

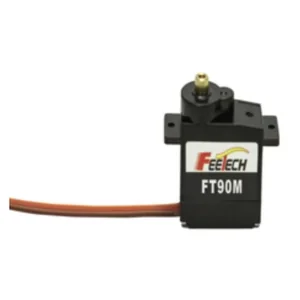

| CREATBOT SERVO FOR AUTO-RISING FOR CREATBOT D600 PRO2 HS | $94.00 |  |
| CREATBOT SERVO FOR BED LEVELING FOR CREATBOT D600 PRO2 HS | $84.00 |  |
| GROUP: Build Platform and Bed Surfaces | ||

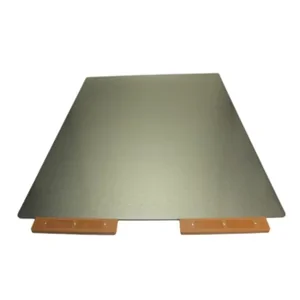

| CREATBOT REMOVABLE MAGNETIC SHEET FOR CREATBOT D600 PRO2 HS | $489.00 |  |

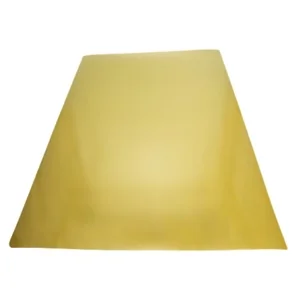

| CREATBOT PEI FILM FOR CREATBOT D600 PRO2 HS | $299.00 |  |
| CREATBOT WHOLE PLATFORM FOR CREATBOT D600 PRO2 HS | $1,499.00 |  |
| GROUP: Power Supply | ||

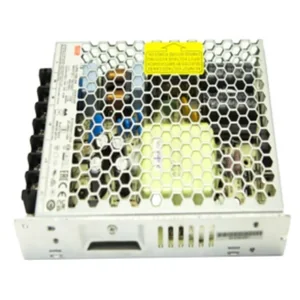

| CREATBOT POWER SUPPLY-150W FOR CREATBOT D600 PRO2 HS | $229.00 |  |
| GROUP: Air Filtration | ||

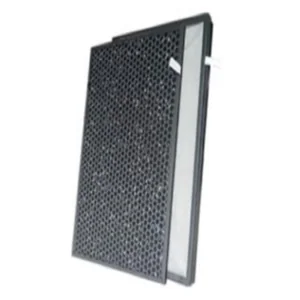

| CREATBOT HEPA & CARBON AIR FILTER FOR CREATBOT D600 PRO2 HS | $195.00 |  |
Pre-Print Setup
Manually level the platform with 4 nuts, keeping 0.20 mm gap at all corners.
Run auto-leveling via touchscreen (25 points) and save calibration.
Set nozzle temps: PLA 190–210°C, ABS 230–250°C (+10°C for >60 mm/s).
Set bed temps: PLA 45–60°C, ABS 80–100°C (max 120°C).
Material Management

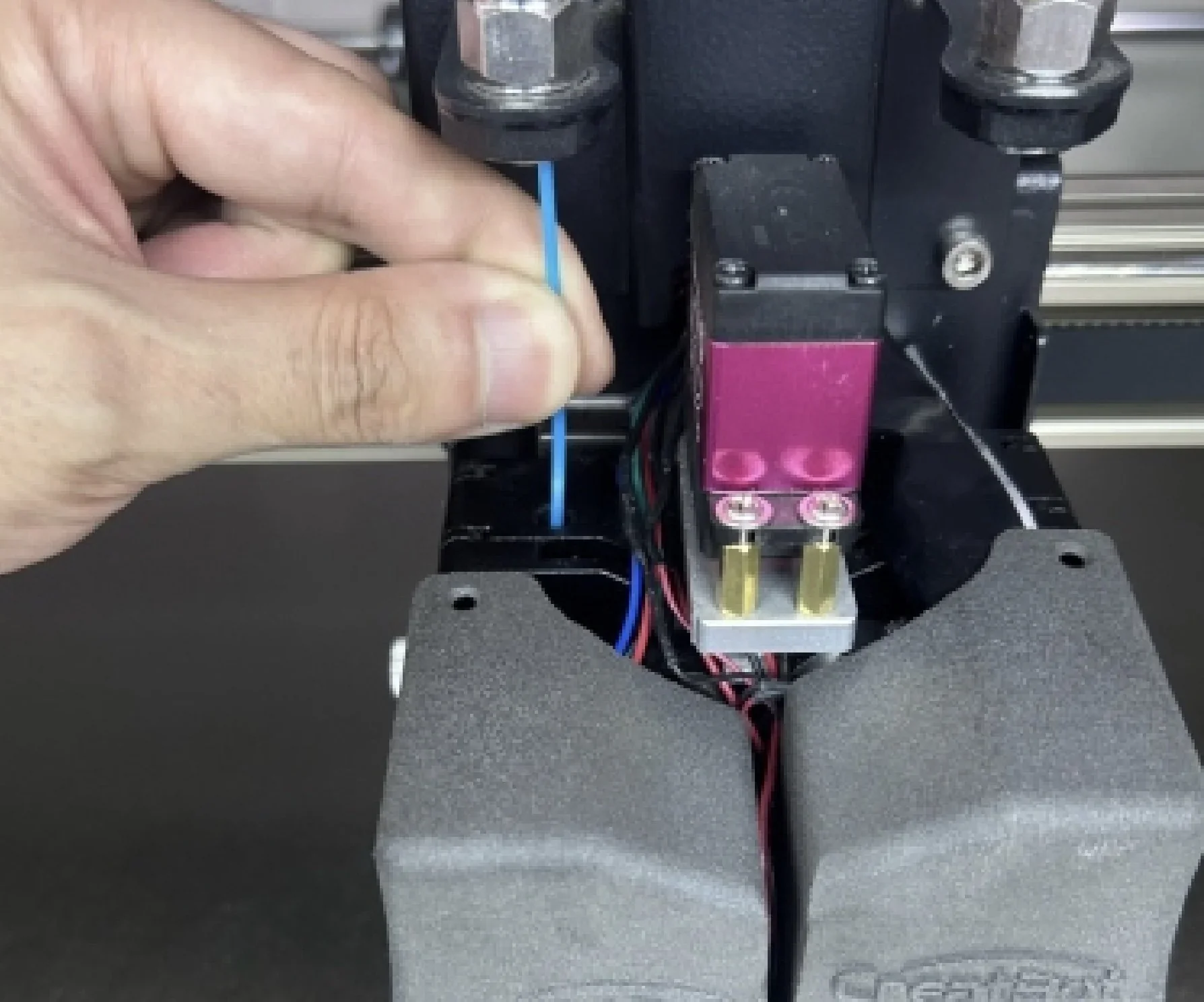

Load filament by preheating, threading through detector, and feeding until extrusion.
Unload via “Filament” menu with automatic heating/withdrawal.
Apply masking/Kapton tape for better adhesion if needed.
Mechanical Maintenance
Clean/lubricate guide rails if motion is restricted.
Replace fuses from tray when power issues occur.
Clean nozzles to prevent clogs from impurities or dust.
Environmental Controls
Keep operating temps 5–30°C.
Store filament sealed during long idle periods.
Maintain dust-free environment for long-term storage.
The printer’s safety system flags "MINTEMP" below 0°C and "MAXTEMP" for overheating. Stepper motors operate within 5–9999 range settings, while cooling fans adjust from 1–100%. For best first-layer adhesion, the nozzle should be 0.10 mm from the bed with ±0.1 mm tolerance.
The CreatBot D600 Pro 2 HS comes with a 12-month warranty covering parts that fail from manufacturing defects, excluding consumables like nozzles and hotends, which have a 6-month warranty. During coverage, CreatBot supplies replacement parts free of charge along with repair guides and videos.
CreatBot provides lifetime technical support for the D600 Pro 2 HS. Email support (support@creatbot.com) typically responds within 24 hours on business days, and Skype sessions are available for complex issues. All online service remains free beyond the warranty period.
Buying through Top3DShop adds free shipping, local support, and unlimited technical assistance. The shop also accepts purchase orders from schools and eligible businesses, giving both new and experienced users reliable support throughout ownership.
Full up-to-date warranty terms are available on the manufacturer's website: https://www.creatbot.com/warranty
The CreatBot D600 Pro 2 HS is priced at $15,437.07, making it a professional-grade solution for enterprises that require large-format dual extrusion. It provides a 600 × 600 × 600 mm build volume, 420°C auto-rising dual extruders, and a 32-bit motherboard with NPU for responsive control. With over 3,000 units installed worldwide — including at NASA, Boeing, Renault, Red Bull Racing, and the Australian and Belgian Ministries of Defense—the printer has a proven track record. Highlights include Z Magic Box technology for tall-print surface quality, Camera Control for remote monitoring, HEPA+Carbon filtration, and a magnetic platform resistant to 120°C+. As the high-speed printing version of the D600 Pro 2, it offers faster, more powerful performance for large-scale production. Buy the CreatBot D600 Pro 2 HS from Top3DShop for local support.
