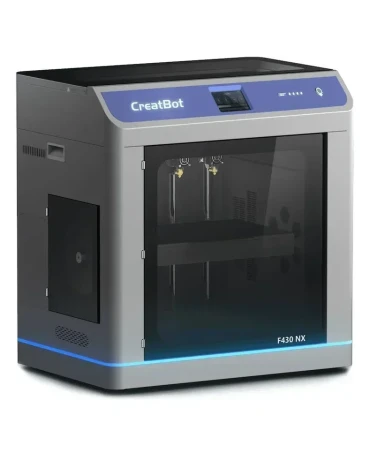

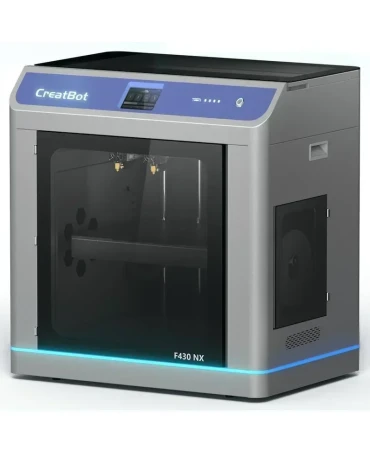

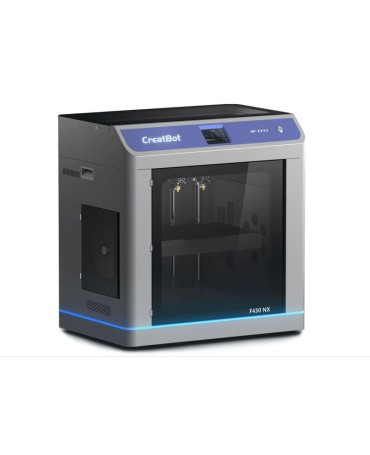

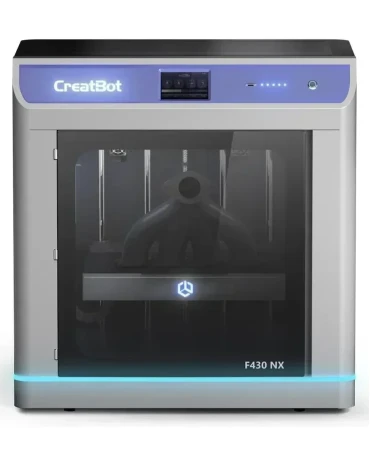

Creatbot F430 NX: High Performance Professional-Grade 3D Printer for Industrial Applications

The CreatBot F430 NX is an industrial desktop 3D printer with a precision frame and dual silicon carbide nozzles for high-speed, accurate printing with advanced materials. Its IDEX system enables multi-material printing in copy, mirror, and backup modes. The 420 °C nozzles resist wear from carbon fiber, while the 140 °C bed and 70 °C chamber reduce warping, maintaining ±0.2 mm accuracy.

Designed for aerospace, automotive, and manufacturing, it features a 400×300×300 mm build volume (360×300×300 mm dual), reinforced Z-Axis with ball screw, and auto bed leveling. It prints ABS, ASA, PC, Nylon, and fiber composites, with HEPA filtration, camera monitoring, and power-off recovery for 24/7 use.

• What is the print quality and performance of the Creatbot F430 NX 3D Printer?
• Which filaments can you use with the Creatbot F430 NX Industrial 3D Printer?
• What is the build volume of the Creatbot F430 NX Professional 3D Printer?
• What is the difference between the Creatbot F430NX and BCN3D Epsilon W50, BCN3D Omega I60, Mingda MD-400, Raise3D E2, Flashforge Creator 4 and Snapmaker J1S?
• What printer controls are available on the Creatbot F430 NX?
• What connectivity options are available on the Creatbot F430 NX?
• What software is offered with the Creatbot F430 NX?
• What is the design and build quality of the Creatbot F430 NX Industrial-Grade 3D Printer?
• What comes included in the box with Creatbot F430 NX?
• What upgrades and accessories are available for the Creatbot F430 NX?
• What maintenance does the CreatBot F430 NX printer require?
• What support and warranty come with the Creatbot F430 NX?
• How much does the Creatbot F430 NX cost?

What is the print quality and performance of the Creatbot F430 NX 3D Printer?

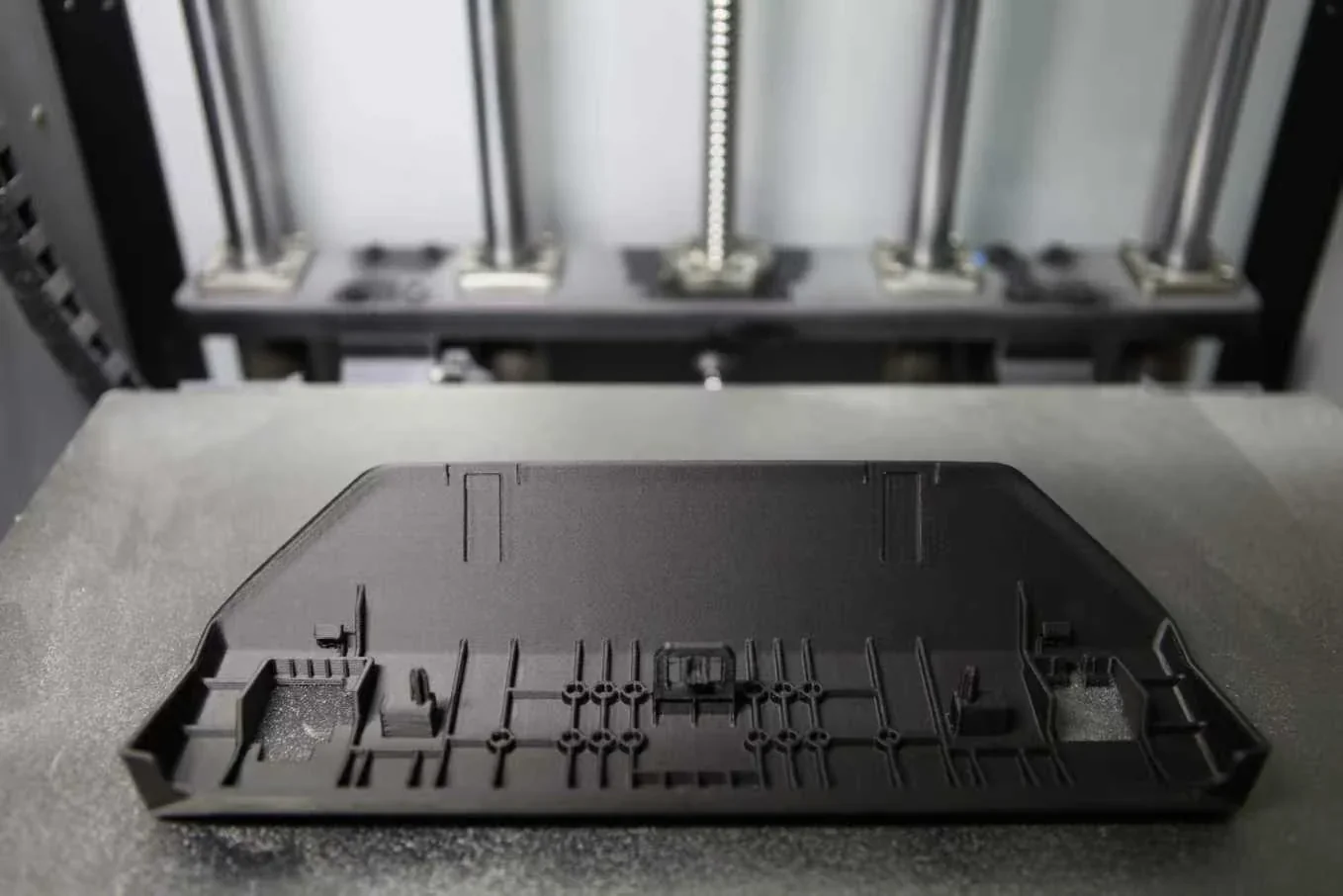

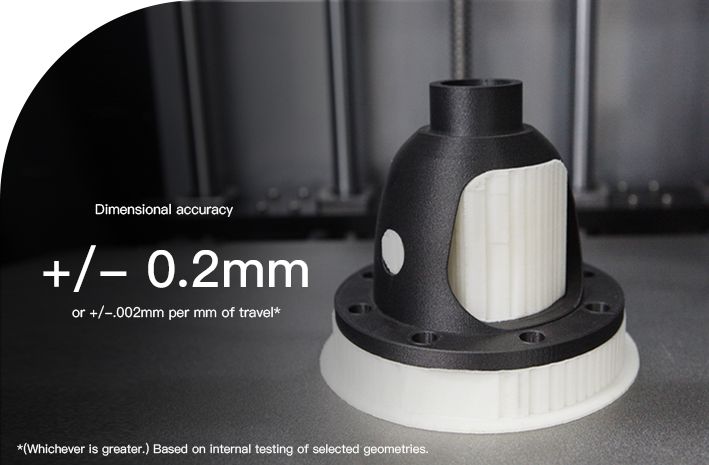

The CreatBot F430 NX prints at 0.05 mm resolution with ±0.2mm accuracy, even on large engineering-grade 3D models. Its high precision comes from machined components, a reinforced Z-axis with a high-precision ball screw, and four synchronized optical axes.

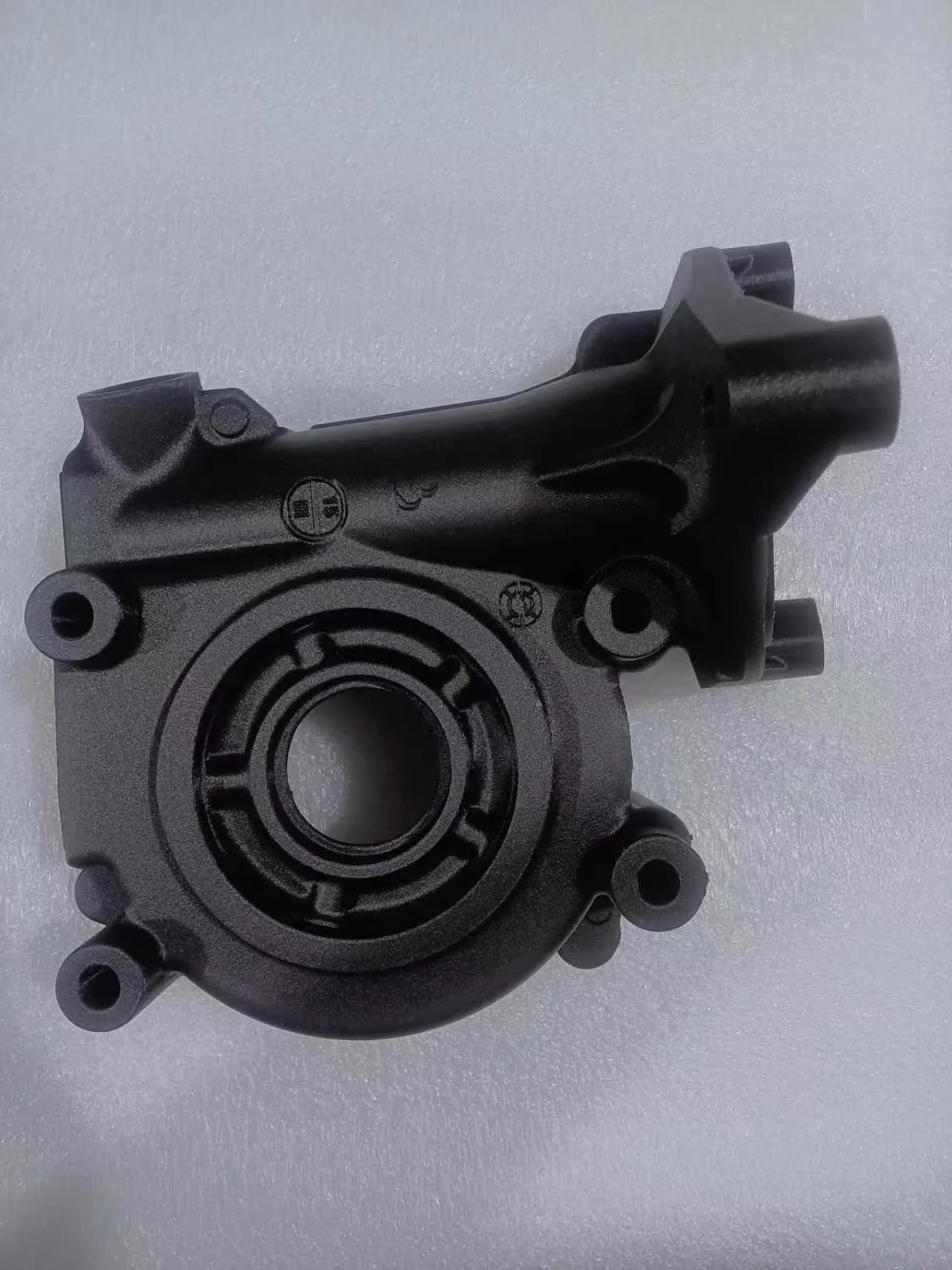

Example: a PLA-CF print shows clean edges, accurate fits, consistent fiber dispersion, and no warping or layer misalignment.

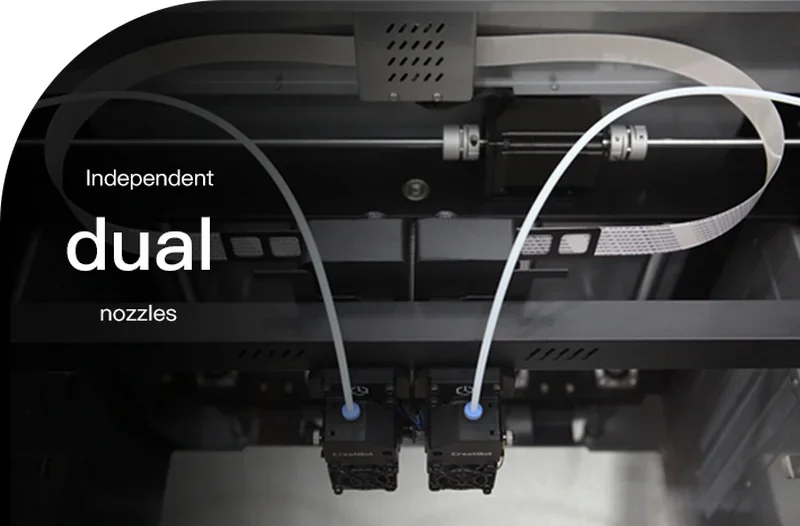

The F430 NX’s IDEX system enables dual-material printing with support structures for better complex model finishes. Dual titanium extrusion heads with quick-swap hotends speed material changes, while HEPA and carbon filtration keep the environment clean for consistent, high-quality industrial and prototyping results.

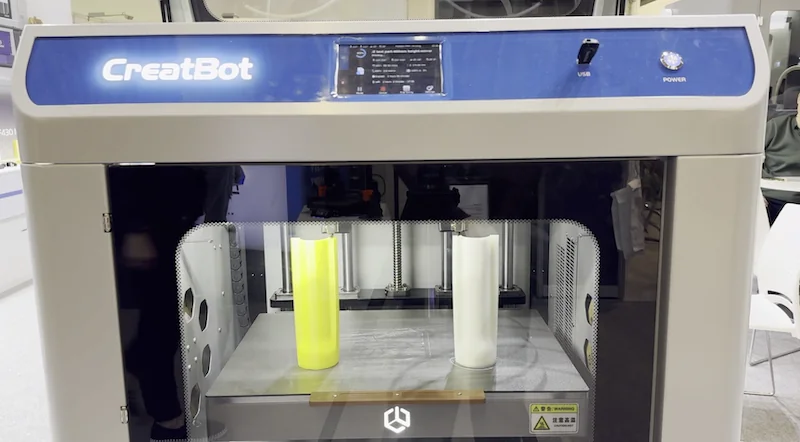

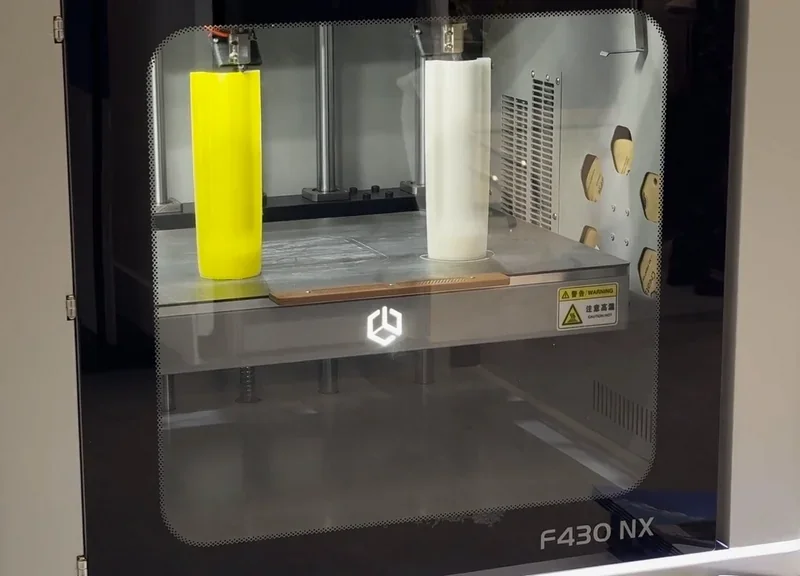

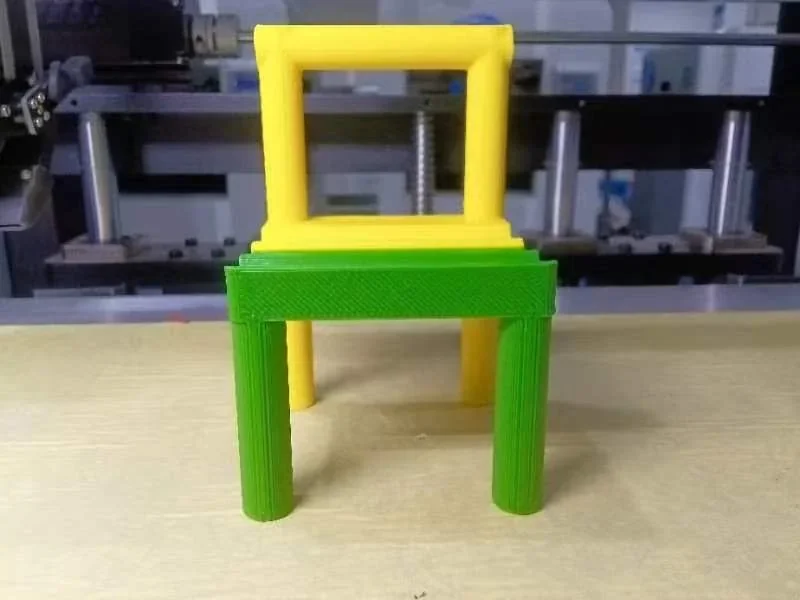

F430 NX Print Sample: Dual-material tall cylindrical shells printed simultaneously:

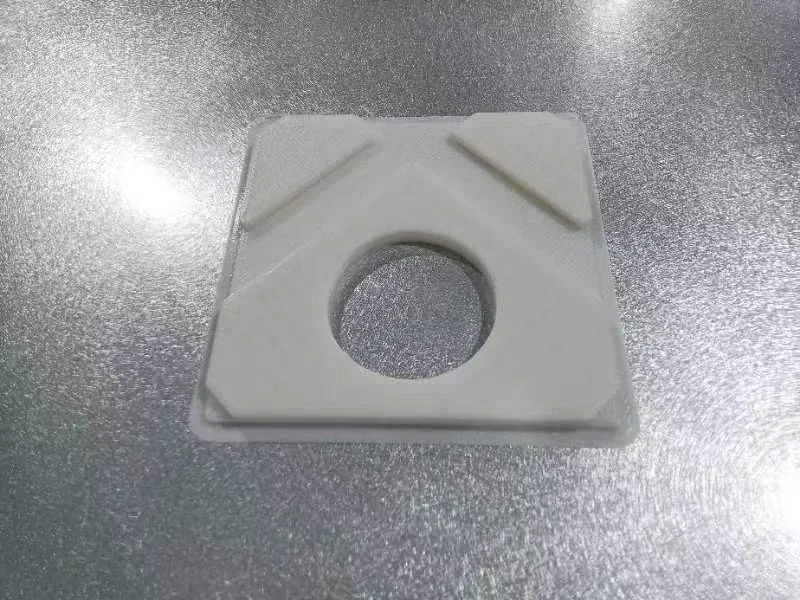

Print Example: The print shows a smooth circle, clean diagonals, and even surface quality.

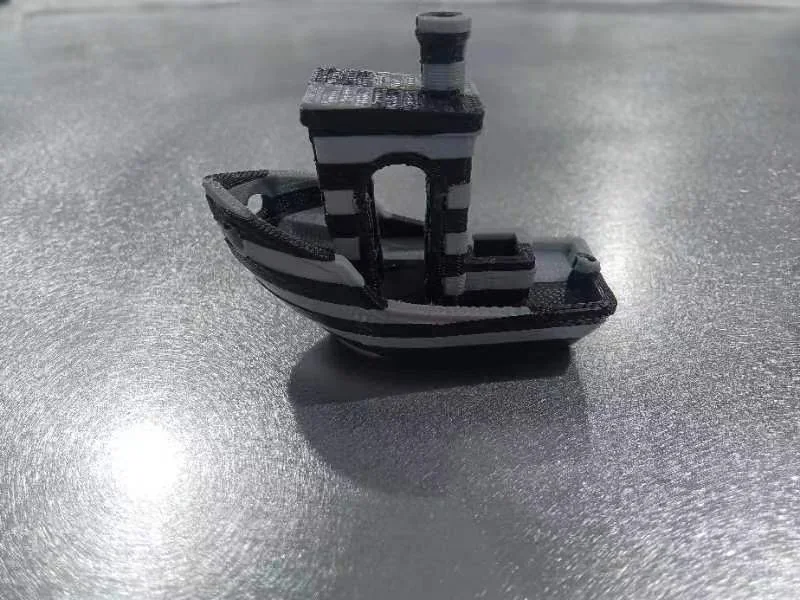

Print Example: This 3DBenchy demonstrates the printer's effective dual-color calibration with clean color transitions.

Print Example: This test print sample demonstrates the printer's ability to produce clean overhangs, as shown by the sharp edges and lack of visible sagging.



Print Example: This test print sample demonstrates the printer's handling of overhangs and enclosed structures.

Which filaments can you use with the Creatbot F430 NX Industrial 3D Printer?

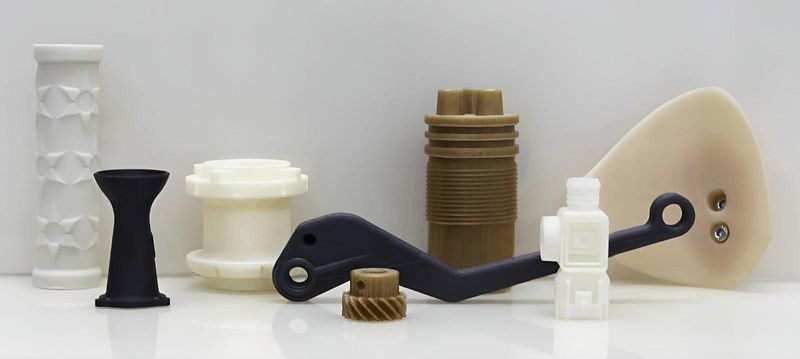

CreatBot F430 NX supports over 10 filaments, from PLA and PETG to industrial options like ABS, ASA, PC, Nylon, PET-CF, PET-GF, UltraPA-CF, and other carbon fiber, and glass fiber filled materials. It also works with support materials S-270 and S-350 for complex, removable-support prints.

PLA-CF Print Sample: This component demonstrates precise dimensional accuracy, crisp detailing, and excellent surface finish without warping.

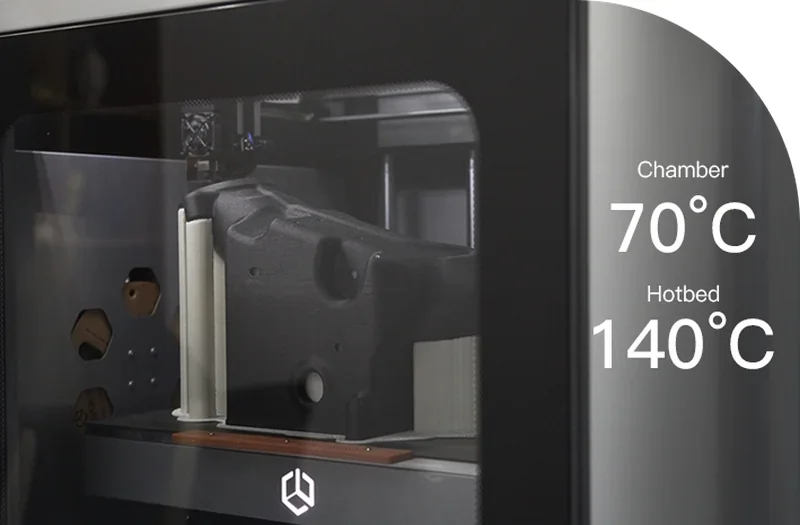

The CreatBot F430 NX prints engineering-grade polymers using hotends up to 420°C, a 140°C heated bed, and a 70°C heated chamber. These features ensure proper extrusion, adhesion, and reduced warping for materials like ABS, ASA, PC, and carbon- or glass-fiber composites.

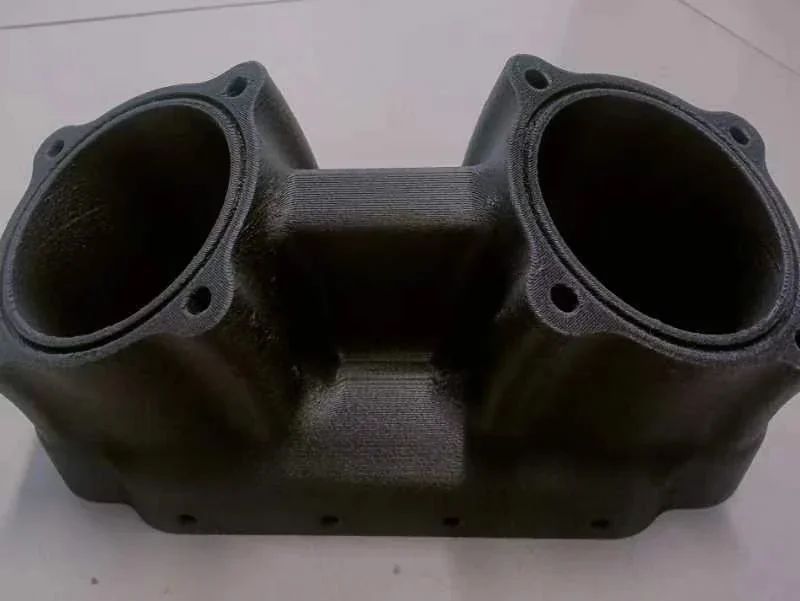

Nylon-CF Print Sample:

The CreatBot F430 NX uses durable silicon carbide nozzles with under 10% wear after 2,000 hours printing abrasive carbon fiber. Its Independent Dual Extruders (IDEX) allow multi-material printing, combining filaments or using specialized supports with engineering-grade materials for better surface finish.

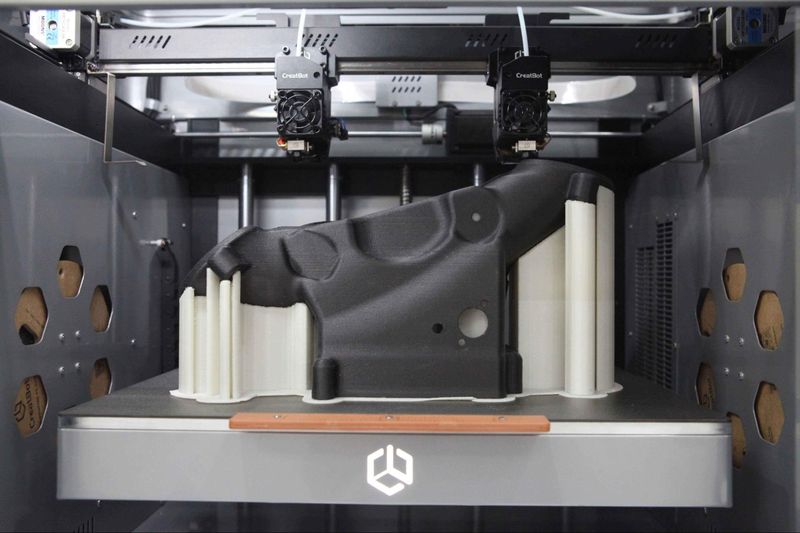

Nylon-CF Print Sample: A dual-material mechanical part with smooth rim and white support elements.

The F430 NX has a 70°C filament dryer to prevent moisture issues in materials like Nylon and TPU, ensuring consistent performance. It works with both CreatBot and third-party filaments, offering open material compatibility for professional prototyping, testing, and end-use production.

PLA-CF Print Sample: This model showcases smooth, consistent surface quality.

What is the build volume of the Creatbot F430 NX Professional 3D Printer?

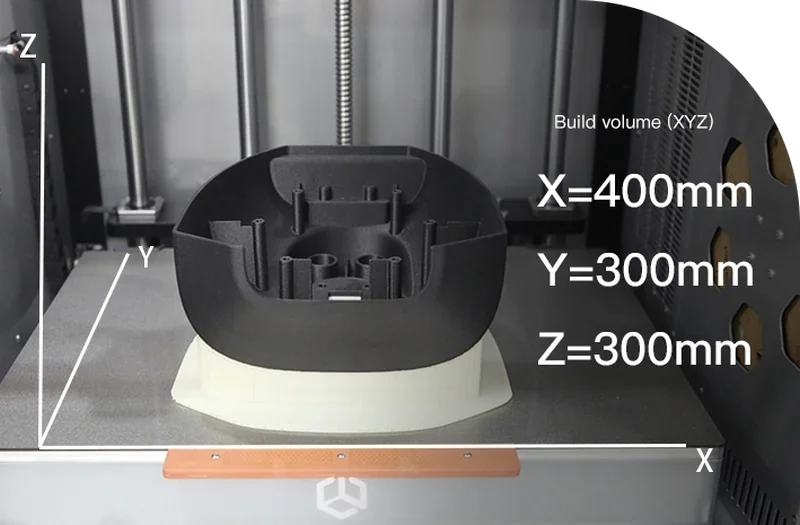

The F430 NX has a 400 × 300 × 300 mm build volume in single extrusion mode for large or multiple parts. Dual extrusion reduces the volume to 360 × 300 × 300 mm. Copy mode prints identical parts at 225 × 300 × 300 mm per head, while Mirror mode produces symmetrical parts at 190 × 300 × 300 mm per head.

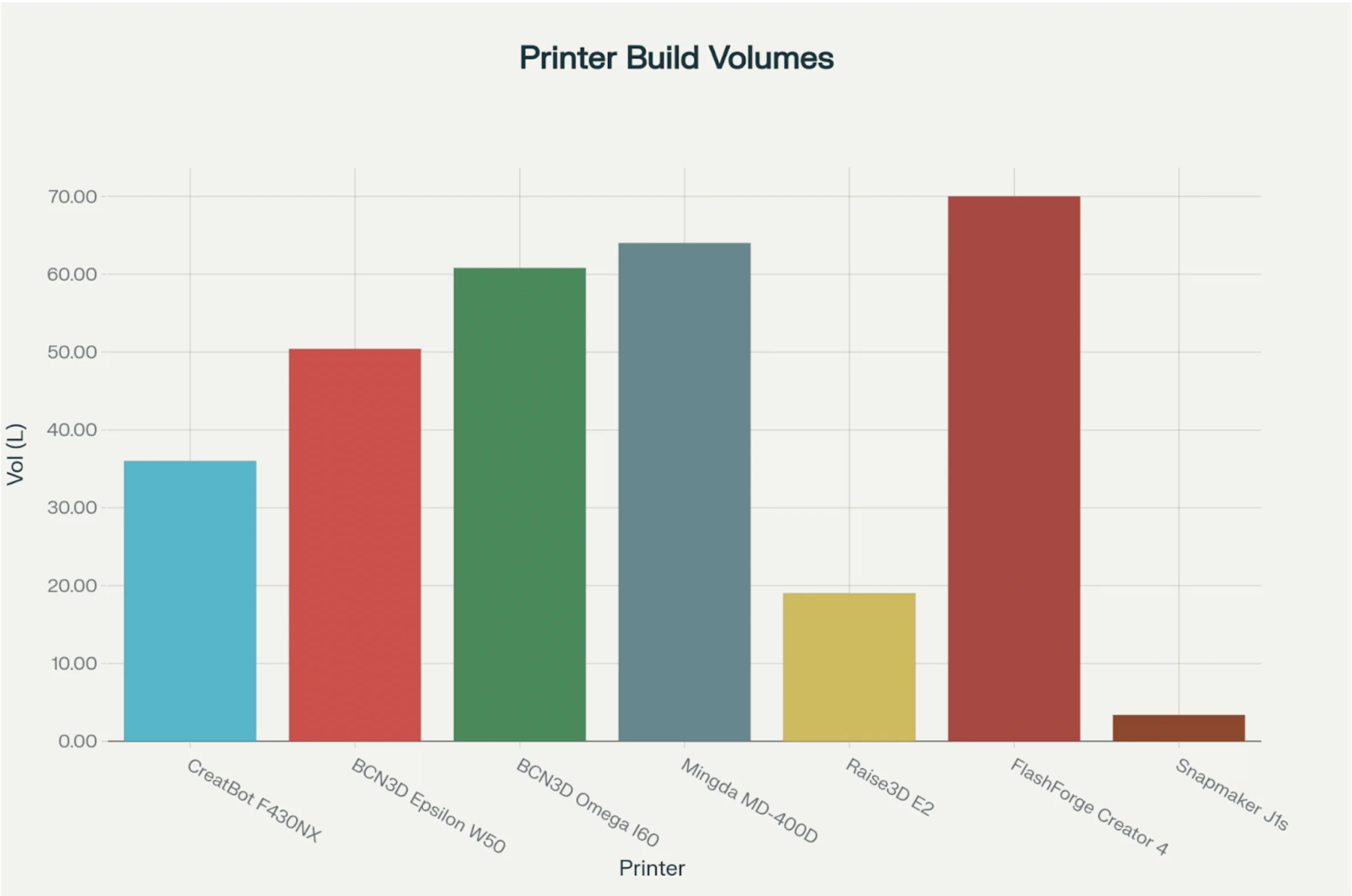

What is the difference between the Creatbot F430NX and BCN3D Epsilon W50, BCN3D Omega I60, Mingda MD-400, Raise3D E2, Flashforge Creator 4 and Snapmaker J1S?

CreatBot F430 NX — IDEX, 400×300×300 mm, built for engineering polymers with a 420 °C nozzle, 140 °C bed, 70 °C active chamber at $6,500+—a rare combo of high-temp capability and chambered stability at a mid-market price.

In contrast:

• BCN3D Epsilon W50 — Wins: larger volume 420×300×400 mm. Loses to F430 NX: lower thermals (300 °C nozzle, 120 °C bed, 60 °C chamber), higher price ($9,400+).
• BCN3D Omega I60 — Wins: much larger 450×300×450 mm build. Loses: far higher price ($27,000+), lower nozzle/bed temperature (300/120 °C), chamber only matches 70 °C.
• Mingda MD-400D — Wins: lower price ($4,300+), larger XY (400×400×400 mm). Loses: no active chamber, lower temps (≤350 °C nozzle, ≤110 °C bed).
• Raise3D E2 — Wins: budget IDEX at $3,000+. Loses: much smaller 330×240×240 mm volume, no chamber, lower temps (300/110 °C).
• Flashforge Creator 4 — Wins: larger 400×350×500 mm volume, strong temps (360 °C nozzle, 130 °C bed, 65 °C chamber). Loses: higher price ($11,000+), still below F430 NX on each thermal spec (360<420, 130<140, 65<70).
• Snapmaker J1s — Wins: ultra-low price ($1,150+). Loses: small 300×300×200 mm volume, no chamber, lower temps (300/100 °C) — hobby-class versus the F430 NX’s industrial high-temp setup.

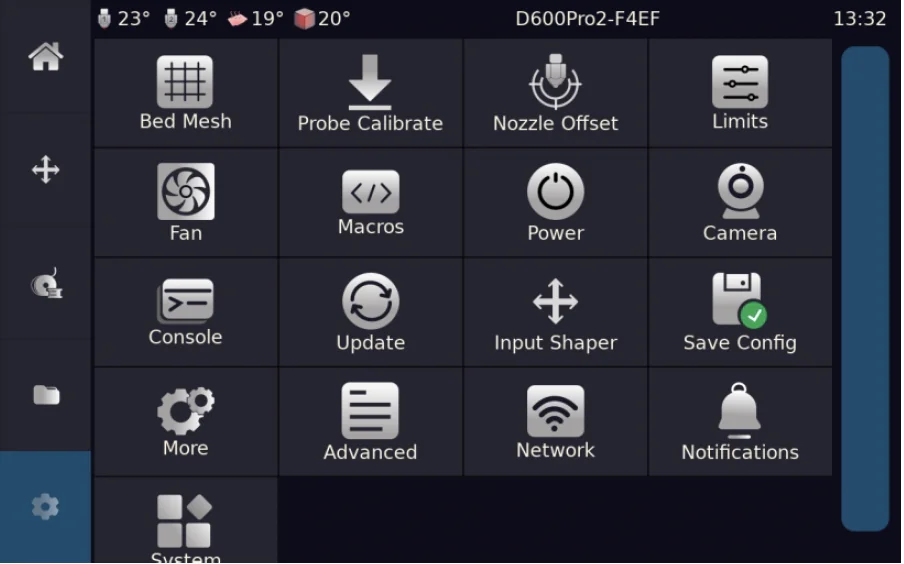

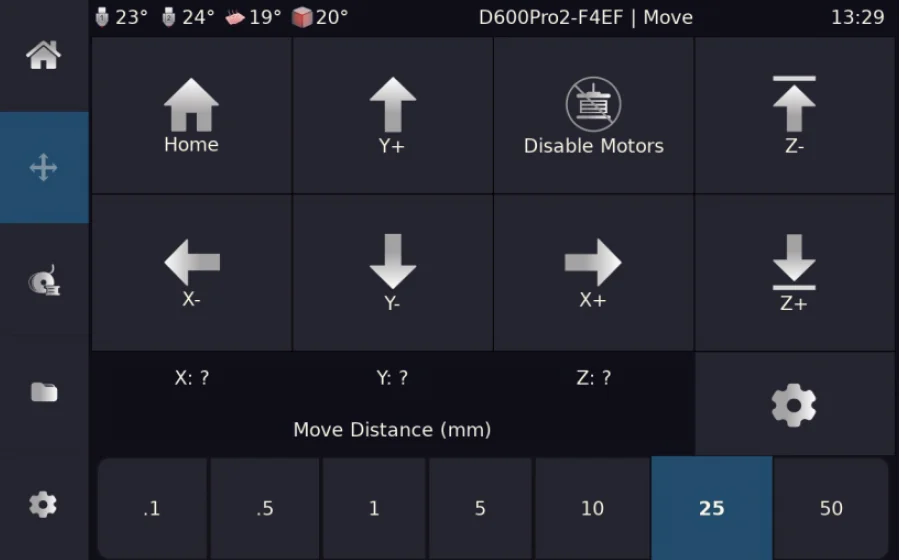

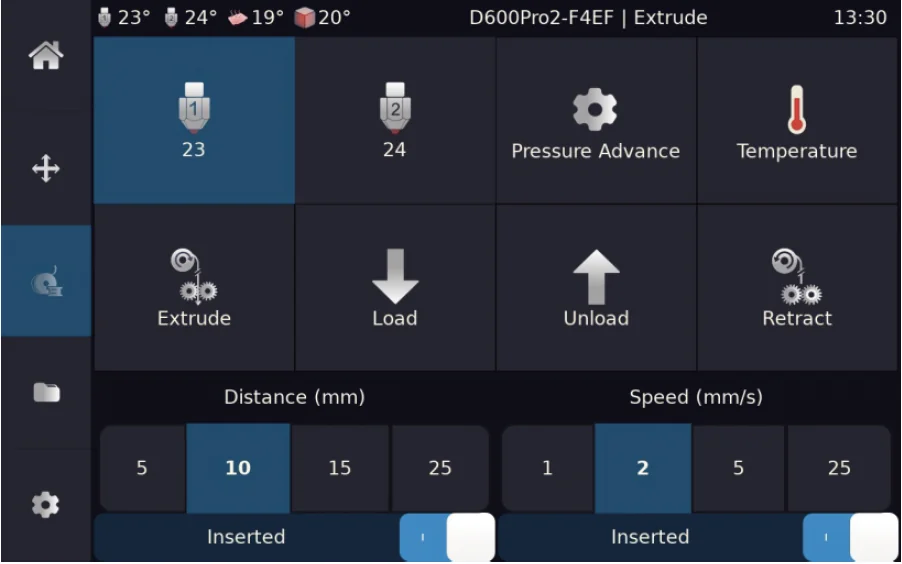

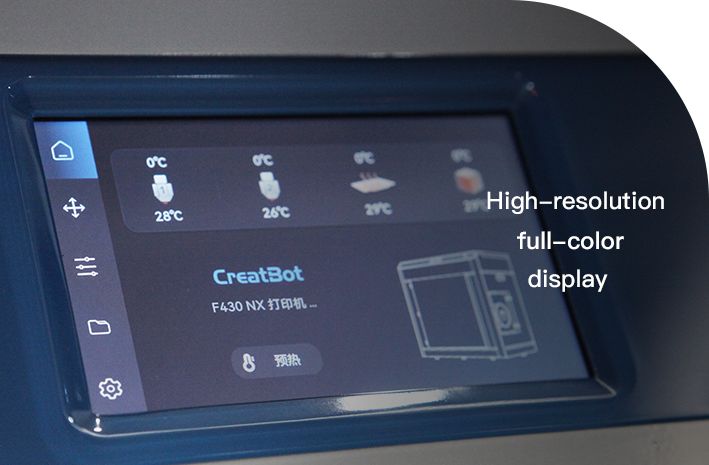

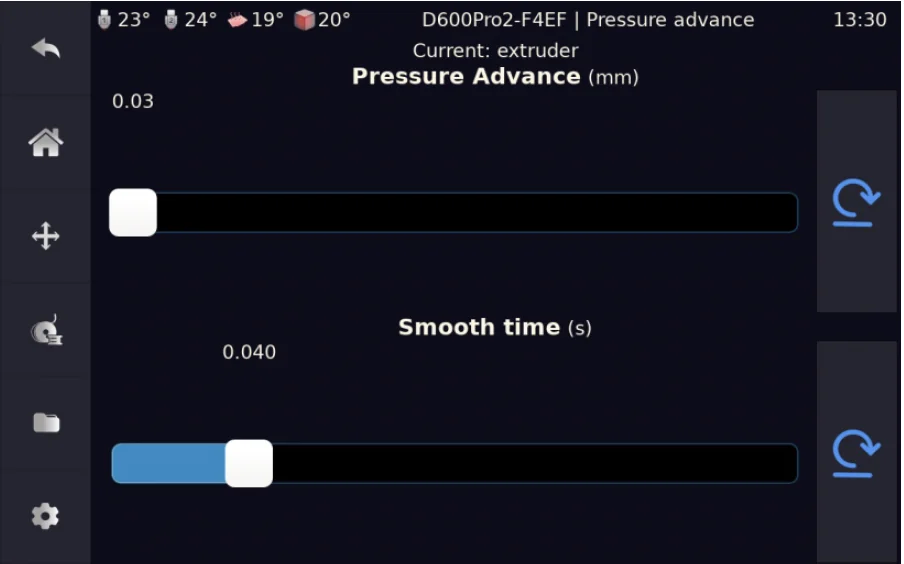

What printer controls are available on the Creatbot F430 NX?

What connectivity options are available on the Creatbot F430 NX?

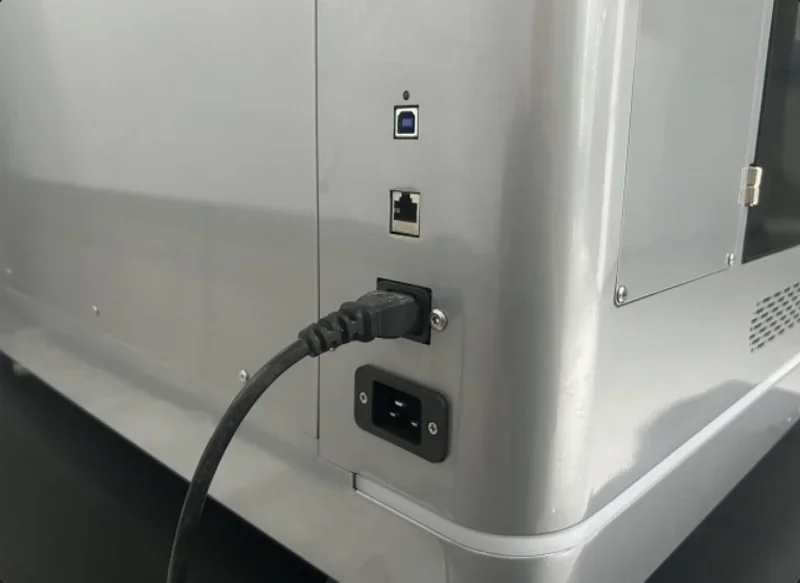

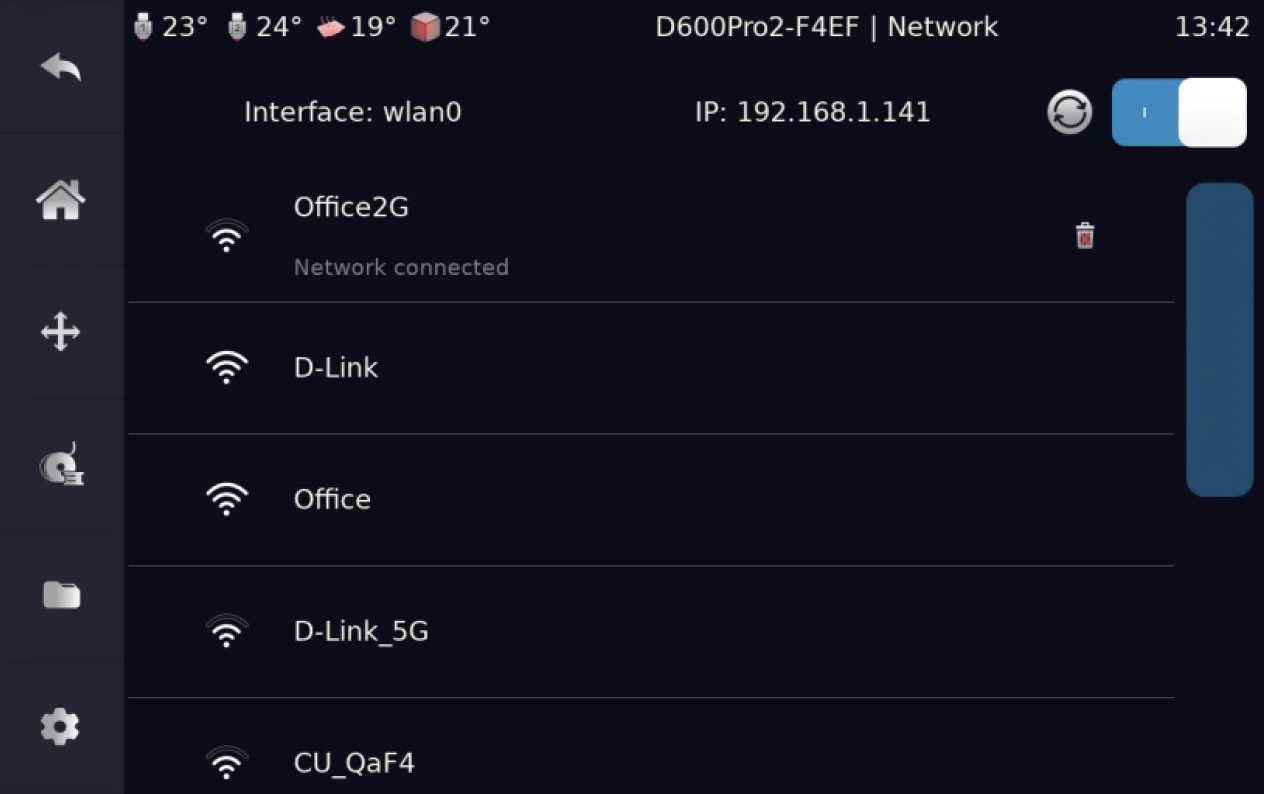

The F430 NX supports USB, USB disk, Wi-Fi, and Ethernet for flexible file transfer and remote monitoring. Network options include automatic or manual IP setup, enabling versatile placement and operation in professional settings.

The F430 NX’s built-in camera enables real-time remote monitoring via network connection, improving 3D printing workflows. It works with CreatWare for Windows and macOS, plus popular slicers like Simplify3D, Cura, and Slic3r, allowing users to prepare, send, and oversee prints locally or remotely.

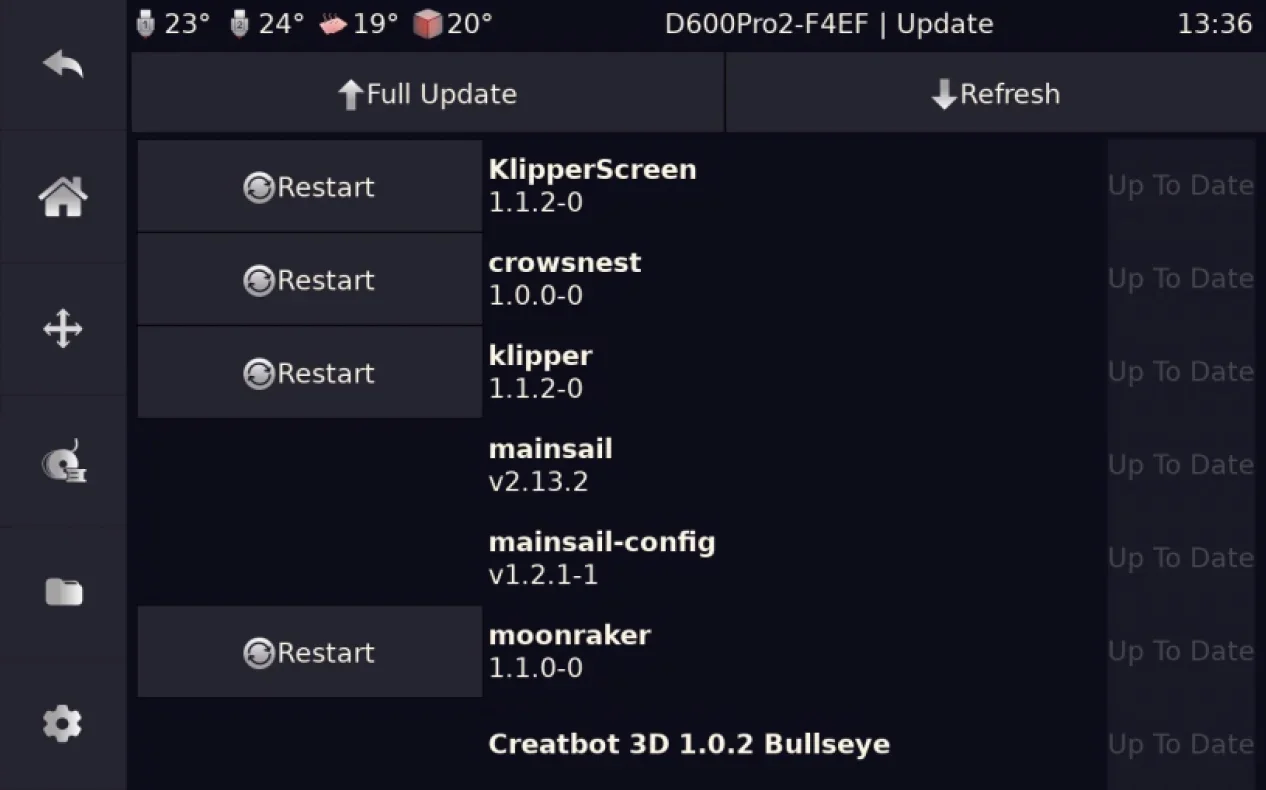

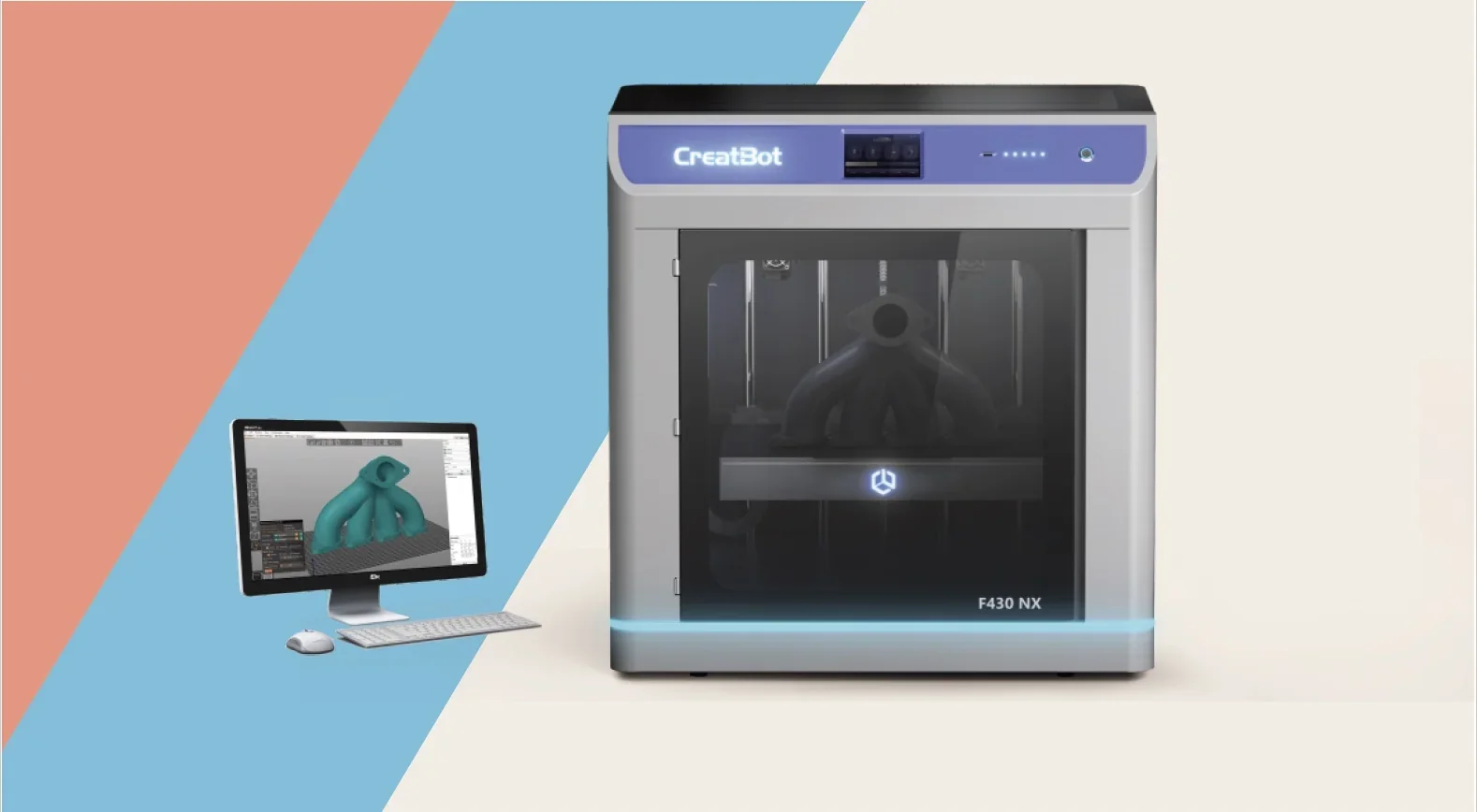

What software is offered with the Creatbot F430 NX?

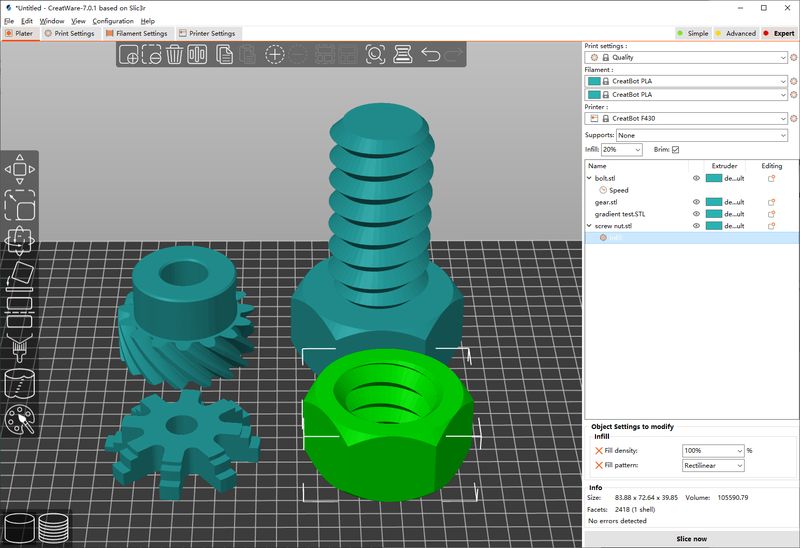

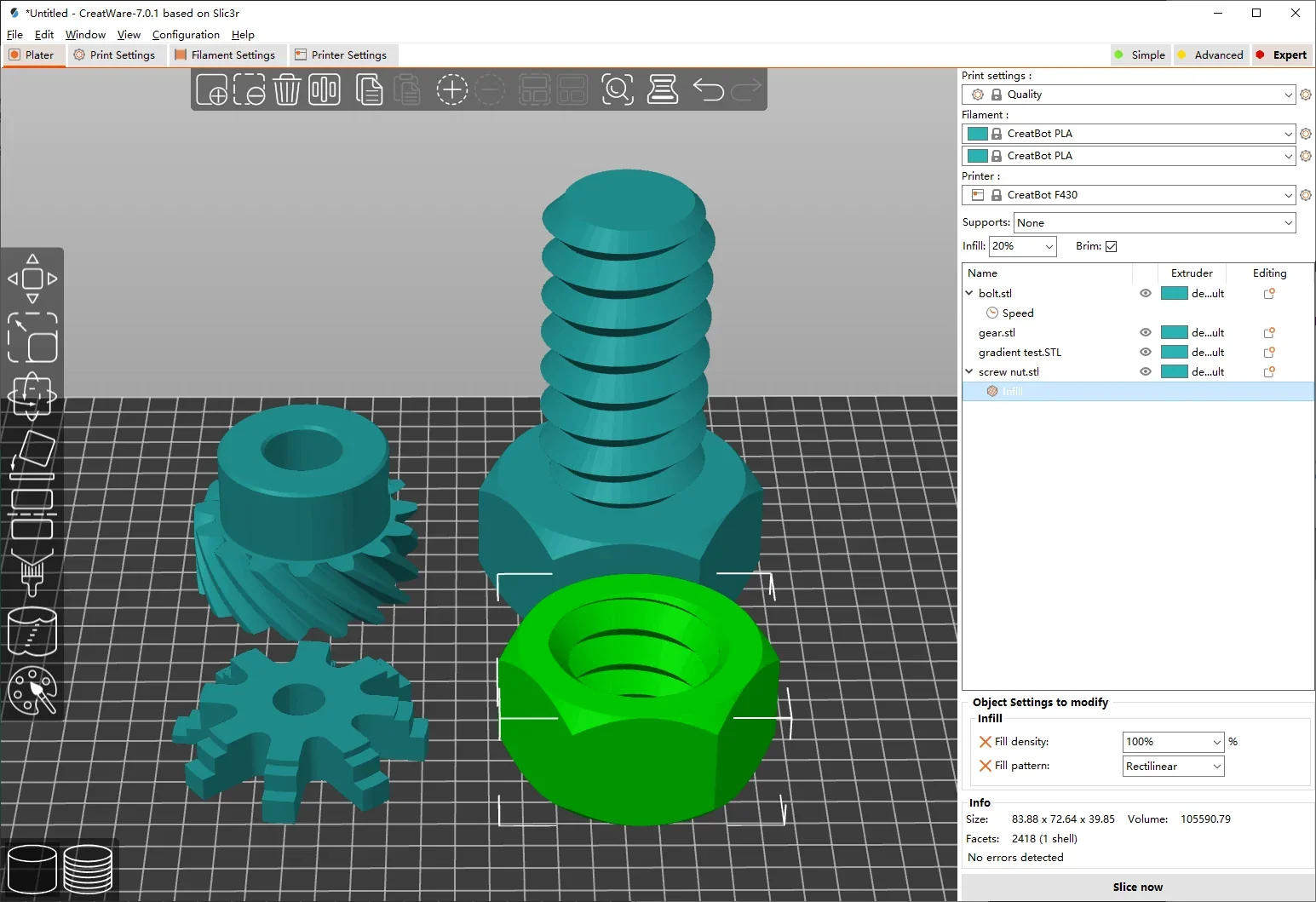

CreatBot F430 NX features CreatWare slicing software for Windows, macOS, and Linux, supporting STL, OBJ, and AMF files. It generates optimized GCode for the printer and includes features for IDEX single, dual, copy, and mirror modes.

CreatWare offers basic and advanced slicing controls for tuning prints to material and quality needs. Full features, setup, and advanced options are detailed in the CreatWare 7.00 User Manual: https://www.creatbot.com/downloads/CreatWare+7.00+User+Manual.pdf

CreatBot F430 NX supports third-party slicers like Simplify3D, Cura, and Slic3r, and can integrate outputs from 3D scanning workflows for precise reproduction. For remote monitoring and control, the CreatCloud mobile app (Android/iOS) connects to the built-in camera, letting users track progress, adjust settings, and get status alerts from anywhere.

What is the design and build quality of the Creatbot F430 NX Industrial-Grade 3D Printer?

What is the design and form factor of the CreatBot F430 NX?

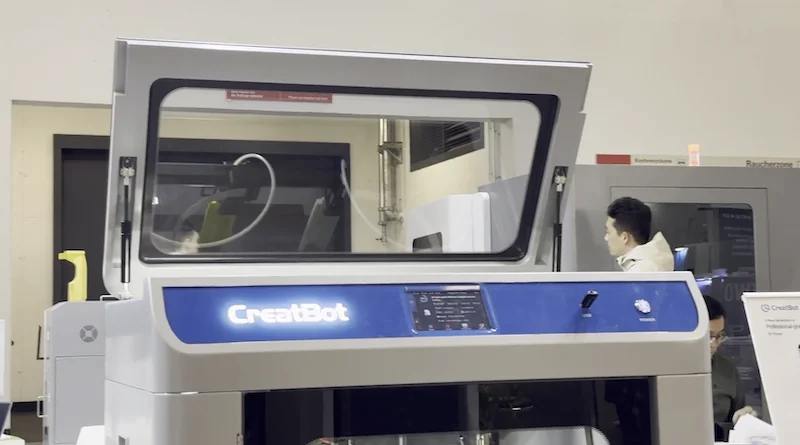

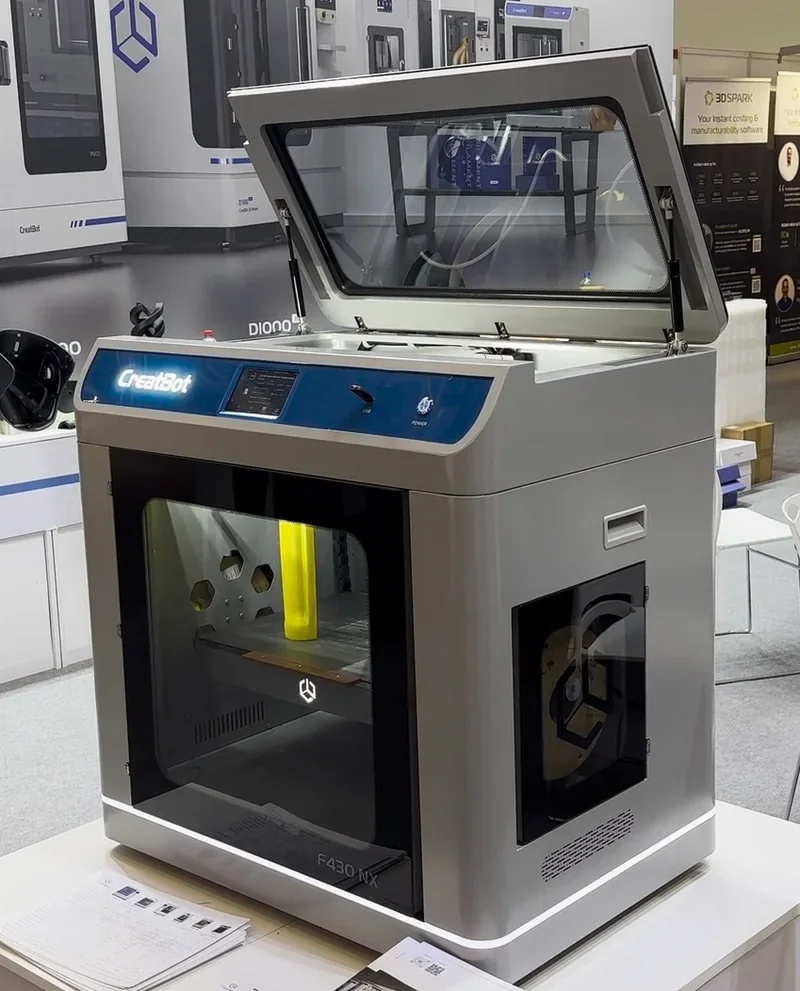

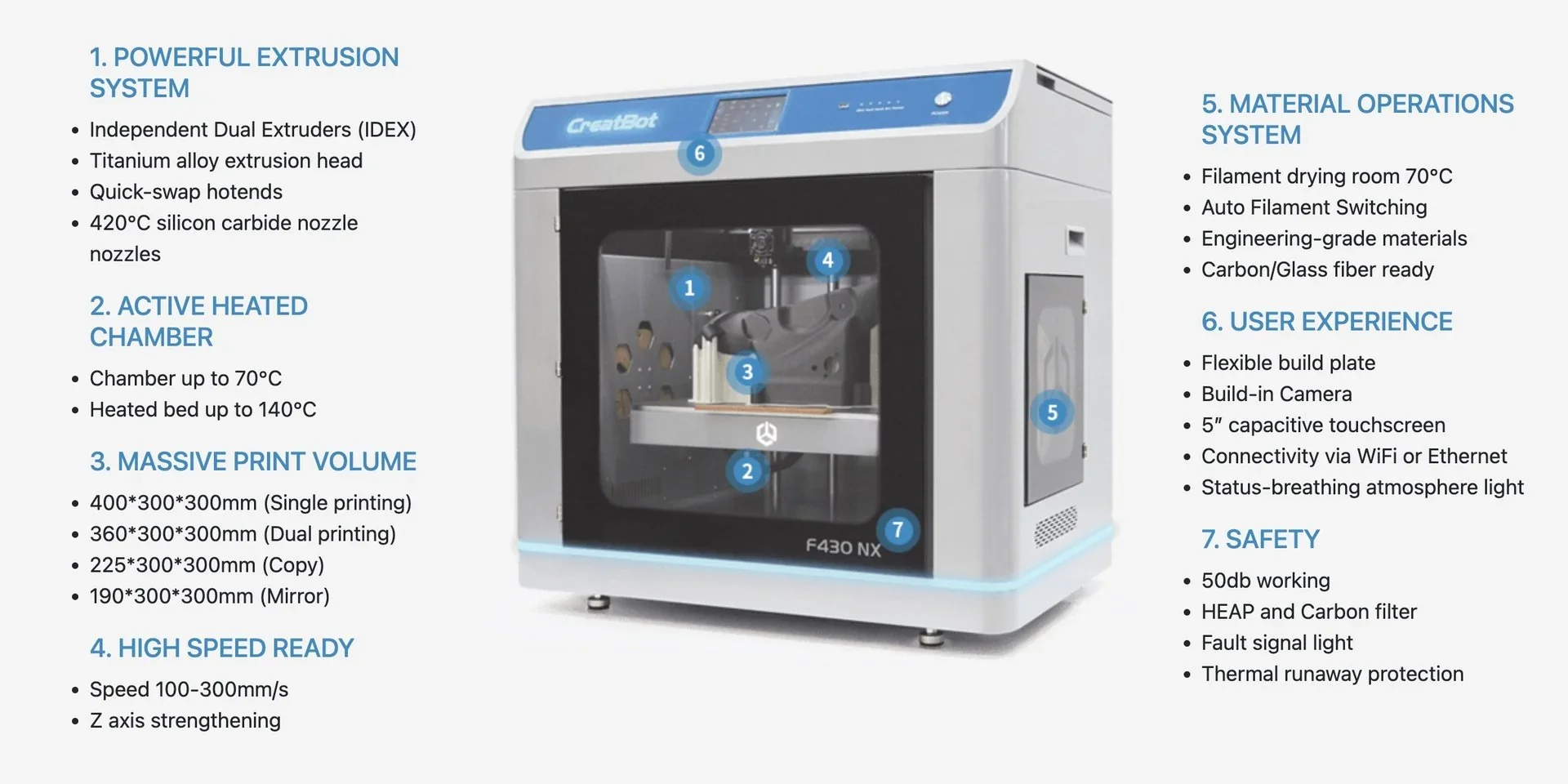

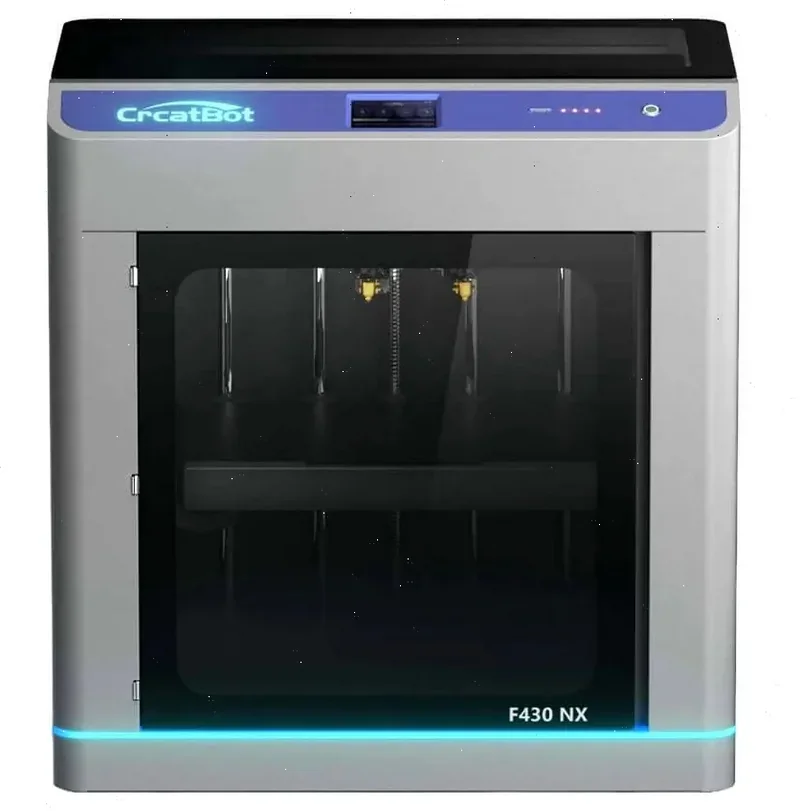

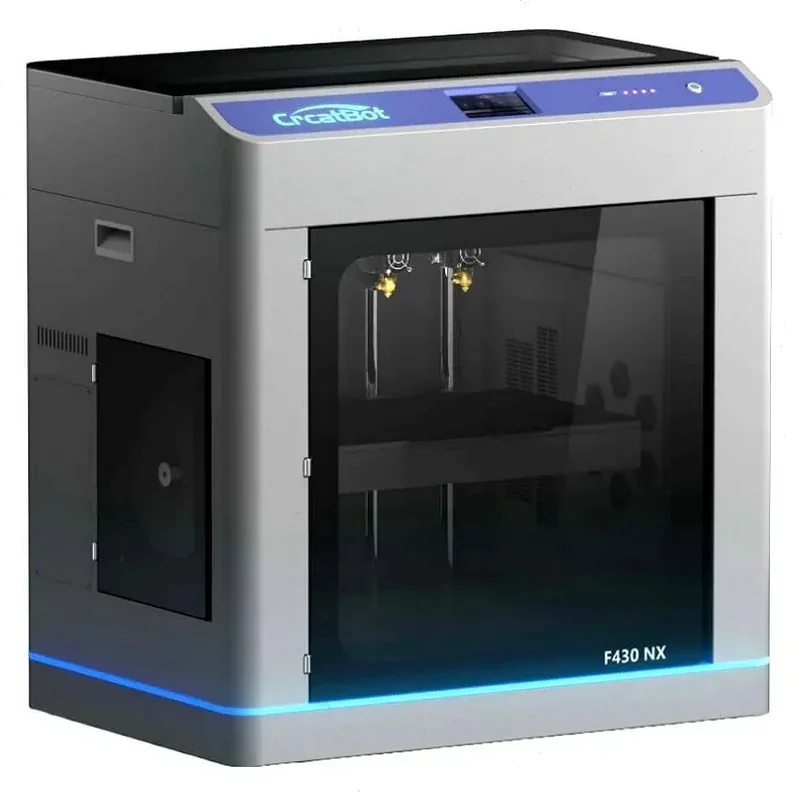

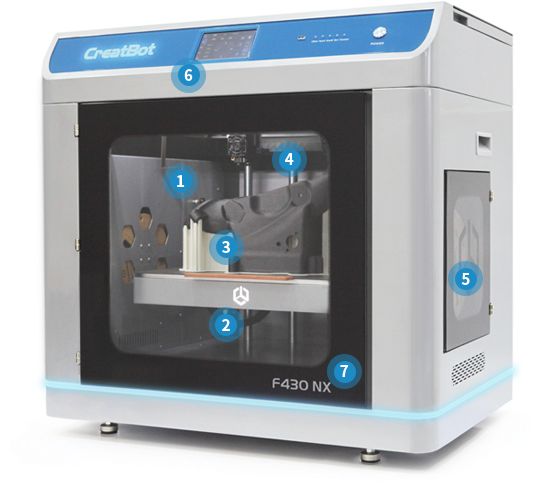

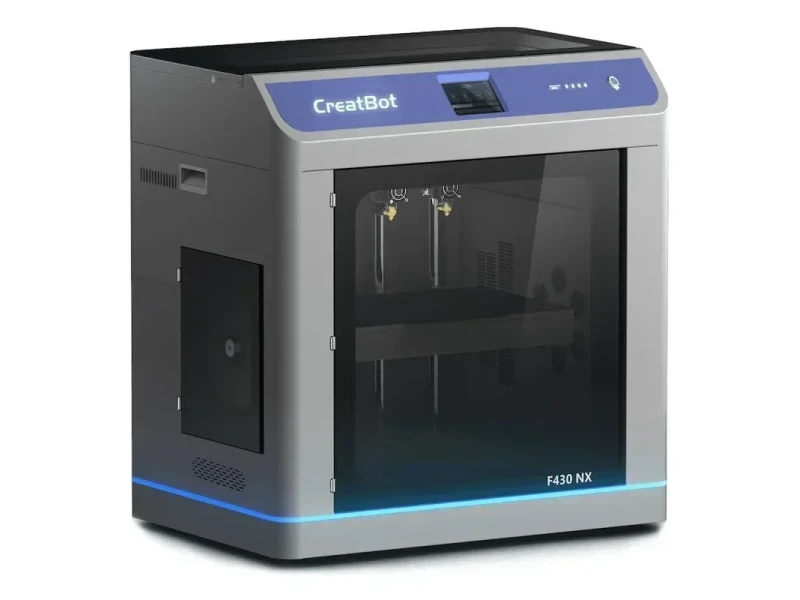

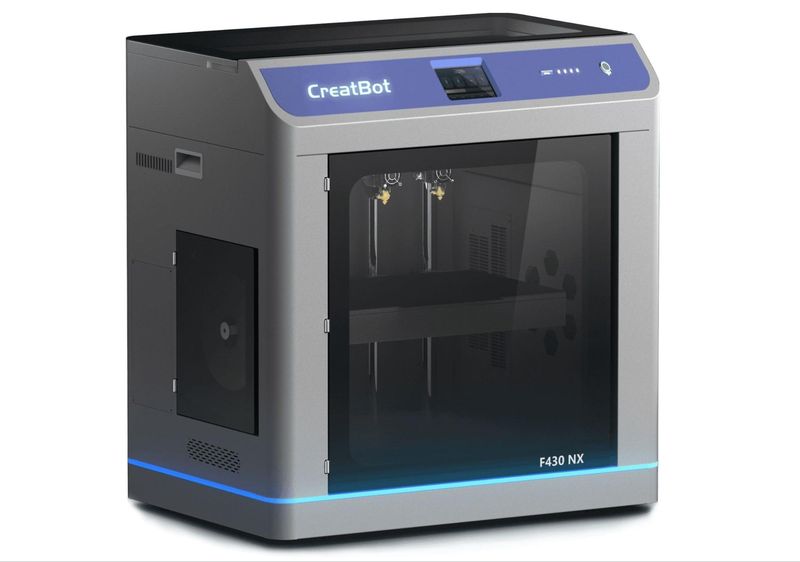

The CreatBot F430 NX is a 98 kg industrial-grade desktop 3D printer with a 400 × 300 × 300 mm build volume, stainless steel frame, and glass-enclosed chamber with transparent lid, operated through a high-resolution capacitive touch screen. It features USB/network ports, metallic gray finish with blue accents, and a solid base with integrated cable management.

What is the motion system of the CreatBot F430 NX?

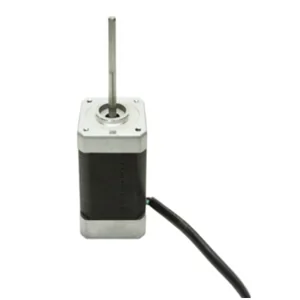

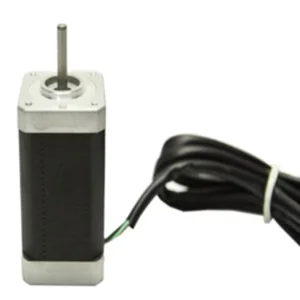

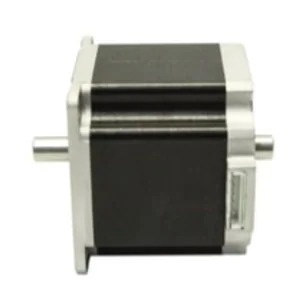

The F430 NX uses a cartesian motion system with NEMA 23 motors on all axes and MXL timing belts. The X and Y axes are supported by heavy-duty linear rails with large bearing carriages, similar to those found on CNC laser engravers.

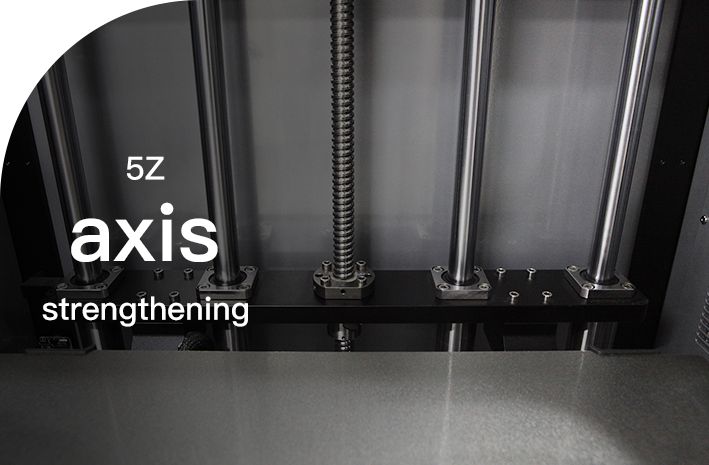

The Z-axis employs a rigid 5-axis design using industrial-grade linear guides.

What are the build platform specifications of the CreatBot F430 NX?

The F430 NX’s 400 x 300 x 300 mm build platform heats to 140 °C and supports manual or 25-point probe-based auto-leveling. It retracts during printing and uses a 1,200 W heater.

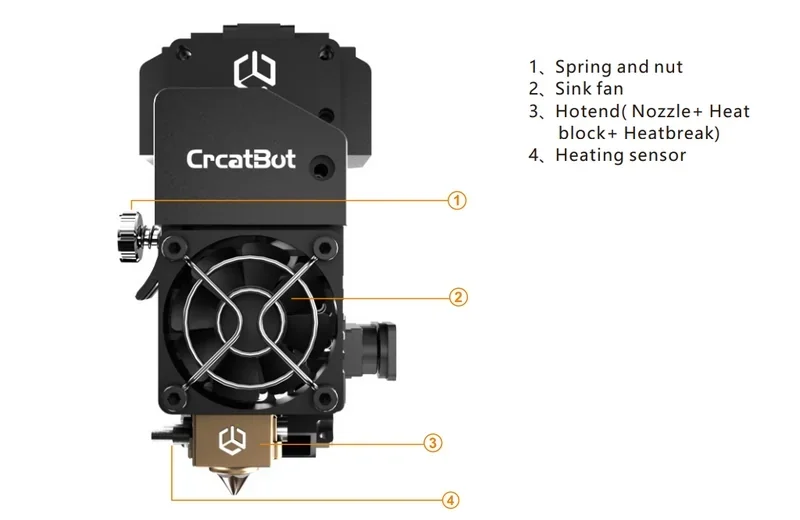

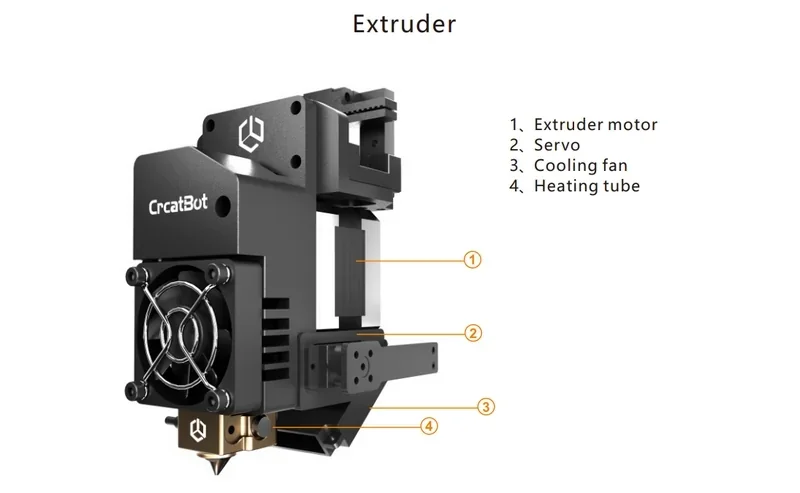

What is the hotend and extruder system of the CreatBot F430 NX?

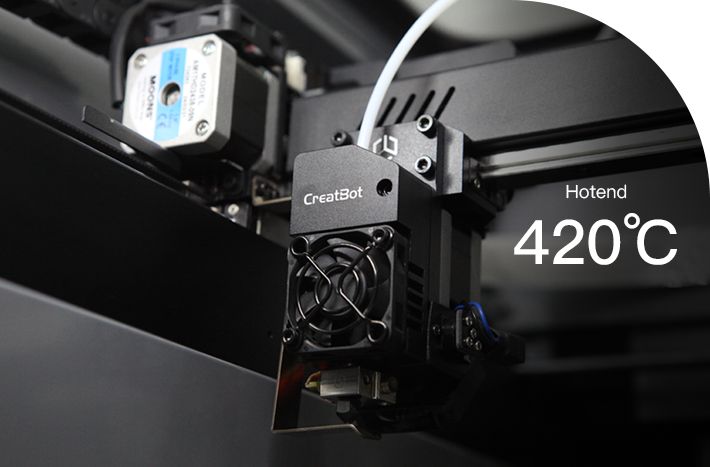

Hotend System:

• One-piece die-cast memory alloy hotend with silicon carbide and tungsten carbide nozzles for extreme durability.
• Supports up to 420°C
• Large-flow extrusion head allows high-speed printing.
• Nozzle sizes: standard 0.4mm; optional 0.3mm–1.0mm.

Extruder System (IDEX)

• Direct-Drive
• Titanium alloy extruder heads for durability and heat resistance.
• Quick-swap hotends for fast maintenance and material changes.

How does the CreatBot F430 NX handle filament storage and feeding?

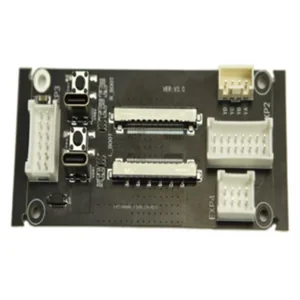

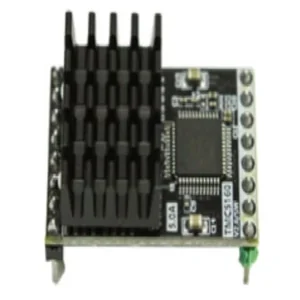

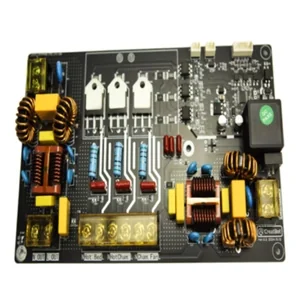

What is the mainboard of the CreatBot F430 NX?

The F430 NX uses a 32-bit mainboard compatible with Klipper firmware, managing motion control, thermal systems, and overall operation.

What are the power supply specifications of the CreatBot F430 NX?

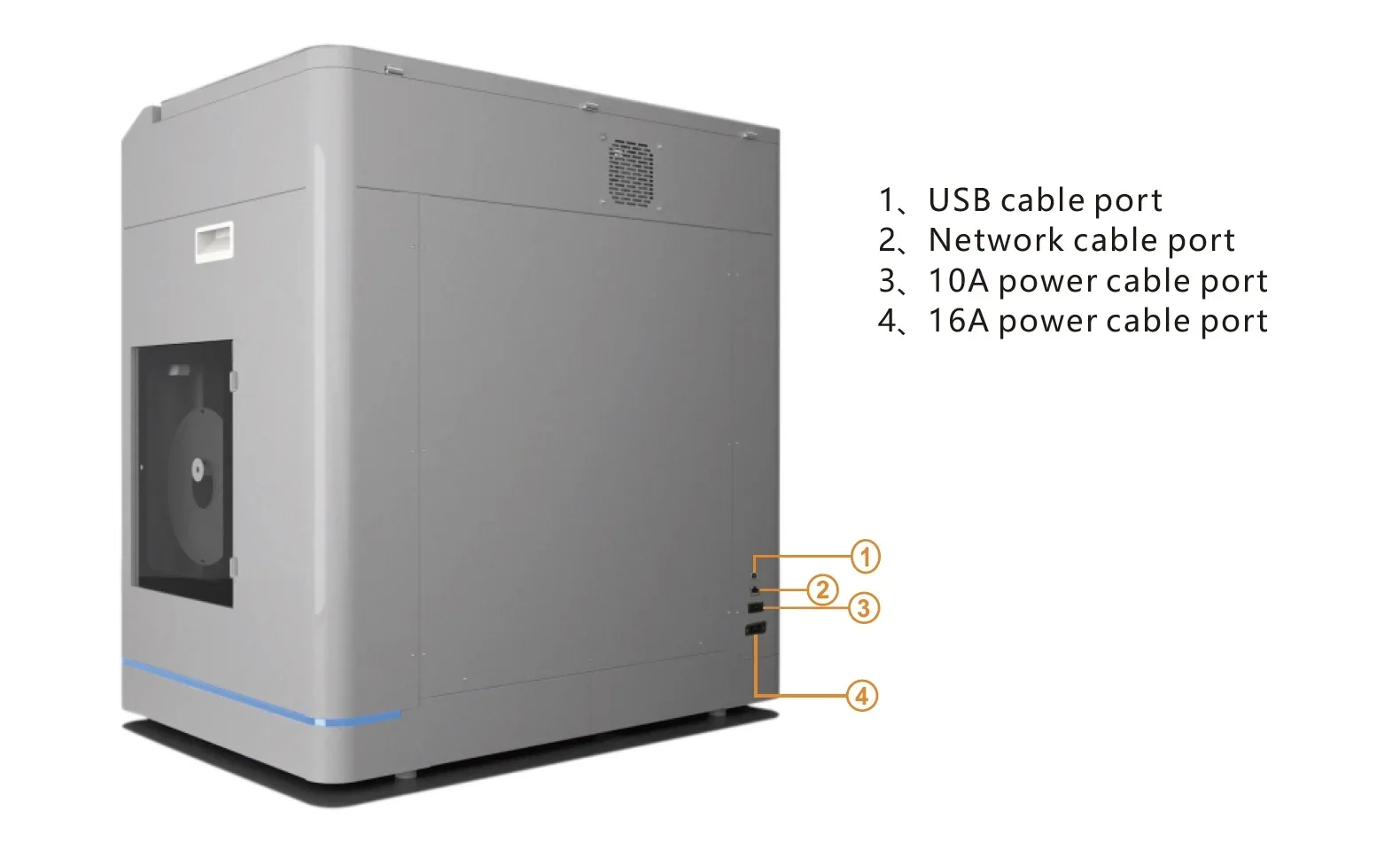

The CreatBot F430 NX requires two power connections:

• 10A plug: Powers the extruders (2 ×100W) and heated bed (1,200W).
• 15A plug: Powers the chamber heater (1,800W).

Total power consumption reaches 3,200W, with rapid heating capabilities (chamber from 25°C to 60°C in <3 minutes).

What comes included in the box with Creatbot F430 NX?

• 1x CreatBot F430 NX 3D printer (fully assembled)

• 1x Removable magnetic platform with PEI sheet coating

• 1x Set of necessary tools for maintenance and setup

• 1x Power cable

• 1x USB cable

• 1x CreatWare software package

• 1x User manual

The CreatBot F430 NX ships fully assembled with all components for immediate use. A removable magnetic bed aids print removal while maintaining adhesion. Included tools support maintenance, and CreatWare software handles print preparation. The user manual covers setup, calibration, and troubleshooting.

Please Note: Package contents may change without notice. Confirm current inclusions with a sales representative before ordering.

What upgrades and accessories are available for the Creatbot F430 NX?

The CreatBot F430 NX supports official accessories that enhance functionality, extend lifespan, and meet professional standards.

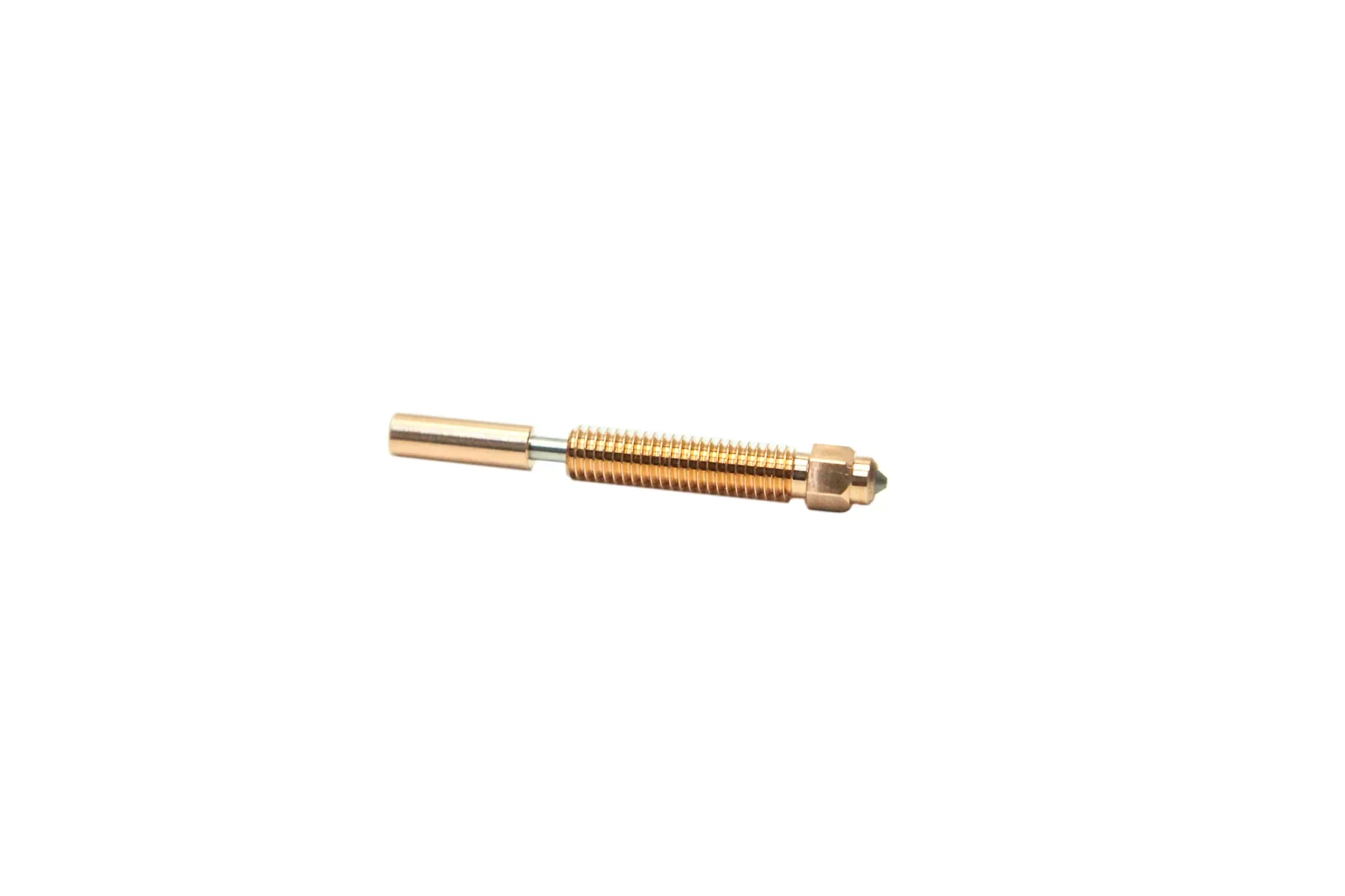

Nozzle & heatbreak (Hardened steel) - 0.4mm & 0.6mm

Durable hardened steel set for precise extrusion, supporting abrasive filaments. Includes 0.4 mm and 0.6 mm sizes for balancing print detail and speed.

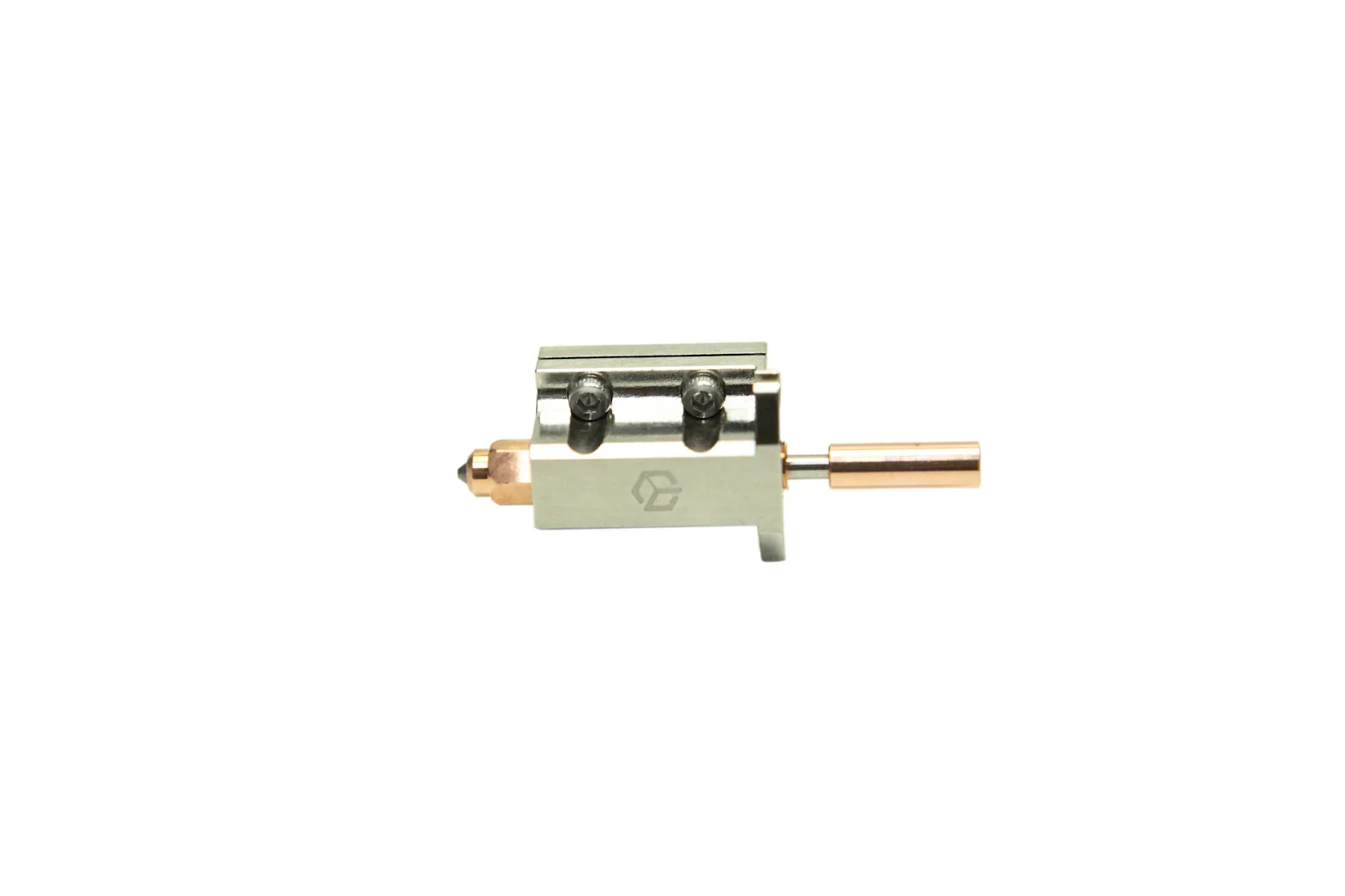

Hotend 0.4mm

High-precision hotend with 0.4 mm nozzle for detailed printing. Combines heating and extrusion for stable temperature control, consistent flow, and accurate filament melting.

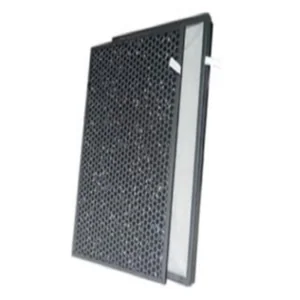

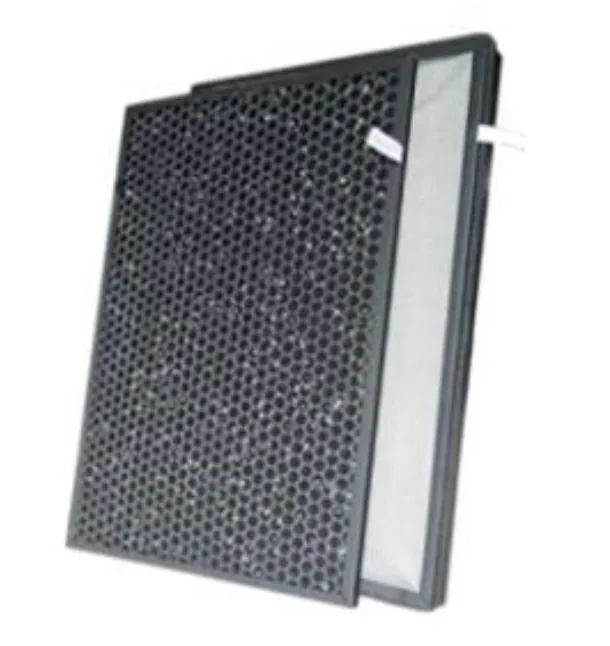

HEPA & Carbon air filter

Combines HEPA filtration and activated carbon to remove particles, VOCs, and odors from the printer enclosure, ensuring a cleaner printing environment.

Heating tube V2

High-temperature heating element for the hotend, ensuring stable, precise heat transfer for consistent extrusion. Durable, efficient, and easy to replace, it maintains thermal stability in demanding printing conditions.

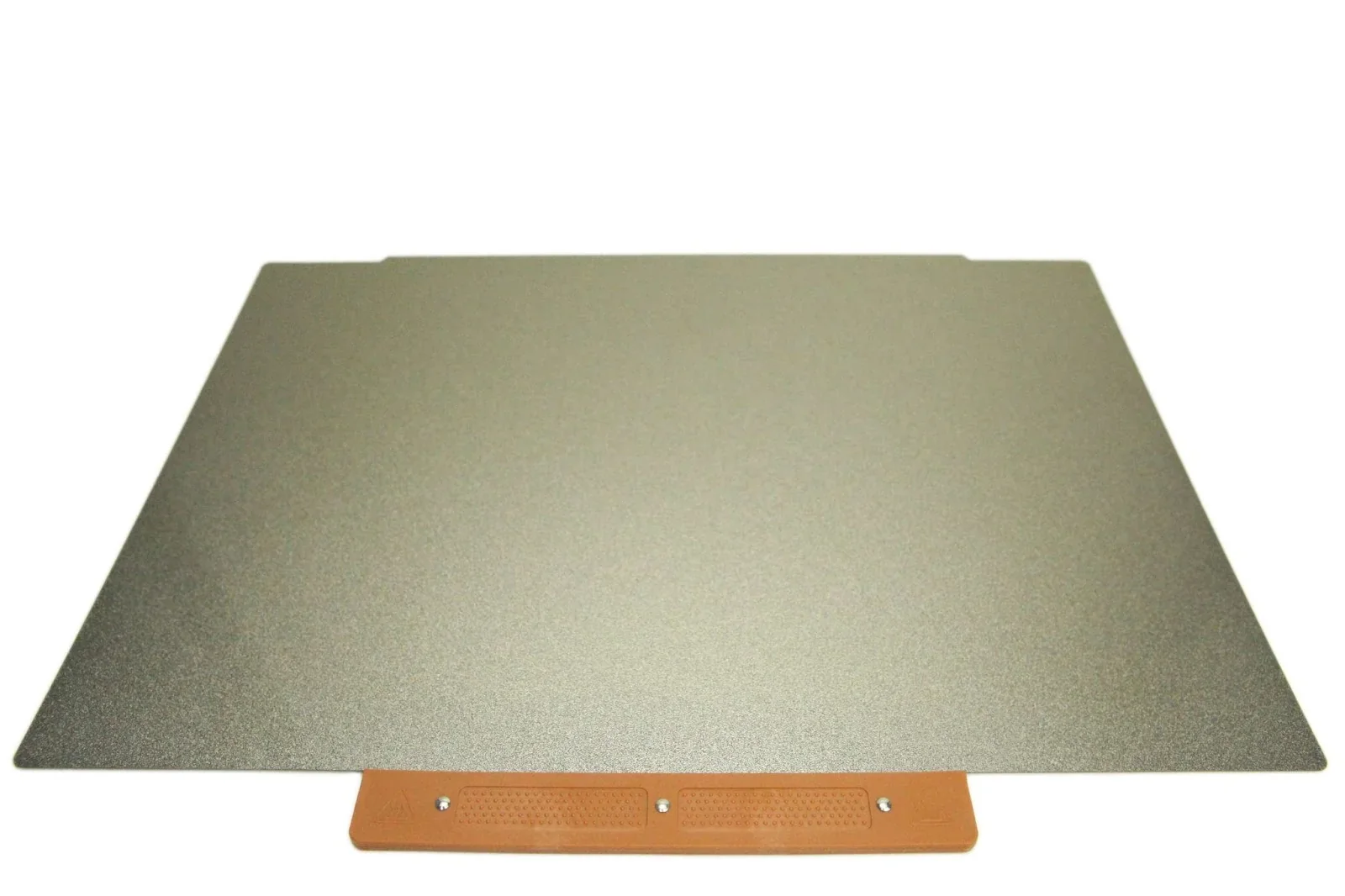

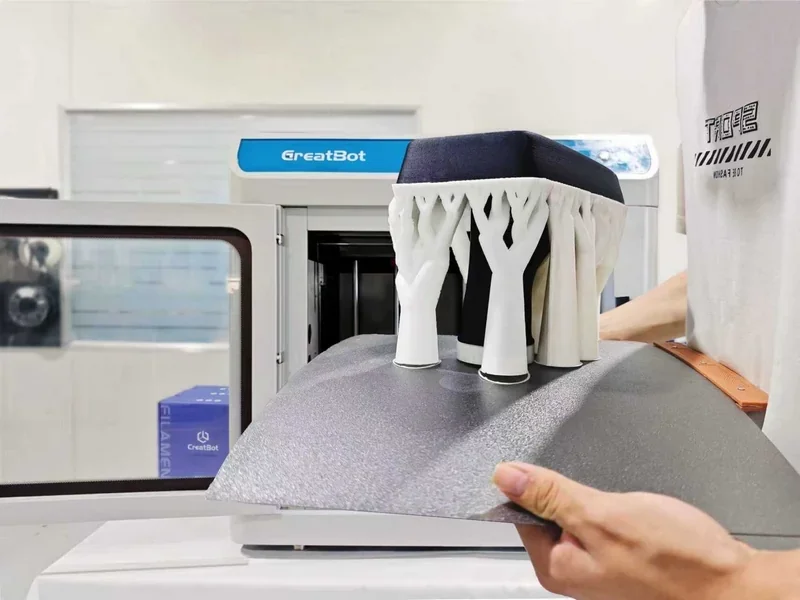

Removable magnetic sheet

Spring steel build plate with PEI coating for strong adhesion and easy print removal. Attaches magnetically for quick release, replacement, and maintenance without removing the bed assembly.

Heating sensor V2

Temperature sensor for the hotend that provides accurate thermal feedback, ensuring stable extrusion and precise heat control for consistent printing performance.

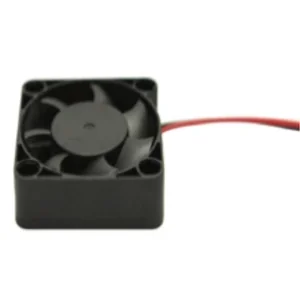

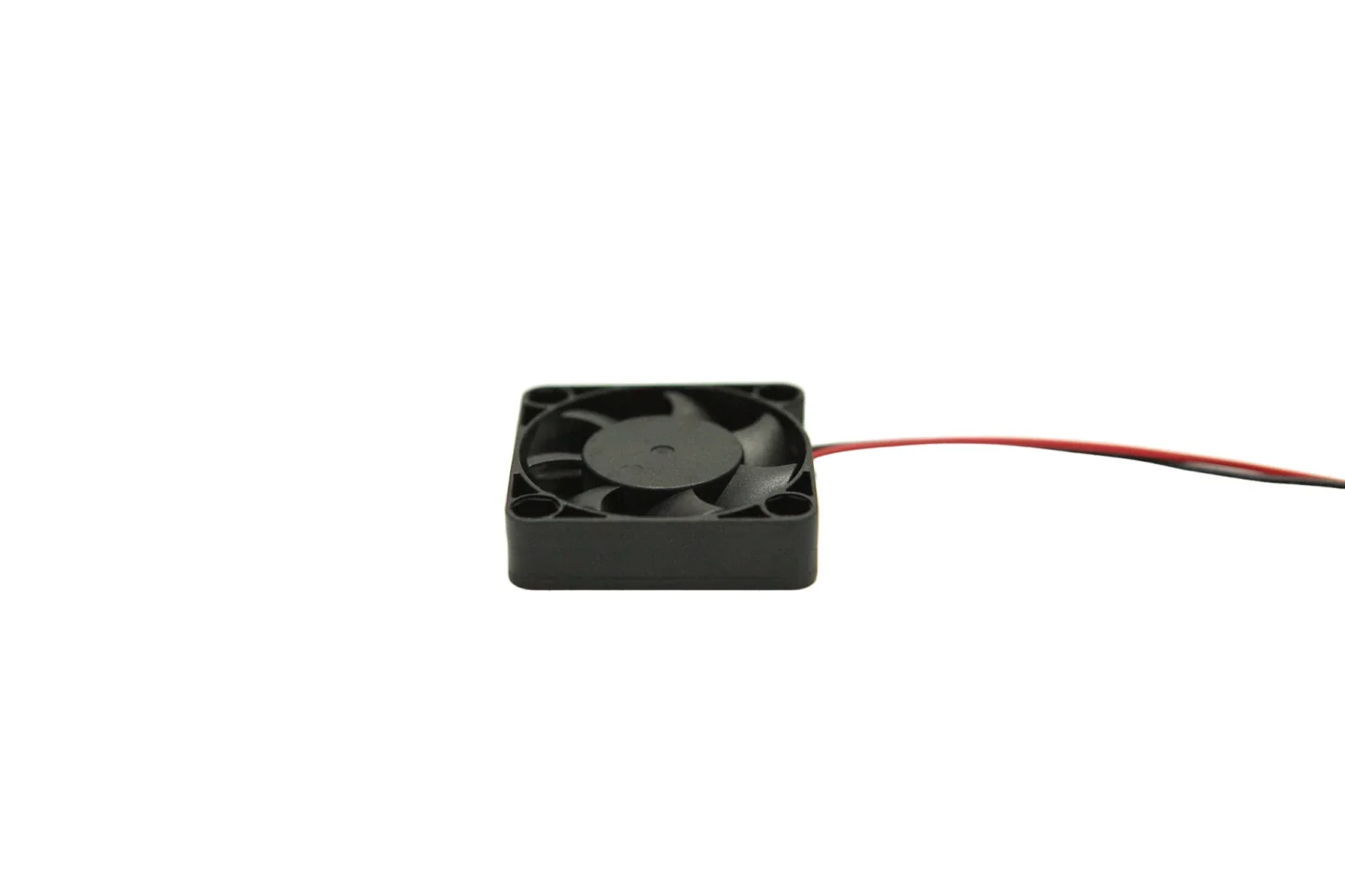

Cooling fans (cooling fan & sink fan)

Brushless 12V/24V fans that cool the hotend and critical parts to prevent overheating, improve print accuracy, and support overhangs and bridging with efficient, low-noise airflow.

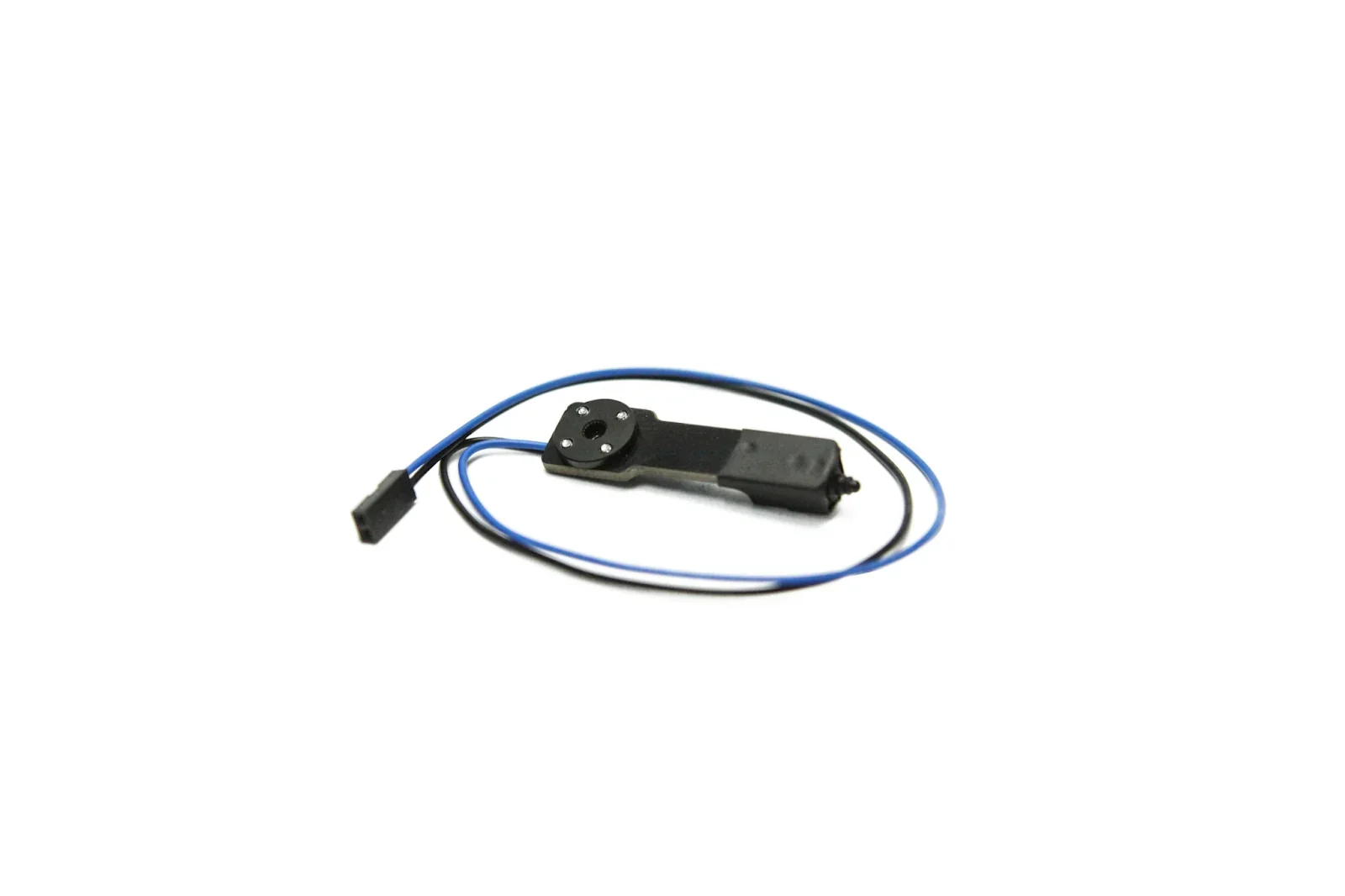

Z Leveling Sensor with Arm

Mechanical probe for automatic bed leveling, measuring nozzle-to-bed distance at multiple points to compensate for uneven surfaces. Improves first-layer adhesion, print quality, and consistency while reducing manual calibration. Integrates with firmware for servo-controlled deployment and retraction.

What maintenance does the CreatBot F430 NX printer require?

The F430 NX needs regular maintenance to maintain print quality and ensure safe operation.

What support and warranty come with the Creatbot F430 NX?

The F430 NX includes a 12-month warranty covering manufacturing defects and performance to specifications. Damaged parts are replaced free within this period, with installation guides provided. Nozzles and hotends have a separate 6-month warranty.

CreatBot provides after-sales support via email (support@creatbot.com) with 24-hour weekday responses, and Skype sessions for complex issues. An online resource center offers manuals, software, firmware, and troubleshooting guides.

Buy Creatbot F430 NX at Top3DShop to benefit from our 10+ experience in additive manufacturing. Top3DShop's technical team offers personalized assistance for setup, optimization, and troubleshooting. Support is available via email, chat, or phone. Top3DShop can also arrange return service according to CreatBot's warranty policies, streamlining the process for replacement parts or warranty claims.

Full warranty terms: https://www.creatbot.com/warranty

How much does the Creatbot F430 NX cost?

The CreatBot F430 NX is available at $4,928.07. It offers industrial-grade performance with dual 420 °C silicon carbide nozzles, a 70 °C heated chamber, precision framework, and full safety systems. Sold fully assembled with all essentials, it supports engineering-grade materials, large builds, and 24/7 operation, making it a cost-effective professional solution. Custom configurations and service packages are available on request.
