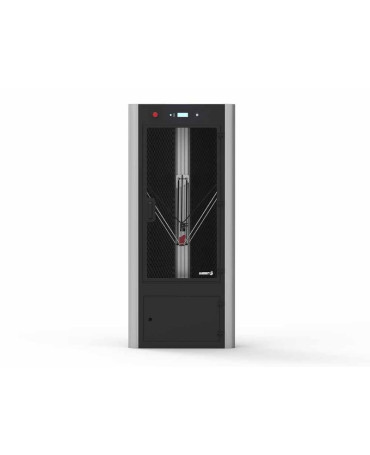

The Delta WASP 4070 Industrial X is a professional FDM 3D printer. It is an improved version of the standard 4070 Industrial 4.0 that prints considerably faster. Entirely made of metal, the 4070 Industrial X employs temperature-resistant steel cored belts. It ships fully assembled into a wooden box. With a massive build volume of Ø 400 x 700 mm and a closed chamber with thermo-acoustic insulation that can heat up to 70°C, this delta-style 3D printer lets you print a batch of large parts made of engineering and high-temperature filaments in one go.
Like its predecessor, the 4070 Industrial X includes an auto-calibration system, an open-door security sensor, and an end-of-the-filament detector. In addition, it features a “hot and cold” build chamber, a Wi-Fi module for remote control, and an on-board camera for real-time monitoring of your print jobs. It also boasts its Filament Driver X with two hardened steel gears and a gearbox, letting you print in a more streamlined way. The useful resurrection system lets you save your print data and resume your job in case of a power outage. When the print recovery is not available, the additional Free Zeta System lets you pre-set a specific height at which the print will start.
The Delta Wasp 4070 Industrial X employs the dual extrusion system with double gears that make it highly adaptable. You can choose between the WASP ZEN X Extruder to print with high-temperature materials or use the WASP FLEX Extruder to print with soft materials (up to shore 50A).
In case of problems, the machine can provide you with on-screen troubleshooting video tutorials. The Delta WASP 4070 Industrial X is successfully used in prototyping and small-scale manufacturing.
Take a look at some of the end-use parts printed with it to see what the printer is capable of.
The Delta WASP 4070 Industrial X 3D is a professional FFF/FDM 3D printer that can print layers at 100 microns. The surface finish is not as smooth as you get with the more expensive printers but is more than enough for rapid prototyping and large-format 3D printing. The print head reaches a maximum speed of 200 mm/s.
The printer is equipped with a 0.4 mm nozzle, giving you the best balance between speed and detail. It also supports 0.7 and 1.2 mm nozzles.
This delta-type 3D printer is characterized by high print speed. It is equipped with stepper motors and nylon wheels, which run on steel cored high-temperature resistant belts. Since there is minimal vibration of the print bed, the print quality is high.
The Delta WASP 4070 Industrial X prints with ASA, PLA, ABS, Flex, HIPS, PETG, TPU, Polypropylene, ABS+PC, PVA, PA carbon, and other materials.
Its suspended Bowden extruder comes with a fan for printing with PLA and ABS-type materials. By cooling the model down, it reduces warping, stringing and, generally, makes for higher quality prints.
The extruder has a maximum working temperature of 662 °F (350 °C), which means it can print high-temperature materials like PEEK, ABS/PC, PEI, carbon fiber, and glass fiber.
The Delta WASP 4070 Industrial X has both a heated print bed (120°C) and a hot chamber. The closed-box structure prevents warping and stringing issues caused by temperature fluctuations, making for higher accuracy and reliability. The hot and cold technology lets you heat the chamber up to 80°C while cooling down the mechanics for higher efficiency and durability when printing with technical filaments.
Depending on the extruder kit, the Delta WASP 4070 Industrial X can print with both 2.85 and 1.75 mm filaments, providing you with a wide choice of materials. In particular, it supports 1.75 mm filaments when using the Zen extruder and 2.85 mm filaments when using the Flex kit.
The Delta WASP 4070 Industrial X offers a build volume of Ø 15.7 x 27.6 inches (Ø 400 x 700 mm). Larger models can be printed in parts and then assembled using acetone (for ABS) or glue (for PLA).
The printer can be controlled remotely, via a paired computer, or the built-in TFT touch screen.
3D models can be printed from a computer via an SD card or over Wi-Fi The Delta WASP Industrial X also includes a built-in live camera for real-time monitoring. An emergency power off (EPO) lets you safely shut off the printers in case of need.
The printer software features the Octoprint interface. It supports STL, OBJ, and Gcode file types. It is compatible with the most popular 3D slicing software, including Cura, Slic3r, and Simplify 3D. The integrated software runs both on Windows, Mac, and Linux.
For some items, package content may change. In case of any questions, please get in touch.
The Delta WASP 4070 Industrial X is available in a black and grey color palette. Its stylish look makes it ideal for professional use.
The printer dimensions are 33.5 x 30.3 x 76.8 inches (850 x 770 x 1950 mm). It weighs 198 lb (90 kg). The spool holder is mounted inside the build chamber.
The price of the Delta WASP 4070 Industrial X is $15,550.00, which is reasonable considering its functionality.
