DOBOT MG400 Robotic Arm

In Stock
Compact and effective collaborative robot
  • High precision
  • Versatility and efficiency
  • Professional hardware
  • Wide connectivity
When purchasing with us you get:
  • FREE Delivery
  • 1 Year Warranty
  • 24/5 Customer Support
  • FREE training
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This robotic arm comes with:
  • Suction cup
  • Power adapter
  • Set of accessories
  • Quick start guide
Price: $2,699.00
Lead time is 3-7 business days.

The DOBOT MG400 is a lightweight desktop collaborative robotic arm with a manipulator range of up to 440 mm a maximum payload of 750 g. The robot is characterized by high precision and repeatability ensured by low-voltage servo motors with absolute position encoders as well as mechanical transmission parts with low backlash. Compact and lightweight, it can easily adapt to confined spaces, with the footprint smaller than a sheet of A4 paper.

The device has four integral joints that make for flexibility and simplicity at the same time. Engineered to be user-friendly, it offers several programming options for users with different skills and experience.

The DOBOT MG400 does not require any safety fences and is capable of interacting with operators, other robots, and various working environments. The cobot is perfect for lightweight industrial and commercial applications, for example, small-batch production, laboratory automation, R&D.

a how use Dobot MG400



Specifications:

  • Processing quality
  • Applications
  • Working range
  • Robot controls
  • What’s in the box
  • Look and feel
  • Price



Processing quality

The DOBOT MG400 uses the proprietary TrueMotion Algorithm technology featuring speed planning and dynamic algorithm, which makes for high accuracy and fast, stable operation. The device is capable of repeating a movement within 0.05 mm at a speed of 300°/s.

a processing quality on the Dobot MG400



Applications

The MG400 can be used in conjunction with a variety of end effectors to meet each and every requirement. These include a suction cup (with a mini vacuum pump box to provide a convenient vacuum source) and grippers of different kinds — electromagnetic, electric (Servo type), soft.

a Dobot MG400 hold phone

The multiple axes configuration makes the robot ideal for repetitive pick-and-place actions.

a conveyor dynamic tracking on the Dobot MG400

The robotic arm is great for tasks such as sorting, loading, unloading, dispensing.

Dobot MG400

The cobot can also perform a variety of other tasks like machine tending, packaging, assembly, screwdriving, palletizing, polishing and more, thus realizing the omnidirectional automation of the work.



Working range

a working range on the Dobot MG400

The device has a reach of up to 440 mm, which makes it suitable for a variety of tasks. The axis movement varies from joint to joint according to the following pattern:

a working range Dobot MG400

Thus, the working range of the robotic arm is as follows:

  • Joint 1: ±160°
  • Joint 2: -25° ~ 85°
  • Joint 3: -25° ~ 105°
  • Joint 4: -360° ~ 360°



Robot controls

The cobot is programmable through a variety of means: Teach & Playback is meant for beginners, Block Program will suit users with minimal programming experience, and LUA Script is best for veteran programmers. The first two are quite easy and straightforward, while LUA ensures maximum flexibility in solving complex tasks.

a robot controls on the Dobot MG400

The MG400 can be controlled via PC or tablet using an Ethernet cable or over Wi-Fi.



What’s in the box

Dobot MG400 kit

The standard supply package includes:

  • DOBOT MG400 robotic arm
  • Ethernet cable
  • Zero position fixture
  • Suction cup
  • Flange adapter
  • Emergency stop
  • Set of accessories
  • Power adapter
  • Quick start guide

For some items, package content may change.

To learn about the available add-ons for the robotic arm, please get in touch.



Look and feel

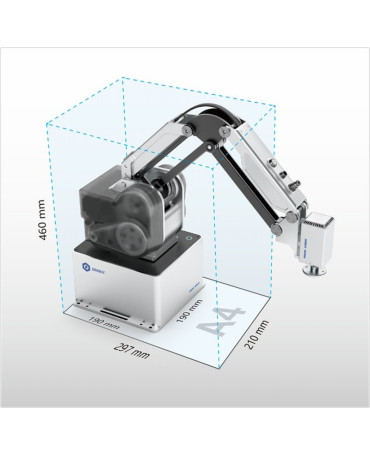

a robot base size Dobot MG400

The DOBOT MG400 is available in a metallic-and-black color scheme. Its stylish, solid look makes it ideal for a variety of industrial applications.

The robot base size is 7.5 x 7.5 inches (190 mm × 190 mm); it weighs 17.6 lb (8 kg).



Price

The price for the DOBOT MG400 is $2,699.00, which is reasonable considering its functionality and performance.
