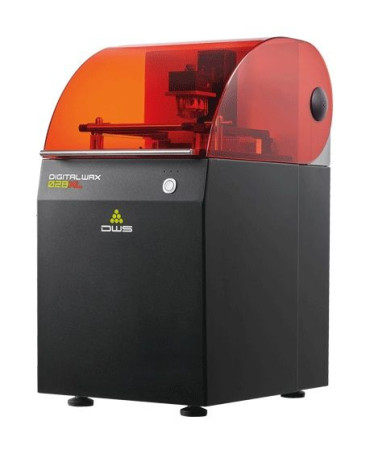

The DW 028J is a high-speed, high-precision 3D printer for rapid manufacture. Based on UV/STL technology, it has been specifically designed for small and medium-sized jewelry workshops. The layer-by-layer printing technology and the quality hardware will let you print any creative design. No matter the shape and the geometric complexity of your project, the printer will always deliver high-quality models. It has low running costs and doesn’t require particular maintenance. It can consistently print for up to 24 hours without interruption. It features the patented BluEdge laser, which allows for high-definition, reliable prints. It comes bundled with NAUTA+, the proprietary software that automatically generates support structures on your 3D models. It is used by several workshops and labs to create fashion accessories and jewelry.
DW 028J is also available in ECO (028 JE) and Plus versions. The Eco version is a cost-effective device able to produce small batches of well-defined 3D models. As the standard version, it has a build volume of 65 x 65 x 90 mm and can print up to 80 parts per day. DW 028J Plus comes with a bigger area of 90 x 90 x 90mm and a production capacity of 150 models per day.
Companies like Sorgente Microfusion use DWS SLA technology to create their castable models. Continue reading for a complete review.
For example, look how complex and well-defined this ring is. Every minute detail is exceptional.
Credit: @sorgentemicrofusioni / instagram
The DW 028J is an SLA 3D printer that can print layers at 10 microns. This way you can produce richly detailed parts with smooth and ornate exterior surfaces. It comes with a standard BluEdge spot laser of 22 µm, but you might also pick the HR version of 17 µm. The machine is able to handle undercuts and cavities like a champ, ensuring high design freedom. It is ideal for fast production of high-quality models.
DW 028J prints with DWS liquid resin cartridges. The branded system always ensures optimal quality, as all the materials go through a strict quality assurance process. Since the resin is stored in self-developed cartridges, swapping from a material to another is easy, safe, and convenient. Indeed, there is no more risk of spilling and wasting the resin.
The machine supports a full range of DWS’ material specifically developed for jewelry applications.
DW 028J is available in three versions: standard, ECO and Plus.
The DW 028J and DW 028J ECO have a build area of 2.6 x 2.6 x 3.5 inches (65 x 65 x 90 mm). The Plus has an enlarged volume of 3.5 x 3.5 x 3.5 inches (90 x 90 x 90 mm). By nesting multiple models on a single print platform - whether they are the same design or several different designs -, you can highly improve your volume production.
You can control the machine and print your 3D models by tethering it to your computer via USB.
DWS provides two proprietary software for parametric editing and machine controller functions, NAUTA+ and Fictor XFAB Edition. These easy-to-use programs will streamline your slicing and printing experience. NAUTA+ automatically generates support structures where needed. Fictor lets you configure print parameters to your liking, ensuring the best production quality achievable. The software runs on Windows.
For some items, package content may change. In case of any questions, please get in touch.
DW 028J is available in black with an orange cover. Its stylish look makes it ideal for rapid prototyping and professional use in both jewelry and artisan workshops.
The printer dimensions are 12.4 x 13.2 x 24.8 inches (380 x 515 x 733 mm). It weighs 123.5 lb (56 kg). The material cartridges are mounted inside.
The price of the DW 028J is $65,000.00, which is reasonable considering its functionality and the design freedom.
