E-Plus 3D EP-M450 Metal 3D Printer

In Stock
Efficient SLM system for series production
  • Single / dual laser option
  • Optimized gas flow
  • High printing efficiency
  • Open material system
When purchasing with us you get:
  • FREE Delivery
  • 1 Year Warranty
  • Local U.S. Support
  • FREE training
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This 3D printer comes with:
  • Printing system
  • Filtration system
  • Post-processing system
  • Control software
The estimated lead time is 5-10 business days.

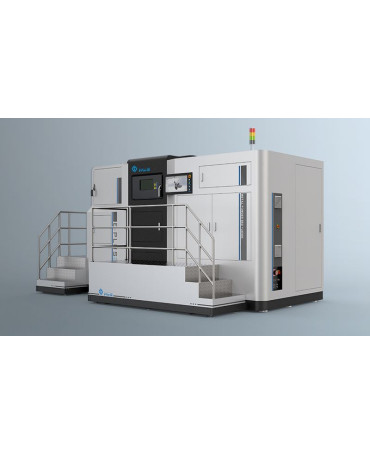

The E-Plus 3D EP-M450 is an industrial SLM 3D printer with a spacious build volume, designed for efficient production of large-scale, high-quality metal parts for aerospace, automotive, engineering, and other industries. As standard, the machine comes with a single 500W fiber laser, but there is a dual laser option providing a 70% increase in efficiency without losing print quality. The EP-M450 ensures reliable and highly productive printing with various metal and metal alloy powders.

The machine features optimized gas flow for homogeneous part properties throughout the entire build volume and efficient smoke and splash removal. The EP-M450 maximum build rate of 35 cm³/h increases up to 65 cm³/h with a dual laser system equipped. The final part density is up to 99.9% and the deviation in part mechanical properties is less than 5%. To ensure reliable, safe operation, the build chamber is tightly sealed, the oxygen concentration is kept below 100 ppm during printing and can be monitored in real time. Scanning speed of up to 8 m/s makes for time-efficient operation.

The EP-M450 is a modular system, including printing, filtration, and post-processing units, which greatly facilitates installation and maintenance of the machine.



Specifications

  • Print quality
  • Materials
  • Build volume
  • Printer controls and software
  • What's in the box
  • Look and feel
  • Price



Print quality

The EP-M450 can print layers with a thickness ranging from 20 to 120 microns, allowing for precise print setting adjustment depending on a certain application and required print quality and level of detail. Single or dual laser system with a spot size of 80–120 microns ensures highly accurate and fast printing. The integrated software provides the possibility to divide the model into sections and apply different process parameters to each of them, thus allowing for building complex parts with required properties in various areas.

Aluminum alloy, ⌀400 x h160 mm, printing time 124 h



Materials

The machine prints with metal and metal alloy powders that are suitable for direct manufacturing of high-quality metal components with various properties. It can process titanium, aluminum, and nickel-based alloys, maraging steel, stainless steel, cobalt chrome and copper alloys, and others.



Build volume

The spacious build volume of 455 x 455 x 500 mm provides enough space for creating large models or batches of smaller items in one printing session. This opens up wide opportunities for the industries requiring series manufacturing of high-quality metal parts.



Printer controls and software

The EP-M450 is operated via an integrated control unit with a user-friendly interface, real-time monitoring and adjustment of printing parameters, and fully automatic one-click printing function. The software calculates the estimated processing time and generates a printing report when the printing is over.

The proprietary EP-Hatch processing software allows using optimized scanning strategies to reduce print times. EP-Hatch can be integrated with the Siemens NX software for improved production efficiency.



What's in the box

Credit: directindustry.com

  • Printing system
  • Post-processing system
  • Filtration system
  • Control unit
  • Independently developed control software

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

The EP-M450 SLM 3D printer is available in white with black trimmings. Its solid look makes it ideal for a variety of industrial applications in the aerospace, automotive, and other fields.

The machine dimensions are 223.2 x 145.7 x 130.9 in (5670 x 3700 x 3325 mm). It weighs 22046 lbs (10000 kg).



Price

To learn the current price of the EP-M450 3D printer, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
