The E-Plus 3D EP-M450H is an industrial SLM 3D printer with a tall build volume measuring 1080 mm, designed for efficient production of large-scale, high-quality metal parts for aerospace, automotive, engineering, and other industries. As standard, the machine comes with a single 500W fiber laser, but there is a dual laser option providing a 70% increase in efficiency without losing print quality. The EP-M450H ensures reliable and highly productive printing with various metal and metal alloy powders.
The machine features optimized gas flow for homogeneous part properties throughout the entire build volume and efficient smoke and splash removal. The EP-M450H maximum build rate of 35 cm³/h increases up to 65 cm³/h with a dual laser system equipped. The final part density is up to 99.9% and the deviation in part mechanical properties is less than 5%. To ensure reliable, safe operation, the build chamber is tightly sealed, the oxygen concentration is kept below 100 ppm during printing and can be monitored in real time. Scanning speed of up to 8 m/s and bi-directional powder recoating make for reduced overall print time and increased productivity.
The EP-M450H is a modular system, including printing, filtration, and control units, which greatly facilitates installation and maintenance of the machine.
In718, 230 x 401 x 554 mm, printing time 152 h
The EP-M450H can print layers with a thickness ranging from 20 to 120 microns, allowing for precise print setting adjustment depending on a certain application and required print quality and level of detail. Single or dual laser system with a spot size of 80–120 microns ensures highly accurate and fast printing. The integrated software provides the possibility to divide the model into sections and apply different process parameters to each of them, thus allowing for building complex parts with required properties in various areas.
In718, 420 x 420 x 110 mm
TC4 titanium alloy, ⌀393 x h340 mm, printing time 150 h
The machine prints with metal and metal alloy powders that are suitable for direct manufacturing of high-quality metal components with various properties. It can process titanium, aluminum, and nickel-based alloys, maraging steel, stainless steel, cobalt chrome and copper alloys, and others.
The spacious build volume of 456 x 456 x 1080 mm is ideal for creating tall models and provides wide opportunities for the industries requiring high-quality metal parts. It is an effective solution for series manufacturing.
The EP-M450H is operated via an integrated control unit with a user-friendly interface, real-time monitoring and adjustment of printing parameters, and fully automatic one-click printing function. The software calculates the estimated processing time and generates a printing report when the printing is over.
The proprietary EP-Hatch processing software allows using optimized scanning strategies to reduce print times. EP-Hatch can be integrated with the Siemens NX software for improved production efficiency.
Credit: directindustry.com
For some items, package content may change. In case of any questions, please get in touch.

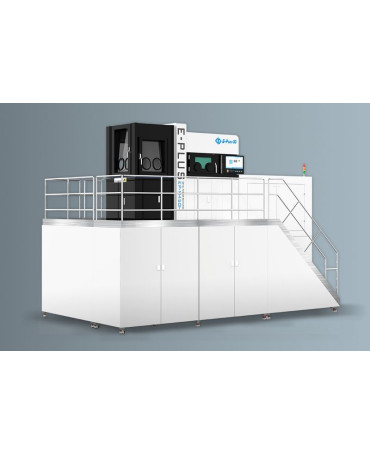

The EP-M450H SLM 3D printer is available in white with black trimmings. Its solid look makes it ideal for a variety of industrial applications in the aerospace, automotive, and other fields.
The machine dimensions are 252.4 x 144.5 x 190.9 in (6410 x 3670 x 4850 mm). It weighs 33069 lbs (15000 kg).
To learn the current price of the EP-M450H 3D printer, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
